Wiped Film Terp Traummel, gold mining to the next level.
Superior Molecular Distillation Process For Liquid Separation and Chemical Purification.
Wiped Film Evaporator and Vacuum Distillation
Terpene Condenser
Cold Trap Condenser
Diffusion Pump
Send in your requirements: [email protected]
designs and fabricates simple to complex systems using the wiped Film Short Path Distillation Process our stills, evaporators and hybrid configurations that include fractional columns with wiped-film distillation units, centrifugal molecular distillation units, vacuum distillation, condensers, evaporation and processing vessels that meet our customer's application requirements, with superior results!

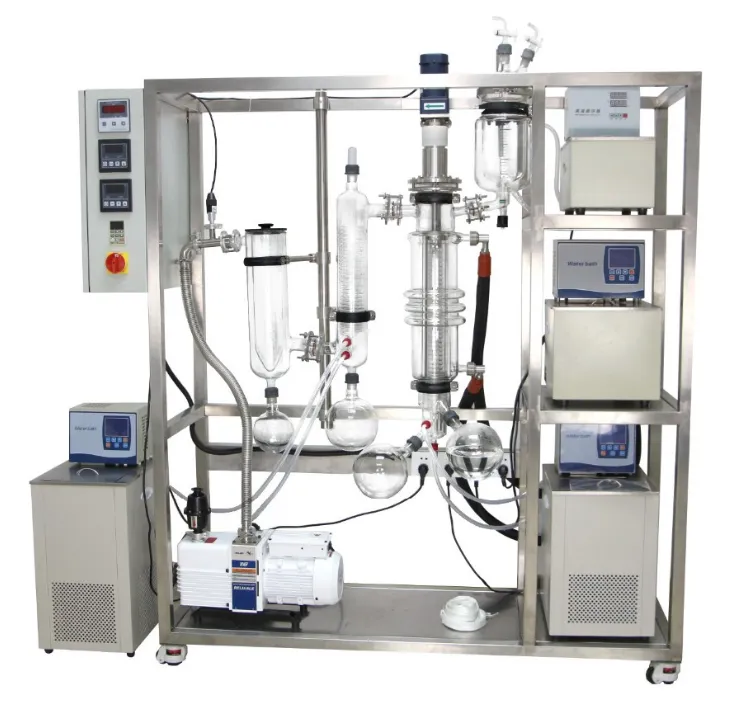

| CLSWFGM-100 Wiped Film Distillation System Price Sheet | ||
| Parts | Description | Specifications |
| Glass Components | Jacketed Glass Barrel with Internal Cooling Condenser | Diameter: 100mm Effective Evaporation Area: 0.15m2 Processing Rate: 750-1500 gram/hour |
| Jacketed Feeding Vessel with Lid | Volume: 2L Number of Ports on the Lid: Three Port Size: 24/40 Valve Material: PTFE | |
| Distilalte Receiving Flask | Volume: 3L Port: Spherical Joint | |
| Residue Receiving Flask | Volume: 2L Port: Spherical Joint | |
| Cold Trap | Cold Trap with 1L Collection Flask | |
| Wiper | Wiper | Material: Stainless Steel 316L Blade Material: PTFE |
| Control System | Control System | Digital High Vacuum Gauge (0.01pa-1atm), Pirani Type VFD Speed Controller for Stirring Motor, Motor Power:120W Two Temperature Controllers for Heating Tapes Electricity: 220V, single-phase, 1 kW total |
| Support Frame | Support Frame | Material: Stainless Steel 304 |
| Heating Circulator for Feeding Vessel | Reservoir Volume: 5L Temperature Range: RT-300℃ Pump Rate: 8L/min Heating power: 1.6kW Electricity: 220V | |
| Heating Circulator for Jacketed Glass Barrel | Reservoir Volume: 20L Temperature Range: RT-300℃ Pump Rate: 15L/min Heating power: 3.5kW Electricity: 220V | |
| Heating/cooling Circulator for Internal Condenser | Reservoir Volume: 5L Temperature Range: RT-100℃ Pump Rate: 15L/min Heating Power: 1 kW Compressor Power: 500 W Power: 1.8kW Electricity: 220V, single-phase | |
| Vacuum Pump | Pump Rate: 9CFM Oil Consumption:1.5L Ultimate Partial Pressure: <4x10-4mbar Rotating Speed: 1420r/min Motor Power: 0.55kW, 0.7HP Electricity: 220V, single or three phase | |
| Accessories | Accessories | Vacuum Tubes, Heating/Chilling Hoses, etc |

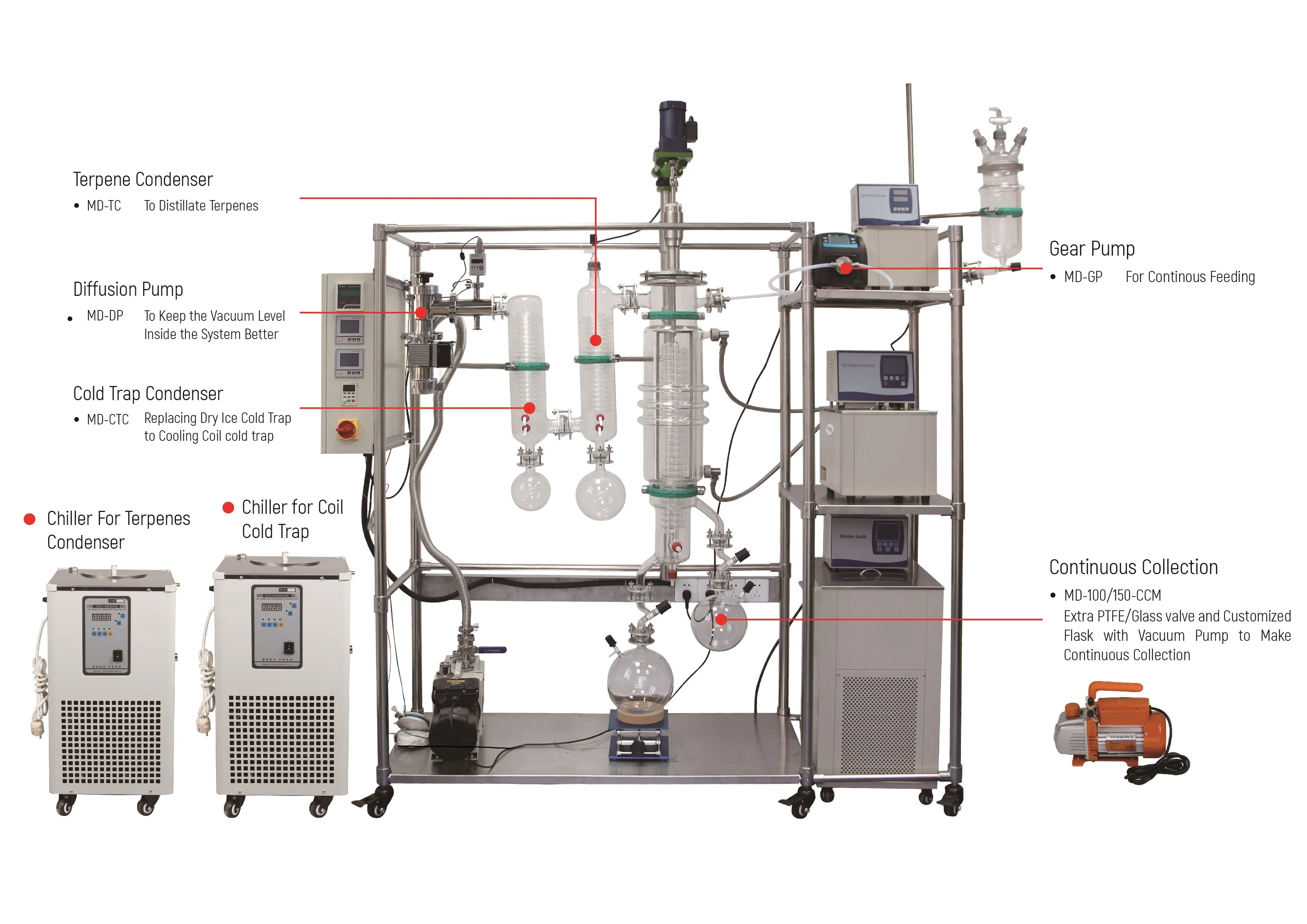

| Includes: Upgrade Options for short path wiped film evaporator | ||
| Option 1 | Add the Terpene Condenser | Additional Terpene Condenser Between Wiping Barrel and Cold Trap |
| Chilling Circulator used for Terpene Condenser | Reservoir Volume: 10L Temperature Range: -32℃-RT Pump Rate: 20L/min Electrical Power: 1kW Electricity: 220V | |
| Option 2 | Cold Trap Condenser | Replacing Dewar Style Cold Trap to Coil type cold trap condenser |
| Chilling Circulator used for Coil Type Cold Trap Condenser | Reservoir Volume: 5L Temperature Range: -82℃-RT Pump Rate: 20L/min Electrical Power: 1.5kW Electricity:220V/380V | |
| Option 3 | , Diffusion pump | Diameter: 100mm End vacuum : 5*10-2pa Pump rate: 70Lps Heating Power: 700W Electricity: 220V |
| Option 4 | Gear Pump | Transmission pressure : 0.8Mpa Pump rate: 15-900ml/min Speed rate: 50-3000RPM Power: 50W Electricity: 86-286V |
| Continuous Collection Module | Glass/PTFE Valve for Continuous Collection, 2 PCS | |
| Receiving Flask, 5L Volume, Socket Joint with 10mm Glass Barb & High Vacuum Valve,2PCS | ||
| 1-stage Vacuum Pump with Vacuum Gauge | ||
| Vacuum Pump Adapter, 1/4 SAE to 10mm Hose Barb | ||
