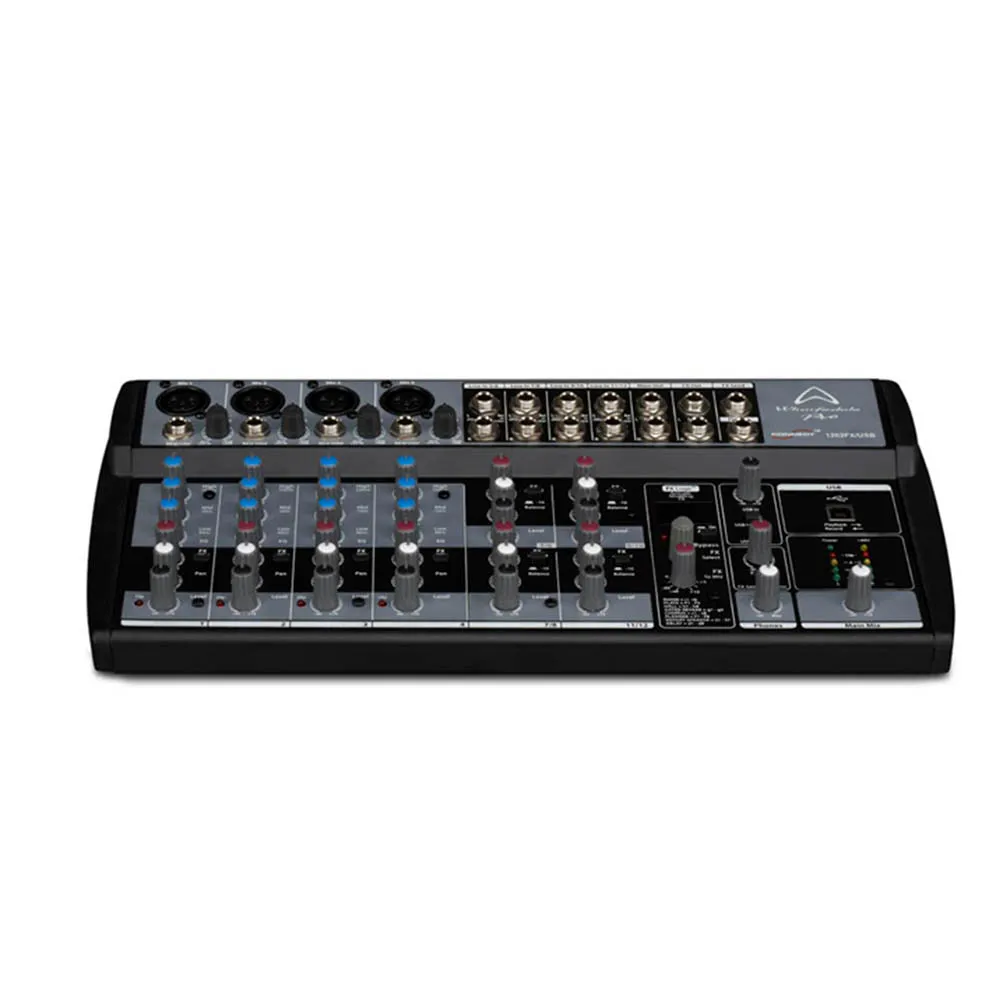

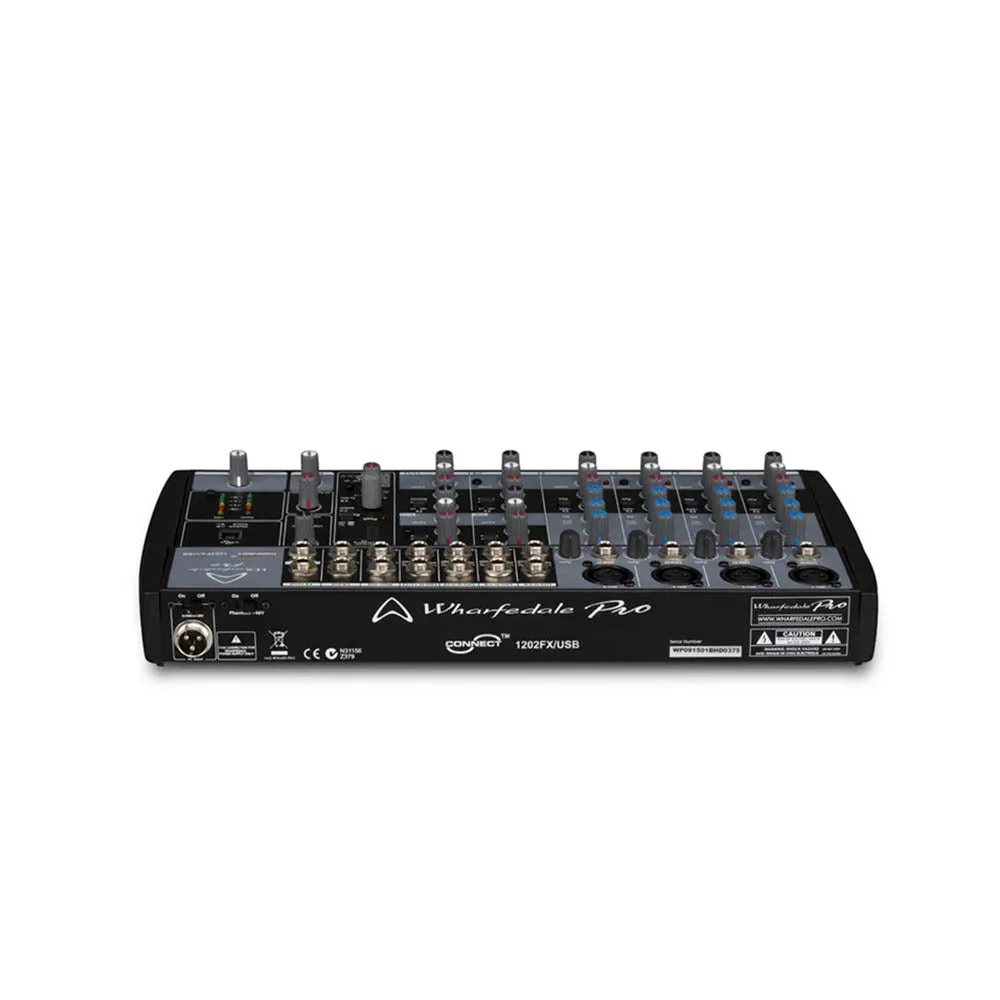

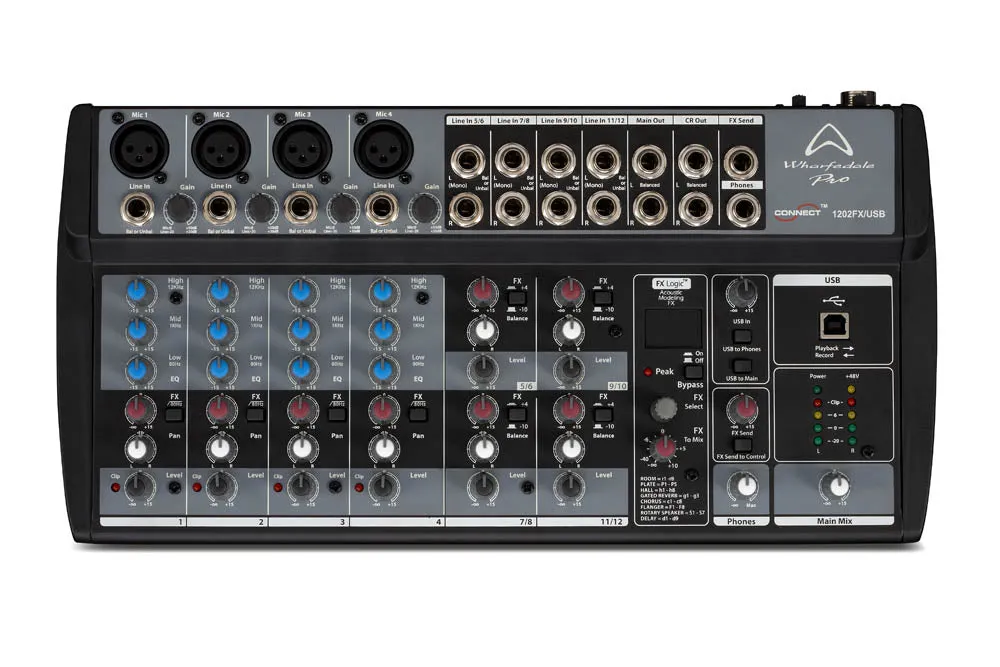

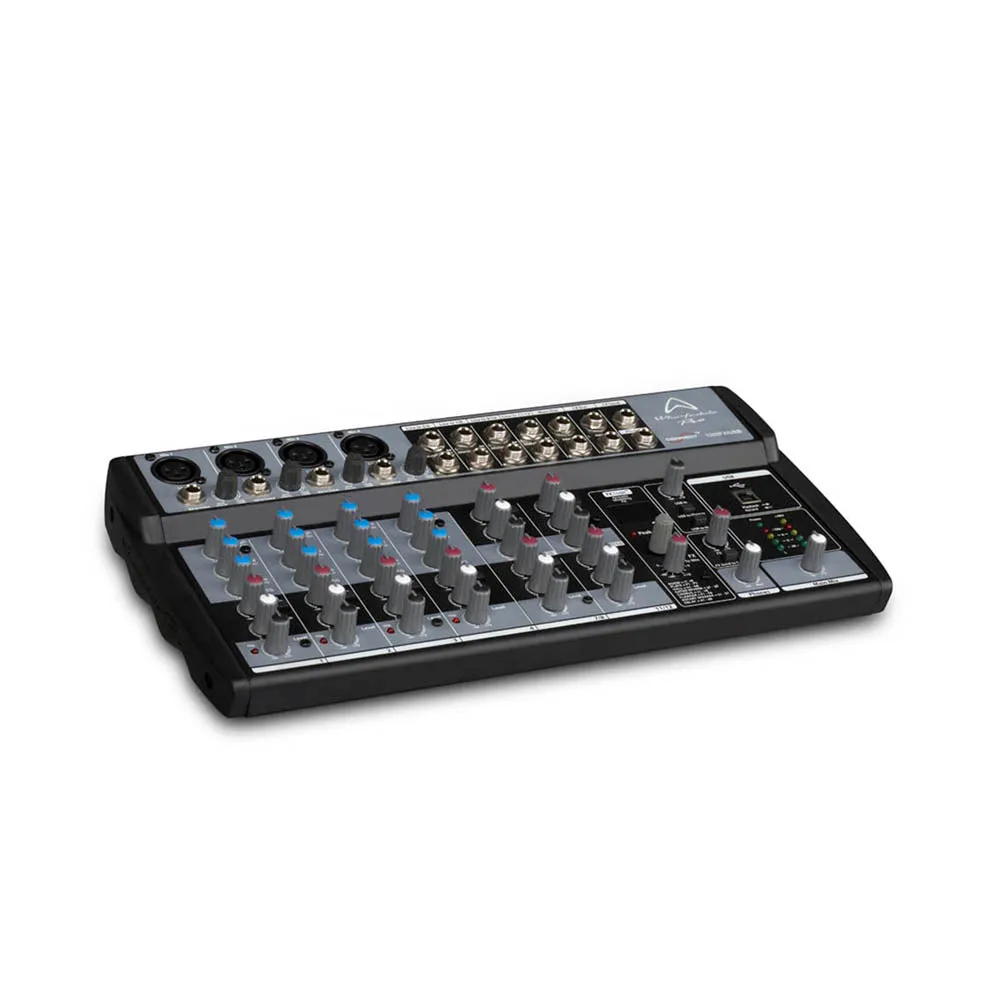

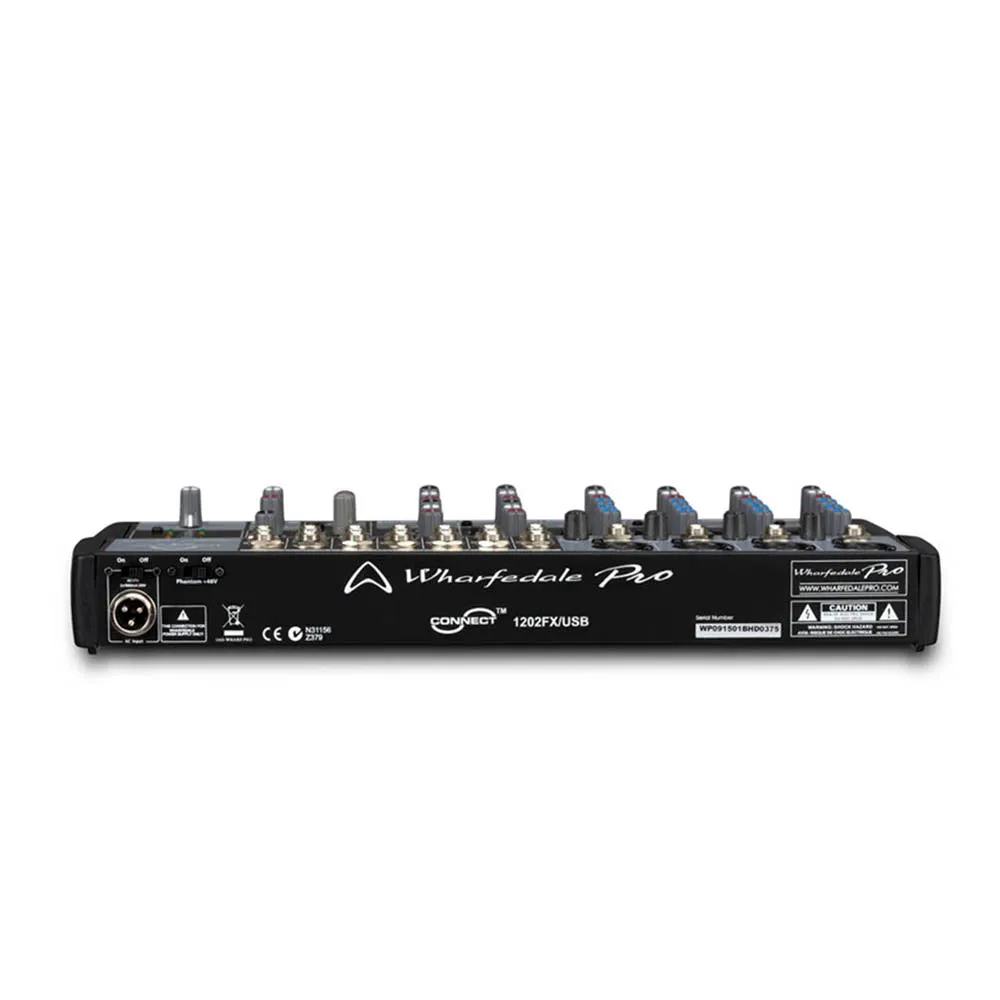

Connect 1202FX/USB

The Wharfedale Pro Connect 1202FX/USB is a compact mixing desk with massive capabilities. If you need a portable mixing desk and you do not want to sacrifice space for connections we have managed to condense ample inputs, outputs, digital FX and a USB audio interface into a small footprint mixer which is at home in the studio as it is the road.

Key Features

16 Total inputs (4 x XLR / 6.3mm Jack, 4x twin 6.3mm jack)
4 x 6.3mm jack outputs (master, control room)
Studio grade phantom power XLR
16 bit / 48kHz built in USB audio interface
Playback and record via USB audio interface
80Hz HPF on first 4 channels
Headphone output
Pan / Balance control
Clip LED display
Ideal for home studio recording and live use
slimline profile for portability and to fit in gig bags
FX Send
56FX Logic effects built-in with independent send

Leave the large mixer behind

The connect 1202FX/USB is the ideal companion for small scale live performances and discreet sound installations where there simply isn’t space for a full scale mixing desk – being the largest in the connect series, the mixer packs a wealth of features for mixing and recording but still retains a similarly small footprint as of the smaller models. The use of rotary controls as opposed to larger linear faders means space is saved to fit the mixer into small spaces even including guitar gig bags, yet the textured rotary pots operate with a suitable resistance so EQ and level controls can be pin-pointed with accuracy.

SPECIFICATIONS

Channels	12
Inputs	4 x XLR, 12 x 6.3mm Jack
Outputs	4 x 6.3mm Jack
Headphone Output	6.3mm Jack
EQ	3-Band
FX	56 FX Logic Acoustic Modelling FX: Room, Plate, Hall and Gated Reverb, Chorus, Flanger, Rotary speaker, Delay
Phantom Power	Yes
USB	16-bit / 48kHz
Signal To Noise Ratio	>78dB ±5dB @ Max Gain
Frequency Response	20Hz-20kHz ±1dB
Display	Dual 4-Segment LED, FX Setting Display
Dimensions (H x W x D)	360.2mm x 183.8mm x 52.8mm
Weight	1.69kg / 3.3lbs
