Item Description

UV sensor with a G1/4“ thread for pressurized water

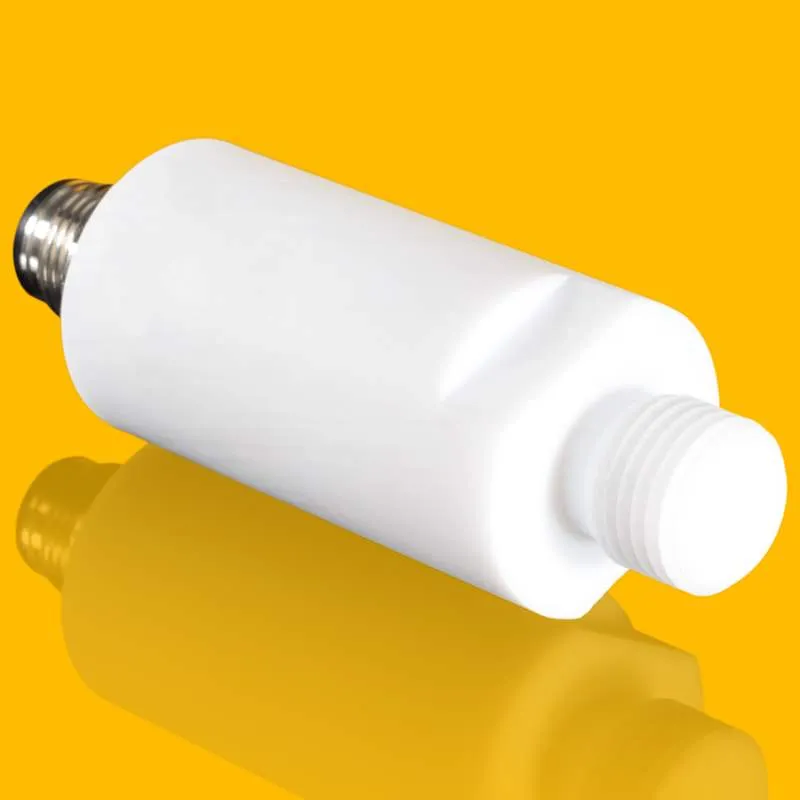

The UV-Water-PTFE is a 10 bar waterproof sensor with a G1/4" thread to be used in pressurized water systems. The sensor housing is made of PTFE. The sensor is only suited for low pressure lamps and moderate operating temperature up to 40°C. It will be configured upon individual customer’s requirements.

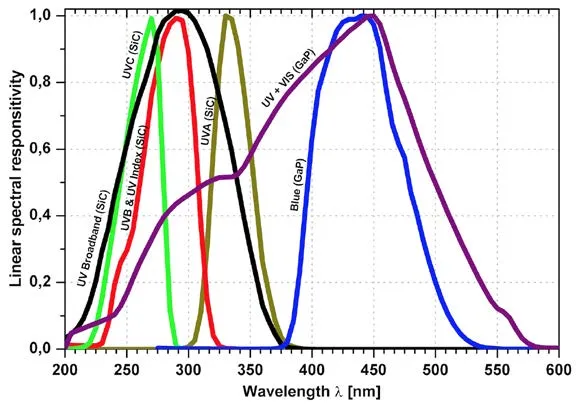

Configurable parameters are the signal output type, the measurement range and the spectral responsivity. The signal output is configurable as a 0…5V or 0…10V voltage output or 4…20mA current loop or photodiode output. Digital output sensors are available with a MOD bus, a CAN bus or a USB interface

Product Technical Specs

• Summary product specifications are below
• View and download the detailed product sheet at the Download PDF tab
• Please contact us with any questions for or assistance via our  or at 617-566-3821
