Item Description

Air flow cooled UV sensor for high UV irradiance and high temperature

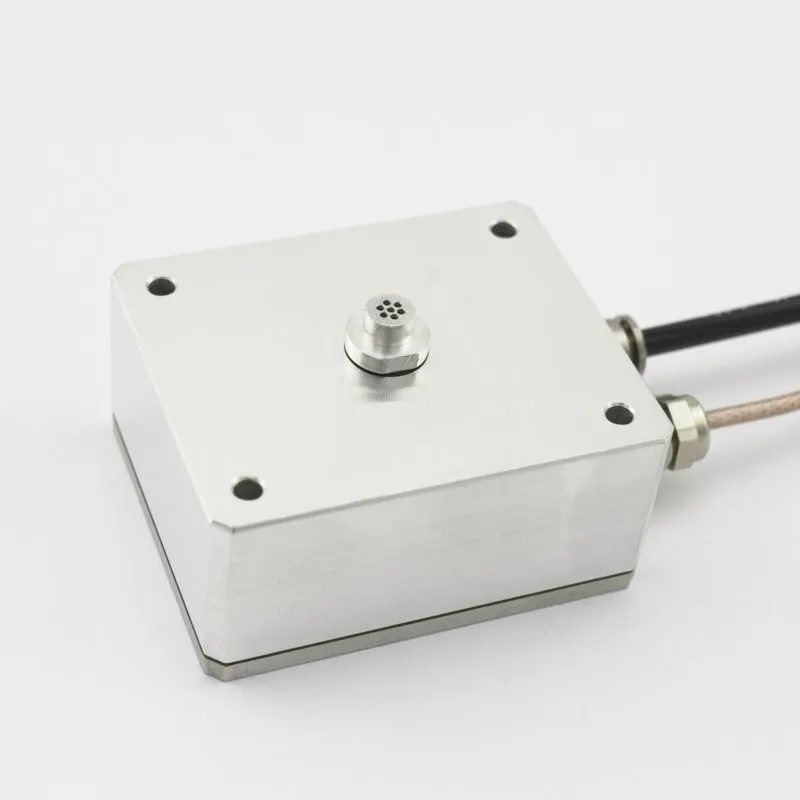

The UV-Cure-Plus is an air flow cooled and purged UV sensor for high UV irradiance (>100mW/cm2) and high operating temperature (<170°C). Typically, this sensor is used as a duty sensor in medium pressure lamp based UV curing systems. This sensor is designed and configured upon individual customer's requirements. The pictures show an example.

Product Technical Specs

• Summary product specifications are below
• View and download the detailed product sheet at the Download PDF tab
• Please contact us with any questions for or assistance via our  or at 617-566-3821
