Stereo Audio Meter with 7\ High-Resolution Display and USB Connection for Plug-In Metering

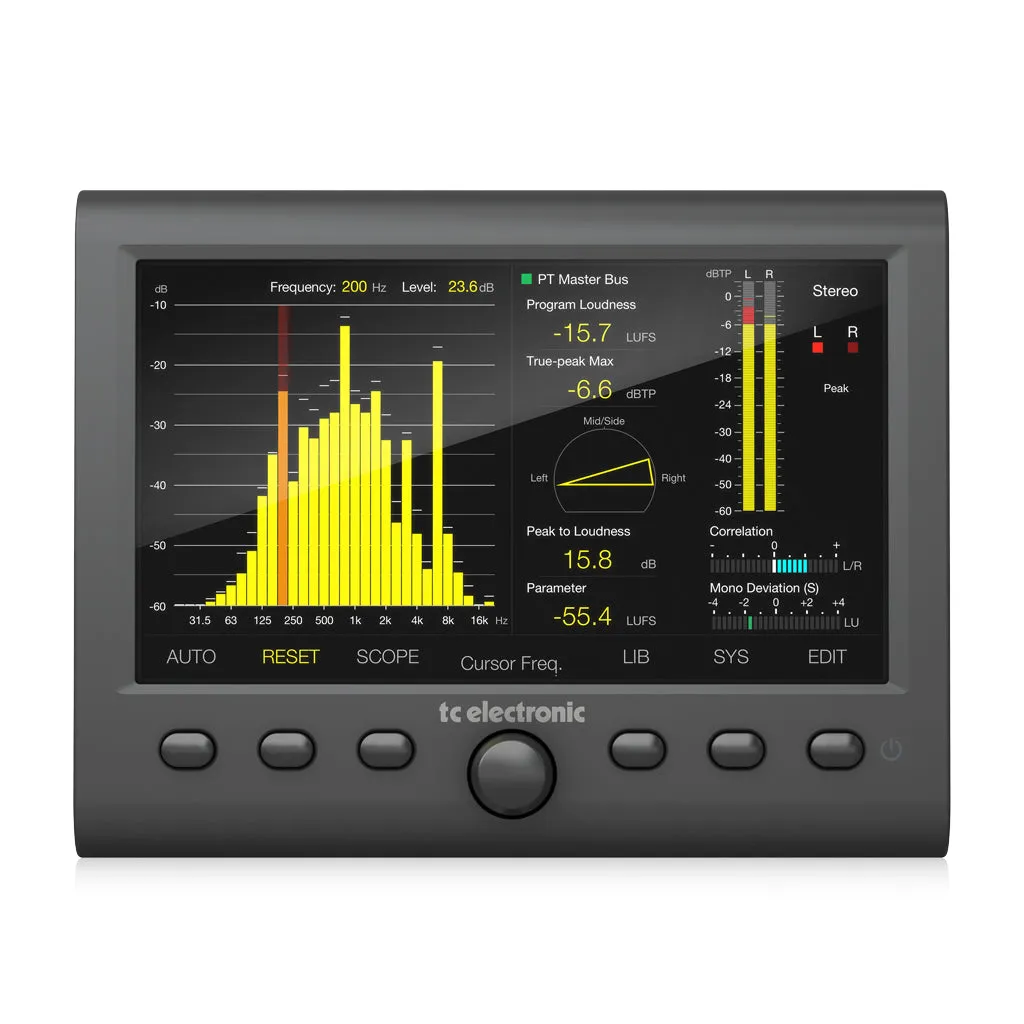

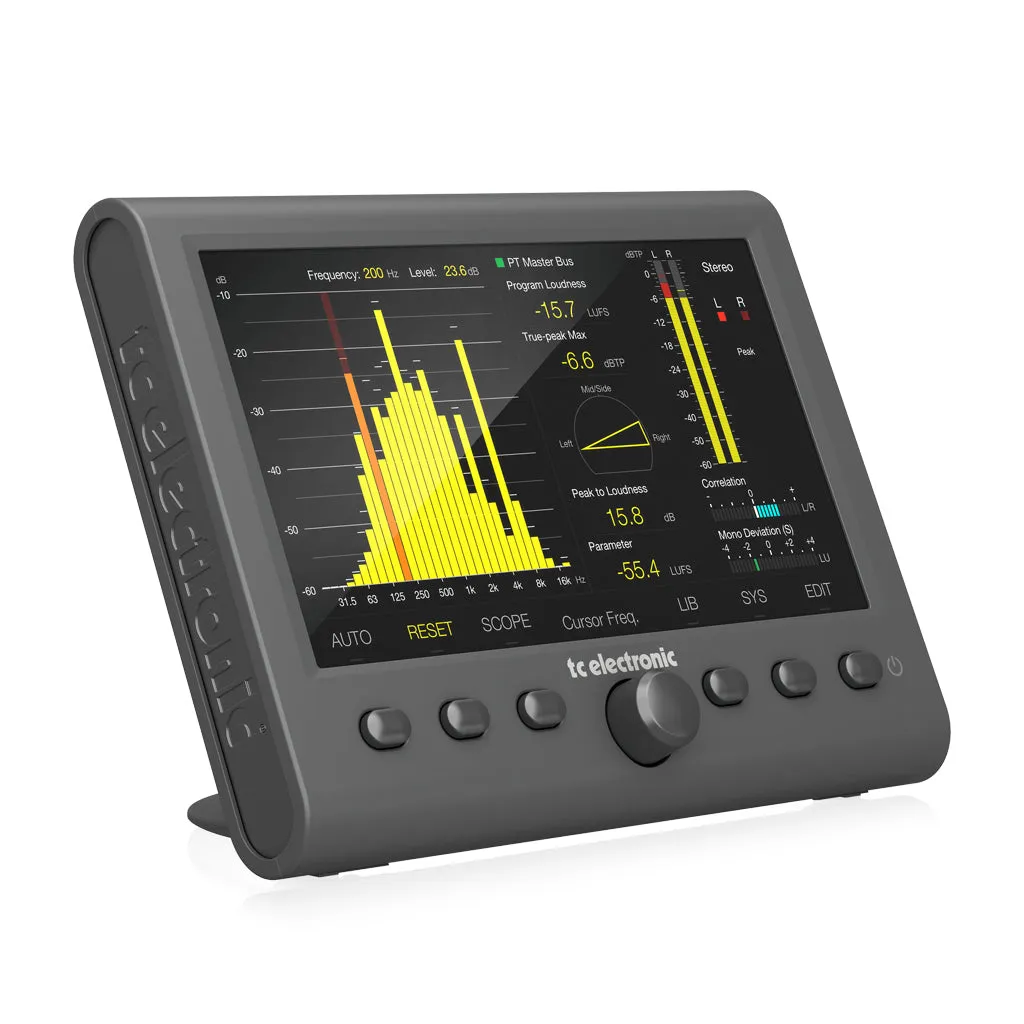

The CLARITY M STEREO provides a comprehensive set of precision tools essential to the success of any audio producer. Ideally suited to stereo mixing, mastering and post-production, CLARITY M STEREO’s 7 high-resolution LCD display provides a wealth of monitoring information at-a-glance via a single screen. Metering options include; the legendary LM6 Loudness Radar Meter; a state-of-the-art true peak meter; downmix compliance; stereo correlation; and a RTA (Real Time Analyzer).

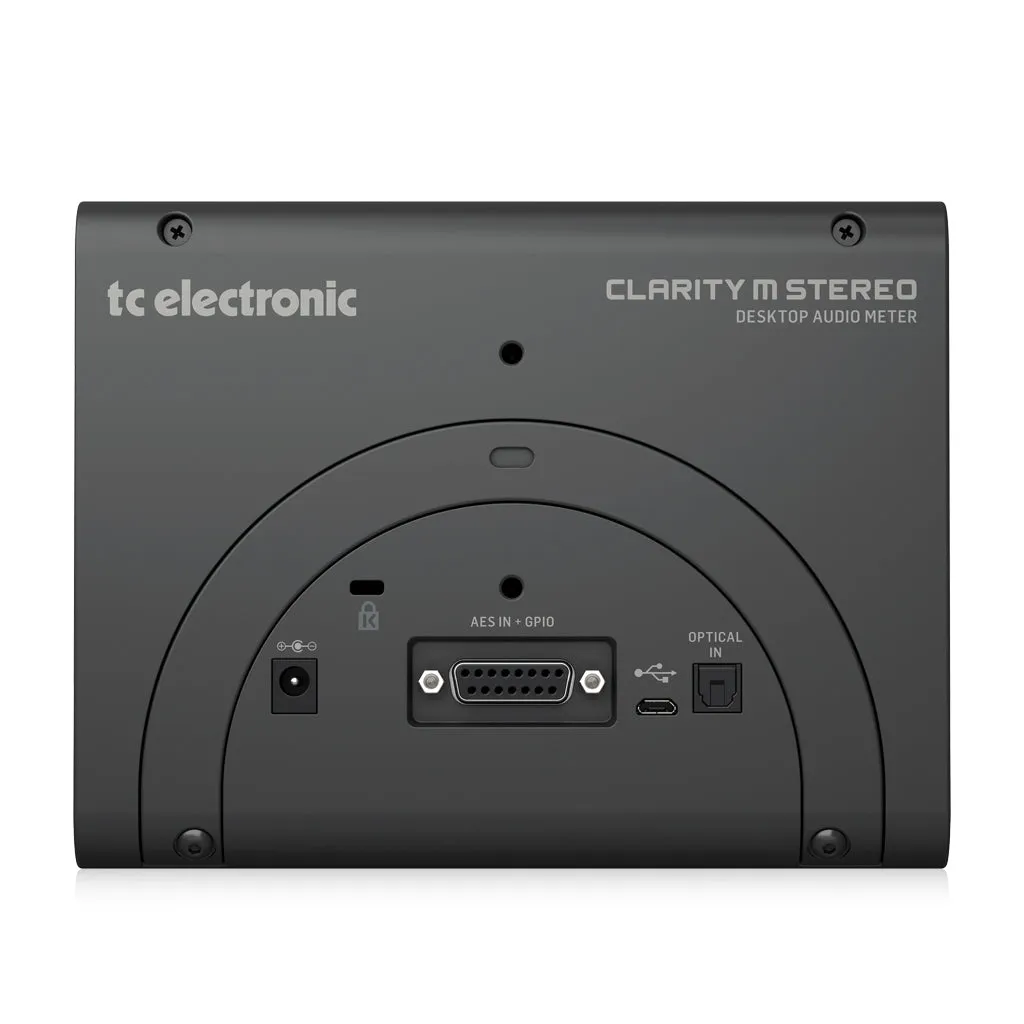

Source inputs come in a vast array of options including: USB for hassle-free VST*, Audio Units* and AAX* plug-in metering; Stereo 96 kHz AES3 digital audio on 75 Ohm BNC connectors or S/PDIF via the supplied RCA adapter for broadcast-grade metering; and stereo optical for maximum flexibility. CLARITY M STEREO is fully compliant with all major broadcast standards including ITU BS.1770-4, ATSC A/85, EBU R128, TR-B32 and OP-59, and is recommended for all studio environments.

Features

• Professional stereo audio meter for mixing, mastering and post production
• 7 high resolution LCD display for precision metering in all studio environments
• USB connection for hassle-free VST*, Audio Units and AAX* plug-in metering
• Stereo 96 kHz AES3 digital audio on 75 Ohm BNC connectors for broadcast-grade metering
• Ultimate metering toolbox to diagnose your mix for phase, balances, frequency distribution, loudness, channel weighting, clipping, mono compatibility
• Vectorscope for detailed Left-Right analysis
• High accuracy real time analyzer with 1/3 octave resolution
• Easy-read Balance-O-Meter to quickly check Left-Right and Mid-Side balances of your mix
• Precision correlation meter warns you about phase problems
• State-of-the-art scalable true peak meter identifies clipping in DACs, CODECs and downstream filters
• Legendary LM6 loudness radar meter provides all essential loudness monitoring information on a single screen
• Detailed statistics overview for all key loudness measuring parameters
• Provision for custom logo on LCD display
• Compliant with all major broadcast standards including ITU BS.1770-4, ATSC A/85, EBU R128, TR-B32 and OP-59

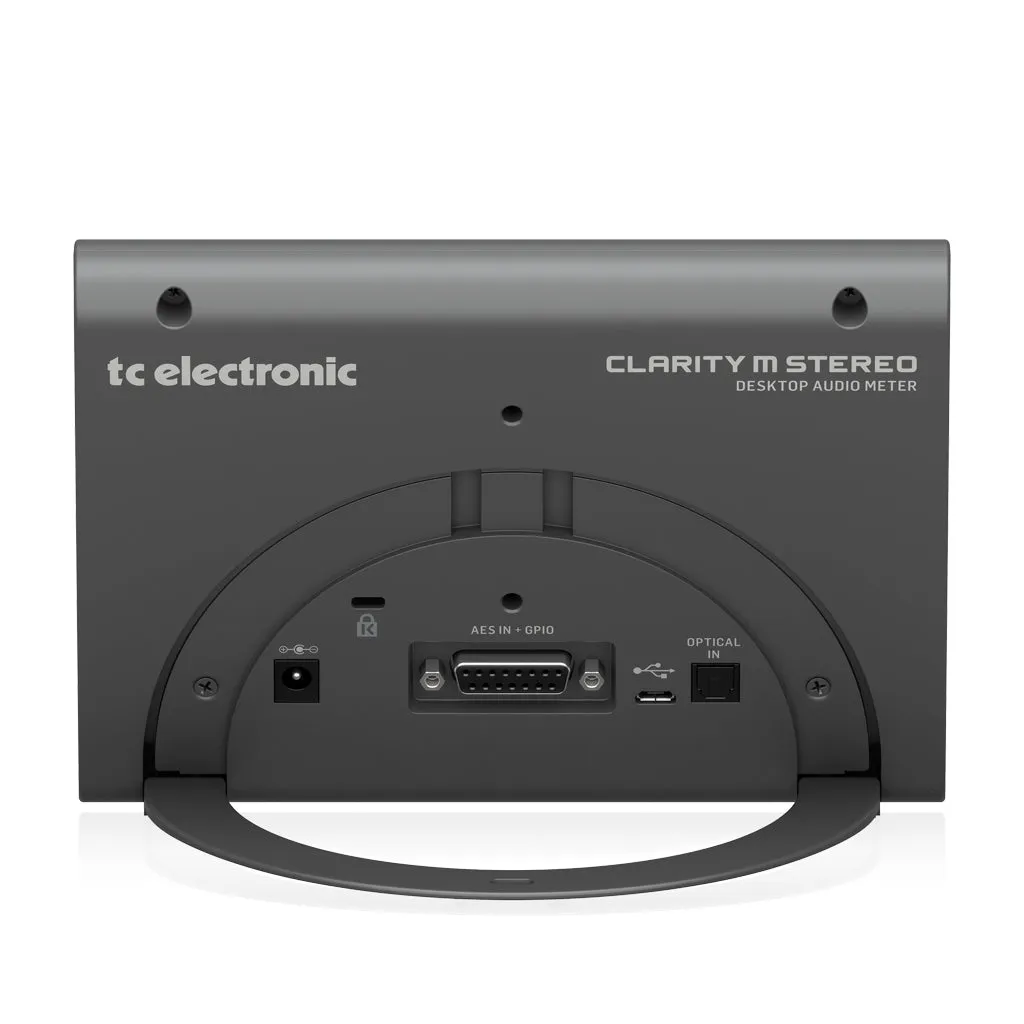

• RAM-mount compatible for wall or ceiling mounting (not included)
• Stereo Optical Input for TOSLink* source
• General purpose input (GPI) for meter reset
• Designed and engineered in Denmark
