Revolutionize Your Imaging Capabilities

Introducing the Source Ray SR-115 Portable X-ray System, a breakthrough in mobile radiography. Designed with the modern medical professional in mind, the SR-115 combines unparalleled portability with powerful imaging technology, ensuring you never have to compromise on quality or convenience.

Key Features and Benefits

Lightweight, Compact, and Agile

• Effortless Mobility: Weighing just 80 lbs (36 kg), the SR-115 is our lightest portable X-ray system yet. Its compact design makes it incredibly easy to transport and maneuver, even in the tightest spaces.
• Single Package Design: The all-in-one integrated design ensures that everything you need is within arm’s reach, streamlining your workflow and reducing setup time.
• Maximum Power: Despite its small footprint, the SR-115 delivers the maximum power obtainable from a line-powered portable X-ray system. Expect high reliability and low maintenance, making it ideal for any setting.

Exceptional Imaging Performance

• kVp Range: Offers a versatile range of 40-100 kVp, adjustable in precise 1 kVp steps to meet all your diagnostic needs.
• mAs Range: The flexible range of 0.15 - 60 mAs ensures optimal soft tissue and bone resolution, providing superior image quality.
• X-ray Tube: Equipped with a stationary anode and a 15° target with a 1.0 focal spot, the SR-115 boasts a 25,000 Heat Unit Storage capacity for high-quality imaging and excellent heat management.

User-Friendly Design

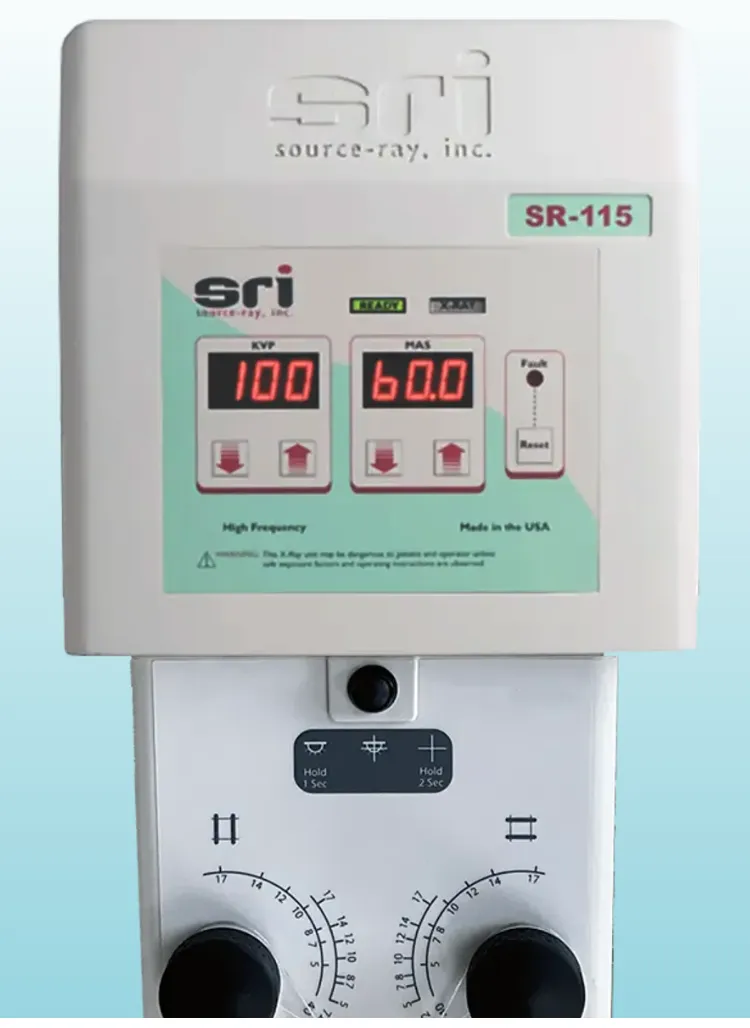

• Integrated Controls: Simple-to-use controls are built into the unit, offering intuitive operation and reducing the learning curve for new users.
• Durable Construction: The welded aluminum mechanical stand ensures long-lasting durability while maintaining a lightweight profile.
• Collimator: Features a 200° rotation with a high output LED lamp and laser indicators for precise aiming, making it easier than ever to achieve the perfect shot.

Versatile and Compliant

• Radiographic Applications: Specially designed for portable X-ray applications, making it perfect for use in small rooms or areas with limited access.
• Product Compliance: Certified to FDA 21 CFR Subchapter J, ensuring you meet all necessary regulatory requirements.
• Exposure Switch: Comes with a 2-position switch (Prep/X-ray) and a 15-foot cable for added flexibility and ease of use.

Specifications at a Glance

• Weight: 80 lbs (36 kg)
• kVp Range: 40-100 kVp
• mAs Range: 0.15 - 60
• X-ray Tube: Stationary anode, 15° target, 1.0 fs, 25,000 Heat Unit Storage
• Collimator: 200° rotation, high output LED lamp, laser indicators
• Mechanical Stand: Welded aluminum construction
• Exposure Switch: 2-position, 15’ cable

Why Choose the SR-115?

The Source Ray SR-115 Portable X-ray System stands out as the epitome of mobility and performance in the world of portable radiography. Its combination of lightweight design, powerful imaging capabilities, and user-friendly features makes it an indispensable tool for any medical professional. Whether you're working in a busy hospital, a small clinic, or on the go, the SR-115 provides the reliability and efficiency you need to deliver exceptional patient care.

Discover the Future of Portable Imaging

Elevate your diagnostic capabilities with the Source Ray SR-115 Portable X-ray System. Experience the perfect blend of agility, power, and precision in a single, compact unit. Contact us today to learn more or to schedule a demonstration.
