DESCRIPTION

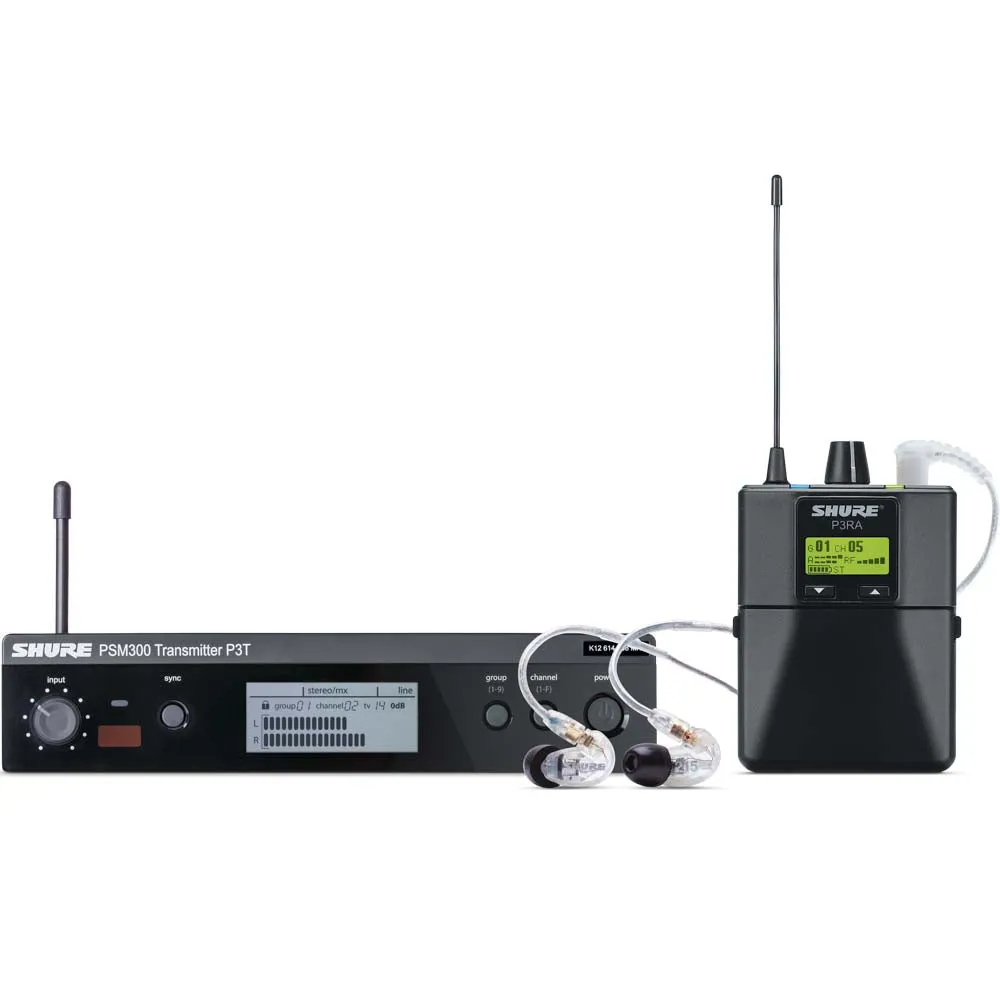

The PSM®300 Stereo Personal Monitor System delivers detailed 24-bit digital audio
and reliable wireless freedom to every corner of the stage. Patented Audio Reference
Companding ensures the clearest sound, with ultra-low noise and no artifacts. Dependable wireless coverage extends over 300 ft (90 m) of range and eliminates dropouts.

Easy to setup and operate, PSM300 systems offer one-touch frequency scan and sync to find and assign a clean wireless channel. Adjust the volume using MixMode® technology or stereo mode to create a personal mix from two channels of audio.

System Features

• Send two channels of audio wirelessly to performers onstage
• 24-bit digital audio provides clear, detailed sound
• Patented Audio Reference Companding sounds more like wired
• Up to 90 dB signal-to-noise ratio
• Solid analog RF connection over a 300 ft (90 m) range
• Create a personal mix from the bodypack with MixMode® technology or stereo mode
• Frequency scan and IR sync quickly finds and assigns a clean channel
• Half-rack, single channel transmitter with included rack mount kit
• P3R bodypack systems available with SE112 Sound Isolating™ Earphones
• P3RA professional bodypack systems available with SE215 Sound Isolating™ Earphones

CHARACTERISTICS

• Stereo/Mono: Stereo or Mono
• Included Transmitter: P3T
• Included Receiver: P3RA
• Included Earphones: SE215
• Number of Frequencies: 15
• Auto Frequency Scan: Yes
• Operating Range: 300 ft. Line-of-sight
• Earphone Type: In-ear
• Earphone Freq Response: 38Hz-15kHz
• Earphone Cable Length: 64"
• Transmitter Inputs: 2 x 1/4"
• Transmitter Outputs: 2 x 1/4" (loop out)
• Transmitter Power: 12-15V DC power supply
• Transmitter Dimensions: 1.7" x 7.8" x 6.8"
• Receiver Output Jack: 1 x 1/8"
• Receiver Power: 2 x AA Batteries
• Receiver Dimensions: 3.9" x 2.6" x 0.9"
• Receiver Weight: 0.43 lbs. (with batteries)
