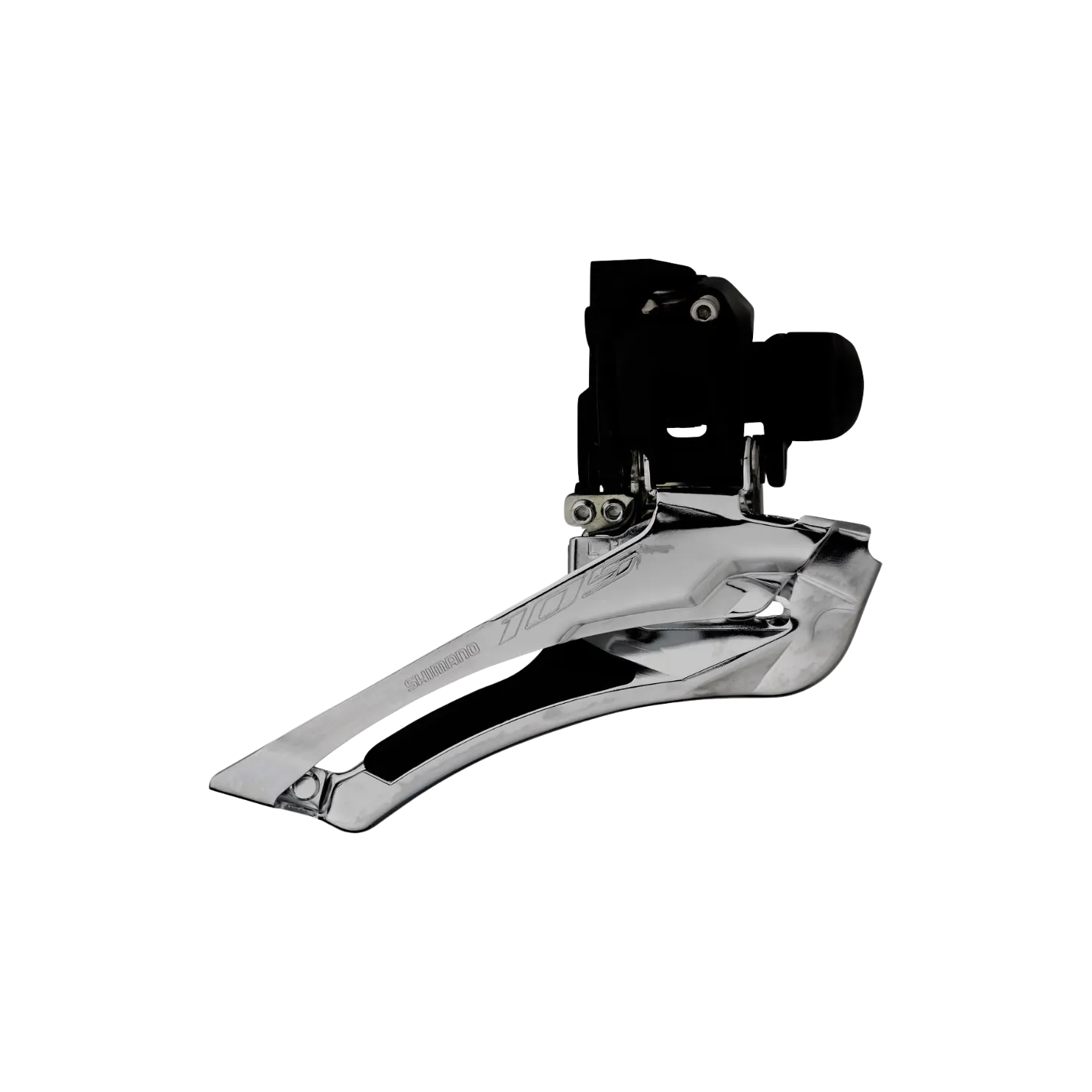

The FD-R7100 from the Shimano 105 R7100 series is a mechanical 2x front derailleur for road bikes with 12-speed shifting. Thanks to its precise and smooth operation, you can enjoy reliable and immediate shifting performance on all your rides, without worrying about battery charge levels. FD-R7100 features an innovative toggle link design that gives you more cable routing options. The integrated tensioner facilitates adjustment, allows on-the-go adjustments and makes for a cleaner cockpit by eliminating the need for an in-line shift cable adjuster. In keeping with the trend towards wider tyres, the model has generous tyre clearance. It is available for braze-on and for clamp mounting, so that it can be easily installed on your bike. The front derailleur is partly made of steel and partly of plastic, which provides more durability and keeps the weight low. The braze-on version weighs about 50 grams less than its electronic counterpart.

Features
Mechanical 2x front derailleur from the 105 series for road bikes with 12-speed gears
Precise, fast and permanently reliable shifting
Toggle link construction opens up more cable routing options
Simplified adjustability with integrated tensioner
High tyre clearance
Angled clamp design (not with braze-on version)
7 joint bushings
Parallelogram painted outside, plated inside
Chrome-plated cage plates

Specifcications
Series: 105 R7100
Application: Road
Gearing: 2x (combined w/ 12-speed)
Chainstay Angle: 61 - 66°
Chainline: 44.5 mm
Chainring Size (max.): 50 - 52 teeth
Capacity: 16-tooth
Cable Routing: down pull
Movement: down-swing
Mount: braze-on, clamp
Clamp Diameter: 31.8 mm w/adapter 28.6 mm, 34.9 mm
Compatibility: HG 12-speed chains

Mfr Claimed Weight
Silver/braze-on: 96g
Silver/31.8 mm: 111g
