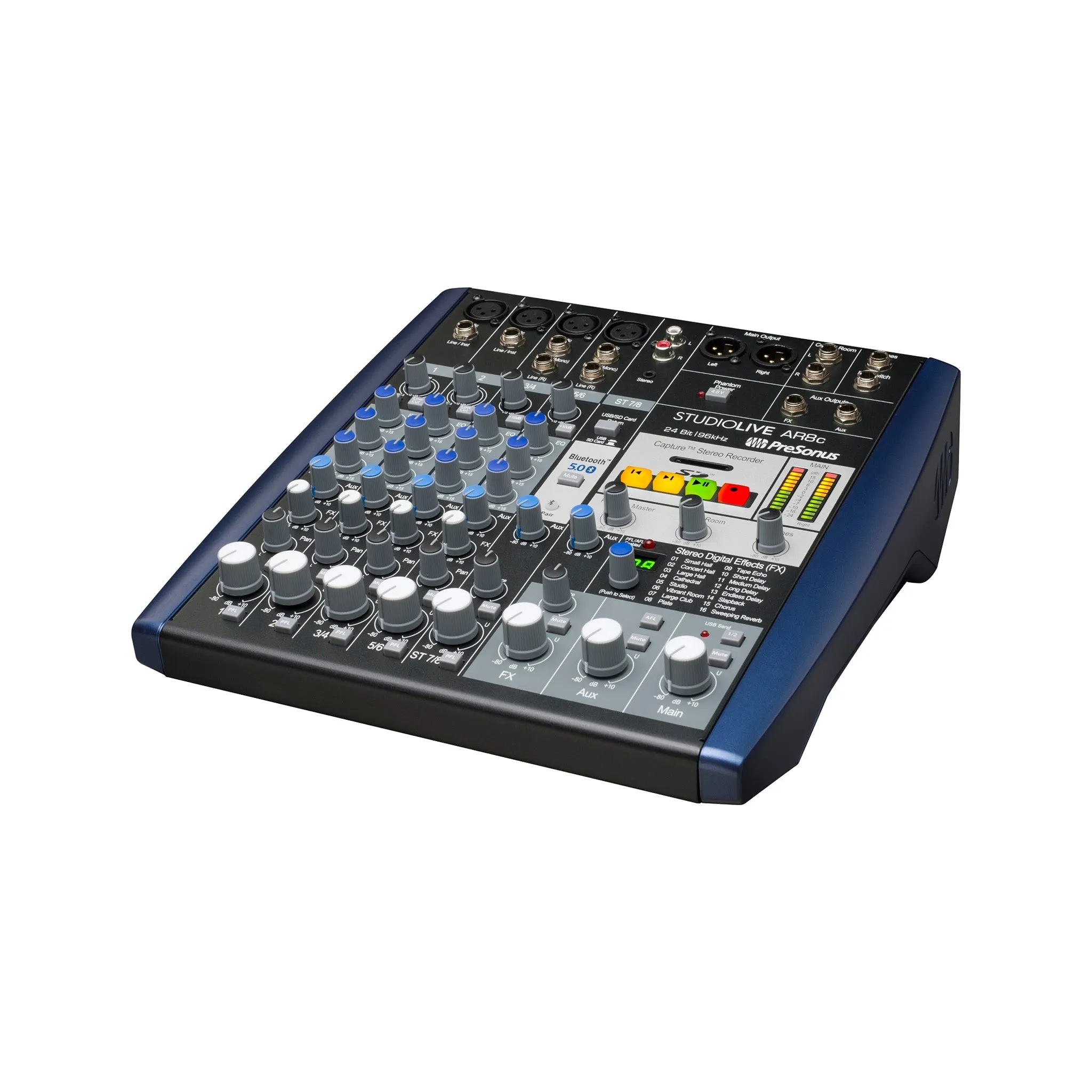

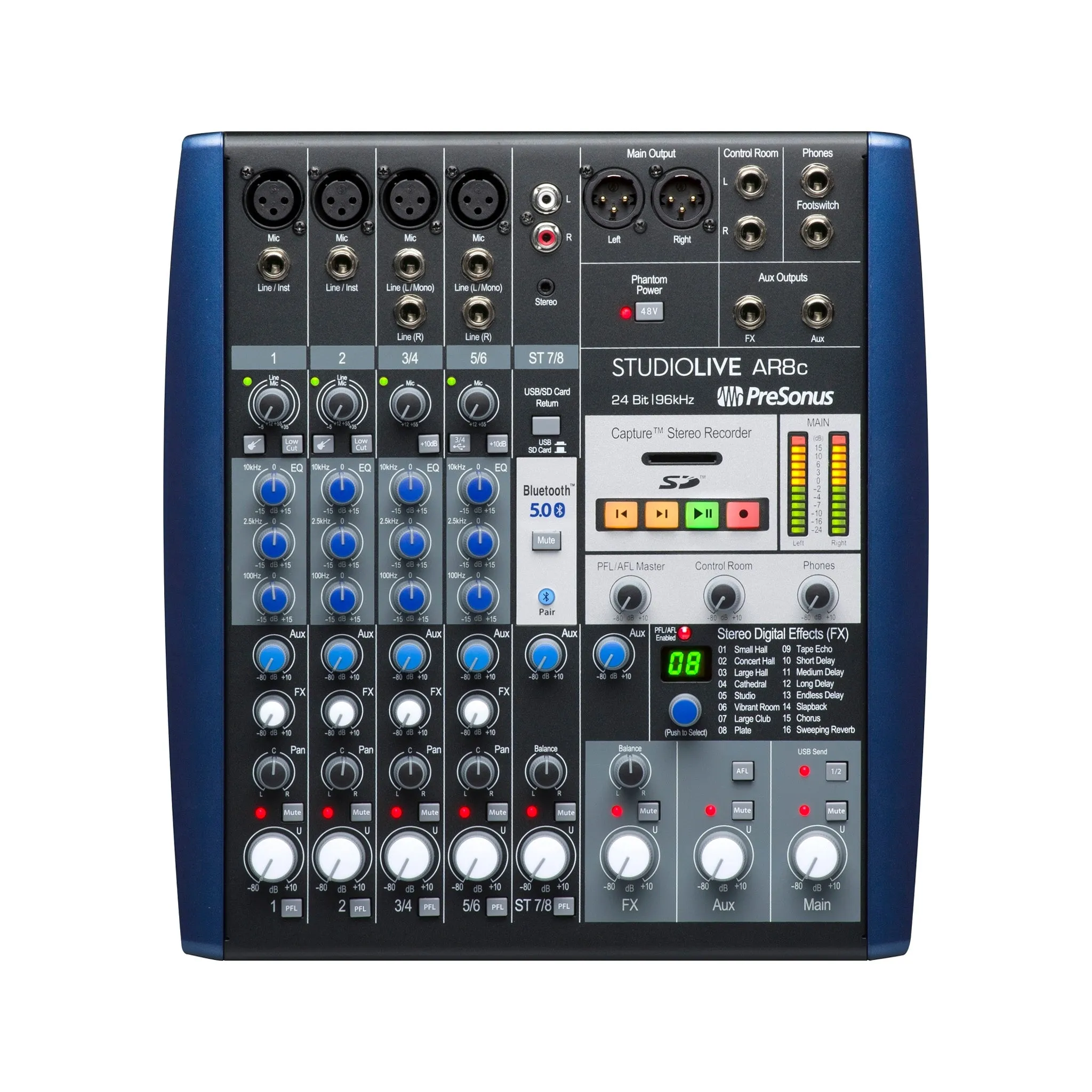

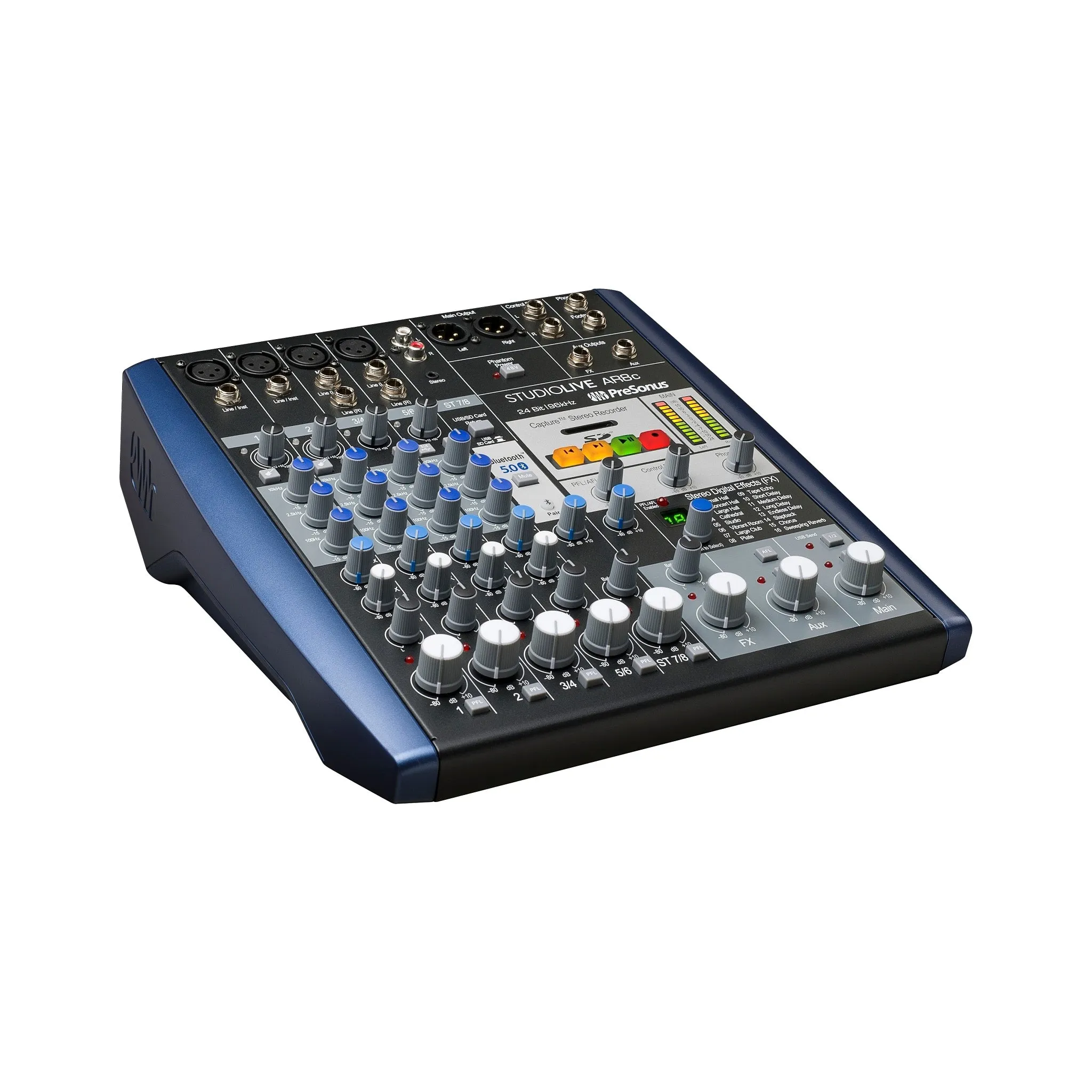

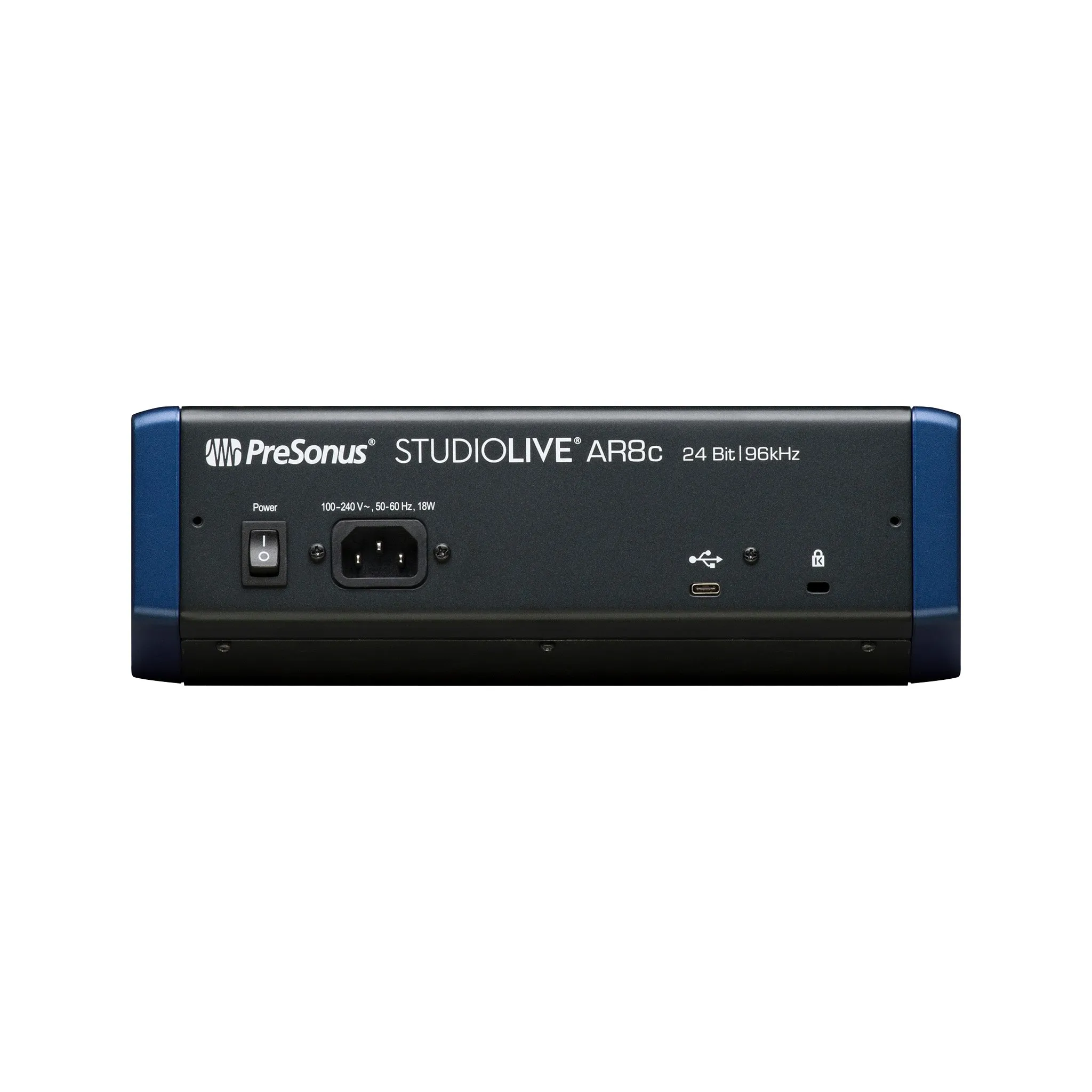

With its instantly familiar analogue mixer design, the StudioLive® AR8c is the easiest way to record podcasts, live streams, and music productions. Featuring a pristine analogue front end with four high-gain XMAX mic preamps and an 8x4, 24-bit, 96 kHz, USB-C™-compatible USB 2.0 audio interface, the StudioLive AR8c’s hybrid design makes it simple to mix and record. Add in tools like a musical 3-band analogue EQ, mic/line boost for low-level input sources and consumer devices, Bluetooth® connectivity, a stereo SD recorder, and high-impedance instruments inputs, and you have a broadcasting and recording powerhouse that fulfils the needs of modern musicians and content creators.
Features:
- 8x4 24-bit/96 kHz, USB 2.0 (over USB-C™ connection) audio recording interface; record every channel plus the main mix
- 2x2 SD recorder (record main mix); supports SD and SDHC formats up to 32 GB
- 4 balanced microphone inputs with XMAX mic preamps, 2 instrument/line inputs, and 2 pairs of stereo-balanced line inputs
- Stereo Super Channel (Ch. 7/8) with Bluetooth®0 wireless, RCA inputs, 1/8-inch stereo input, and switchable SD/USB stereo playback
- Stereo effects processor with 16 presets, dedicated send and return, and bypass footswitch jack
- Complete recording solution: Includes Capture™ live-recording software and Studio One® Artist DAW for Mac® and Windows
Specifications:
- Voltage: 100-120V
- Connection Type: IEC
- Mic Preamp Frequency Response: 20 Hz to 20 kHz, 0.5/-1.5 dB
- Phantom Power: 48V, ±3V, Global
- Line Inputs Frequency Response: 20 Hz to 20 kHz, 0.5/-1.5 dB
- Main and Line Out Dynamic Range: >108 dB (A-wtd)
- Bit Depth: 24
- Sample Rate: 44.1, 48, 88.2, 96, 176.4, or 192 (kHz)
- System Requirements: Windows 10 20H1 (64-bit only) or Windows 11 (64-bit only), macOS version 10.14 or later, 200 MB storage space and 4 GB RAM for Universal Control (required for firmware updates and low-latency ASIO support)
- Includes: One - PreSonus StudioLive AR8c Analog Mixer, 1m USB Cable, IEC Power Cord, Quick Start Guide
- Dimensions: 11" (W) x 7.1” (H) x 12.3” (L)
- Weight: 3.2 kg
