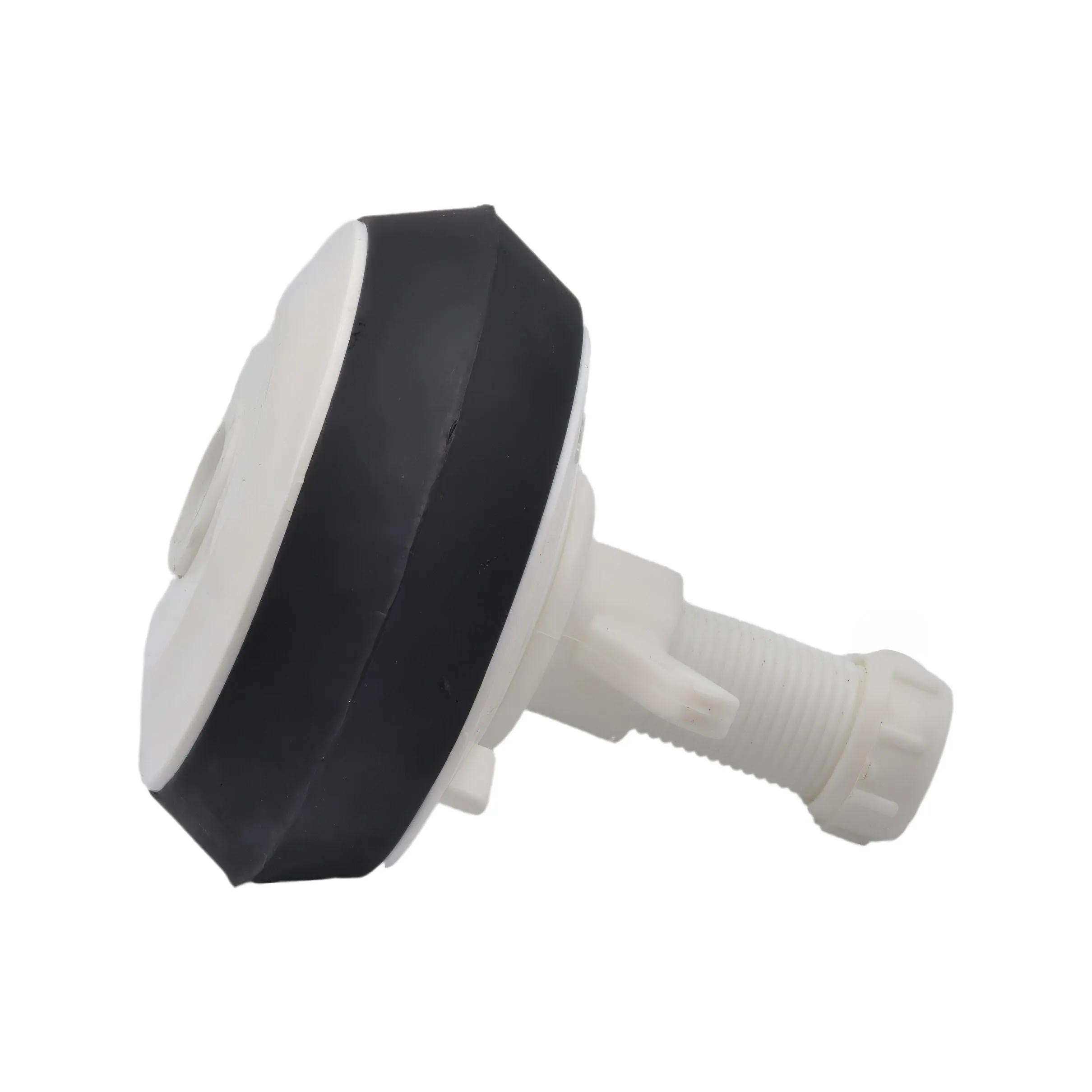

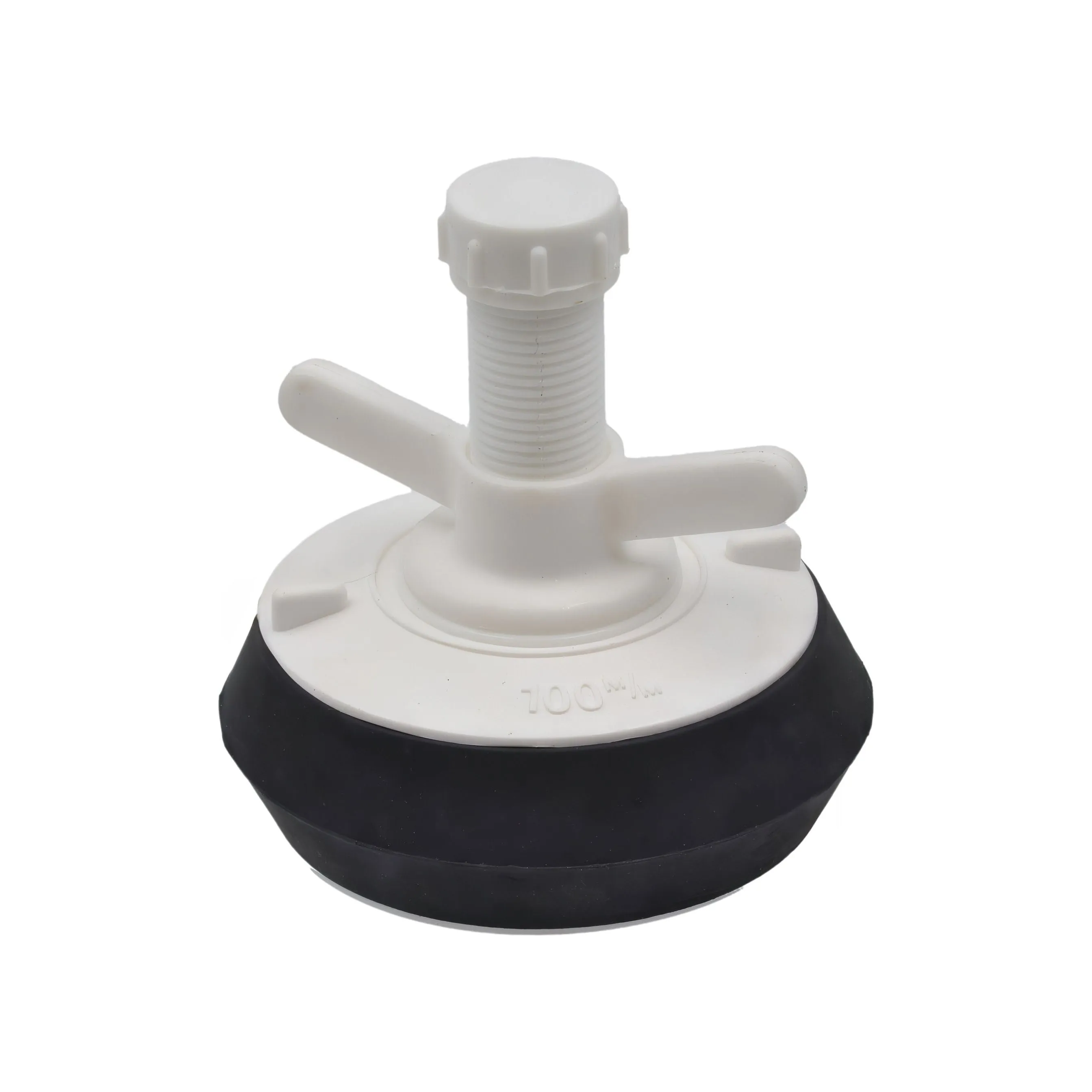

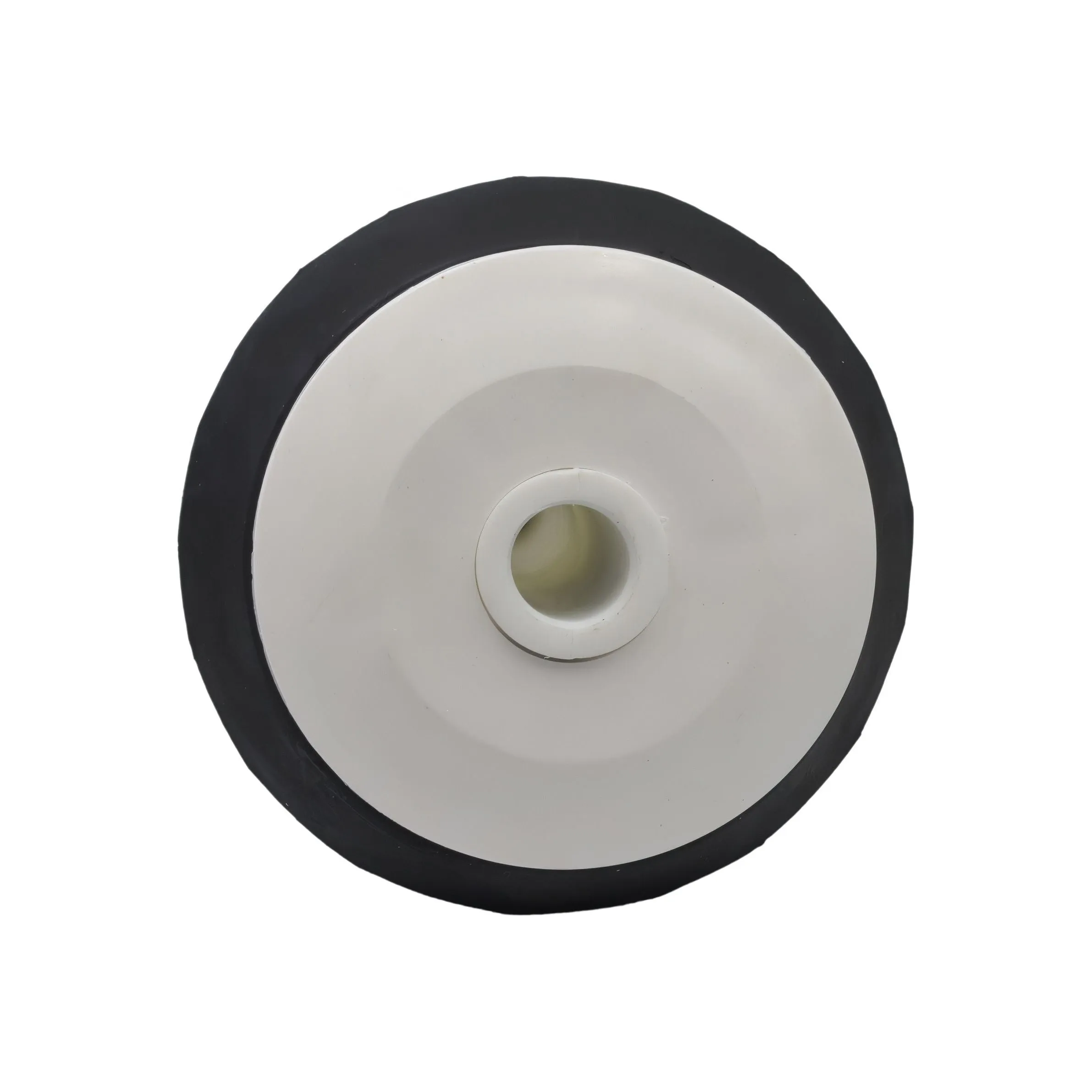

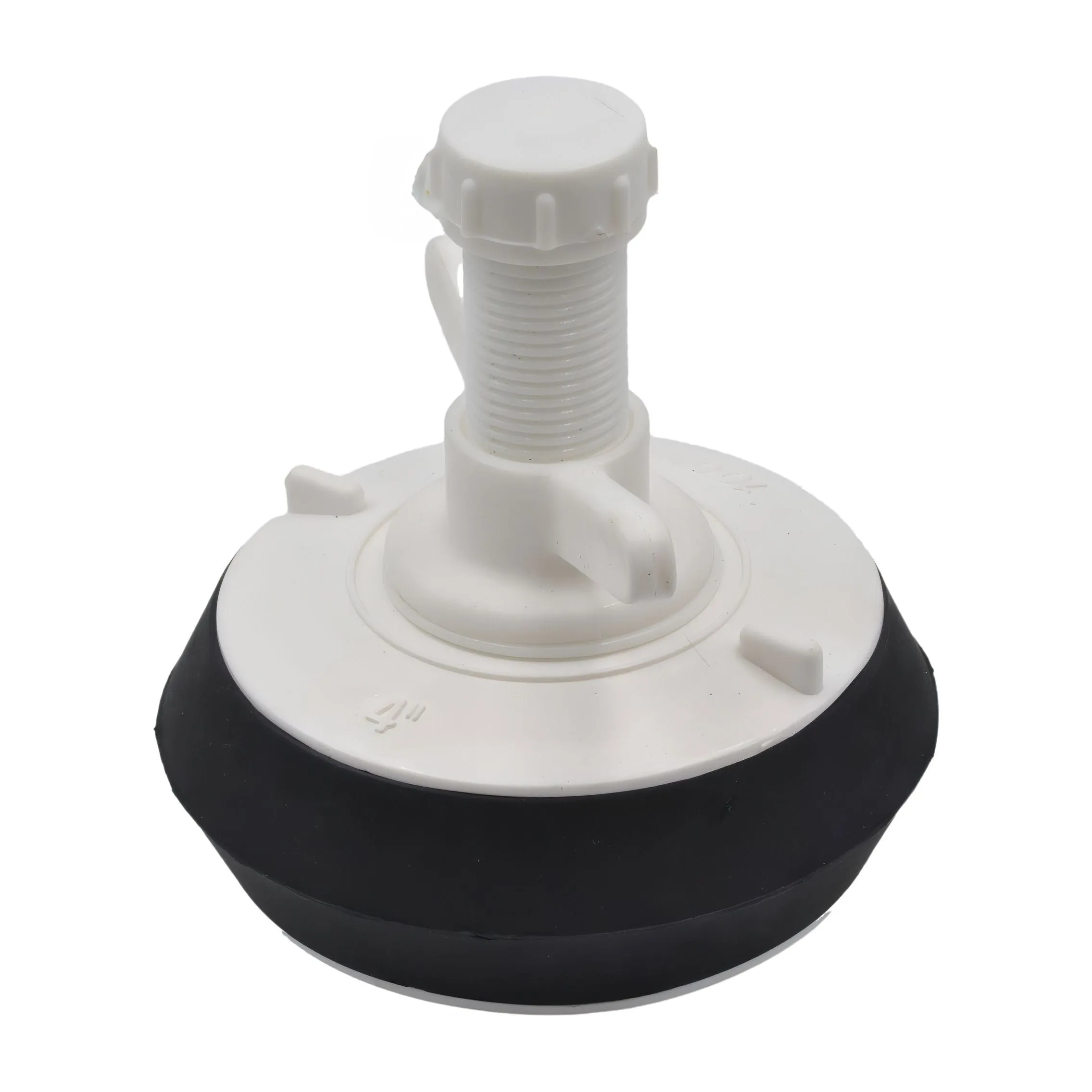

Nylon Plug with Purge Valve
This Nylon Plug with purge valve is designed for effective pipe sealing across various industries, including water, pool, and gas applications. Lightweight, versatile, and compact, these plugs range from 13 mm to 152 mm, making them suitable for many uses. They are ideal as Weld Purge Plugs, offering a reliable barrier for purging pipes, tubes, or fittings when other purge systems or purge films cannot be used. Manufactured to high standards, these plugs are the international standard for testing leak-tightness in water lines.
Key Features:
- Part Number: 203 MPN 100-13
- Start Range: 92 mm
- End Range: 105 mm
- Purge Port: 13 mm
- Effective Sealing: Easy to insert and tighten using the wing nut and friction-free washers
- Material: Durable nylon with rubber ring for a positive seal
- Back Pressure Relief: Cap at the end of the plug can be unscrewed to relieve back pressure
The Nylon Test Plugs offer a simple, reliable solution for sealing pipes and pipework assemblies. By inserting the plug and turning the wing nut, the rubber ring expands to create a secure seal. These plugs are ideal for testing and sealing water lines, ensuring leak-tightness and dependable performance in various industrial applications.
