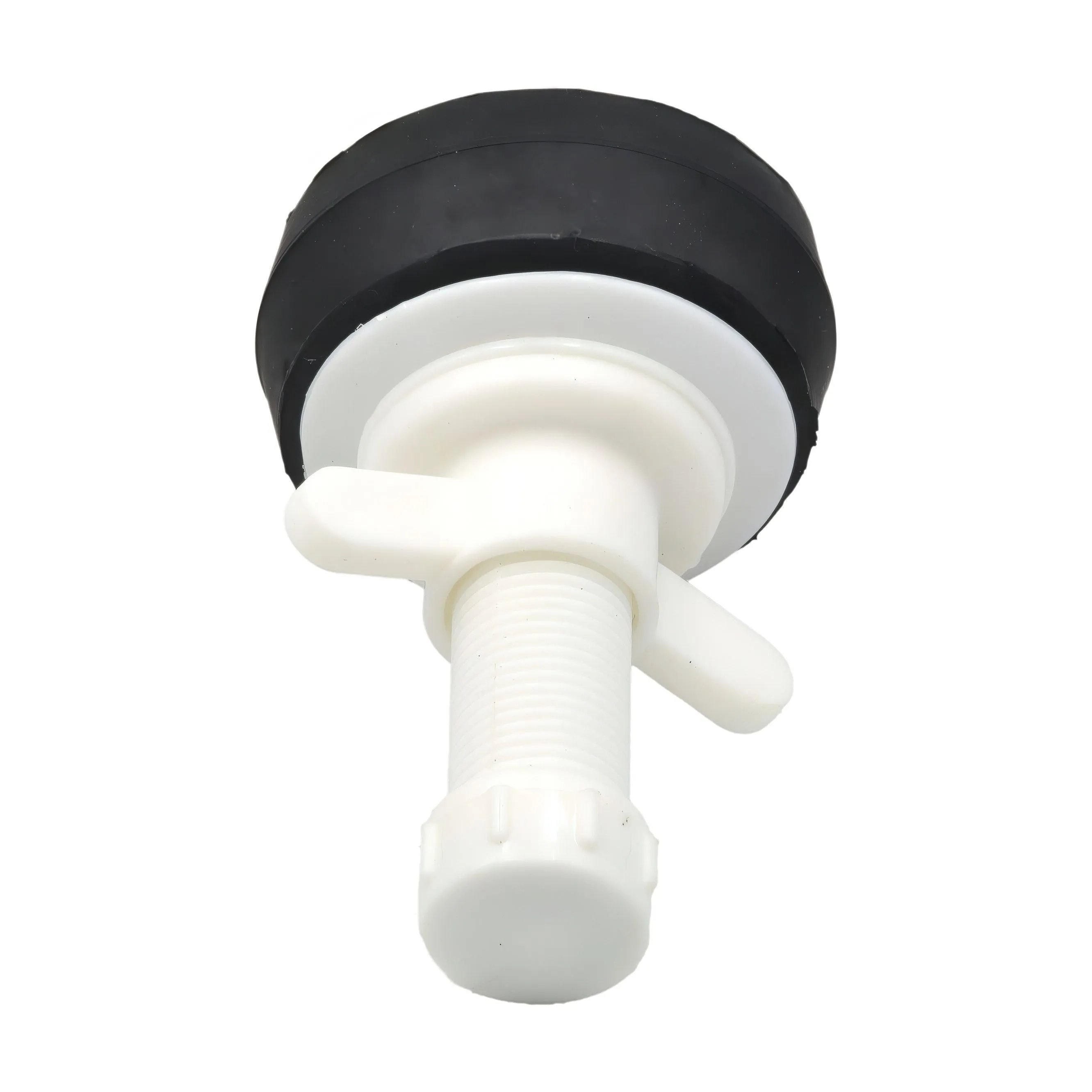

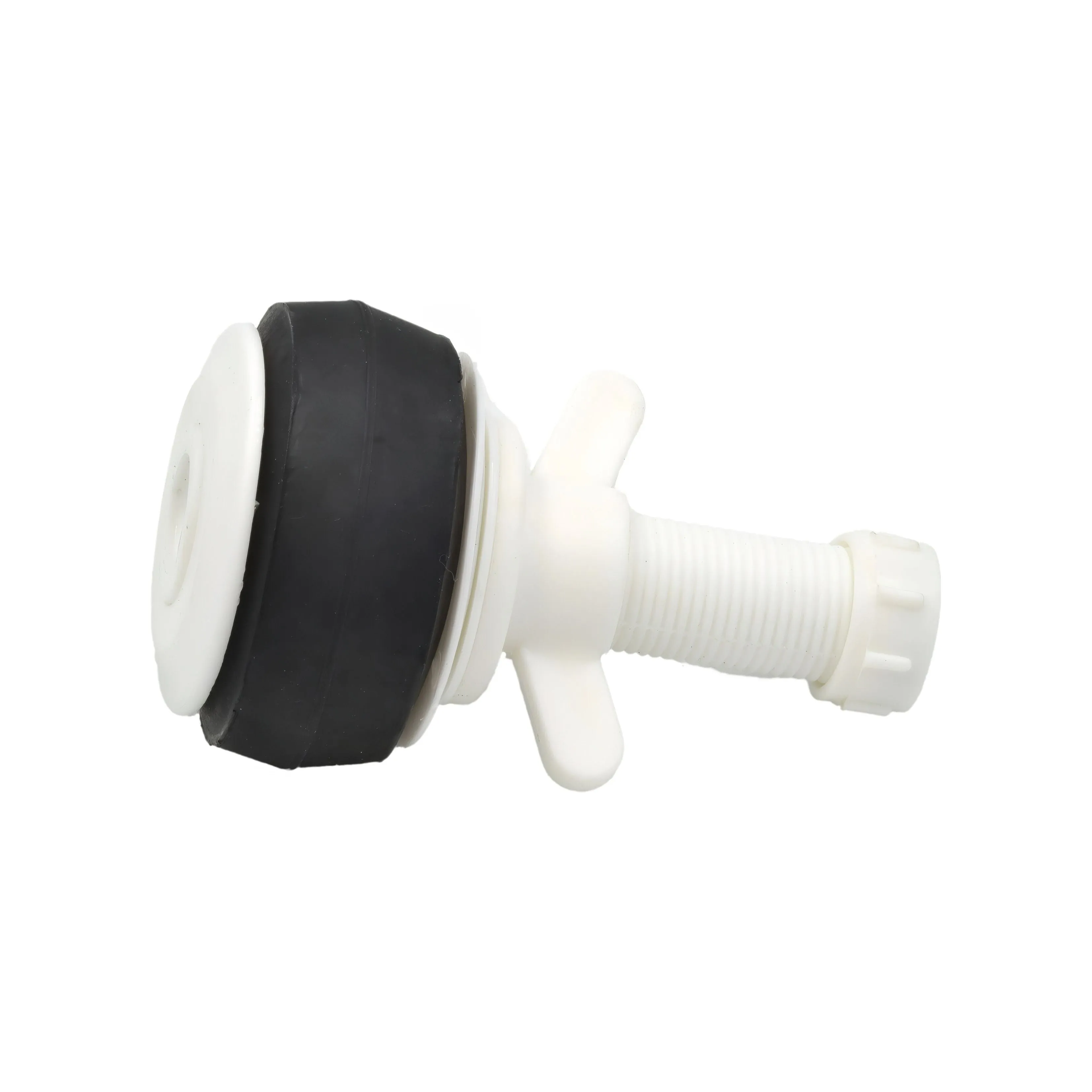

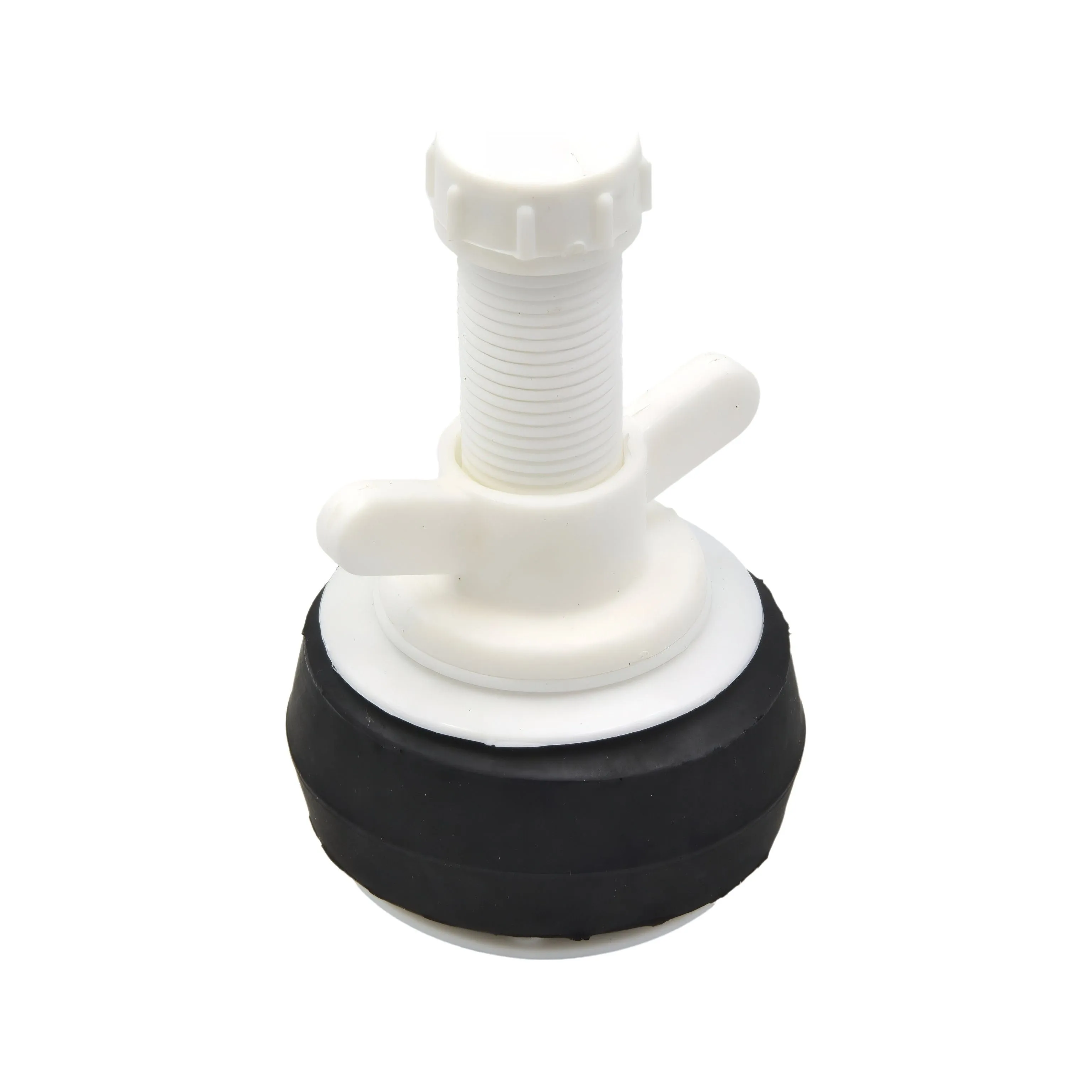

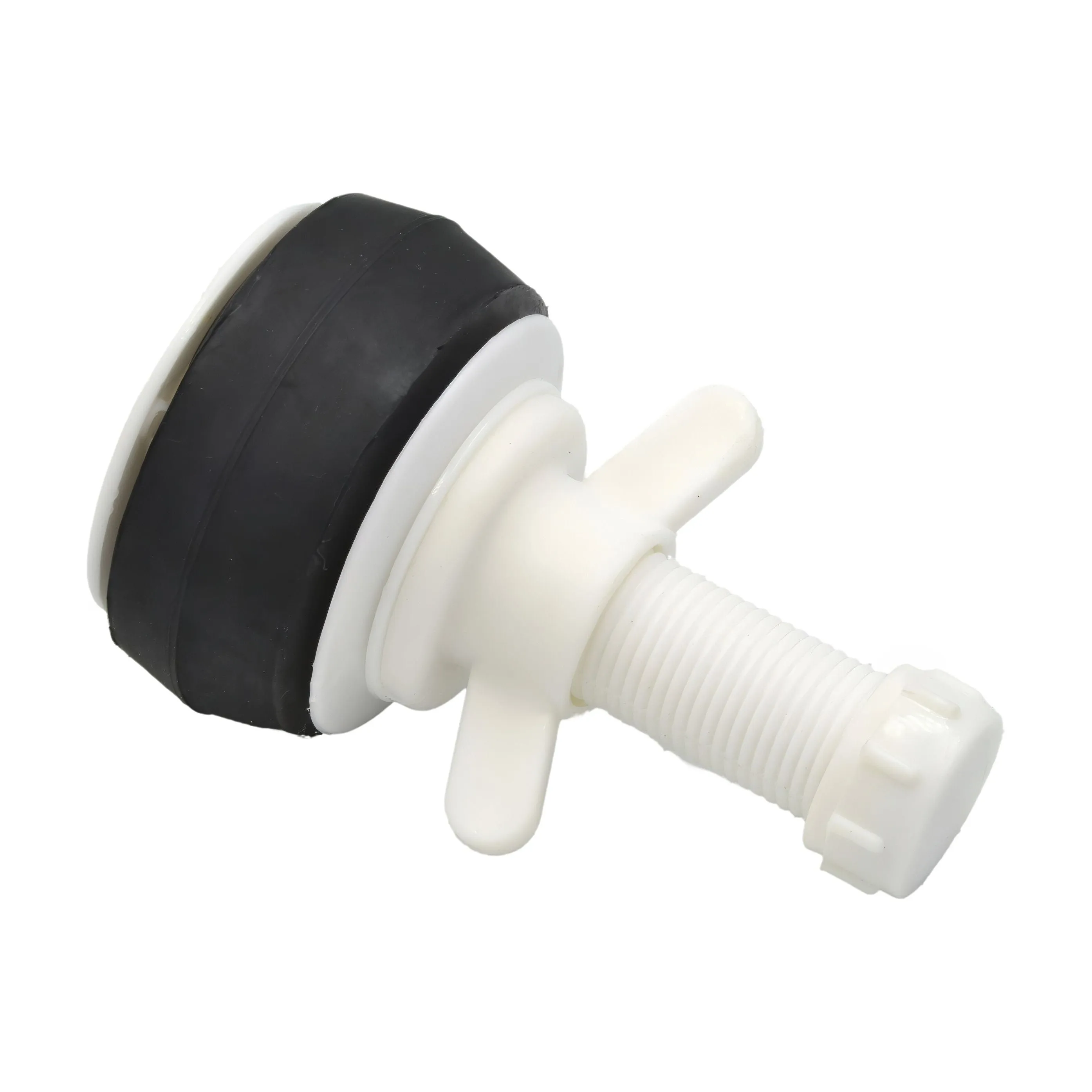

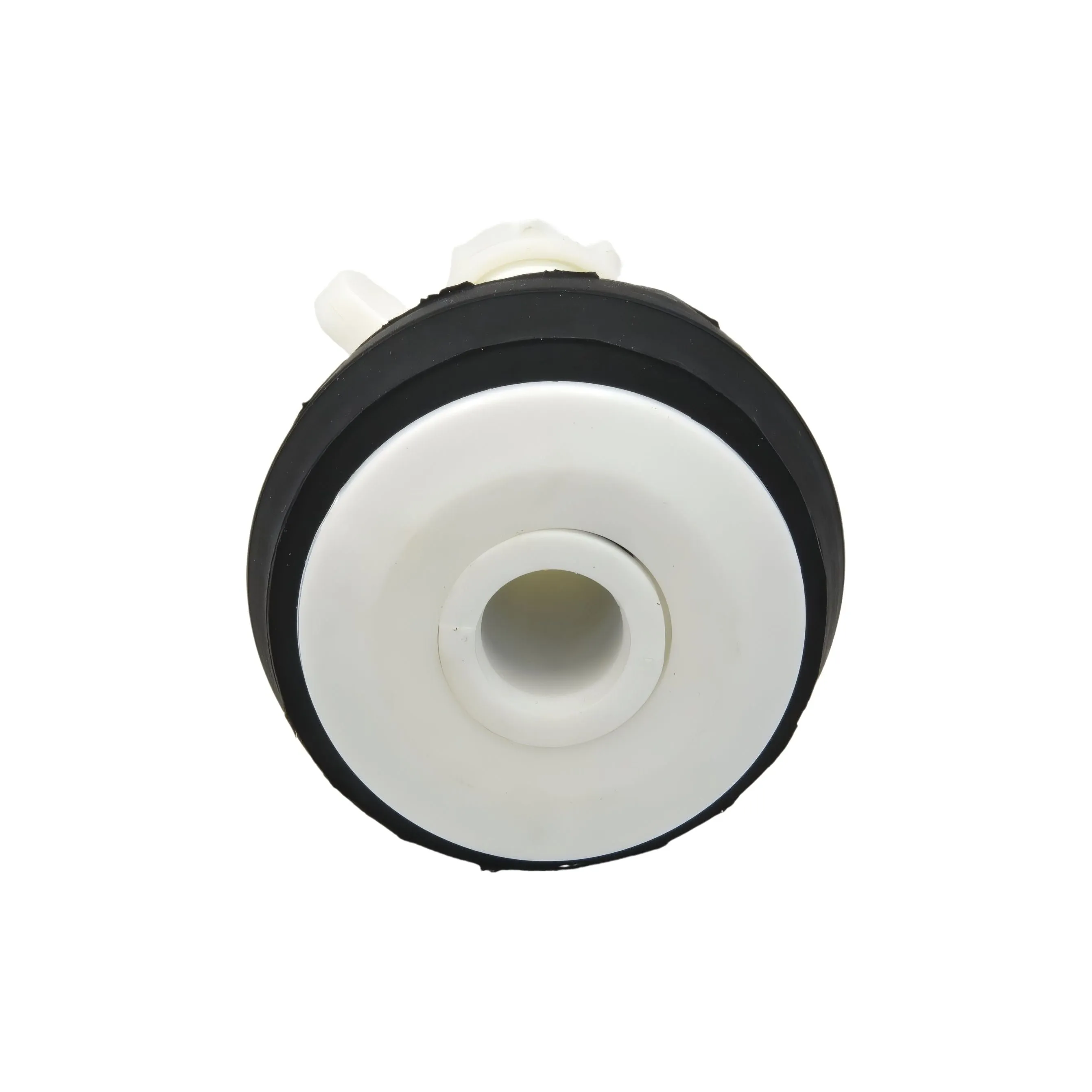

Nylon Plug with Purge Valve
This Nylon Plug with purge valve is designed for effective pipe sealing across various industries, including water, pool, and gas applications. Lightweight and versatile, these plugs range from 13 mm to 152 mm, making them suitable for a wide range of uses. They are ideal as Weld Purge Plugs, offering a reliable barrier for purging pipes, tubes, or fittings when other purge systems or films cannot be used. Manufactured to high standards, these plugs are also the international standard for testing leak-tightness in water lines. Other applications include sealing holes in castings, tanks, pipes, and more.
Key Features:
- Part Number: 203 MPN 063-13
- Start Range: 63 mm
- End Range: 76 mm
- Purge Port: 13 mm
- Effective Sealing: Easy to insert and tighten using the wing nut and friction-free washers
- Material: Durable nylon with natural rubber ring for positive seal
- Temperature Range: Up to 75°C (167°F) continuously, 105°C (221°F) intermittently
The Nylon Plugs provide a simple and reliable solution for sealing pipes, pipe joints, and assemblies. By inserting the plug and turning the wing nut clockwise, the rubber ring expands to create a secure seal. These plugs are widely used for testing and sealing water lines, as well as in applications such as casting, blasting, pool maintenance, and telecommunication pipelines. They offer durable, leak-tight sealing and dependable performance in various industrial applications.
