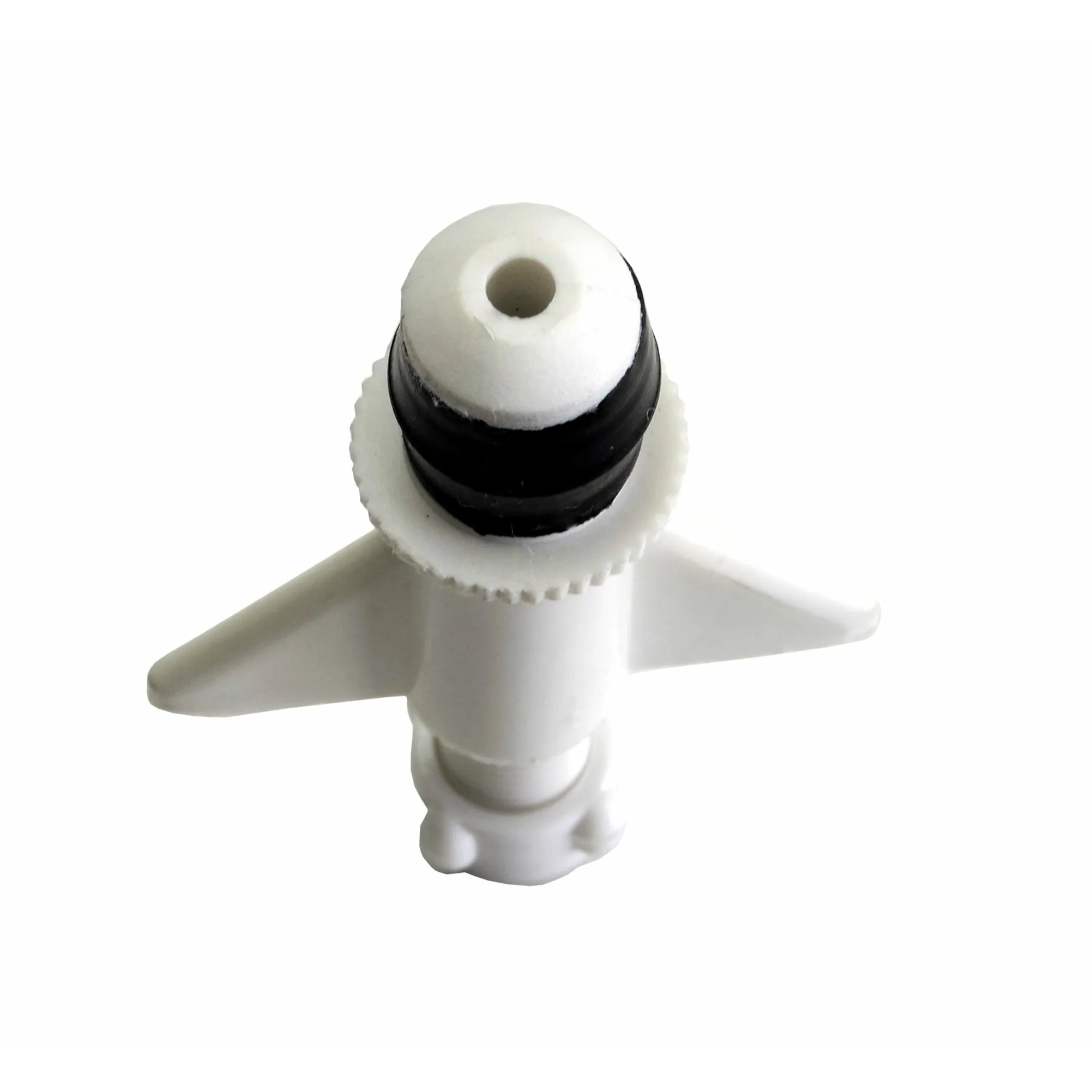

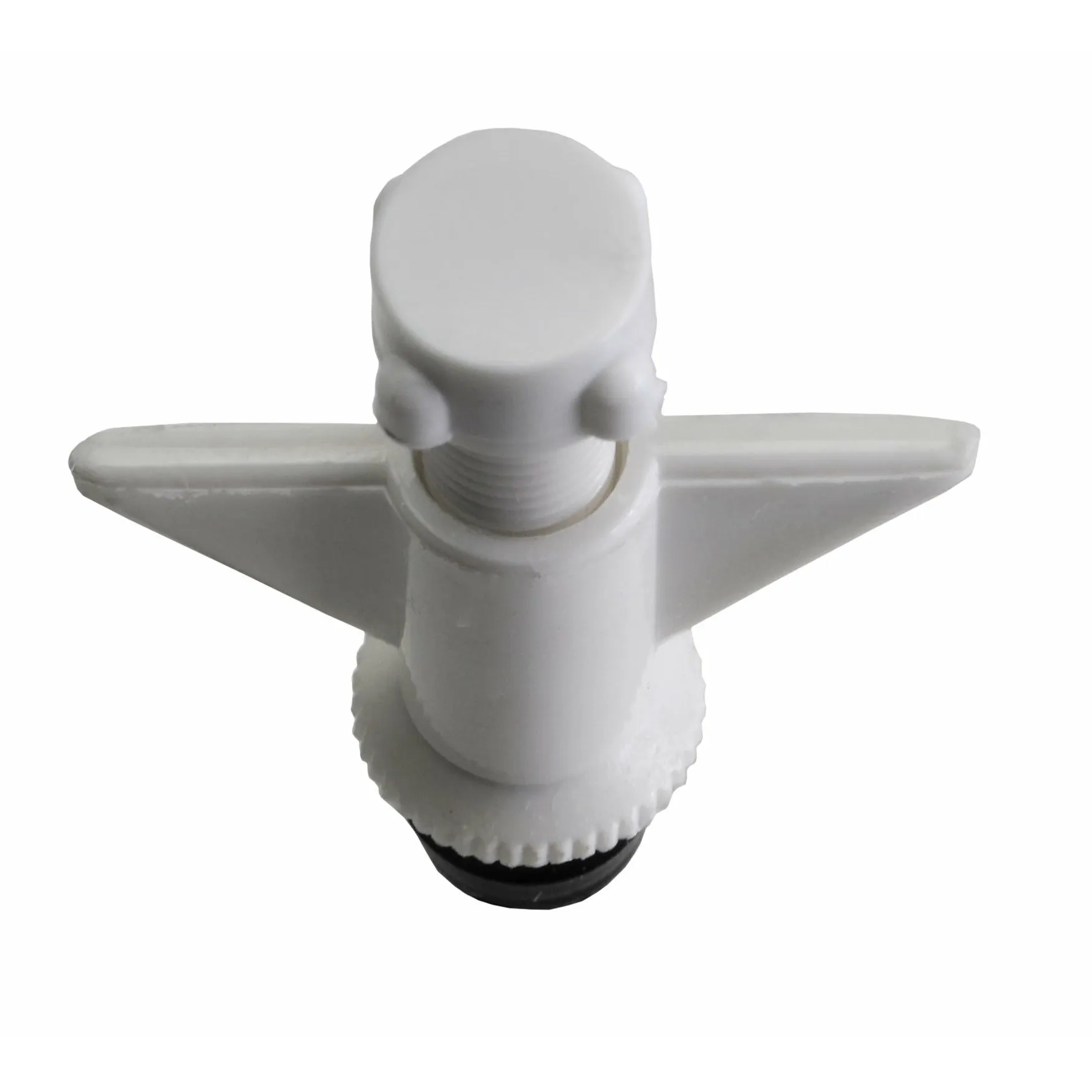

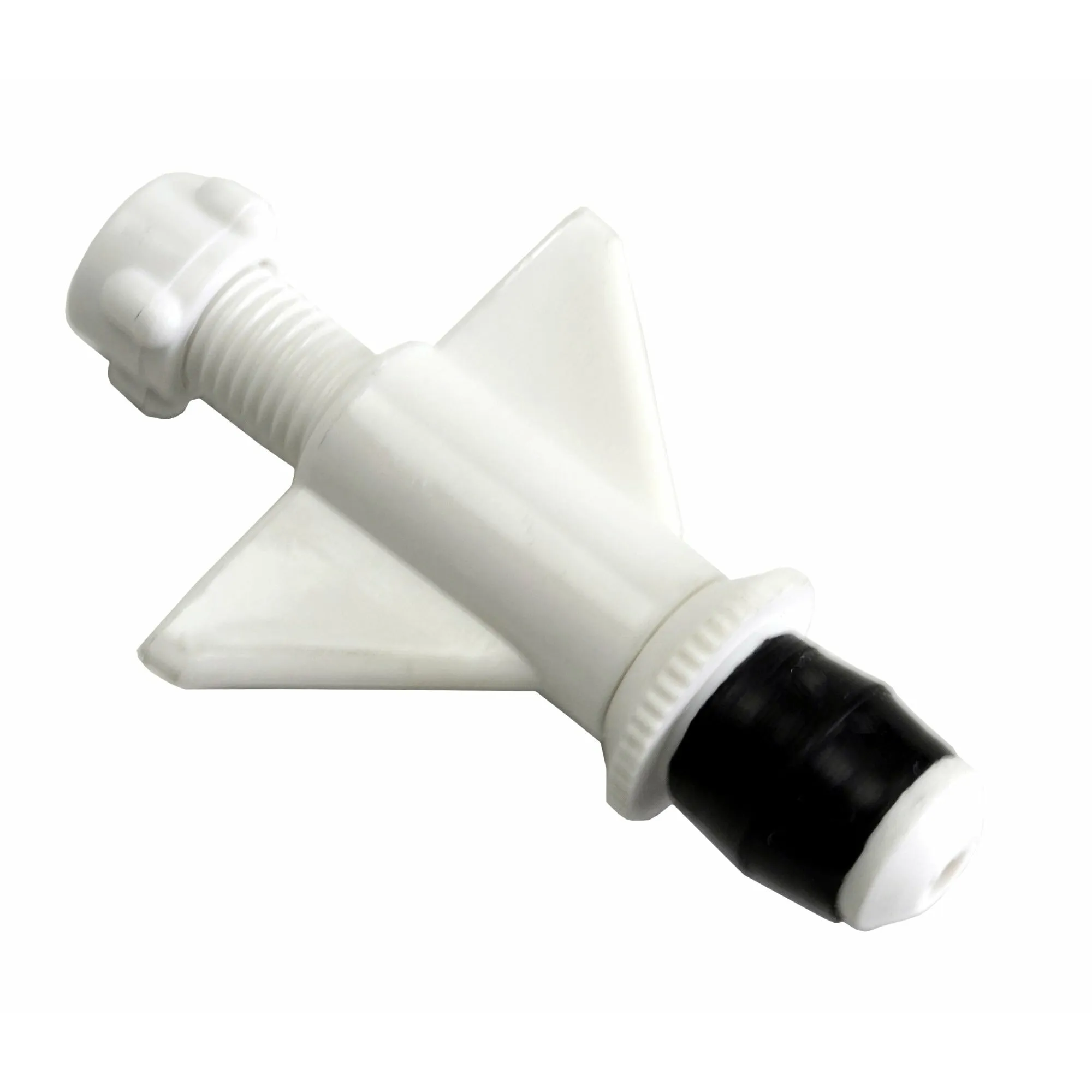

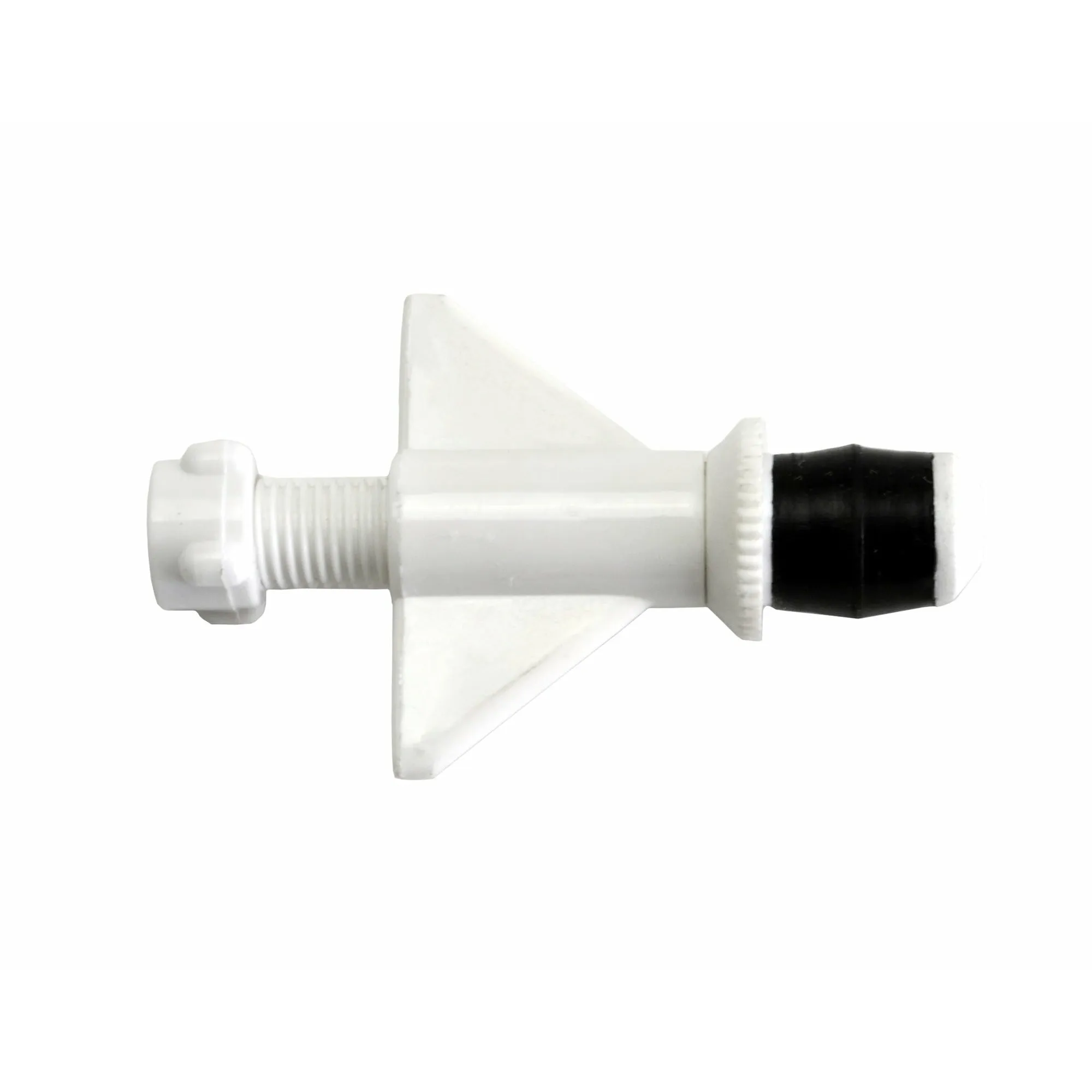

Nylon Plug with Purge Valve

This Nylon Plug with purge valve is designed for effective pipe sealing across various industries, including water, pool, and gas applications. Lightweight, versatile, and compact, these plugs range from 13 mm to 152 mm, making them suitable for a wide variety of uses. They are ideal for use as Weld Purge Plugs, providing a reliable barrier for purging pipes, tubes, or fittings when other purge systems or purge films are not viable. Manufactured to high standards, these plugs are the international standard for testing the leak-tightness of water lines.

Key Features:

• Part Number: 203 MPN 013-10
• Start Range: 13 mm
• End Range: 18 mm
• Purge Port: 10 mm
• Effective Sealing: Easy to insert and tighten using the wing nut and friction-free washers
• Material: Durable nylon with a rubber ring for a positive seal
• Back Pressure Relief: Cap at the end of the plug can be unscrewed to relieve back pressure

The Nylon Test Plugs provide a simple and reliable solution for sealing pipes, pipe joints, and pipework assemblies. By inserting the plug and turning the wing nut clockwise, the rubber ring expands to create a secure seal. These plugs are ideal for testing and sealing water lines, ensuring leak-tightness and dependable performance in a range of industrial applications.
