The NUX B-3RC, 2.4GHz microphone system, frees you from the annoying cables, and enjoy the wireless world with non-complicated functions and setups. The more compact size brings better using experience. An extra dynamic microphone and charging storage box are packed into the bundle set.
Features:
- Easy to use 2.4GHz wireless microphone system
- 24bit Hi-Resolution audio quality
- Ultra-low latency <4.8ms
- Auto pairing and auto channel selection
- Long-lasting built-in lithium battery (3.5 hours working time)

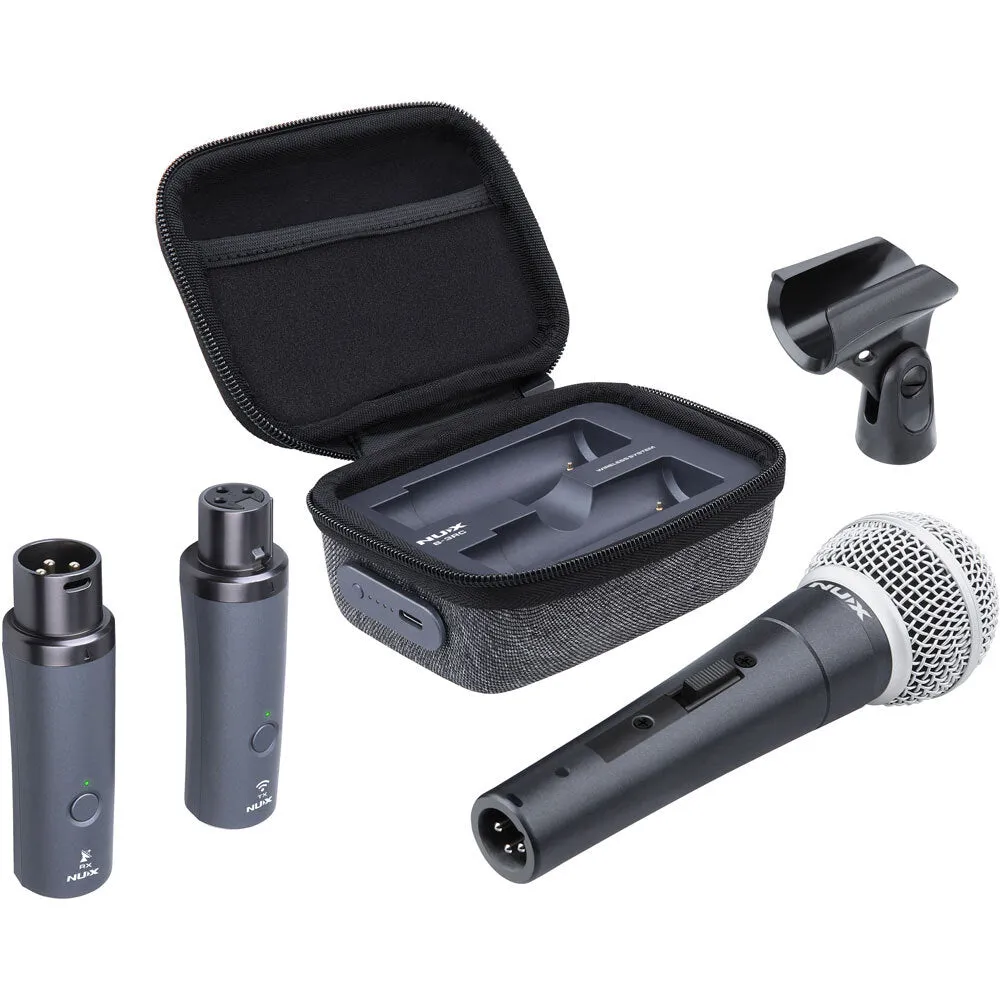

What's in the Package:
- Transmitter x 1
- Receiver x 1
- NDM-4 Microphone x 1
- Mic Pouch x 1
- Charging Cable x 1
- User Manual x 1
Specifications:

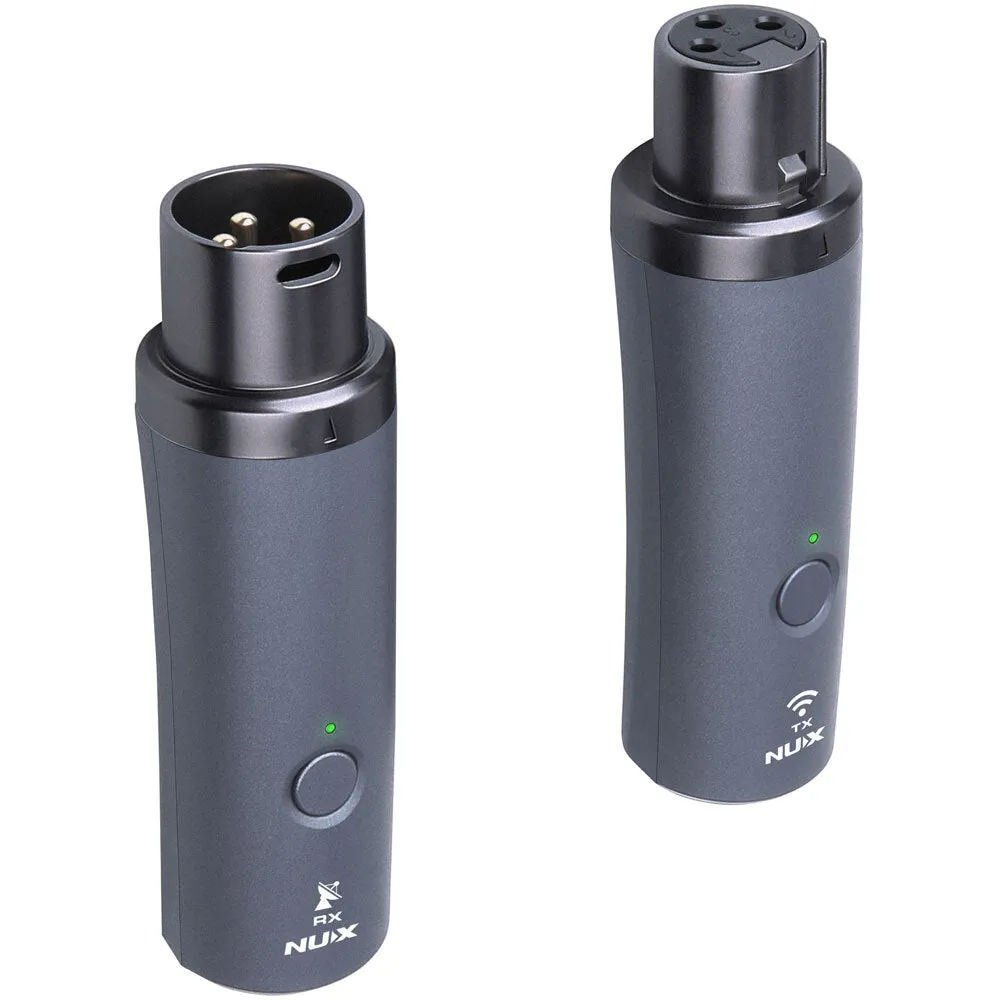

Transmitter & Receiver
- 2.4GHz operating frequency
- 24 bit sampling accuracy
- Latency: <4.8ms
- Transmission Range: Up to 100 feet line-of- sight
- THD Noise <0.1% @ 1kHz
- Built-in Battery Capacity (TX& RX): 330mAh/3.7V
- TX/RX Battery Running Time: 3.5 hours
- TX/RX Battery Charging Time: around 2.5 hours
- Storage Box Battery Capacity: 3000mAh / 3.7V
- Storage Box Battery Charging Time: around 4 hours
- Transmitter (L x W x H): 80mm x 24mm x 24mm
- Receiver: 80mm x 24mm x 24mm
- Transmitter: 36g
- Receiver: 36g
Specifications:
NDM-3 Dynamic Microphone
- Type: Dynamic
- lmpedance: 600Ω 15% (AT 1kHz)
- Sensitivity: -48.4 ± 3dB (0dB = 1v/pa)
- Frequency Response: 50Hz - 15kHz
- Direction: Uni - Directional (Cardioid) Polar Pattern
- Operating Temperature: -30℃ - 60℃
- Construction: Sponge Ref - shake
- Dimensions (L x W x H): 164mm x 50mm x 50mm
- Weight: 213g
Instant Setup, Easy Operation...Wireless, Effortless

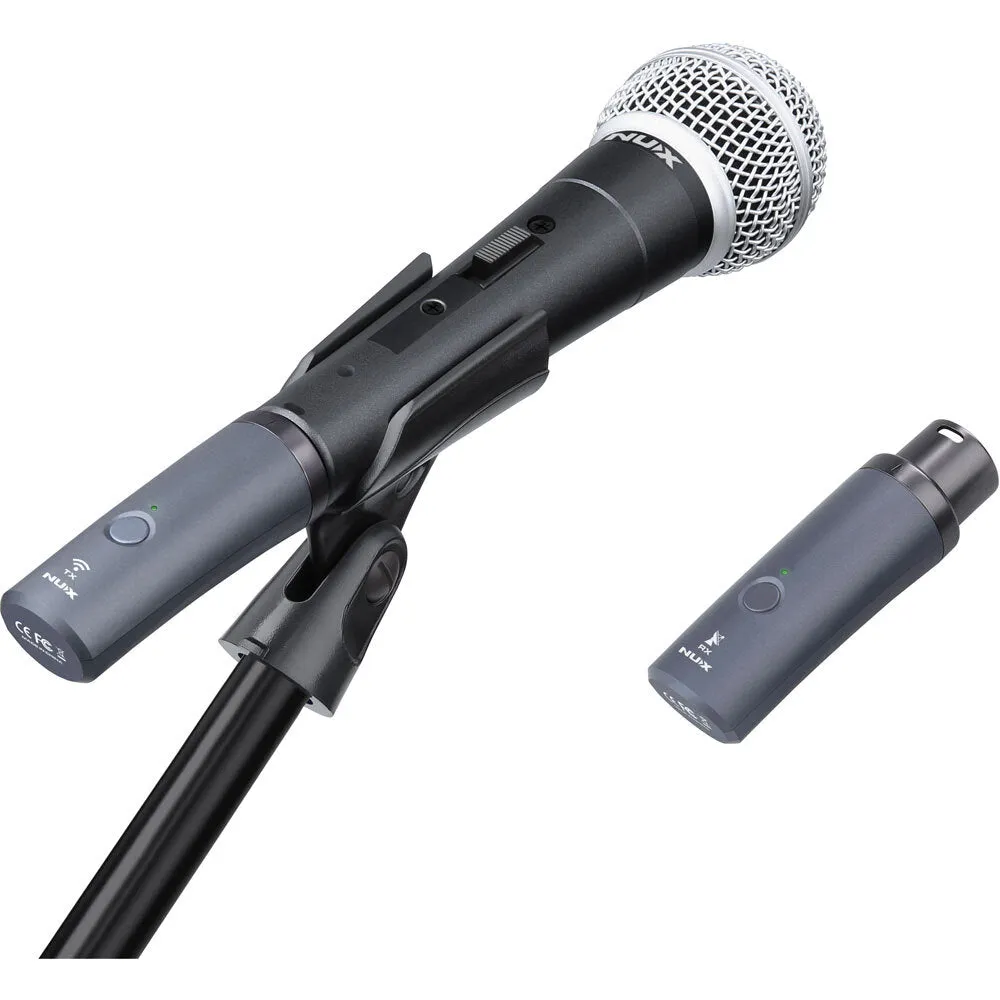

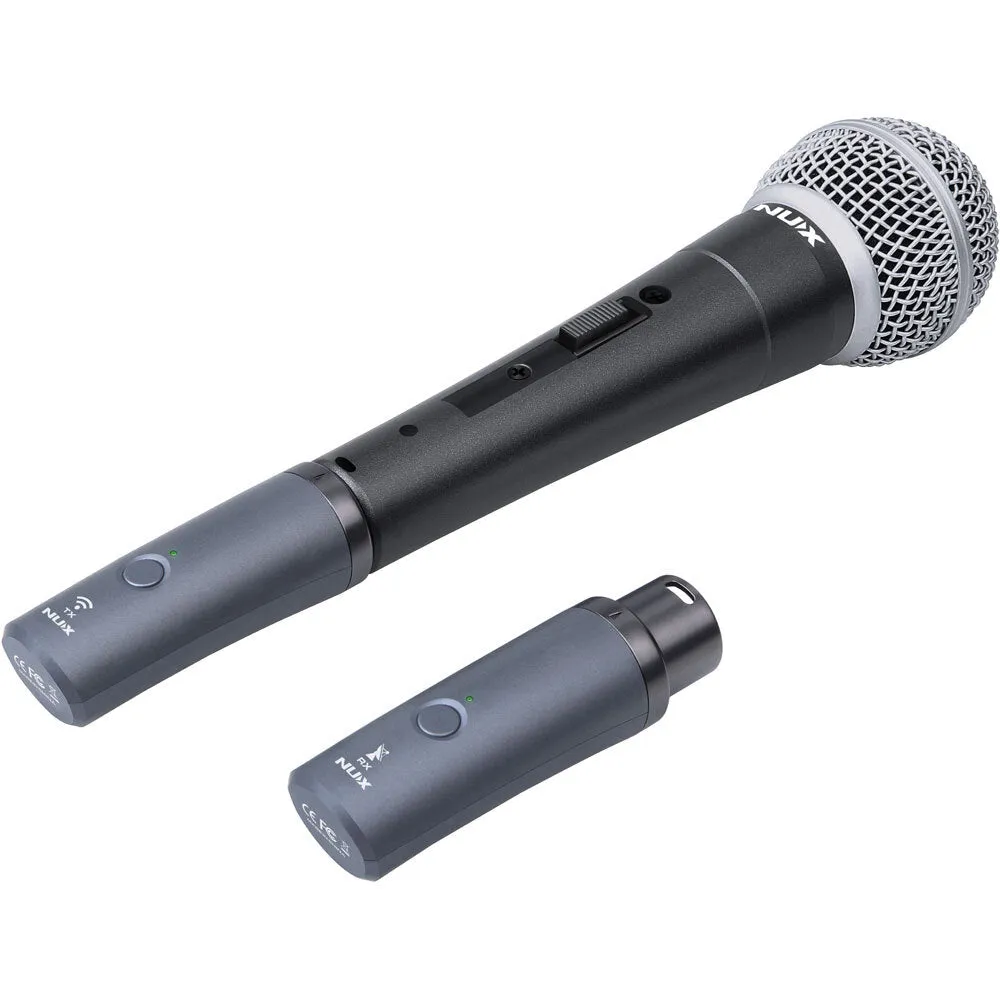

B-3RC has auto pairing and channel group selection. Plug the Transmitter (TX) to your mic, Receiver (RX) to PA system, and you are good to go. The units will automatically detect each other and choose the best channel from all 6 channels. Delivering detailed consideration for performers' control need, B-3RC allows to swiftly mute from Transmitter (TX)'s power switch button.
Cutting-Edge Wireless Technology, Hi-Quality Audio & Long Distance Transmission
With advanced 2.4GHz wireless technology, enjoy your high-resolution audio quality of 24-bit/44.1kHz with B-3RC. The interference-free signal transmission up to 100 feet (30 meters), ensuring uninterrupted control and excellent performance.
Compact for Enhanced Portability, Ideal for Outdoor.

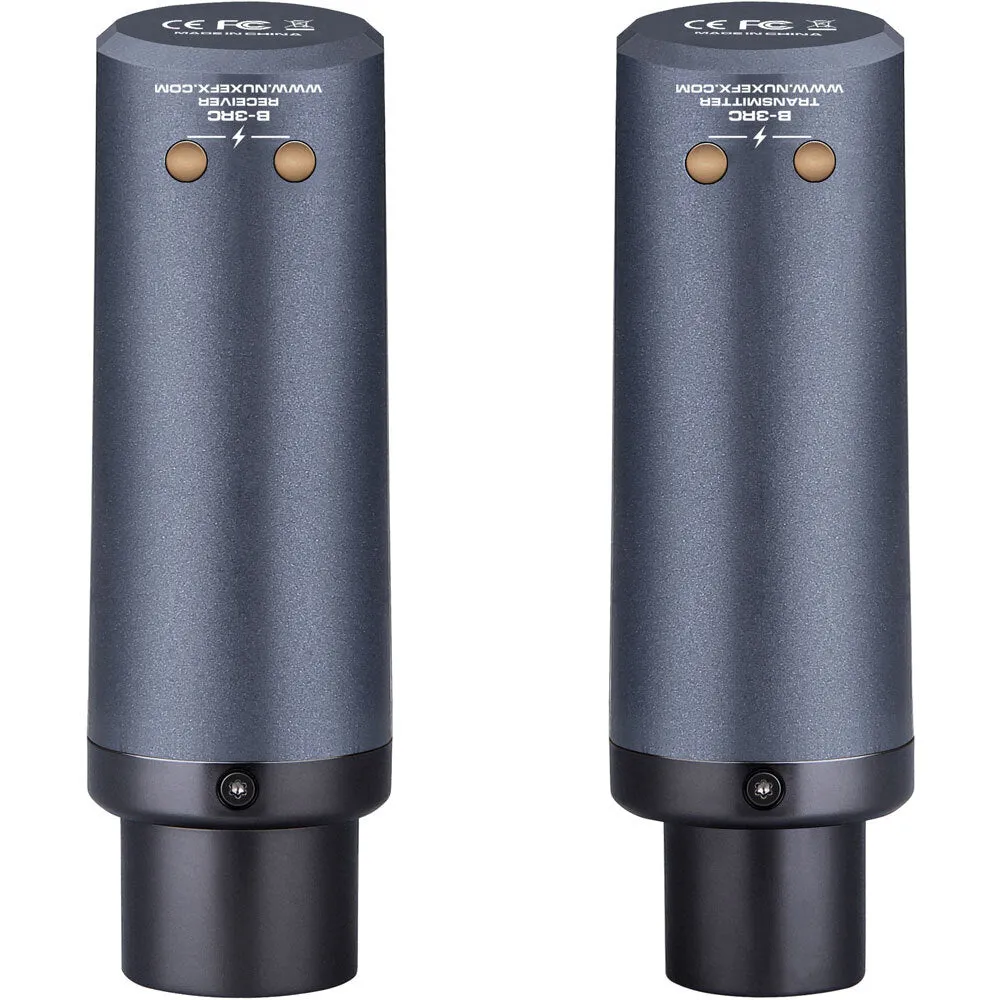

The Transmitter (TX) and Receiver (RX) measure just 80mm in length and weigh only 36g each
Application Scenario 1 - Wireless Recording
Application Scenario 2 - Conventional Use 1
Application Scenario 3 - Conventional Use 2

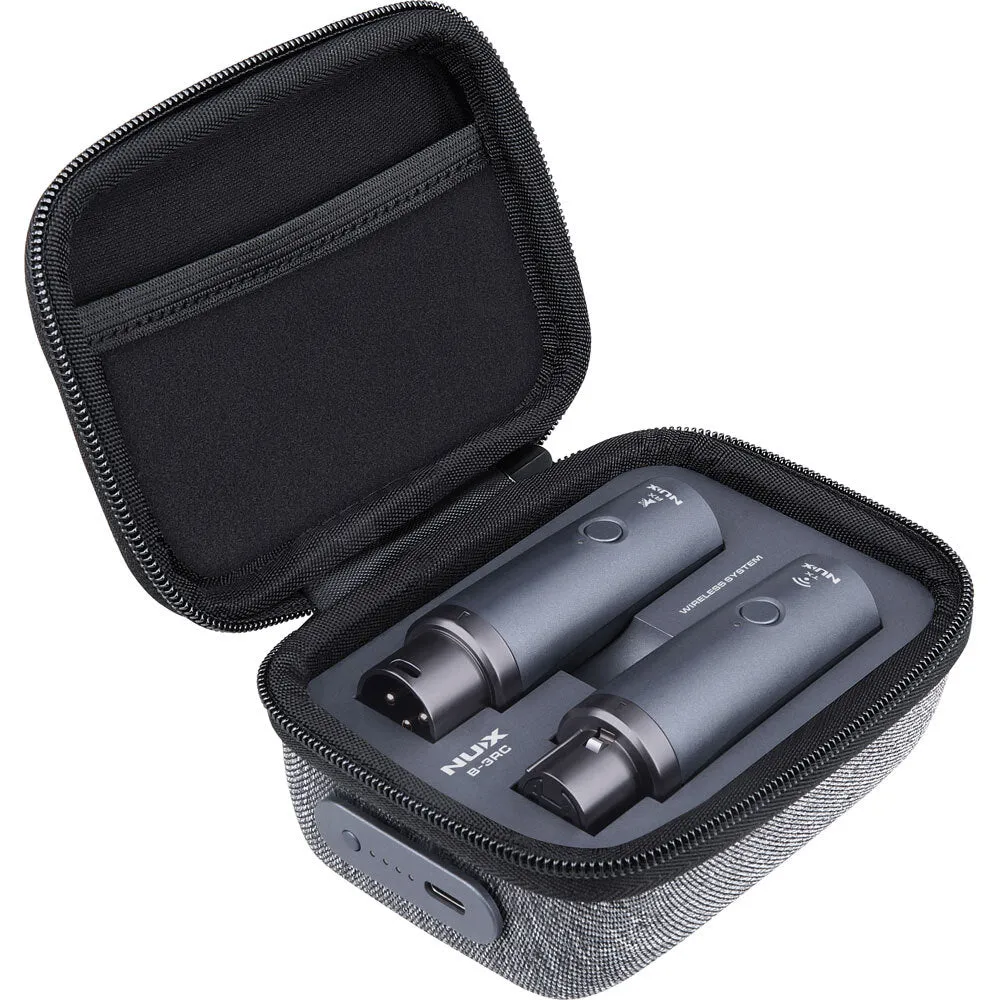

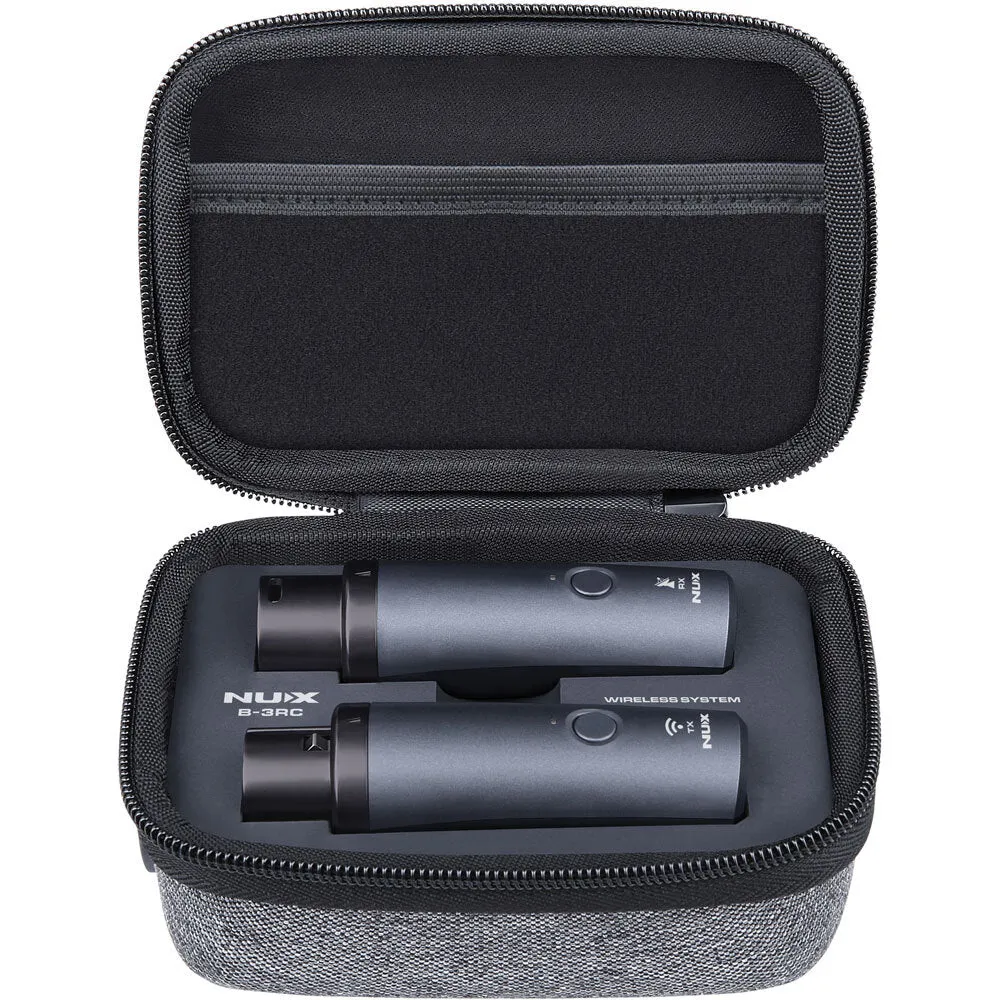

Long Lasting Battery and Power Case...Put it In, Charge it Up
Long-lasting lithium battery brings up to 3.5 hours of using time on one charge. With the charging case, charging could never be easier. And you can charge the case through the USB-C port.
The LED indicators on the TX, RX, and charging case allow you to intuitively monitor the battery state.
The Optional B-3 MA Mobile Phone Accessory
B-3 MA could help to use your B3 PLUS Mic Bundle wireless system with any mobile phone. Simply you can use for video blogging or live streaming via mobile phones. The package offers phone holder with cold shoe and 3.5mm TRS to TRRS adaptor cable to fit most mobile phones. (CTIA stander, like iOS and Samsung devices.)
