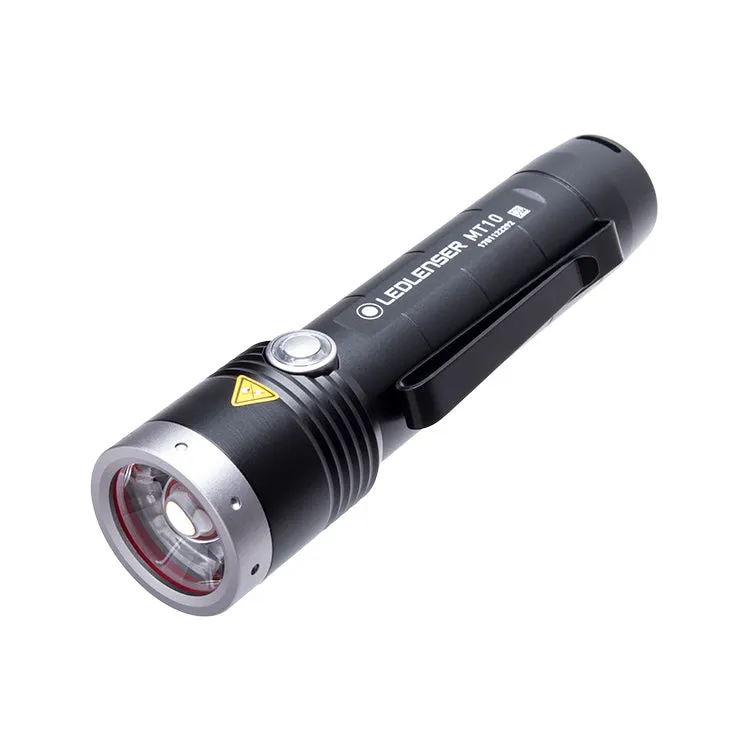

The Ledlenser MT10 is a compact, rechargeable torch that can produce a maximum output of 1000 lumens from a single Xtreme white LED. Powered by a 18650 3400 mAh lithium-ion battery, it has a run-time of up to 6 hours on the highest setting (down to 1 lumen).
The battery is charged inside the torch via the charging port on the neck of the torch. Lift the dust cover to reveal the micro USB charging port and plug in the supplied micro USB cable to charge via a computer/laptop or via the mains/car with a suitable USB adaptor (not included). The charging indicator in the switch will go red to show charging is in progress and turn green once charging is complete.
The MT10 offers three brightness settings and strobe, which are available in three pre-set selectable modes. The torch is factory set to mode 1, which cycles through in the order of high, mid, low and off with each press. Mode 2 cycles through the settings in the opposite direction of low, mid, high and off. Finally mode 3 cycles through the brightness settings the same as mode 1, except when the torch is on in any mode, you can press and hold the button to activate the strobe setting.
Switching between modes is simple and is done by holding down the button while the torch is off. While holding the button the light will blink once to indicated mode 1 after 10 seconds, blink twice to indicate mode 2 after 13 seconds and blink three times to indicate mode 3 after 16 seconds. Once you have reached the setting you desire, release the button and the light will stay in this mode until you change it again.
The MT10 also features a lock out mode to prevent accidental activation when not in use and can be activated the same way as changing modes, except you hold the button for 19 seconds until the light blinks four times. To come out of lock out mode, hold the button for 5 seconds until the light blinks once.
An integrated power indicator in the switch of the torch indicates remaining battery power by displaying a green, yellow or red light. This will automatically happen when you insert the battery or you can access it any time by holding the button for 2 seconds while the torch is off.
The advanced focus system allows you to focus the light from spot to flood by sliding the head of the torch forwards and backwards. On the highest setting when focused into a spot, with a fully charged battery, the MT10 can throw the beam up to 180 metres range.
Perfect for activities such as camping or fishing and comes with a handy lanyard, a built in pocket clip and a nylon pouch for easy carrying.
Product Information
Three brightness settings and strobe
Three selectable modes
Lock out function
Built-in battery power indicator
Operational Modes
Low: 10 lumens; 144 hours run-time; 20 m beam range
Mid: 200 lumens; 15 hours run-time; 100 m beam range
High: 1000 lumens; 6 hours run-time; 180 m beam range
The above parameters are tested in lab conditions using the included battery with energy saving mode (down to 1 lumen) and data may vary between torch, batteries, environment and individual usage habits.
Technical Details
Type: Hand-held rechargeable torch
Operating Modes: Low / Mid / High / Strobe
Luminous Flux: Up to 1000 lumens
Lamp: 1 x Xtreme LEDs
Beam Range: Up to 180 m
Run Time: Up to 144 hours on low setting (down to 1 lumen)
Charge Time: 6 hours approx.
Focus: One handed speed focus; spot to flood
Optics: Advanced focus system
Batteries Required: 1 x 18650 lithium-ion battery (included)
Overall Length: 128 mm
Head Diameter: 32.4 mm
Barrel Diameter: 27.1 mm
Weight: 156 grams (including battery)
Body Colour: Black
Body Material: Aircraft grade aluminium
Electrical Contacts: Gold plated contacts
Switch Type: Side push button
Environmental: Water resistant to IPX4 standard
Warranty: 5 years
Regulatory Compliance: CE / RoHS

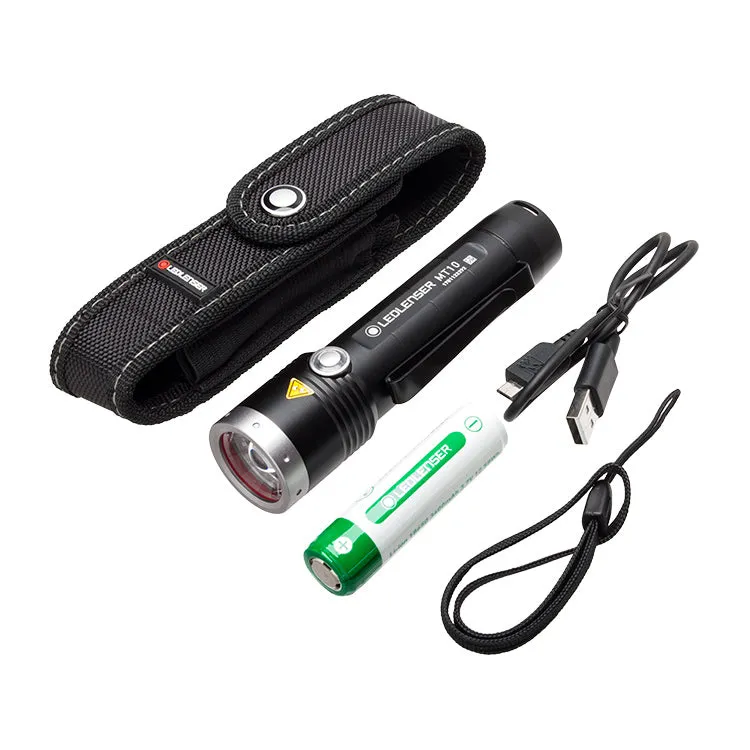

Packaging and Contents
Supplied in a retail and includes:
Ledlenser MT10 LED torch x 1
Ledlenser 18650 3400 mAh lithium-ion battery x 1
Nylon holster x 1
Wrist lanyard x 1
Micro USB charging cable x 1
Manual x 1
