Name: Laguna F3 Fusion Table Saw 52"
SKU: 171321

The Laguna F2 and F3 Table Saws are unlike any saw on the market. Having the same quality demands earned through the original fusion table saw, the Fusion Line will not only impress but exceed the expectations you have come to expect from Laguna. With a completely redesigned trunnion and arbor controls that focuses on buttery smooth controls and longevity of the saw, we are sure this is the saw that will give you the perfect rip cut for many many years.

The Laguna F3 Fusion Tablesaw is the next step up from the F2 Model, making it an even more robust machine with greater quality and power. This machine features an industrial strength 3hp motor, increased thickness cabinet, and an electromagnetic starter for industrial use.

Designed around quality components with an emphasis on superior dust collection enhanced by utilizing over/under collection & sealed bottoms, the F3 is everything you could want in an industrial table saw and more!

Featured Upgrades

Large 3hp motor on 220V
Large Industrial Cabinet
Solid Cast Iron Trunnion
Electromagnetic Contactor
Professional Arbor Controls

All Laguna Tools woodworking machinery carry a 2-year warranty. Must machine within 30 days of purchase.

[TABS]

Features

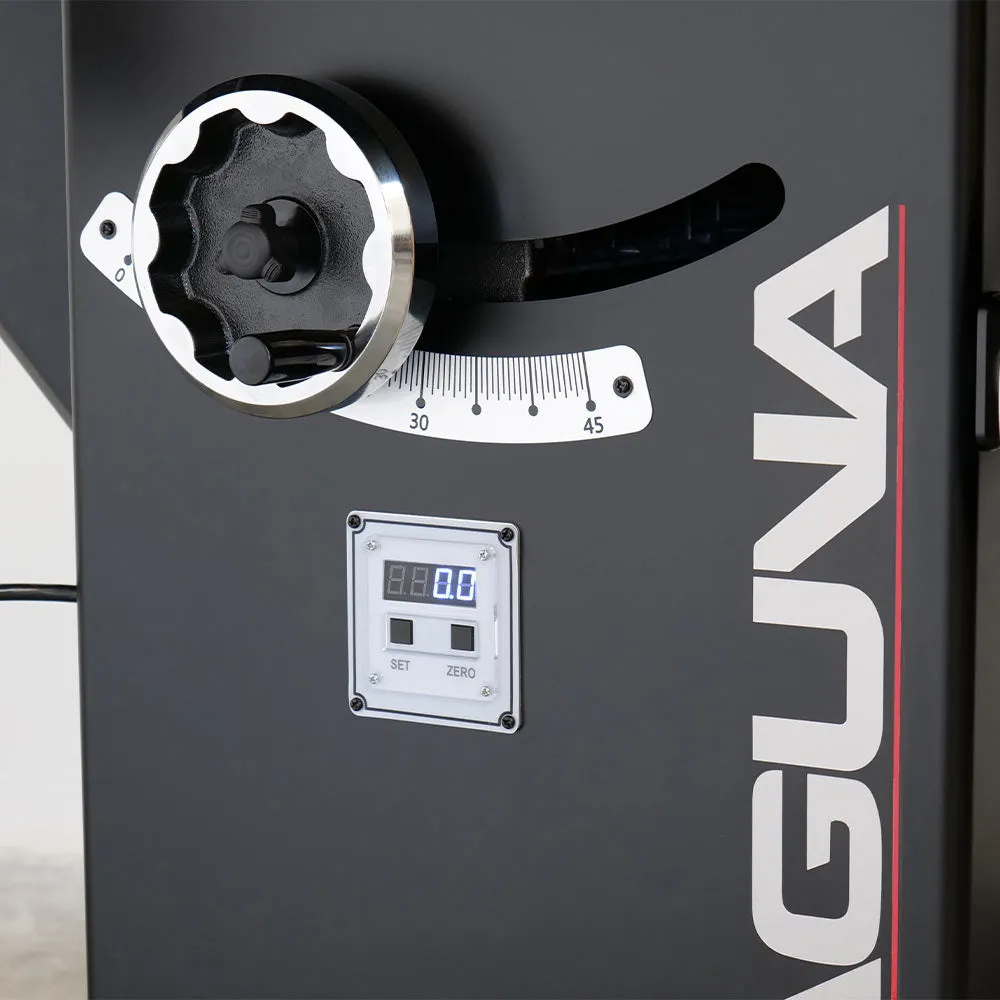

Digital read out for the tilt angle of blade

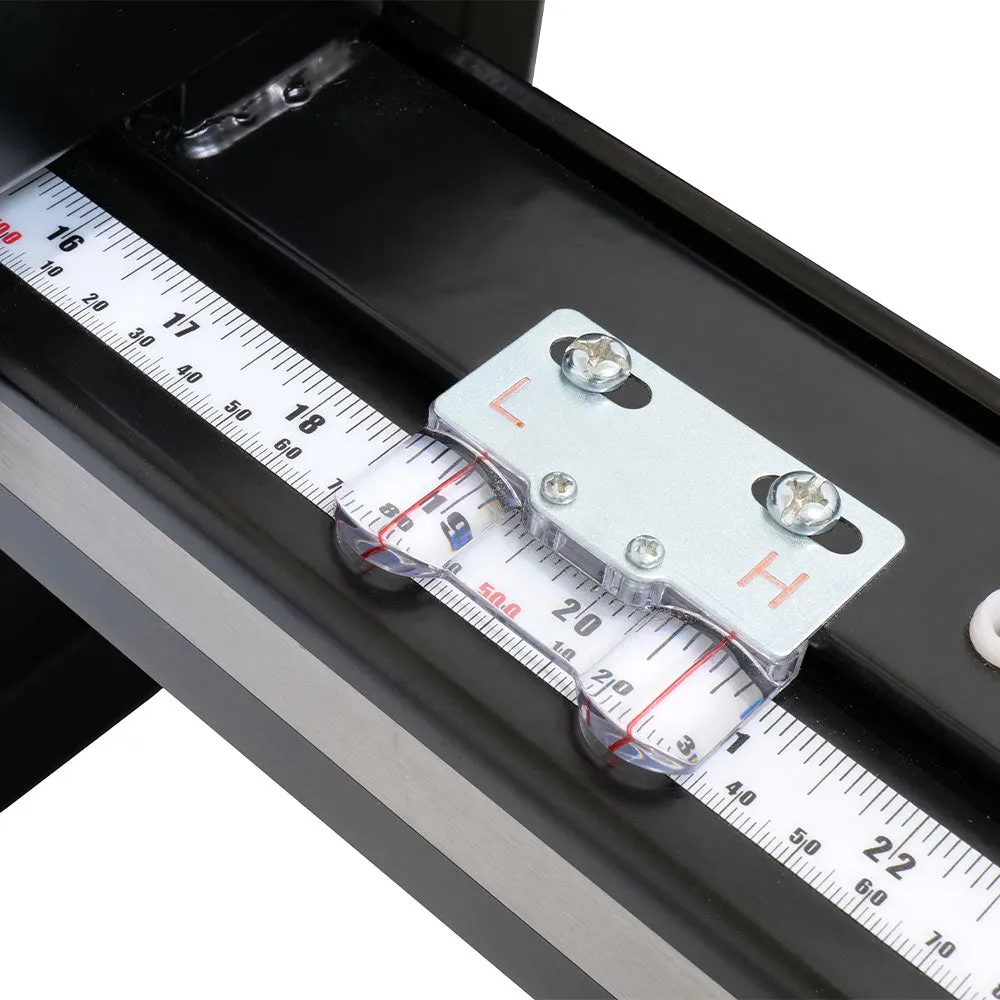

Double window with hairline for hi/low fence

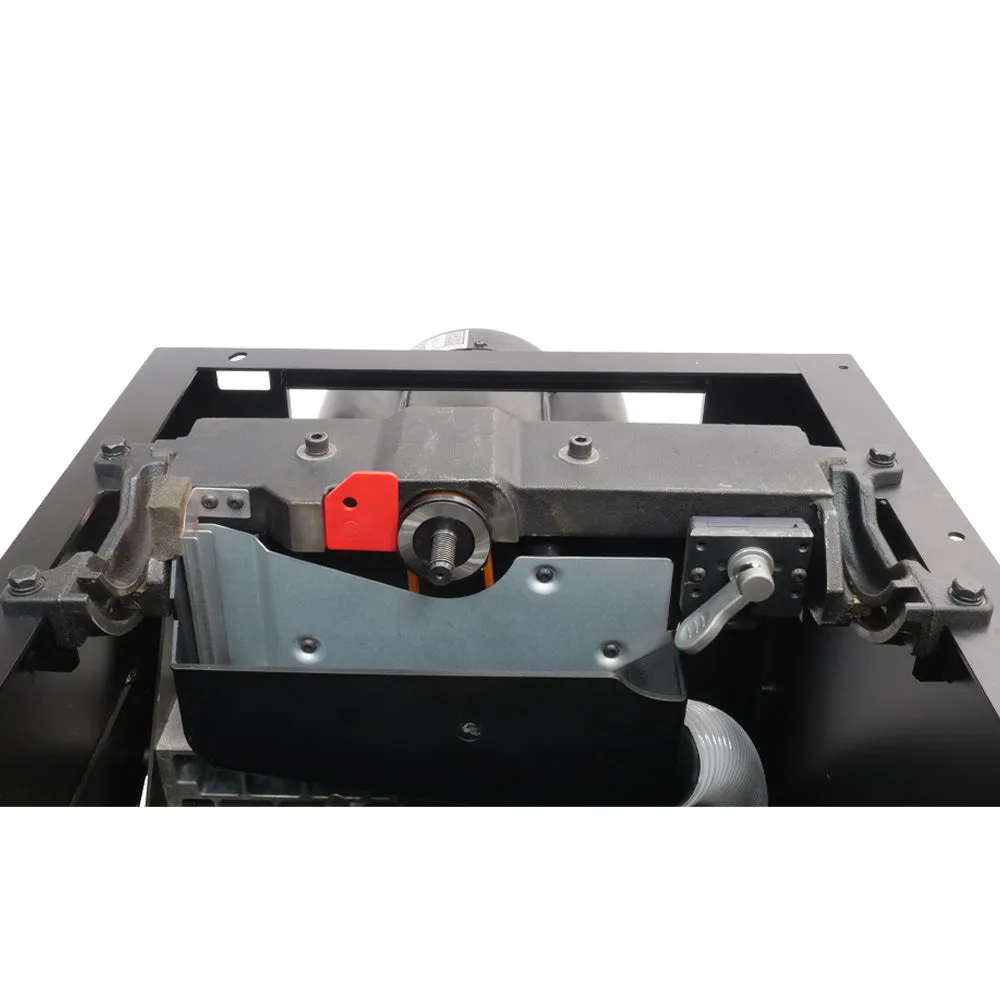

Precision arbor mounted directly to cabinet top
Height adjustment moves straight up easily with mechanical assist

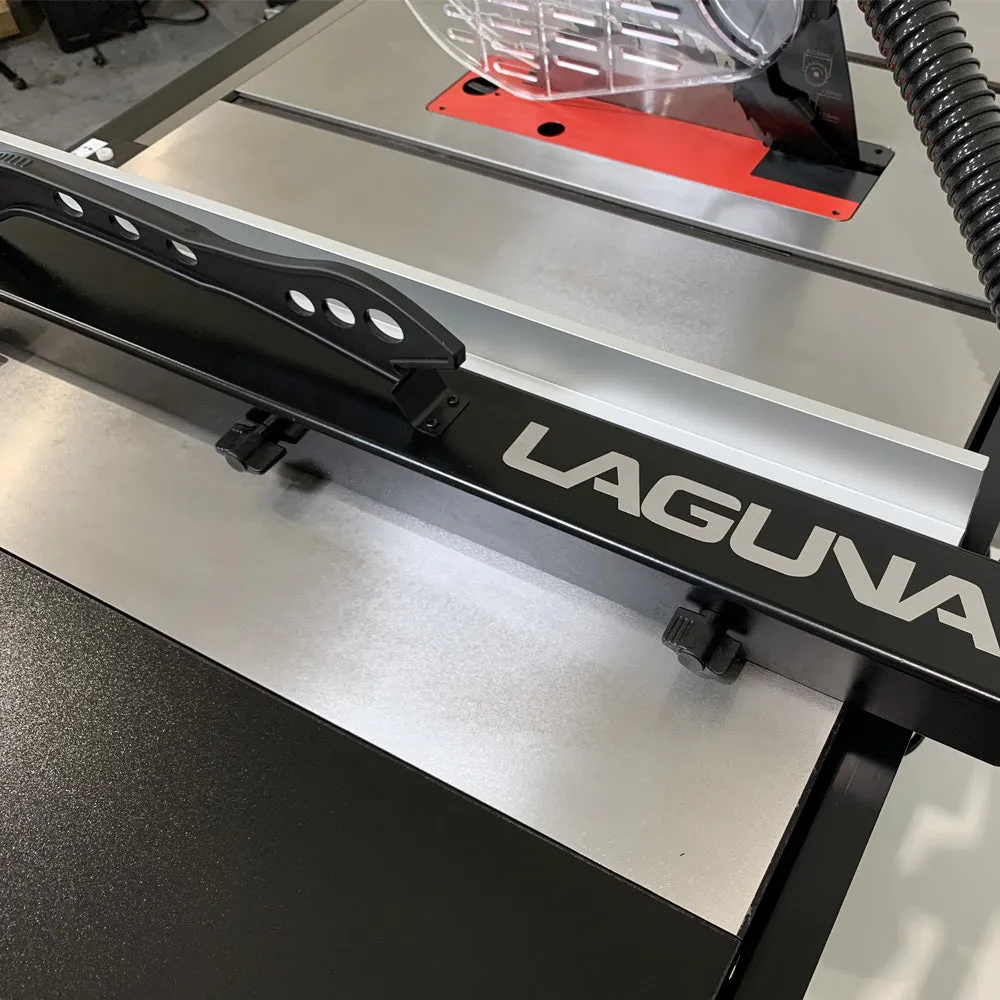

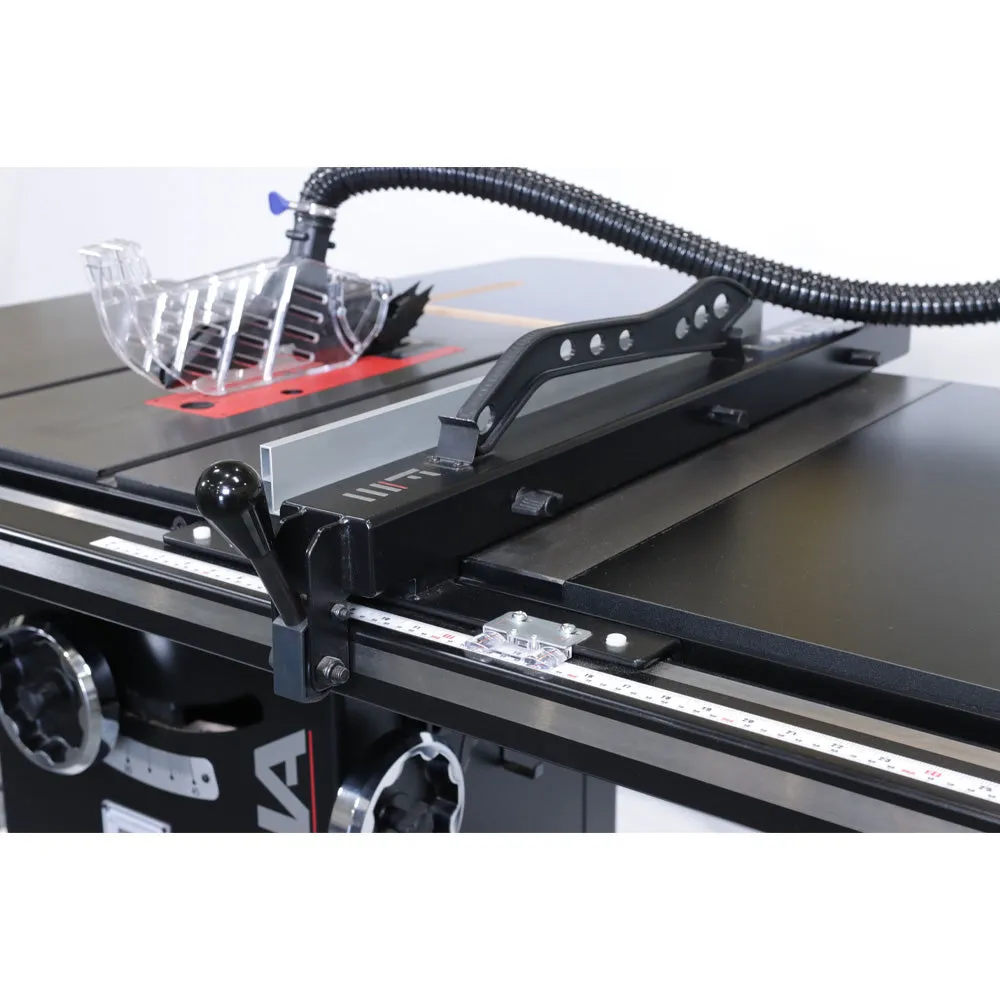

Fence glides effortlessly on the industrial strength steel fence rails

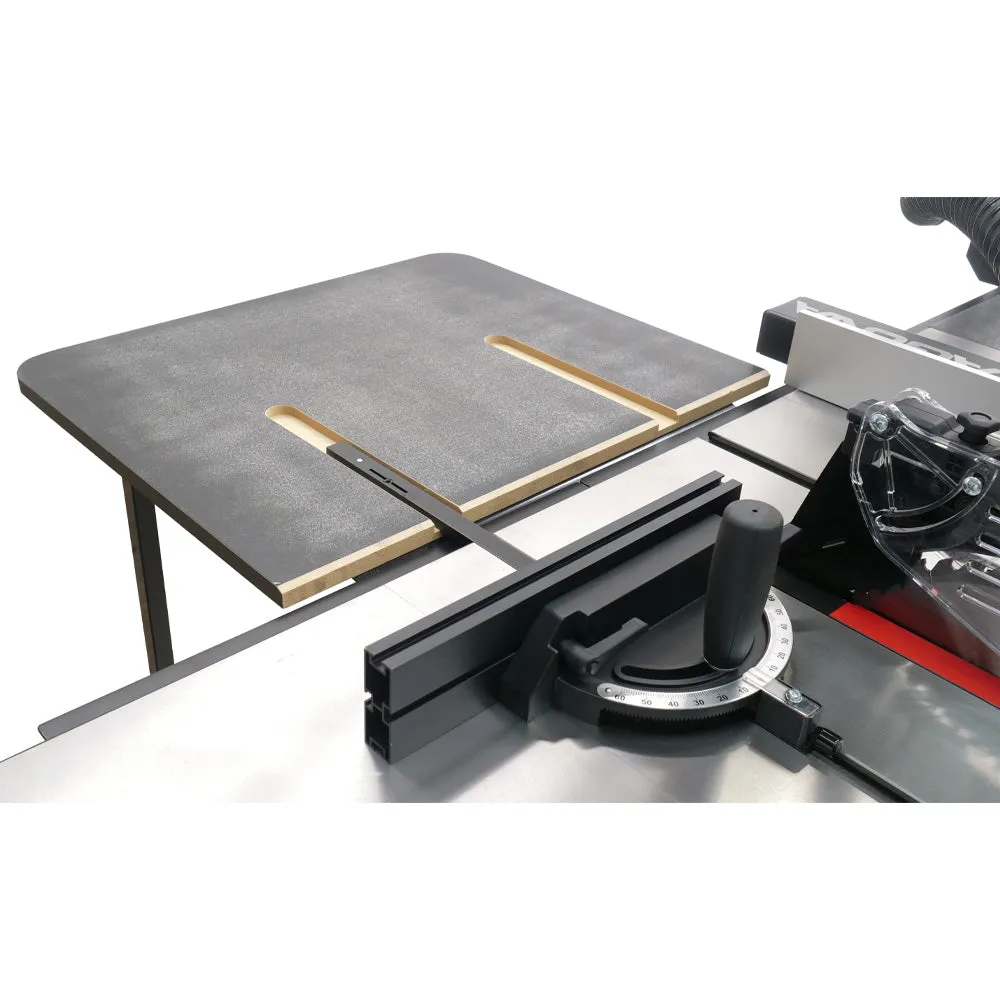

Outfeed table features dual miter slots and 2 supporting legs
Arbor tilt is now on 2:1 ratio gear box
Built-in wheel system
Laguna Arbor is sturdy and built to last
Premium Zero Clearance Throat Plate
Industrial 14 Gauge Cabinet
Perfectly flat and precision ground mirror finished tabletop

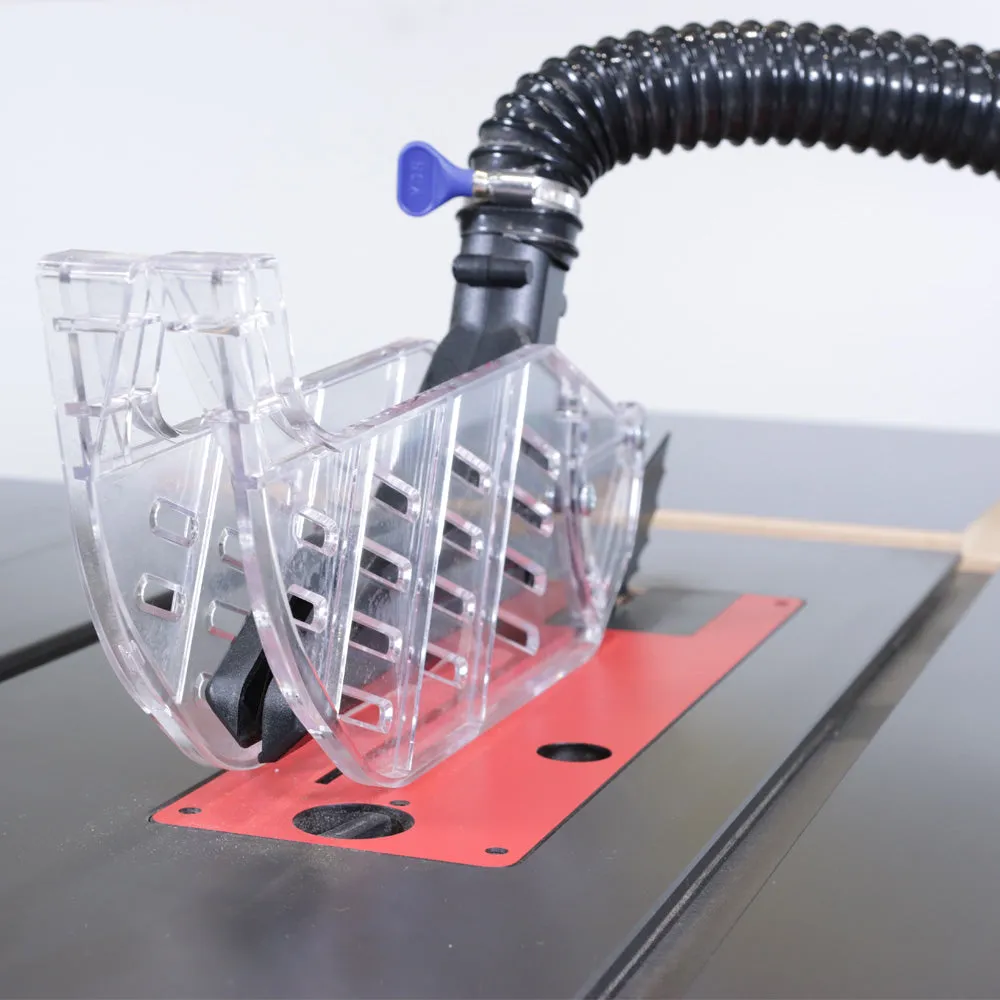

Quick release blade guard attachments
Quick Arbor Adjustments with the 2:1 assisted tilt mechanism and mechanically assisted height adjustments

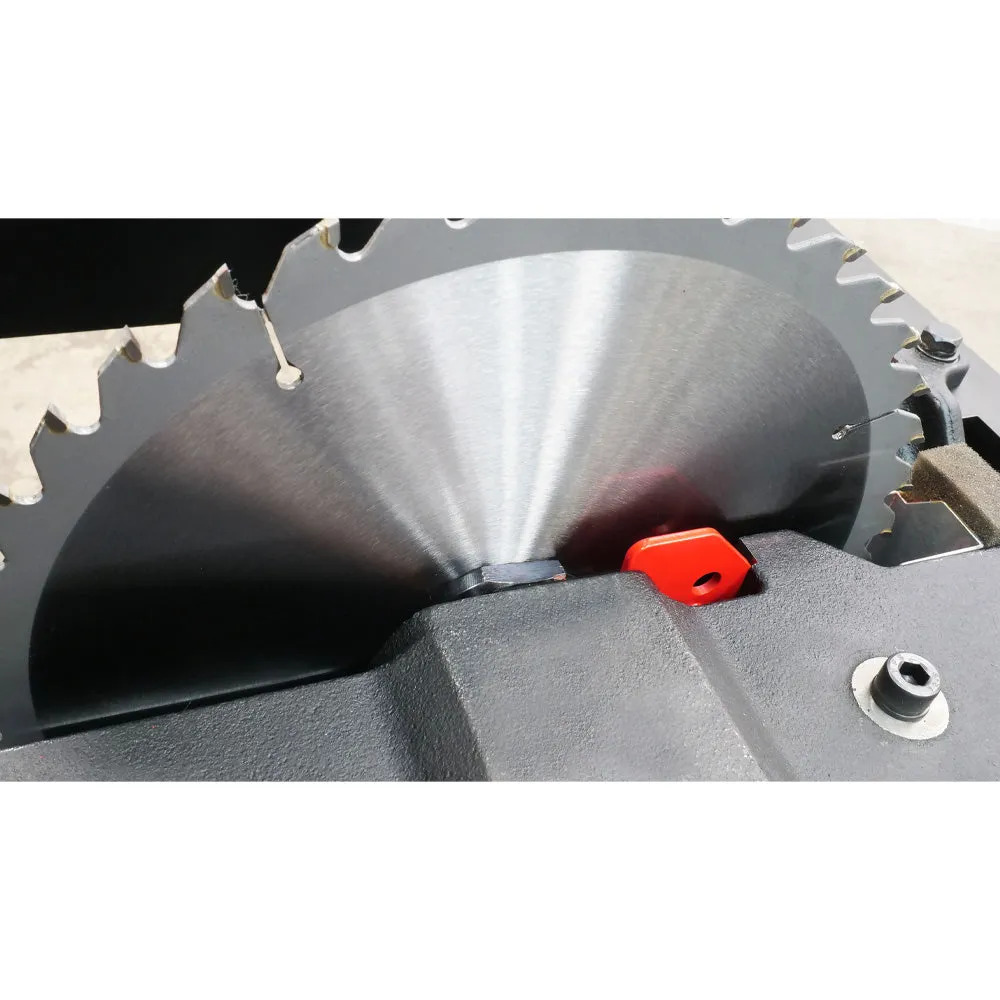

Quick blade changes with the push button blade lock
Single poly V-Ribbed belt and double sealed large bearings
Reliable totally enclosed fan cooled AC Induction motor
Powder coated Laguna black body and shrouded dust control Integrated mobility

Specs

Electrical
Power Requirements: 220V-1PH-60HZ
Amperage (FLA): 14 AMP
Motor Power: 3hp
Motor Speed: 3,450 RPM

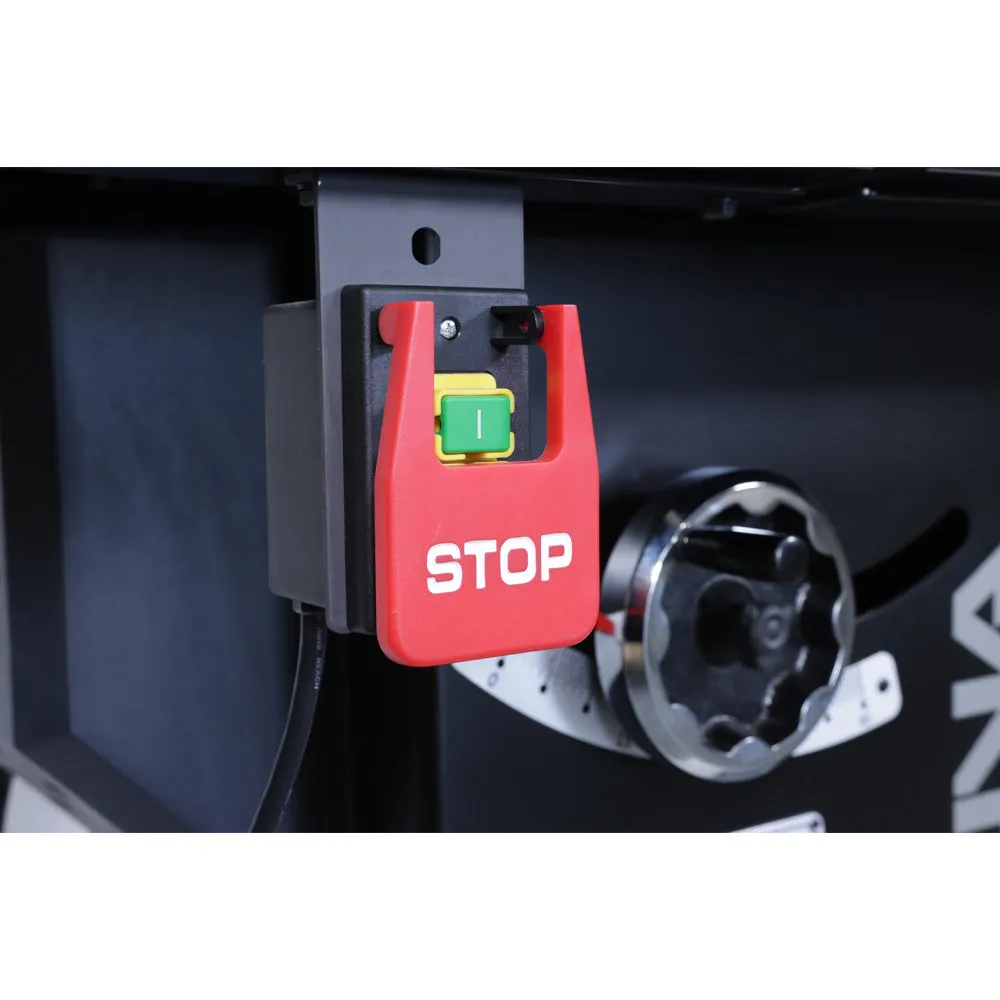

Starter Switch: Magnetic
Plug Included: 6-15
Circuit Breaker Req.: 220V - 25 AMP
Receptacle Req.: 6-15

Table Saw
Rip Capacity: 52"
Blade Size: 10"
Vertical Cut Height: 3-1/8”
45° Cut Height: 2-1/8"
Tilt: 0-45° Left
Max. Width Of Dado: 3/4″
Arbor Speed: 4,500 RPM
Arbor Diameter: 5/8"
Miter Slot: 3/4" to 1" T
Throat Plate: Zero Clearance Square Composite, w/ adjustment
Fence: Double Rail Cam Action

Dimensions
Weight (Net): 405 lbs.
Overall Width (Side-To-Side): 85″
Overall Depth (Front-To-Back): 56″
Overall Height: 43″
Footprint Width: 48″
Footprint Length: 42-1/2″
Space Required For Full Range Of Movement Width (Side-To-Side): 85″
Space Required For Full Range Of Movement Depth (Front-To-Back): 56″

Dust Collection
Dust Port Size: 4"
CFM Requirement: 350 CFM

Materials
Table: Cast Iron
Table Wing: Cast Iron
Cabinet Thick: Sheet Steel
Throat Plate: Composite
Arbor Wheels: Premium Iron
Fence: Aluminum Rail, Steel Body
Upper Trunnion: Cast Iron
Lower Trunnion: Cast Aluminum Alloy
