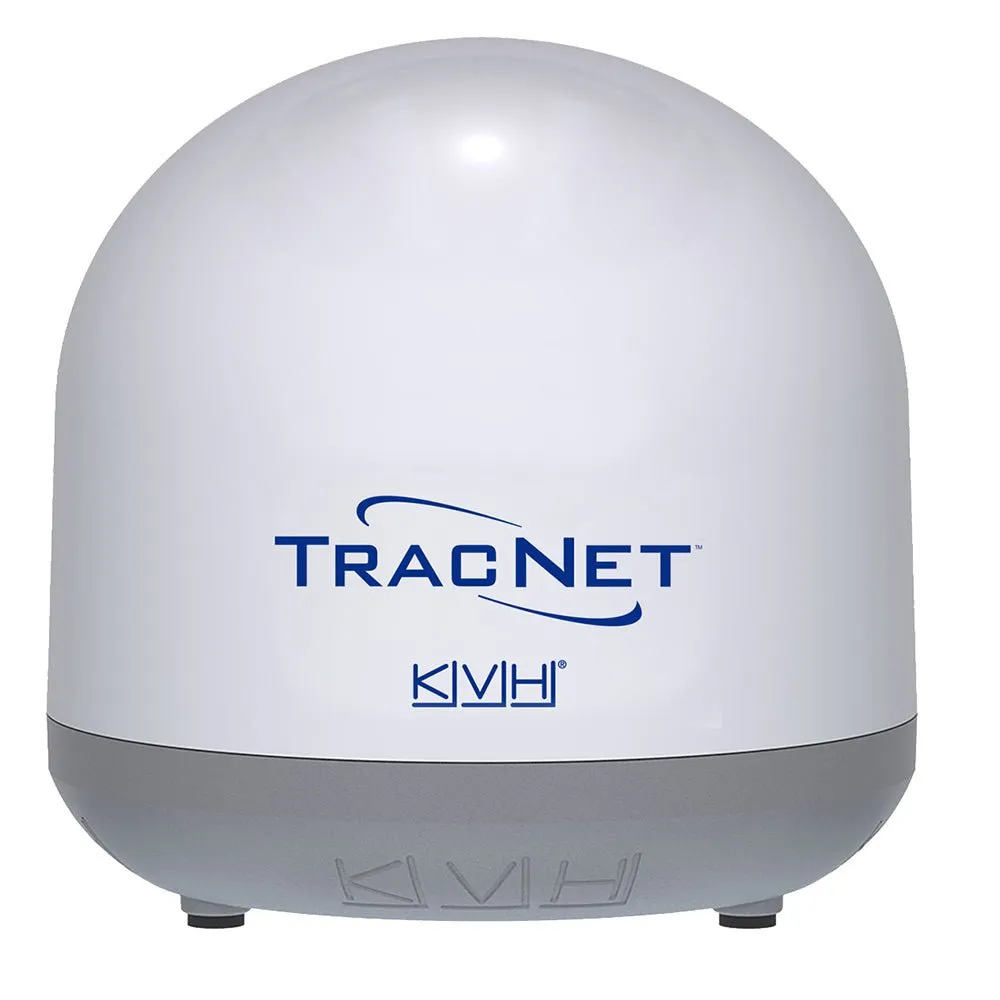

TracNet Coastal 5G/WiFi Compact Terminal
Are you looking for faster and more affordable data to support business and personal connectivity? Would you like to experience home-like content streaming on your boat? Stream, talk, watch, and connect with KVH TracNet Coastal, a compact, fast, marine-grade system that is compatible with 5G and LTE cellular services worldwide!
Features:
- 5G/LTE and WAN WiFi in a compact radome
- Integrated cellular//WiFi system with intelligent hybrid switching
- High-gain 5G cellular antennas for extended offshore coverage
- Single-cable, DC-powered maritime design (PoE Injector)
- Data speeds as fast as 300 Mbps plus high-gain WiFi reception in marinas and ports
- Data plans starting as low as $1/GB (subject to change)
- Connectivity in 135 countries via the KVH ONE network and exclusive KVH Fusion eSIM technology along with the convenience of month-to-month data plans and the option to Bring Your Own SIM (Requires TracNet Coastal Pro system)
- Intelligent switching among 5G, LTE, and WiFi with integrated onboard router
- Perfect hybrid complement for existing onboard communications, such as Starlink, VSAT, and OneWeb
- Marine-grade, compact antenna
- Single-cable antenna installation with ultra-efficient DC power design
- Easy integration with existing CommBox modems for simple hybrid switching with VSAT and other networks
- Compatible with the CommBox Edge Communications Gateway for advanced network and bandwidth management, channel balancing, advanced bonding, and more
Technical Specifications:
- Dome Dimensions - 13.5" (Dia.) x 13.1" (H)
- Dome Weight - 8 lbs
- Dome Operating Temperature - -25°C to 55°C (-13°F to 131°F)
- Dome Survival Temperature - -30°C to 70°C (-22°F to 158°F)
- Below Deck Unit (BDU) Ethernet Ports - 1, user LAN only
- Power Input - 10-30 Volts DC (direct wire), with available AC Power Supply option
- Power Consumption (Nominal/Max) - 10W/14W
- BDU Operating Temperature - -15°C to 55°C ( 5°F to 131°F)
- BDU Survival Temperature - -25°C to 70°C (-13°F to 158°F)
- Intelligent Connection Switching Number of WANs Supported - 2 Cell/WAN WiFi
