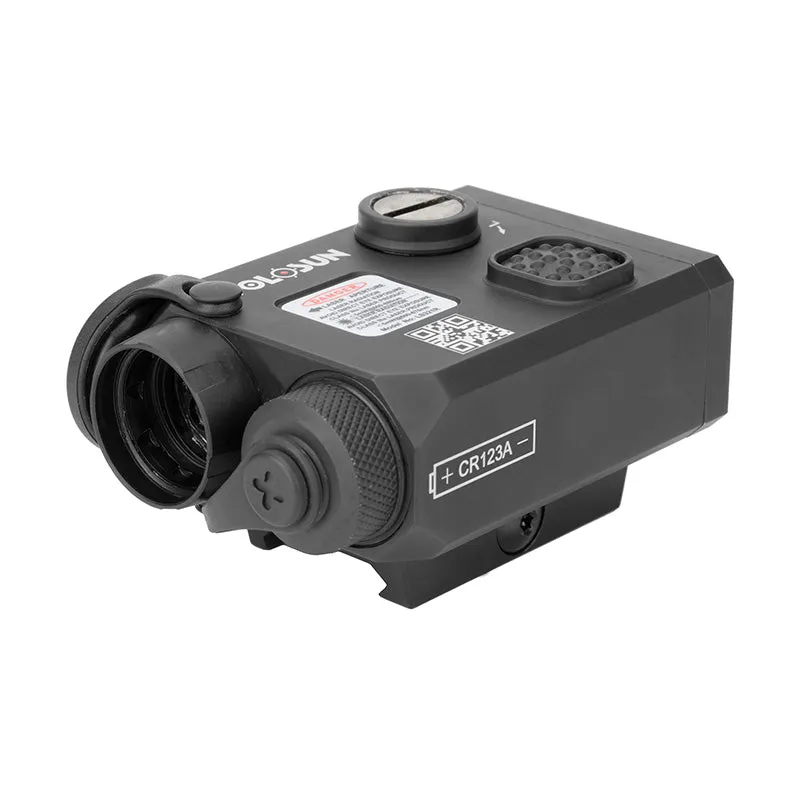

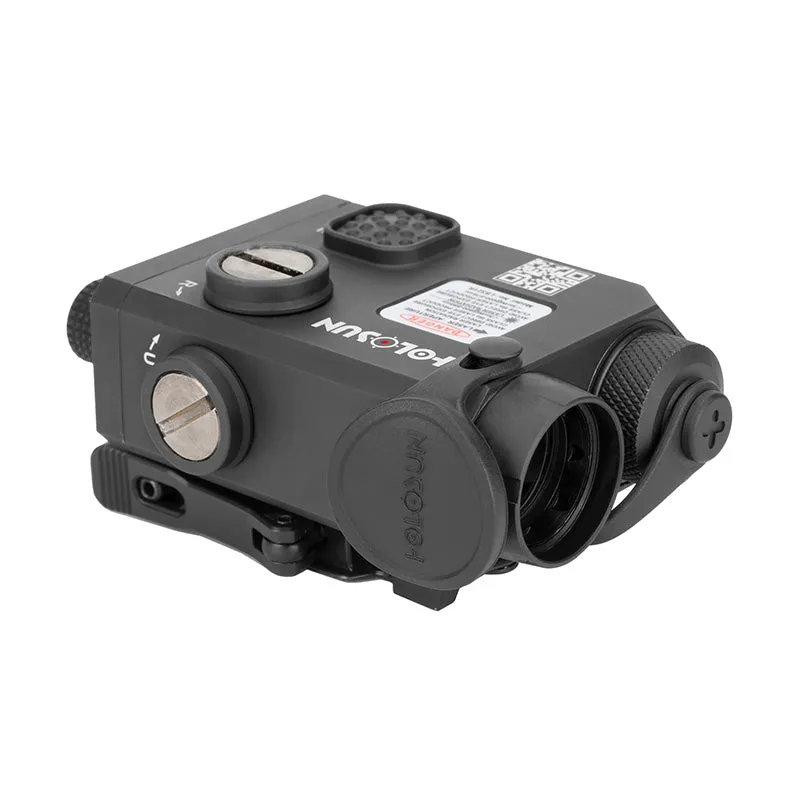

The LS321G is a class IIIa visible green laser aiming device with a coaxial mounted class 2 IR (infrared) laser and IR illuminator for use with night vision devices. The LS321G features a 7075-aluminum matte black anodized housing with a quick release Picatinny rail mount. The LS321G is powered by a single CR123 battery which can provide up to 5000 hours of battery life.

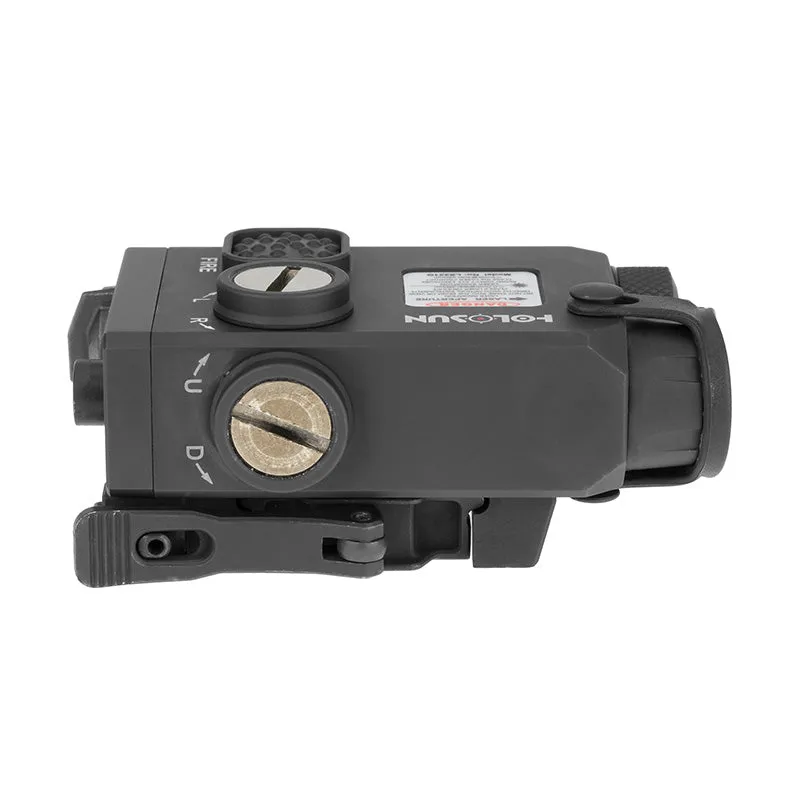

The rear facing selector switch lets the user select between visible low, visible high, IR high, IR illuminator, or IR high with IR illuminator activation using the included remote pressure switch or turn the unit OFF. The LS321G also includes a top mounted activation button and tactile windage and elevation adjustments for a precision zero.
Items Dimensions (in inches)
In the Box
- QD Release Mount
- Remote Cable Switch
- T10 L Key
- User Manual
- CR123A Battery
PHYSICAL SPECS
| Window Size | N/A |
| Dimension (in) | 3.6×2.2×1.6 |
| Weight (oz) | 8.64 |
MECHANICAL SPECS
| Housing Material | 7075 T6 Aluminum |
| Surface Finish | MAO |
| Adjustment per Click | 0.5 MOA |
| W&E Travel Range | ±50 MOA |
ENVIRONMENT SPECS
| Storage Temperature | -40℃~65℃ |
| Working Temperature | -40℃~51℃ |
| Submersion | IP67 |
| Vibration | 1000G |
ILLUMINATOR SPECS
| White LED Candela | N/A |
| Laser & Illuminator Type | Dual Laser & IR Illuminator |
| White LED Output | N/A |
| IR Illuminator Class | IIIB |
| IR Illuminator Output | 0.7mw |
| IR Pointer Class | IIIB |
| IR Pointer Output | 0.1mw(low)/0.7mw(high) |
| Visible Laser Class | IIIA |
| Visible Laser Output | 1mw(low)/5mw(high) |
