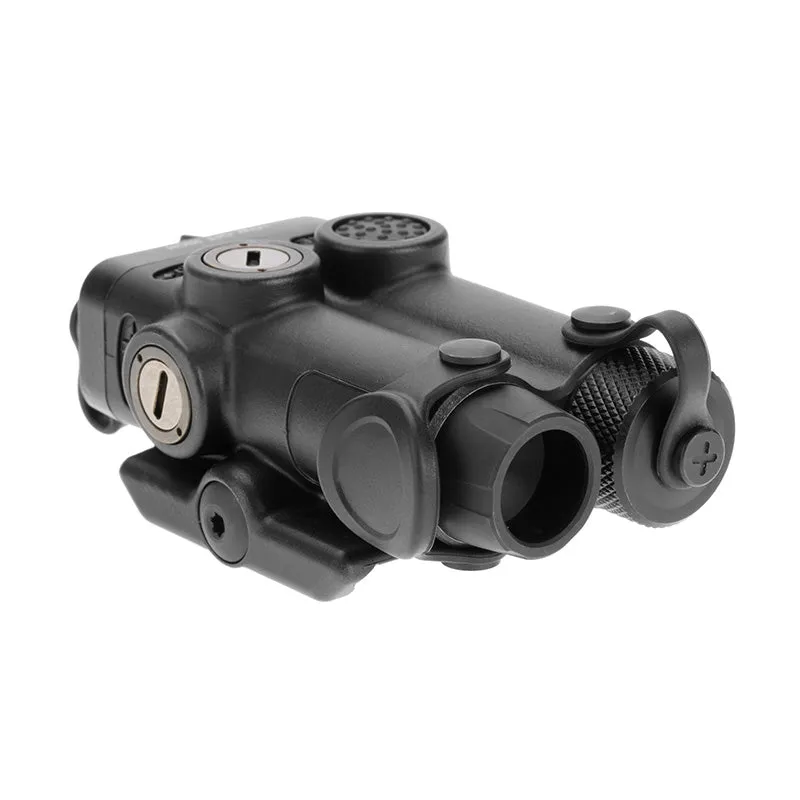

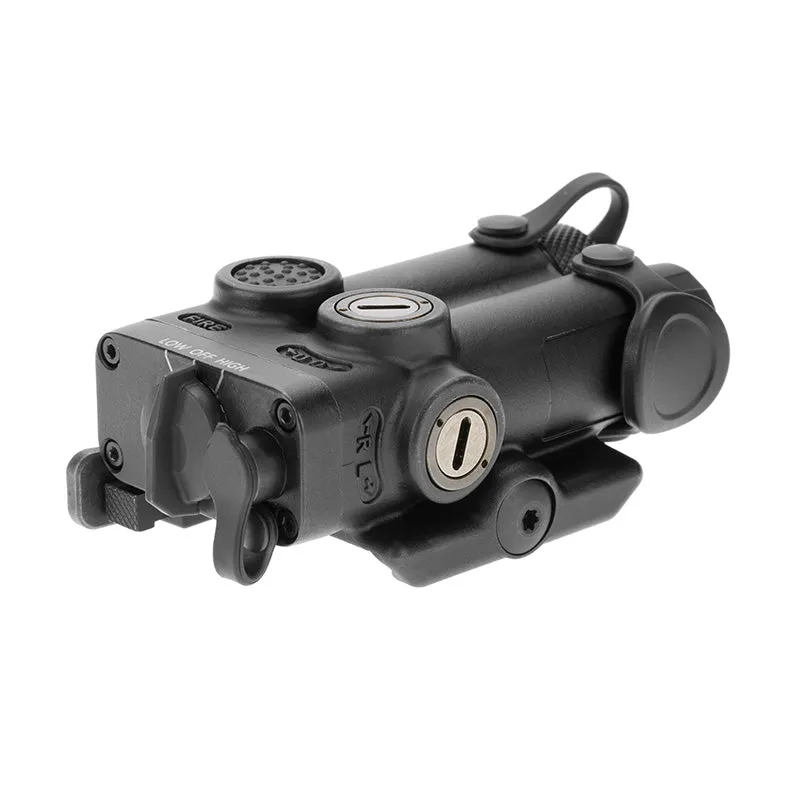

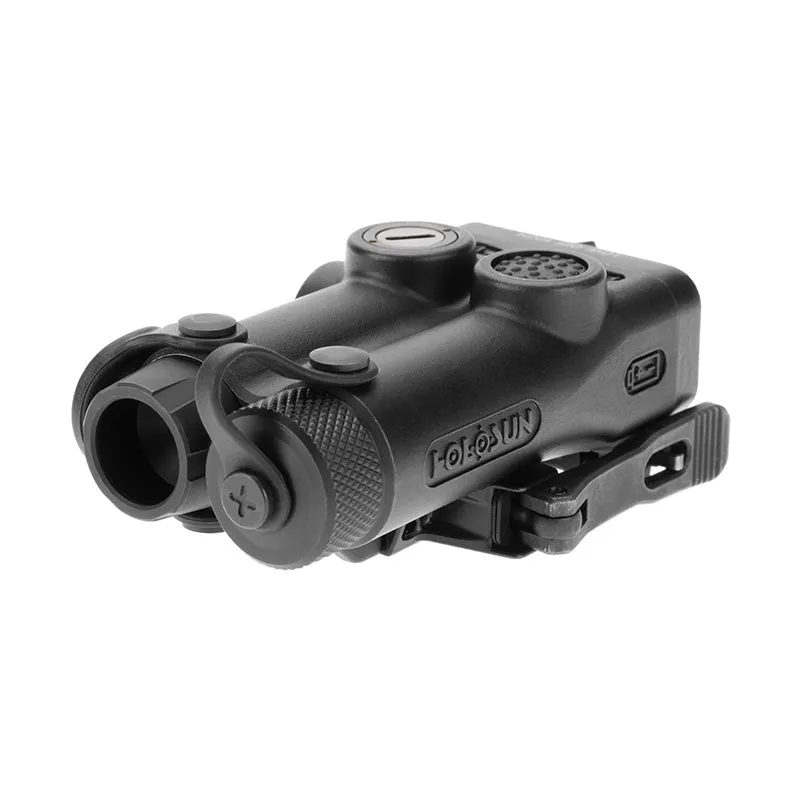

The LE117G is a class IIIa green laser aiming device designed for long gun applications. The LE117G features a grade 5 titanium housing with a quick release Picatinny rail mount. The LE117G is powered by a CR123 lithium battery which can provide up to 5000 hours of battery life.
The rear facing selector switch lets the user select between constant ON, OFF, or activation using the included remote pressure switch. The LE117G also includes tactile windage and elevation adjustments for a precision zero and a top mounted activation button.
Items Dimensions (in inches)
In the Box
- QD Release Mount
- Remote Cable Switch
- T10 L Key
- User Manual
- CR123 Battery
ELECTRONIC SPECS
| Power Source | Battery |
| Battery Type | CR123A |
| Battery Life (Hours) | Up to modes |
| Brightness Setting | Up to modes |
PHYSICAL SPECS
| Window Size | N/A |
| Dimension (in) | 3.43×1.77×1.34 |
| Weight (oz) | 6.7 |
MECHANICAL SPECS
| Housing Material | Titanium |
| Surface Finish | Titanium |
| Adjustment per Click | 0.5 MOA |
| W&E Travel Range | ±60 MOA |
ENVIRONMENT SPECS
| Storage Temperature | -40℃~65℃ |
| Working Temperature | -40℃~51℃ |
| Submersion | IPX8 |
| Vibration | 1000G |
ILLUMINATOR SPECS
| White LED Candela | N/A |
| Laser & Illuminator Type | Single Laser |
| White LED Output | N/A |
| IR Illuminator Class | N/A |
| IR Illuminator Output | N/A |
| IR Pointer Class | N/A |
| IR Pointer Output | N/A |
| Visible Laser Class | IIIA |
| Visible Laser Output | 1mw(low)/5mw(high) |
