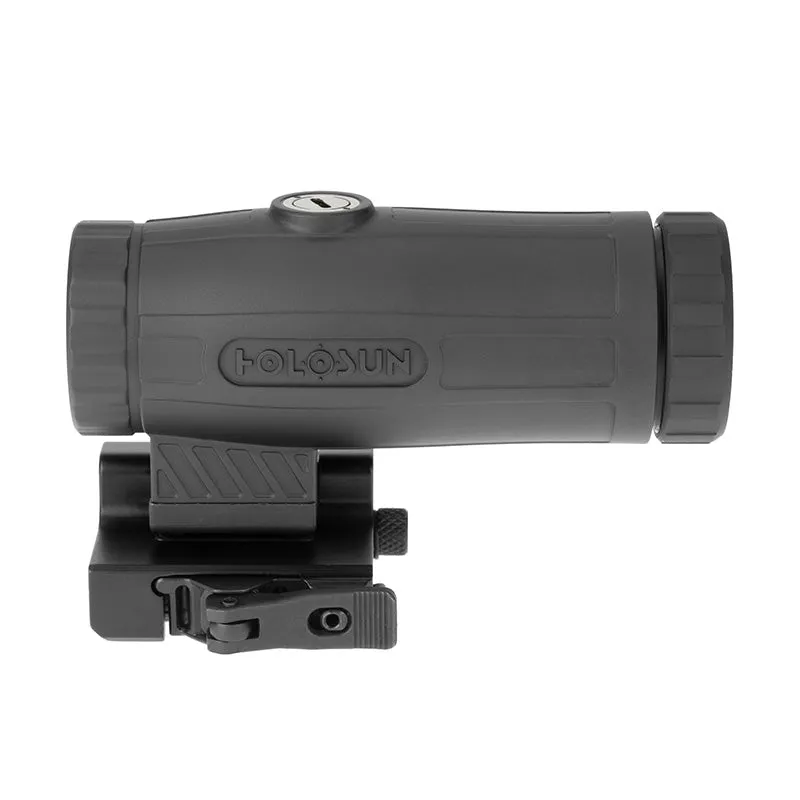

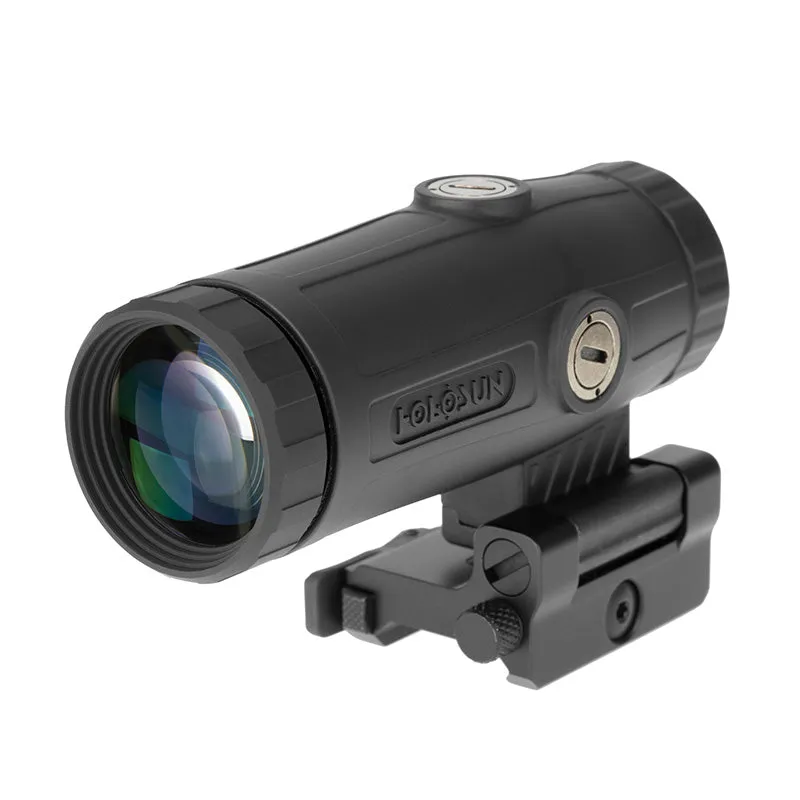

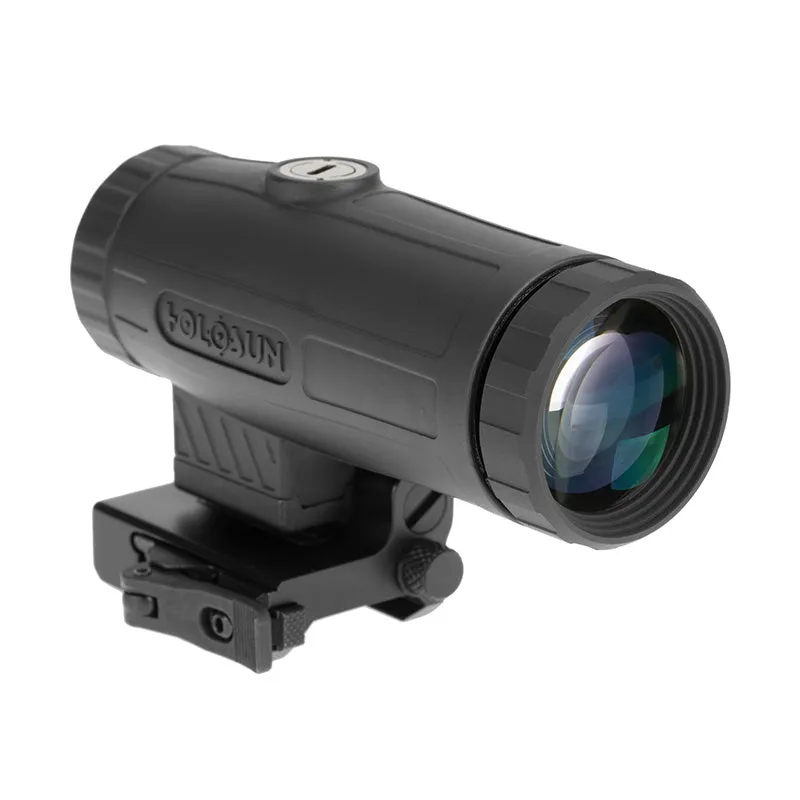

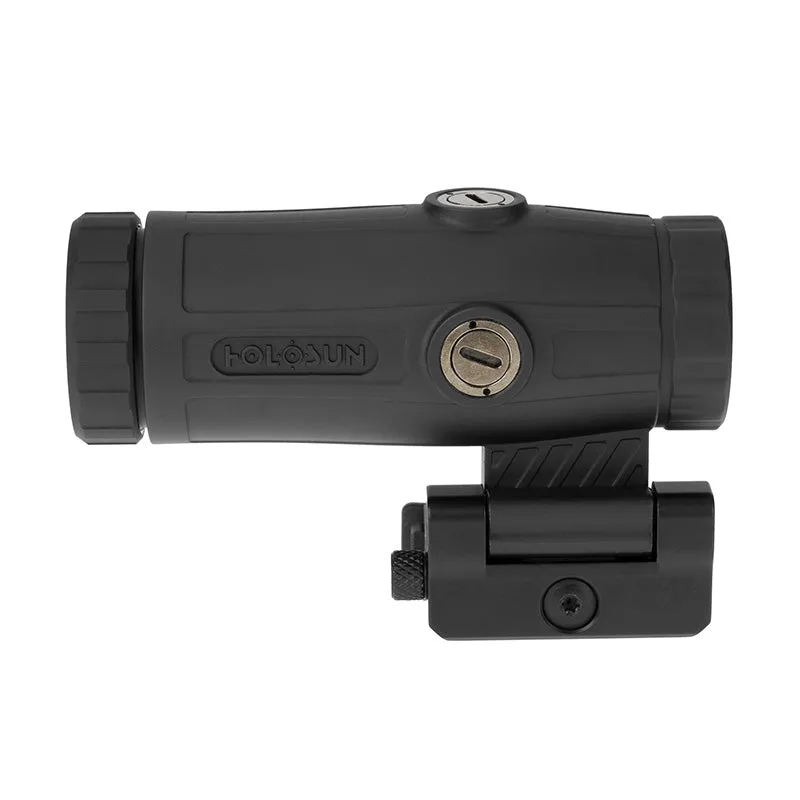

The HM3X is an aluminum bodied 3X magnifier designed for use in conjunction with a red dot sight. The HM3X is feature-packed and includes a quick release, ambidextrous, flip-to-side Picatinny rail mount. Holosun includes a spacer with the HM3X that provides compatibility with absolute and lower 1/3 co-witness dot heights for maximum compatibility. The HM3X has a generous 2.75” of eye relief, is IP67 certified water resistant, and includes windage and elevation adjustment for precision zeroing to your optic’s zero. The HM3X also includes a built-in flat driver tool for easy adjustments.
PHYSICAL SPECS
| Window Size | N/A |

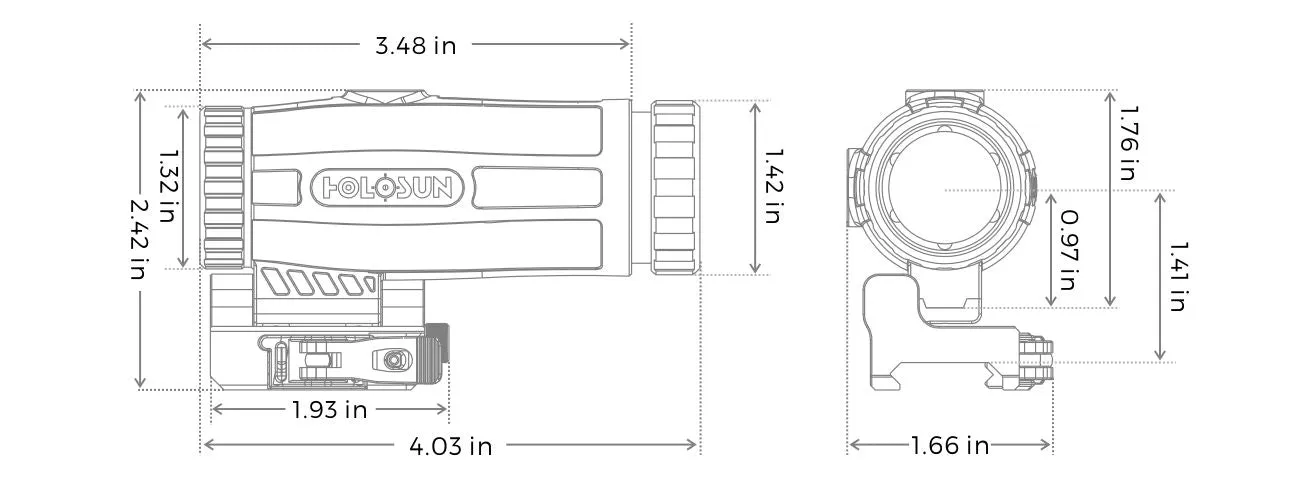

| Dimension (in) | 4 x 1.7 x 2.5 |
| Weight (oz) | 9.8 |
MECHANICAL SPECS
| Housing Material | Durable Aluminum |
| Surface Finish | MAO |
| Adjustment per Click | N/A |
| W&E Travel Range | N/A |
ENVIRONMENT SPECS
| Storage Temperature | -20℃~65℃ |
| Working Temperature | -20℃~51℃ |
| Submersion | IP67 |
| Vibration | 1000G |
MAGNIFICATION SPECS
| Transmittance | 75% |
| Diopter | ±3D |
| Field of View | 7 Degree |
| Eye Relief | 70mm |
| Exit Pupil | 7.6mm |
| Magnification | 3X |
