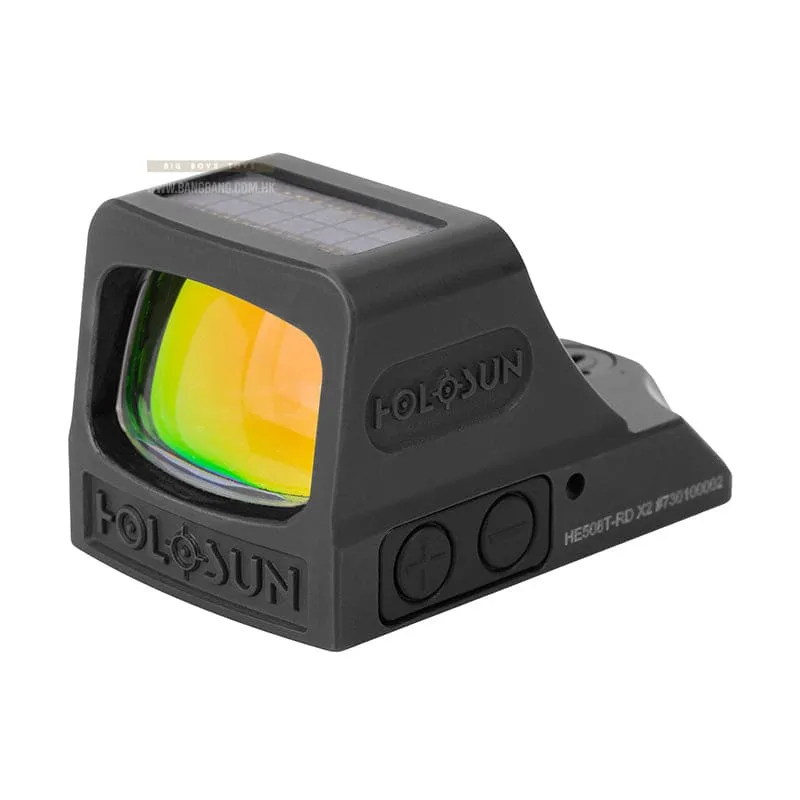

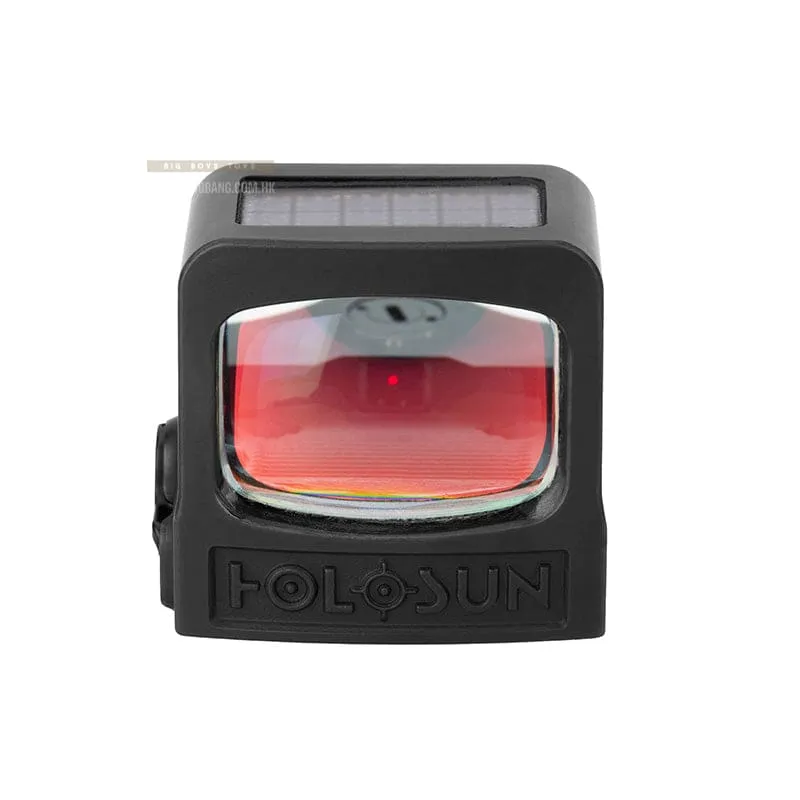

The HE508T-RD X2 is a hard-use open reflex sight designed for handgun applications. Features include a grade 5 titanium housing with industry standard footprint, Holosun’s ultra efficient 650nm Red Super LED with up to 50k hour battery life from a 1632 battery, and a Multi-Reticle System providing 2MOA dot only, 32MOA Circle only, or Circle-Dot combination.
HE508T-RD X2 also features Solar Failsafe and Shake Awake technology, and Lock Mode which, when activated, can prevent inadvertent setting changes. HE508T-RD X2 feature 12 intensity settings, two of which are compatible with night vision devices.
Items Dimensions (in inches)
In the Box
- T10 L Key
- User Manual
- Lens Cloth
OPTICAL SPECS
| Reticle | 2 MOA Dot & 32 MOA Circle |
| Light Wavelength | 650nm |
| Reticle Color | Red |
| Parallax Free | Yes |
| Unlimited Eye Relief | Yes |
| Magnification | 1x |
| Multi-Coatings | Yes |
ELECTRONIC SPECS
| Power Source | Solar & Battery |
| Battery Type | CR1632 |
| Battery Life (Hours) | 50000 |
| Brightness Setting | 10 DL&2 NV |
PHYSICAL SPECS
| Window Size | 0.63x0.91 |
| Dimension (in) | 1.78x1.15x1.15 |
| Weight (oz) | 2 |
MECHANICAL SPECS
| Housing Material | Titanium |
| Surface Finish | Titanium |
| Adjustment per Click | 1 MOA |
| W&E Travel Range | ±50 MOA |
ENVIRONMENT SPECS
| Storage Temperature | -40℃~70℃ |
| Working Temperature | -30℃~60℃ |
| Submersion | IP67 |
| Vibration | 5000G |
