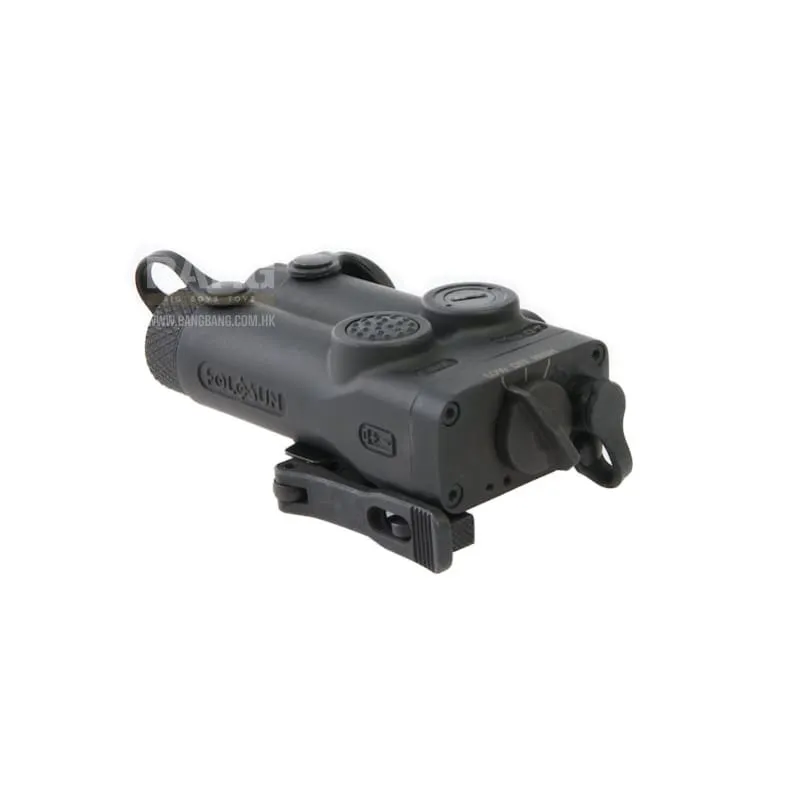

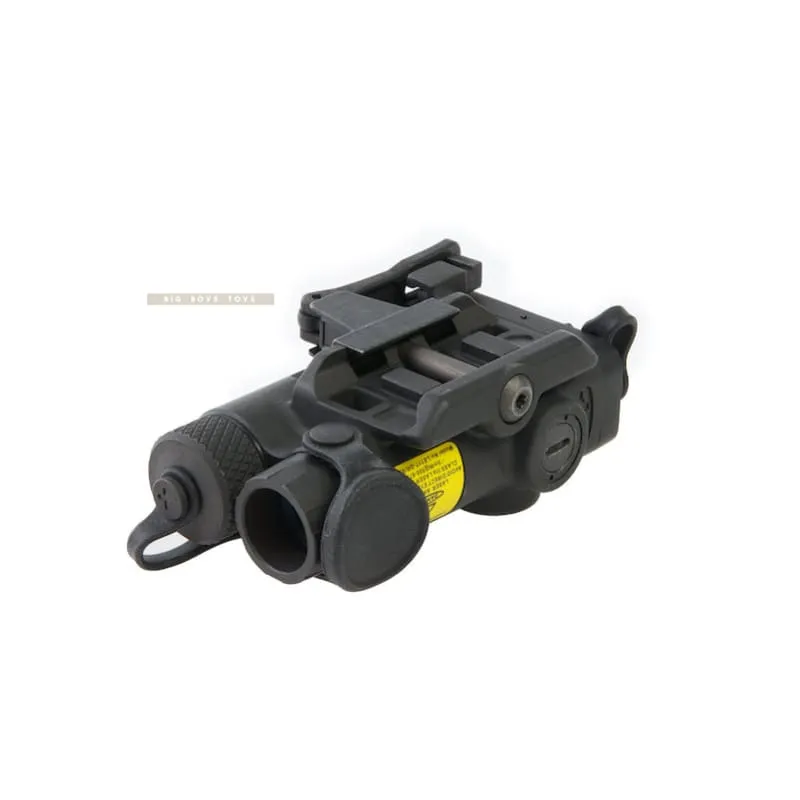

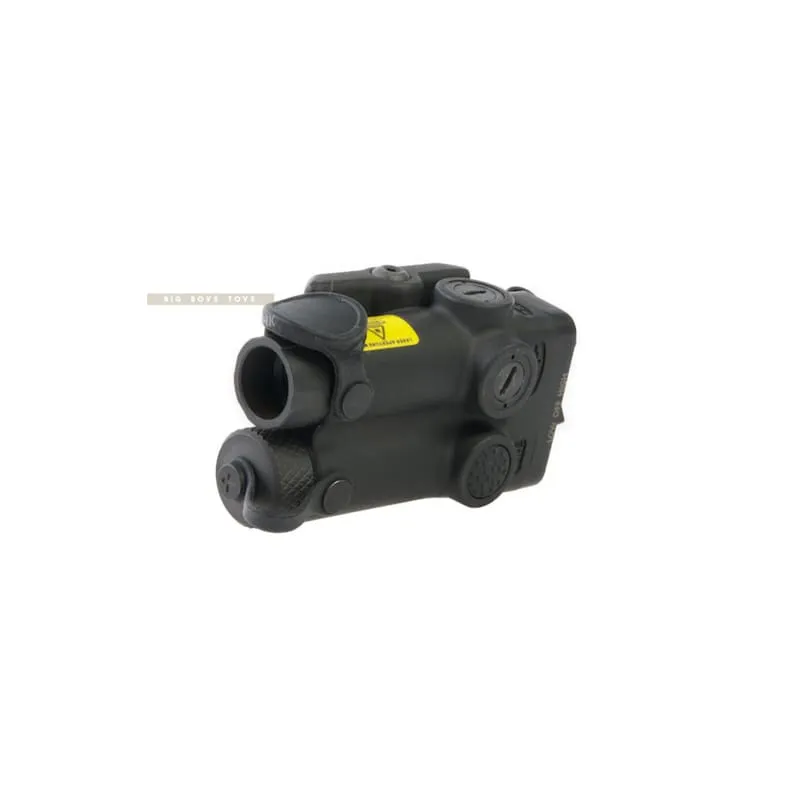

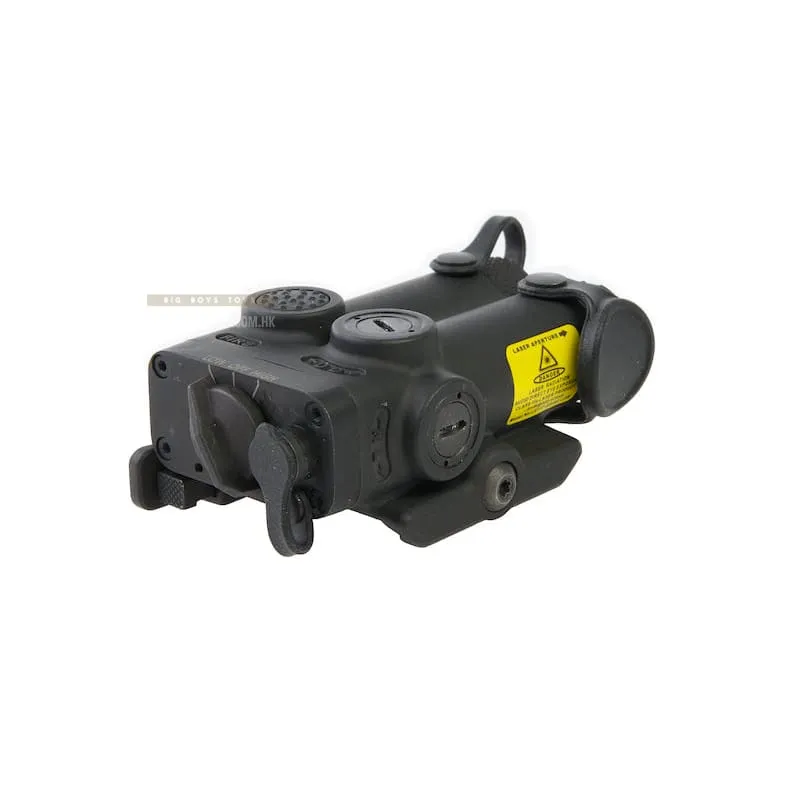

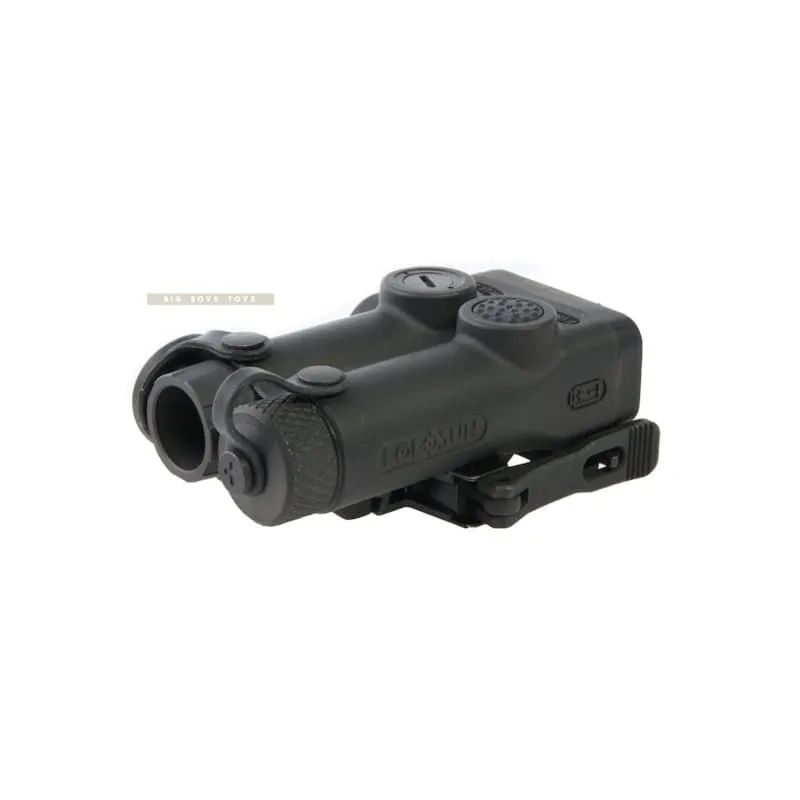

The LE117R is a class IIIa red laser aiming device designed for long gun applications. The LE117R features a grade 5 titanium housing with a quick release Picatinny rail mount. The LE117R is powered by a single CR123 battery which can provide up to 5000 hours of battery life.
The rear facing selector switch lets the user select between constant ON, OFF, or activation using the included remote pressure switch. The LE117R also include tactile windage and elevation adjustments for a precision zero.
Items Dimensions (in inches)
In the Box
- QD Release Mount
- Remote Cable Switch
- T10 L Key
- User Manual
- CR123 Battery
PHYSICAL SPECS
| Window Size | N/A |
| Dimension (in) | 3.43×1.77×1.34 |
| Weight (oz) | 6.7 |
MECHANICAL SPECS
| Housing Material | Titanium |
| Surface Finish | Titanium |
| Adjustment per Click | 0.5 MOA |
| W&E Travel Range | ±60 MOA |
ENVIRONMENT SPECS
| Storage Temperature | -40℃~65℃ |
| Working Temperature | -40℃~51℃ |
| Submersion | IPX8 |
| Vibration | 1000G |
ILLUMINATOR SPECS
| White LED Candela | N/A |
| Laser & Illuminator Type | Single Laser |
| White LED Output | N/A |
| IR Illuminator Class | N/A |
| IR Illuminator Output | N/A |
| IR Pointer Class | N/A |
| IR Pointer Output | N/A |
| Visible Laser Class | IIIA |
| Visible Laser Output | 1mw(low)/5mw(high) |
