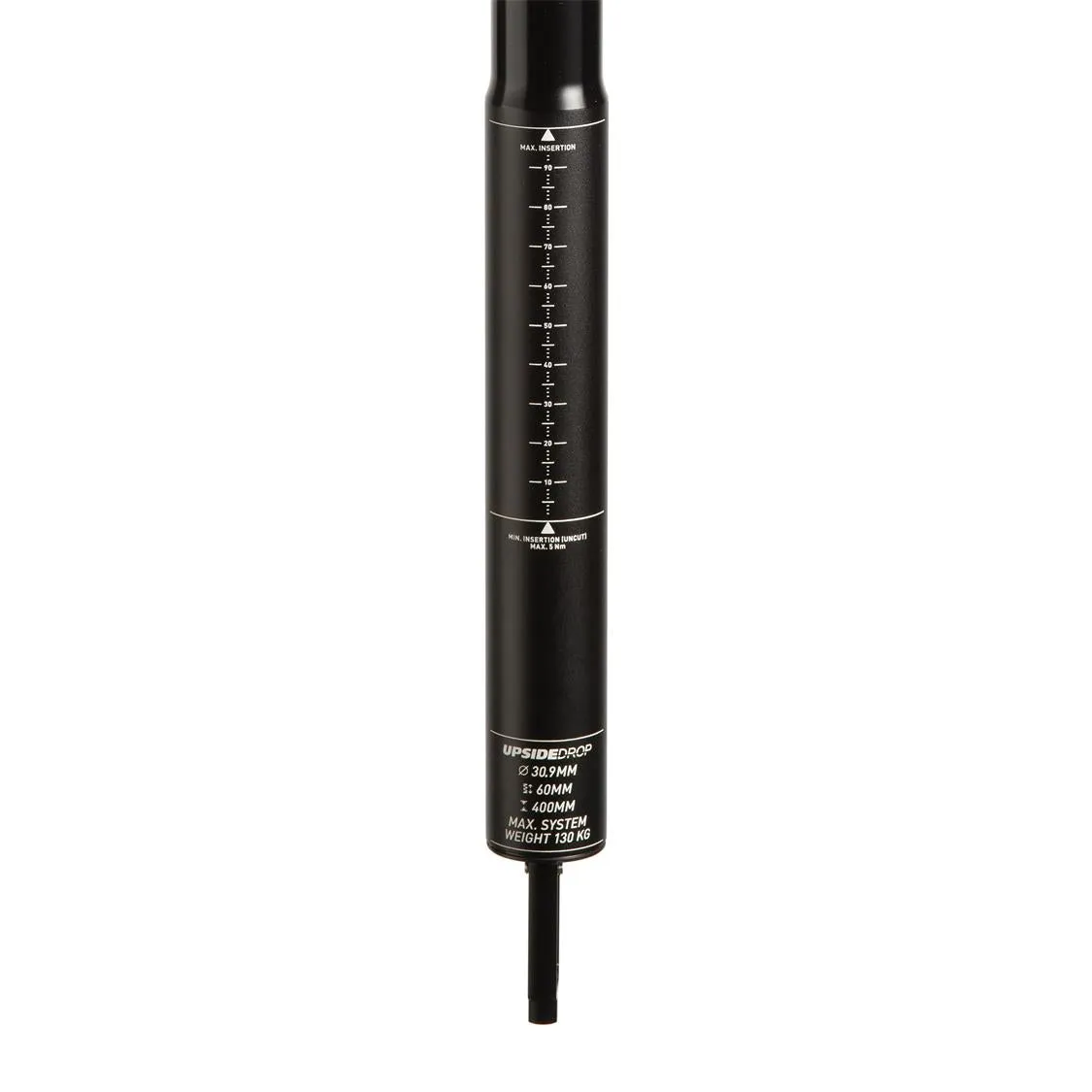

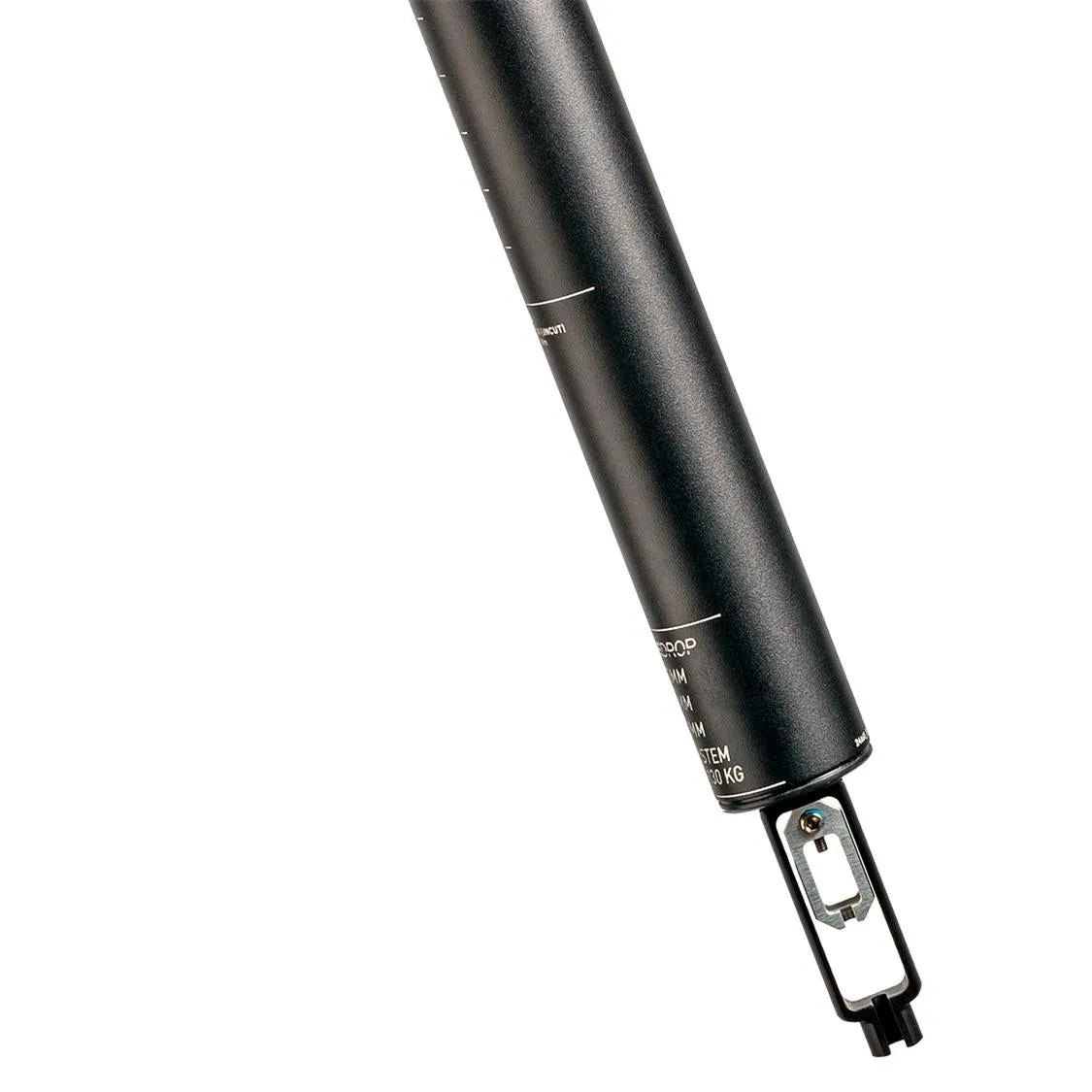

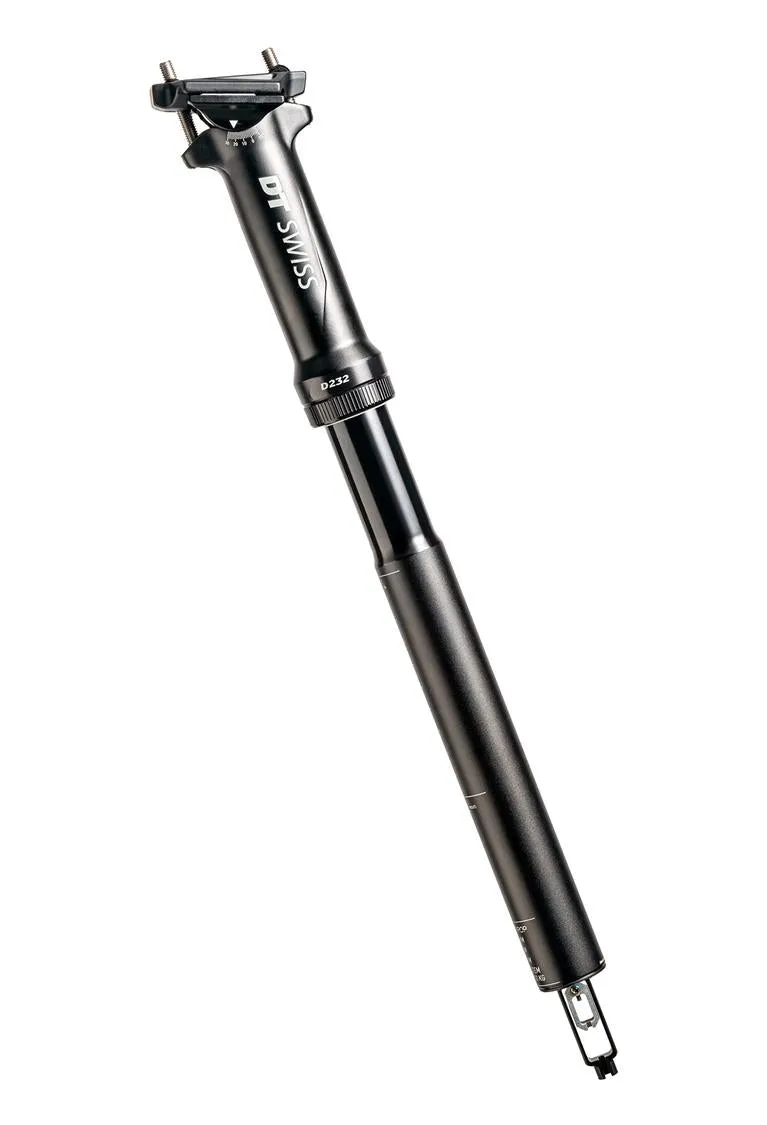

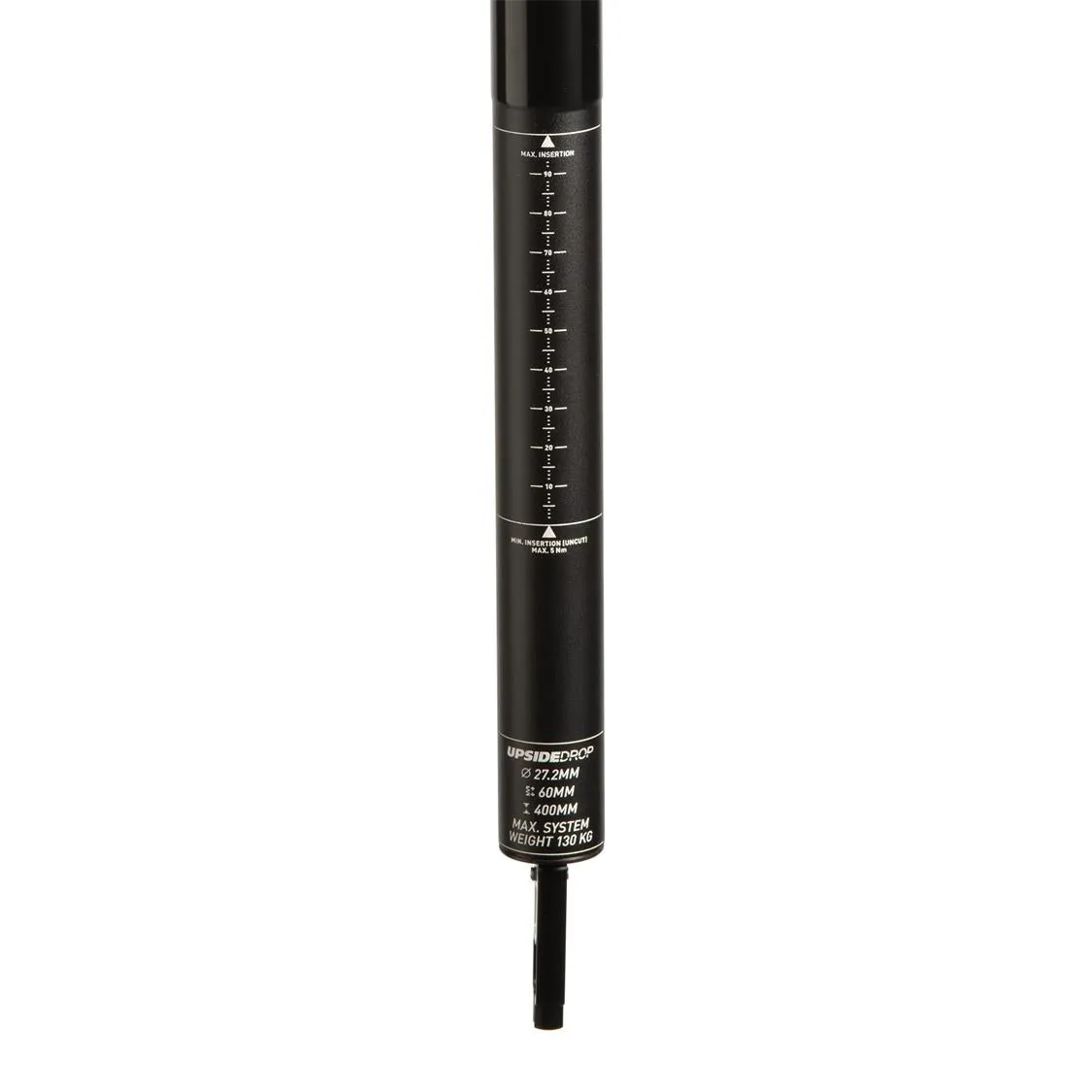

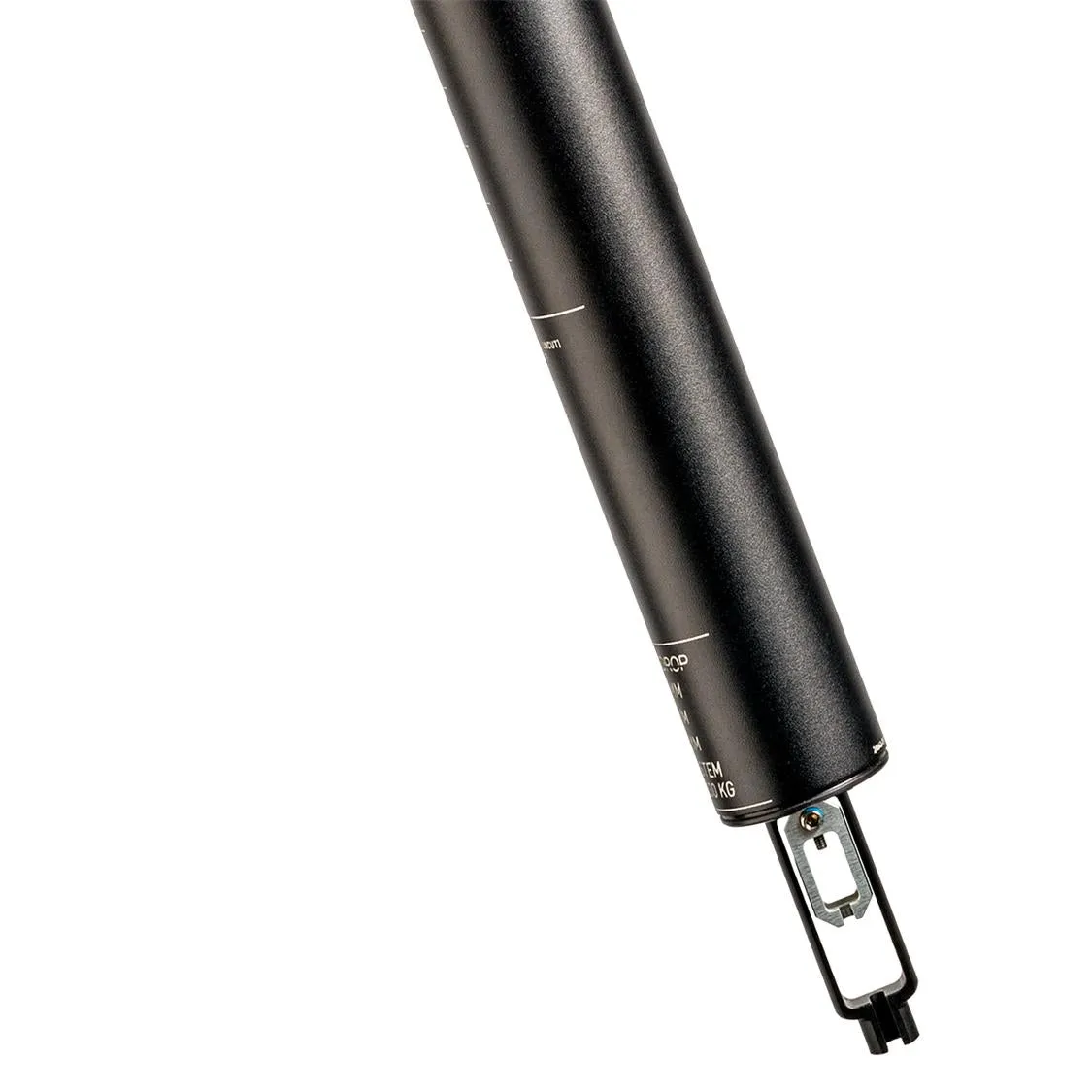

DT SWISS - D232 DROPPER POSTS
The D 232 offers everything you could want from a cross country dropper seat post. The 60 mm travel delivers extra performance when it comes to technical passages. The fully mechanical system is not only reliable and easy to maintain, the UPSIDEDROP technology also makes a weight of just 416 g possible.
- NET WEIGHT - 416 g
- MAX. SYSTEM WEIGHT MTB - 130 kg
- ASTM CLASSIFICATION MTB - 3
- STROKE [A] - 60mm
- SEAT TUBE DIAMETER - 27.2mm / 30.9mm
- MATERIAL SADDLE CLAMP - Aluminum
- MATERIAL SEAT TUBE - Aluminum
- MINIMUM EXTENSION [B] - 210mm
- MAXIMUM INSERTION [G] - 190mm
- MINIMUM INSERTION [C] - 90mm
- MAXIMUM EXTENSION [F] - 310mm
- STACK HEIGHT [H] - 150mm
- LENGTH QUICKCONNECTOR [E] - 45mm
- TOTAL LENGTH [D] - 400mm
- ACTUATION TYPE - Mechanical
- RELEASE MECHANISM - Mechanical
- COMPATIBILITY - L1
- ACTUATION STEPS - 2, up & down
- SADDLE CLAMP - 2-Bolt vertical

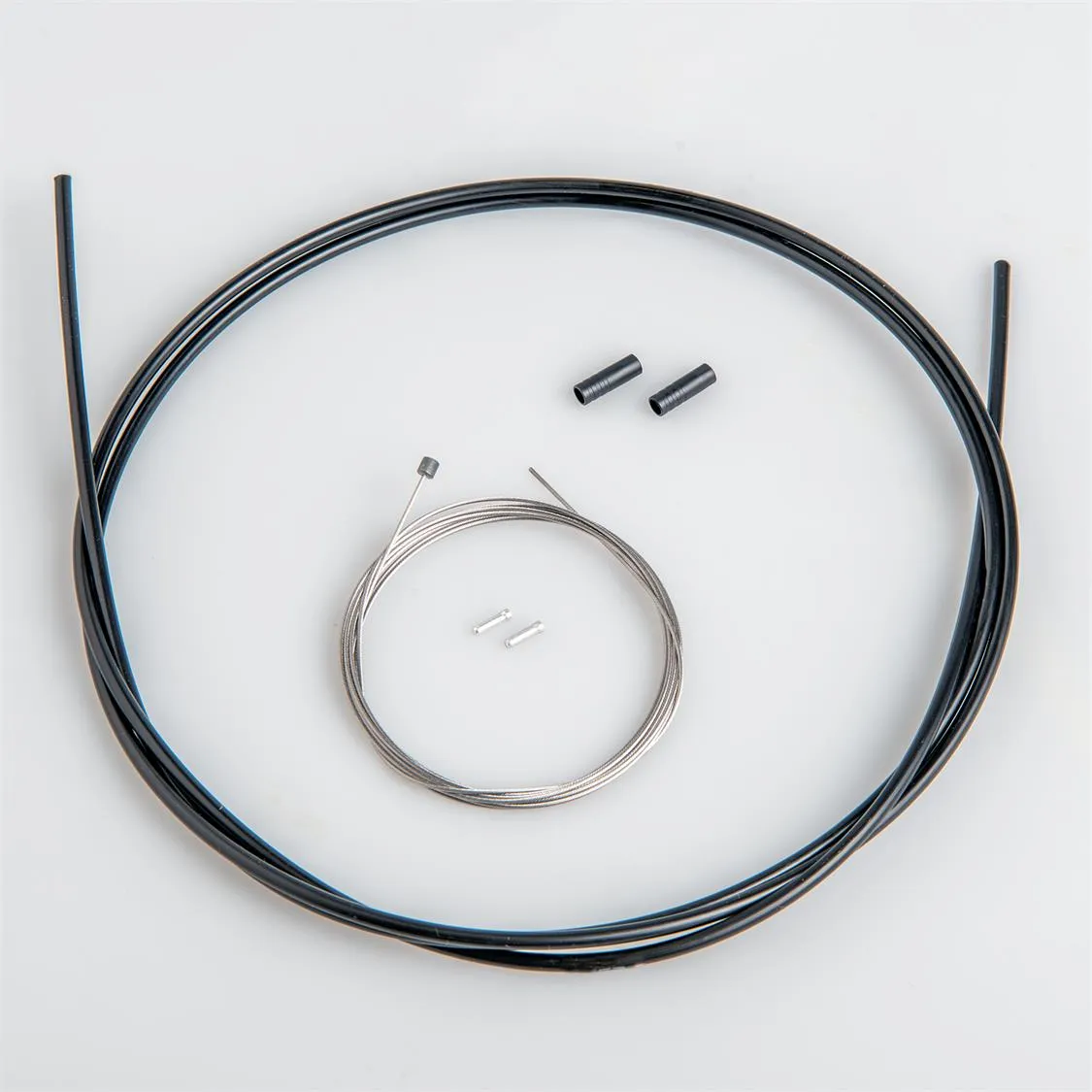

- INCLUSIVE - Cable with cable end crimps, L1 Trigger Matchmaker, No Carbon Paste
