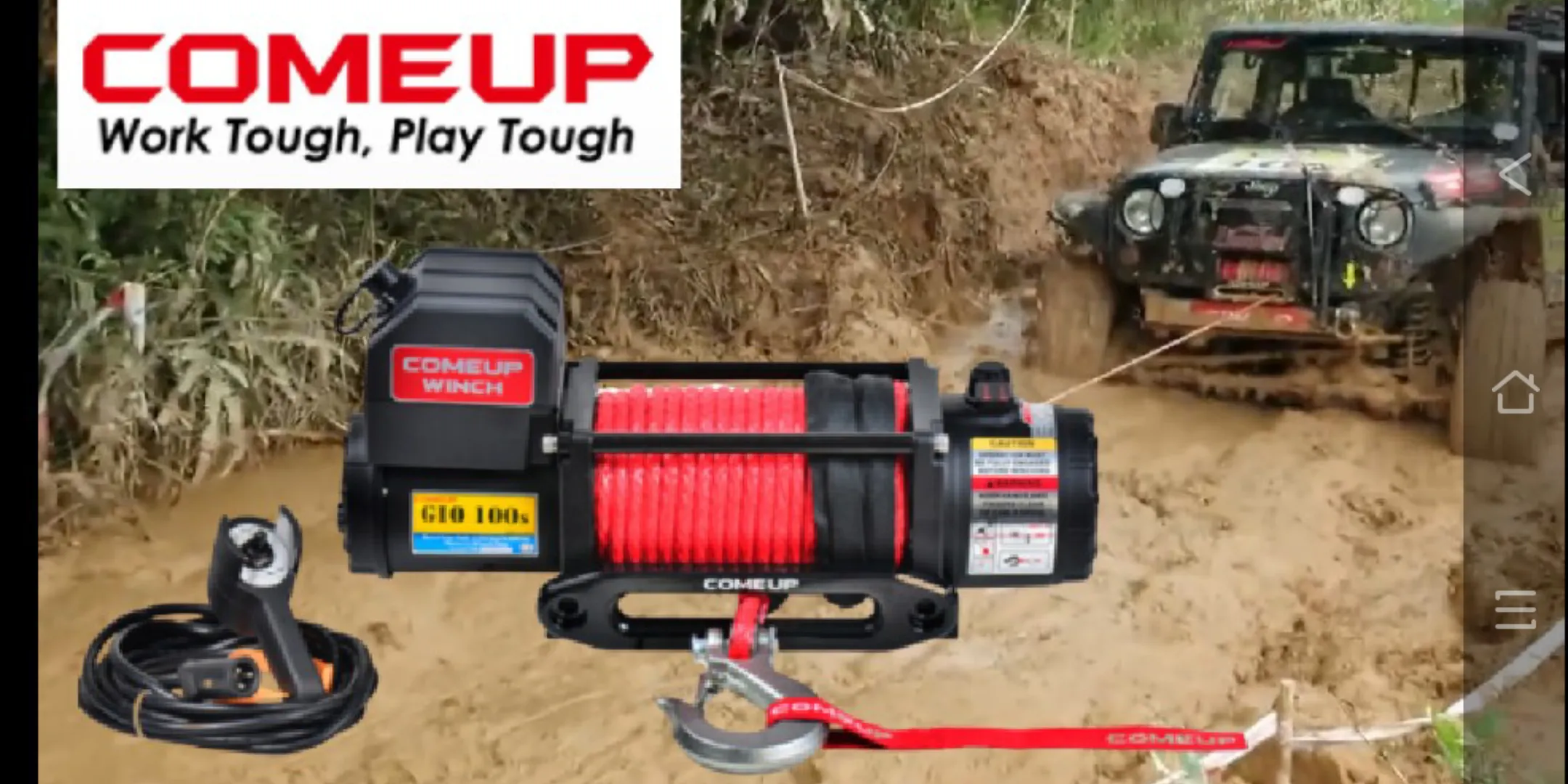

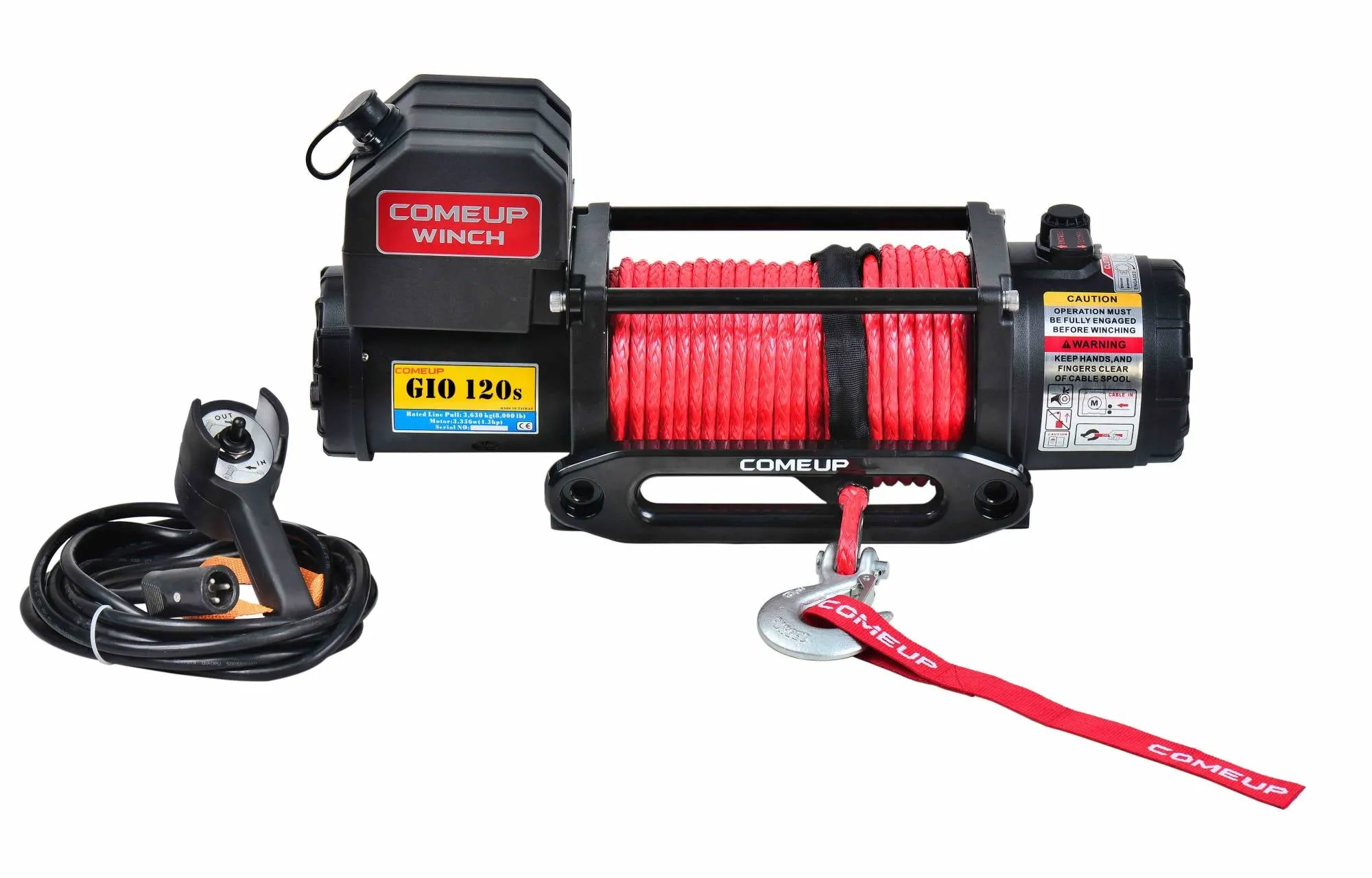

Name: COMEUP GIO 120S PN: 853860 12,000LB 12V DC WINCH
SKU: 178203

We ship and deliver COMEUP winches INSIDE Malaysia only.

We DO NOT ship COMEUP winches to delivery addresses OUTSIDE Malaysia.

GIO SERIES

12V DC reliable recovery winch rated at 8,000 - 10,000 - 12,000 lb. pulling exceeds your expectations.
Series-wound motor for power and fast line speed.
Compact control pack fixed above motor for quick installation. It is also removable for various mounting options.
Exclusive brake design with No. 37C device for better winching control.
Durable, smooth, and reliable three-stage planetary gear train.
Fine powder coated finish provides better weather resistance.
Waterproof rated IP 68.

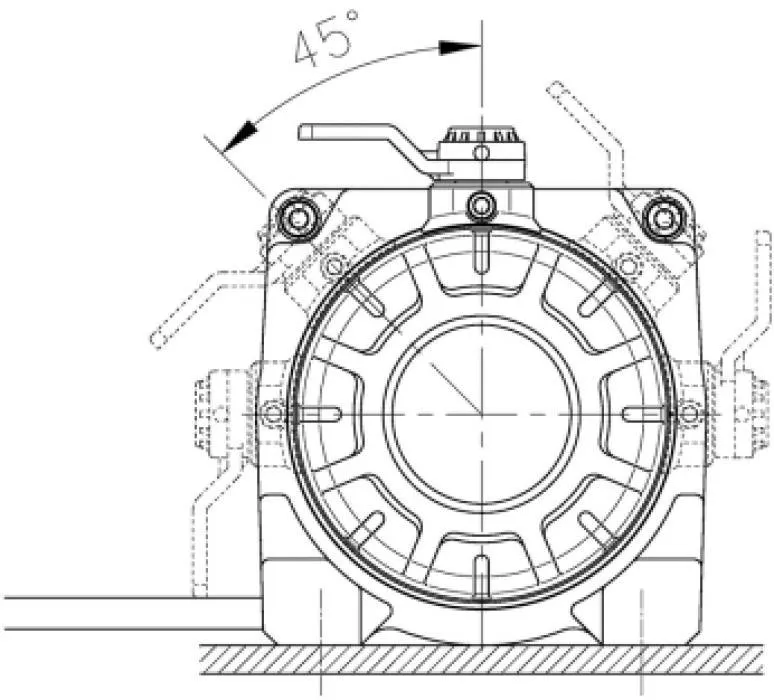

8 equally positioned pin holes ensure seamless clutch transmission and make it easily rotate by 45° increments.

UPON PURCHASE OF 1 WINCH YOU WILL GET 1 DAMPENER for FREE and 1 set of Gloves for FREE. (Until stocks last! Terms & Conditions Apply).

Specifications:

Part number: PN 853860
Rated line pull: 5,443 kg / 12,000 lb single line
Motor: 4,847 w / 6.5 hp 12V series wound
Gear train: 3-stage planetary 234.6:1
Clutch (freespooling): Rotating ring gear
Brake (inside the drum): Exclusive brake design with No. 37C device
Winch construction: Aluminum die cast housings with steel drum

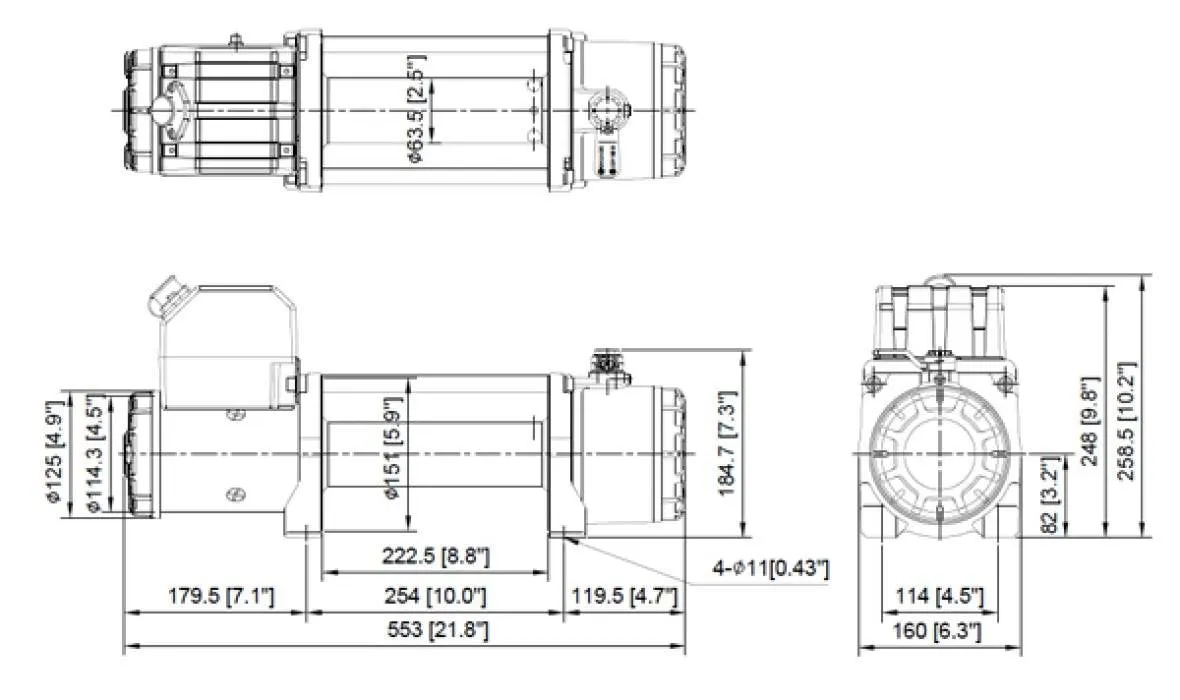

Drum size: 63.5 mm x 222.5L mm (2.5” x 8.8”L)
Control: Waterproof remote w/ 5 m (17') cord
Rope size: Synthetic rope, 11 mm x 25.5 m (7/16" x 83.7')
Mounting bolt pattern: 254 mm x 114 mm (10” x 4.5”)
Winch weight (including rope) : 35.2 kg / 77.6 lb
Gross weight : 47.2 kg / 104.1 lb
Box dimension, (L x D x H) : 650 x 195 x 415 mm (25.6" x 7.7" x 16.3"

* Included: 10mm UHMWPE Winch Rope. 10mm ultra High Molecular Weight Poly Ethylene Rope

Endorsement by RFC:

Mr. Roman Kublak from Vladivostok was 3 times RFC Champion and several 2nd Overall. Champion. A most successful RFC competitor. Roman uses a Comeup Winch. Comeup is THE Choice of Champions.

Line Speed and Amp. Draw (1^st layer of rope on the drum):

Line Pull, kg / lb	Line Speed, mpm / fpm	Amp. Draw, A 12V
No Load	7.8 / 25.6	45
1,361 / 3,000	4.5 / 14.6	110
2,722 / 6,000	4.0 / 13	165
4,082 / 9,000	3.5 / 11.4	220
5,443 / 12,000	2.7 / 8.9	340

Line Pull and Rope Capacity:

Layer of Rope	Pull by Layer kg / lb	Total Rope on the Drum, m / ft
Layer of Rope	Pull by Layer kg / lb	GIO 120	GIO 120s
1^st	5,443 / 12,000	4.9 / 16.0	4.6 / 15
2^nd	4,188 / 9,233	11.1 / 36.4	10.5 / 34.4
3^rd	3,404 / 7,505	18.7 / 61.4	17.8 / 58.3
4^th	2,867 / 6,321	25.5 / 83.7	25.5 / 83.7

Standard Accessories:

Hawse fairlead (GIO 80s/100s/120s)
Remote control w/5 m (17') cord
Synthetic rope w/clevis hook (GIO 80s/100s/120s)
1.8 m (6’) 2 gauge battery lead
Handsaver strap

Warning

• The winch is not intended to be used in any manner for the movement or lifting of personnel.
• The rated line pull shown is based on the first layer of wire rope on the drum.
• The wire rope winding on the drum shall remain 5 wraps from the drum.

Warranty
Limited lifetime warranty for mechanical components and one ( 1 ) years warranty for electrical components from date of purchase. Wire ropes or synthetic ropes are not included under warranty after initial use.
