• Model: NXZM-800S/4B
• Rated Current: 800A
• Poles: 4 Poles
• Rated Voltage: 400V AC
• Frequency: 50/60Hz
• Transfer Type: Automatic
• Switching Time: ≤3 seconds
• Control Mode: Automatic & Manual
• Contact Material: Silver alloy contacts
• Protection Features:
  • Overload protection
  • Short circuit protection
  • Over-voltage and under-voltage protection
• Mechanical Life: 10,000 operations
• Operating Temperature Range: -25°C to 70°C
• Enclosure Material: Flame-retardant plastic
• Mounting: Surface or DIN rail mountable

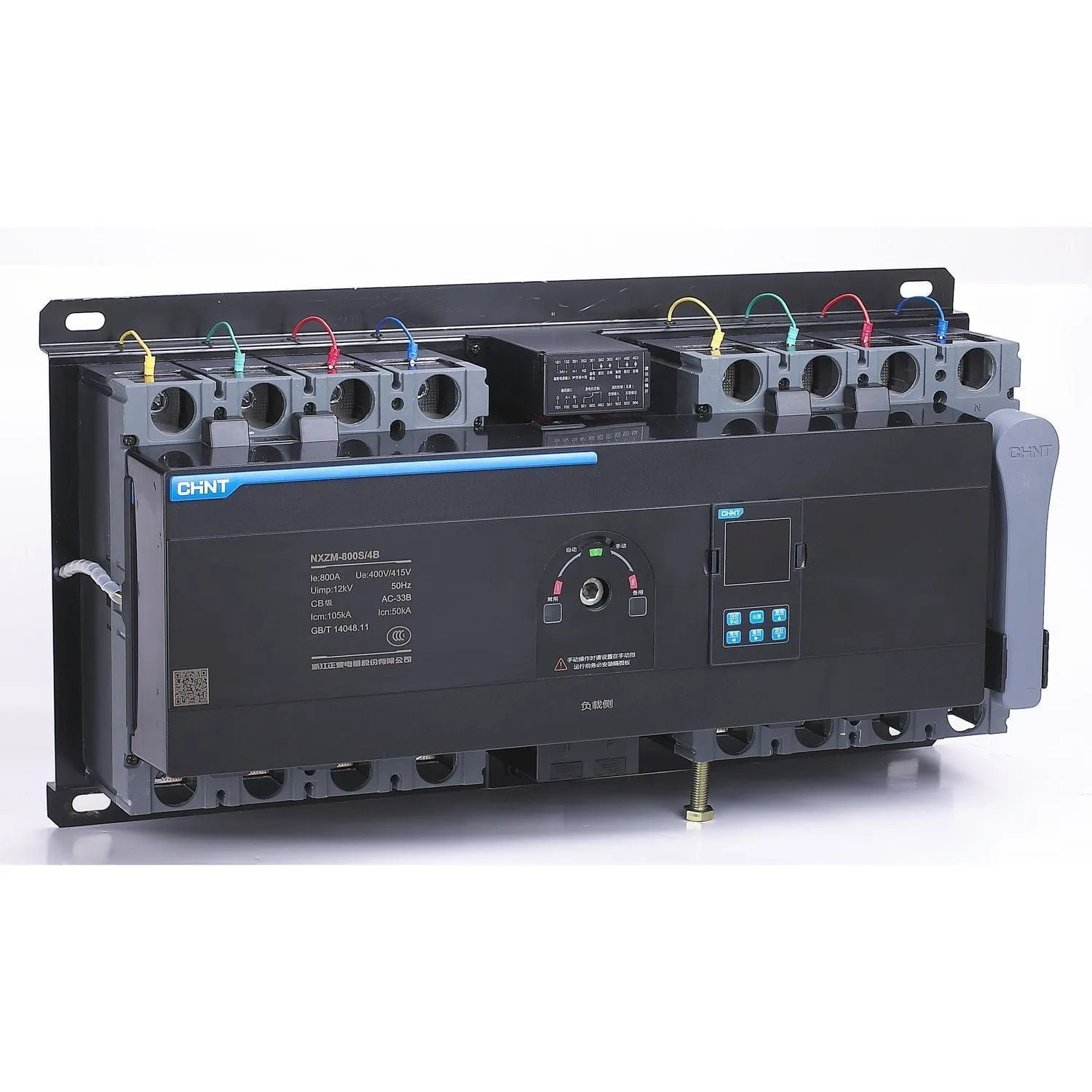

The Chint 800A Automatic Transfer Switch (NXZM-800S/4B) is a robust and reliable solution for managing power transfers between the main and backup sources in industrial, commercial, and large residential setups. Designed to ensure continuous power supply, it offers automatic switching with advanced protective features to safeguard equipment from electrical faults. The switch supports both automatic and manual operation, ensuring versatility and reliability for critical systems.
