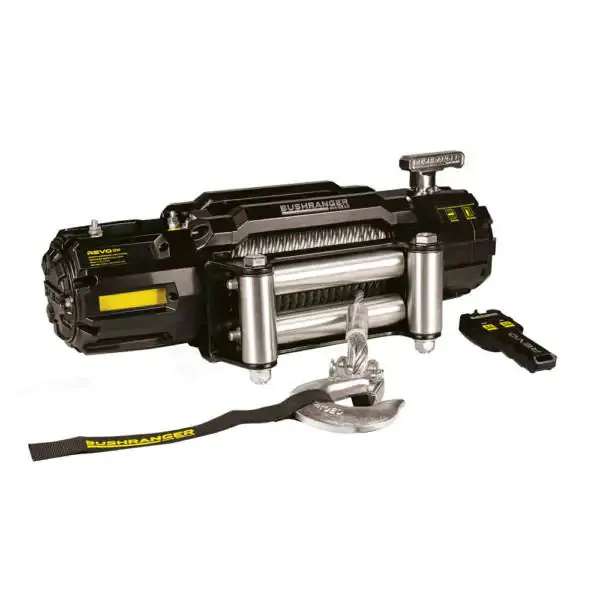

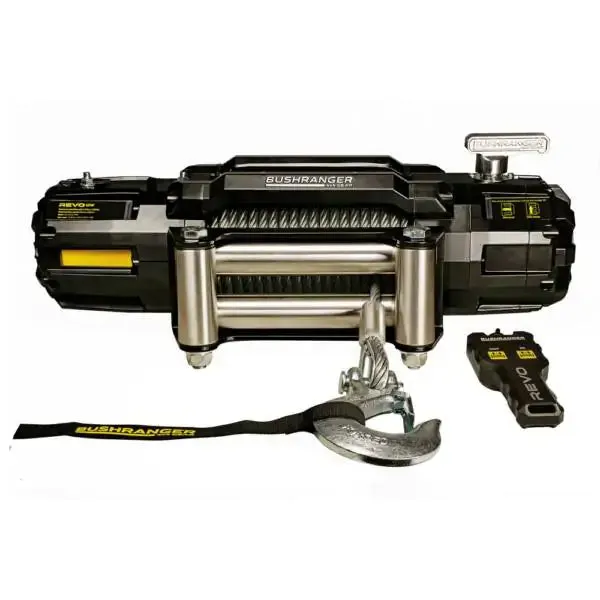

Bushranger - Revo Winch 12,000lb Wire

Bushranger - Revo Winch 12,000lb Wire

$ 55.29

$ 71.88

Save: $

Title:
  • DefaultTitle
Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

REVO winches are designed to be strong, versatile, and ready for anything. Consistently developing and improving our products, Bushranger REVO is built with long-term reliability in mind. With a new and improved powder coating; rigorously tested in Australian facilities and real-world conditions. REVO is ready to be pushed to the extreme.

Designed to tackle any challenge, the REVO 10w is packed with tough and reliable features.

    • 2mm steel cable paired with a ½” removable clevis hook.
    • 4 Stage oversized, externally adjustable gearbox designed for maximum strength and versatility. With 16 lockable positions making for ease of fitment.
    • Gearbox mounted braking system 100% load holding proportional friction braking system located inside the gearbox, away from the drum – eliminating heat transfer to rope.
    • In-line roller fairlead made from a tough, rust-proof 304 stainless steel, built for maximum durability
    • Series wound, 12V, 6.2HP motor made with high-grade materials. Resulting in low current draw and longer life at extreme loads.
    • Spring loaded clutch making for an easy to use no-lift style clutch mechanism
    • Versatile Control Box with multiple mounting orientations to suit every setup. Supplied with an additional mounting bracket for hassle-free installation
    • Wired hand controller fully sealed, IP67 rated, with 5m of cable for plenty of reaches
    • Zero drag braking system allows for the winch to be powered out under no load without the heat build-up, making unspooling a breeze

Specification

  • Dimensions: 602mm (L) x 165mm (W) x 216mm (H) (excludes control box)
  • Rated Line Pull (single): 12,000lbs (5,443kg)
  • Motor: Series wound, 12V, 6.2HP (4.6kw)
  • Remote Control: Hand controller (Wired, 5m lead)
  • Electrical: Contactor IP67 500A
  • Gear Train: 4 stage gear driven
  • Gear Ratio: 171:1
  • Clutch (free spooling): Rotating Ring Gear
  • Brake: Gearbox Mounted, Proportional Friction Brake System
  • Drum: Diameter/Length 63.5mm x 244mm
  • Mounting Bolt Pattern: 254mm x 114mm
  • Rope: 10.3mm x 25m Wire Rope
  • Fairlead: Stainless Steel Roller Fairlead
  • Recommend Battery: 650CCA minimum
  • Battery Leads: 1850mm
  • Finish: Black Powder Coat
  • Mechanical Warranty: Limited Lifetime
  • Electrical Warranty: 7 years
  • Waterproof Rating: IP67
  • Certification: CE, 1P67
  • Winch Weight: 48kg
