WTB Horizon
27.5” Tyres
8-SPEED
DRIVETRAIN
RapidFire Plus &
Optical Gear Display

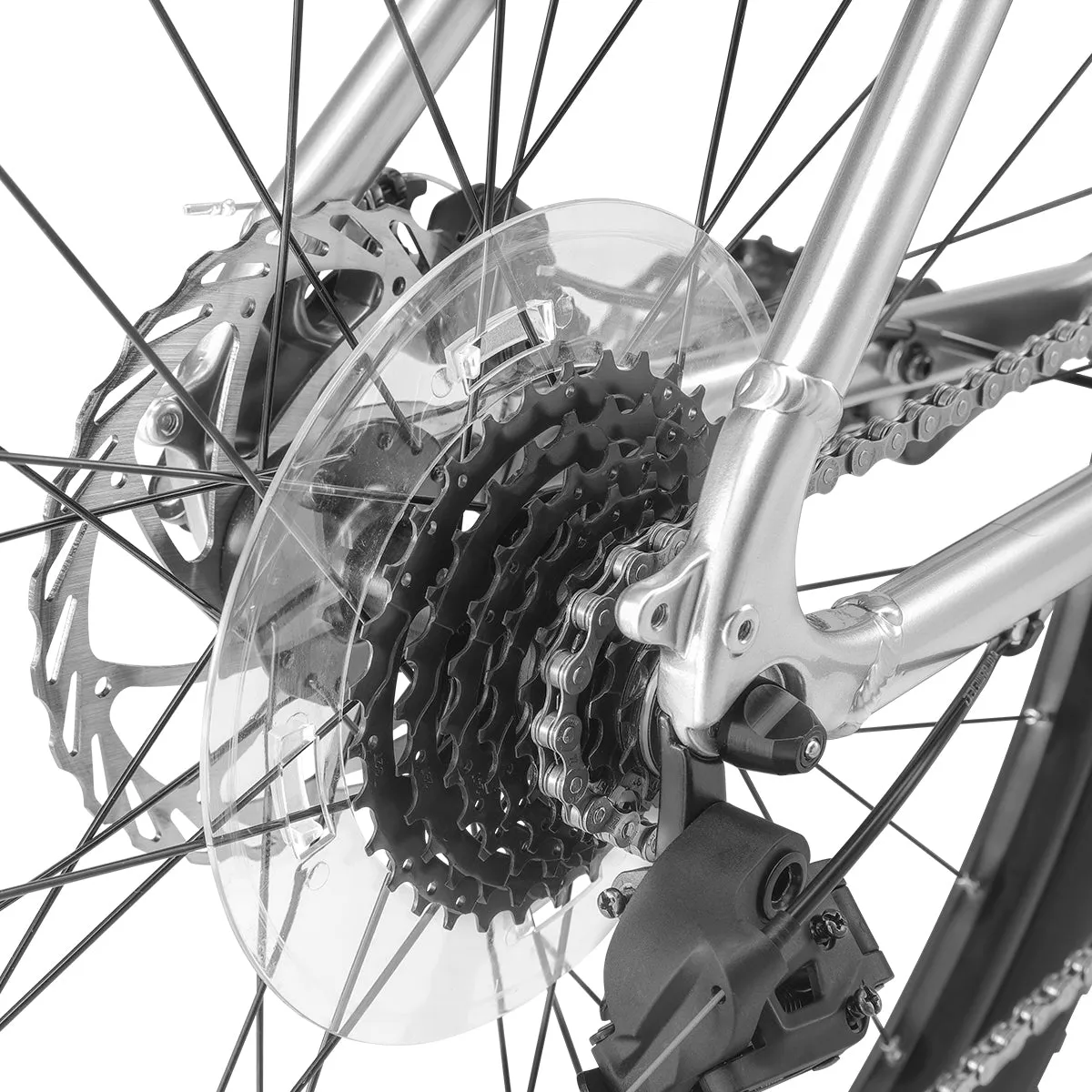

Tektro Mechanical
Disc Brakes
Alloy, The Metal of Choice
We design our bikes to last. That's why our engineers have built the Brooklyn 650B with an Alloy frame and other Alloy components. The alloy material offers greater durability, increasing the bike's lifespan while remaining lightweight, offering superb balance and handling.

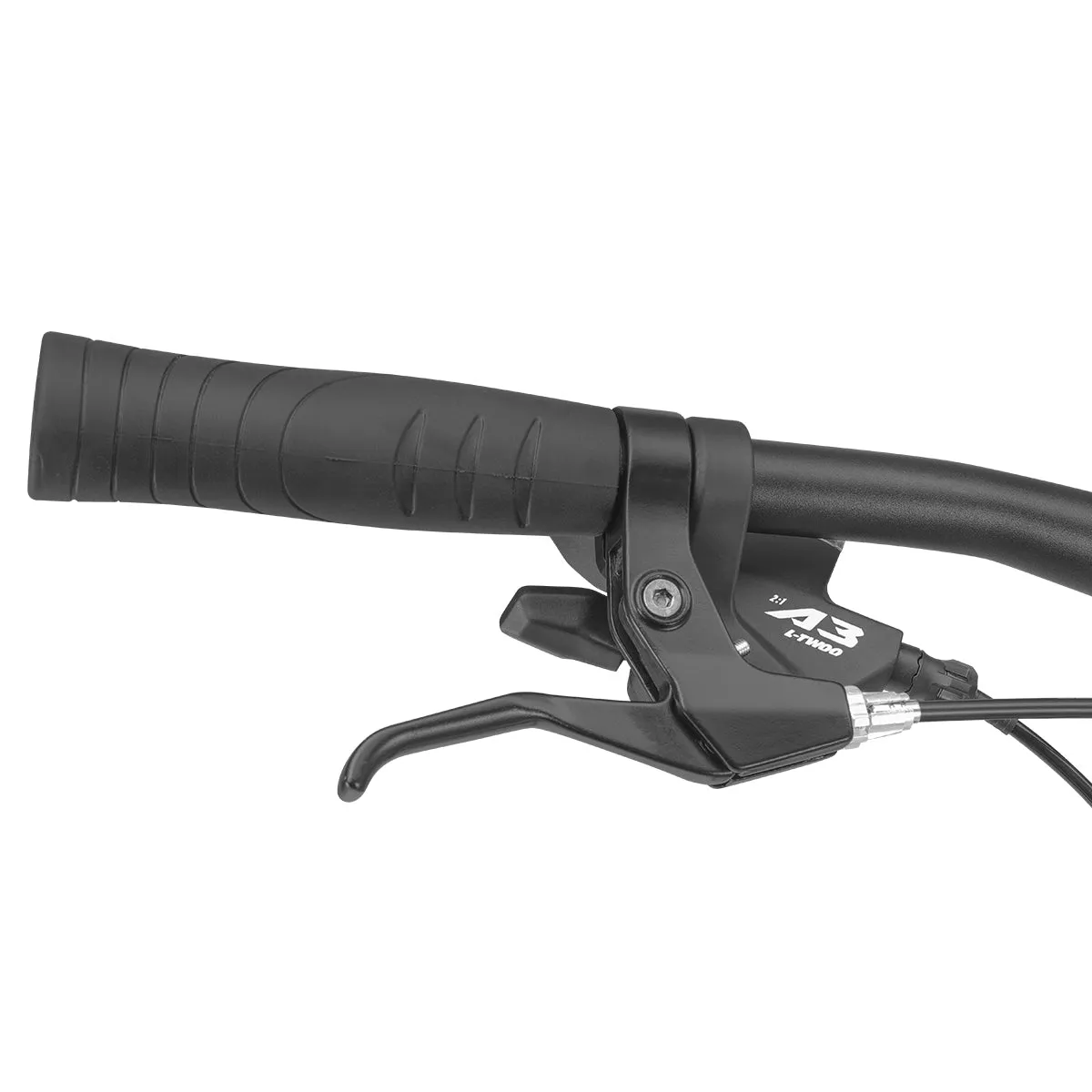

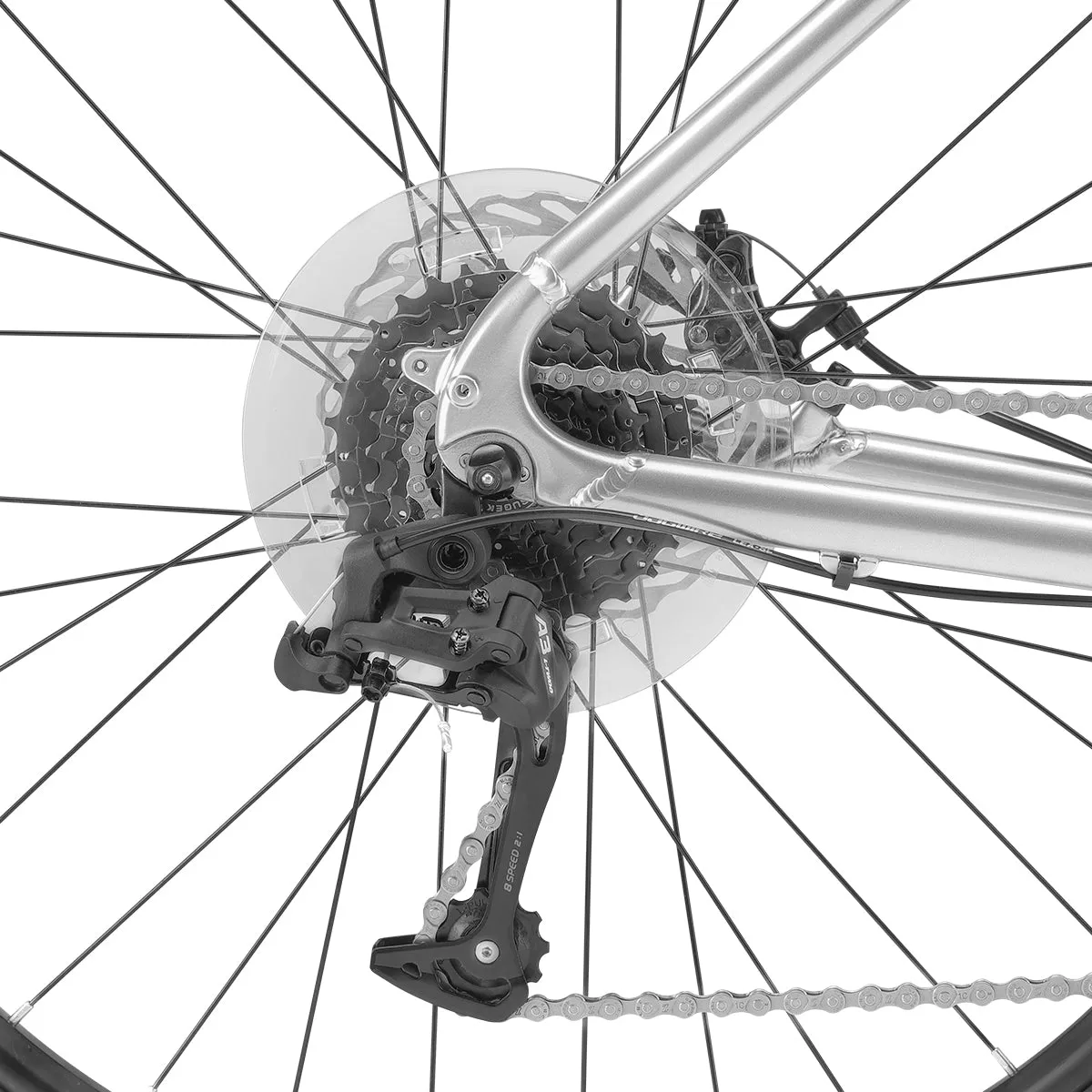

8-Speed Drivetrain & RapidFire Shifters
The Brooklyn's reliable drivetrain provides smooth shifting for 8 gears, so you'll be able to maintain cadence and the right gear ratio for any terrain. Shifting is a cinch with the RapidFire shifters.
Tektro Stopping Power
Strong, reliable stopping power is paramount to any bike rider, especially if you're manoeuvring through tough terrain. That's why our Brooklyn 650B comes with Disc brakes for consistent, high-powered braking performance.
- Rim Brakes (like Caliper or V Brakes) can be unreliable in wet or muddy conditions
- Longer lasting
- Stronger braking performance
- Less adjustment and maintenance required
Wilderness Trail Horizon 27.5" Tyres
You no longer need to choose between having the speed and handling of a 26" tyre and the traction and evenness of a 29" tyre. Now you can get the best of both worlds. With a 27.5" tyre, you can power through corners as you would with a 26" tyre without sacrificing the traction and smooth ride a 29" tyre would offer.

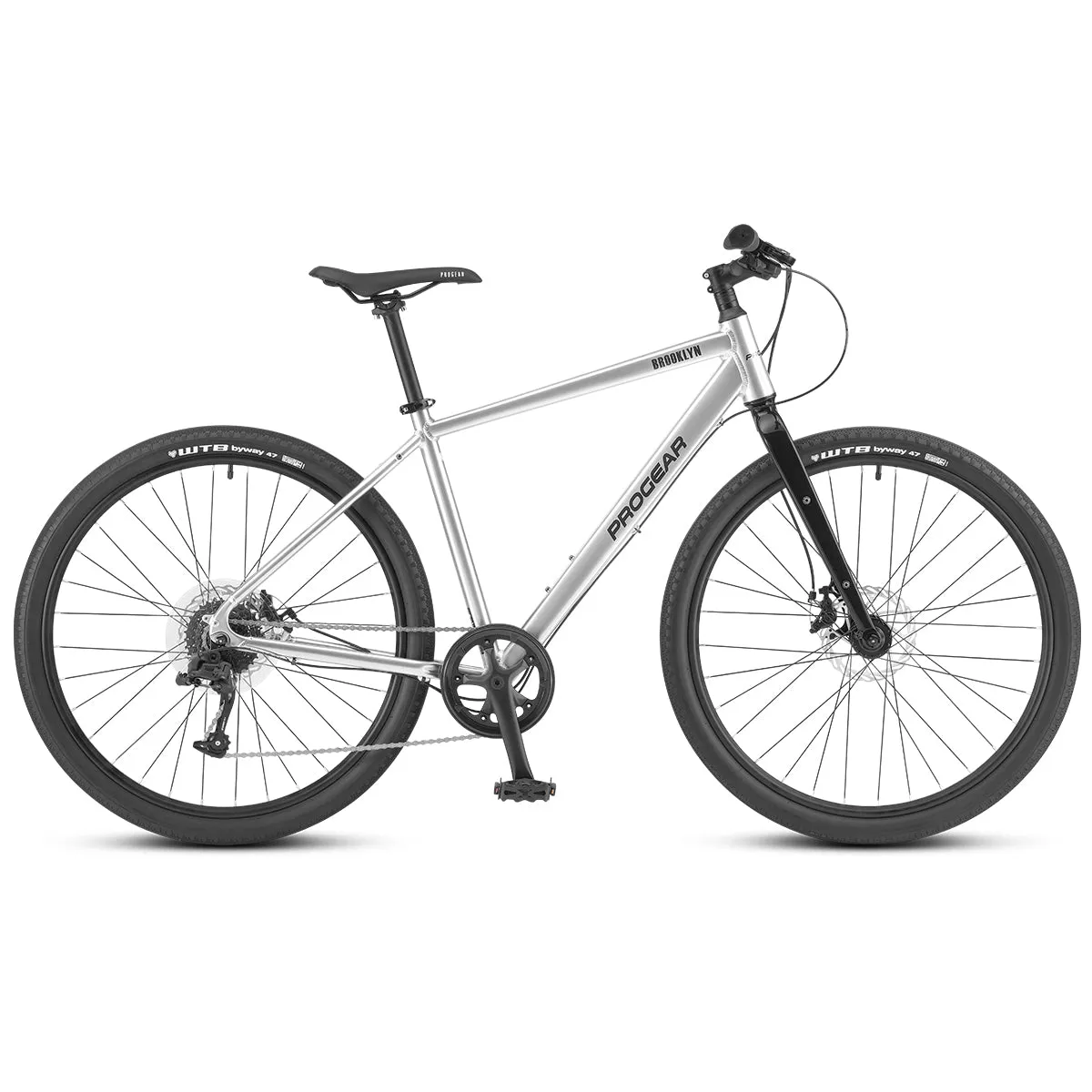

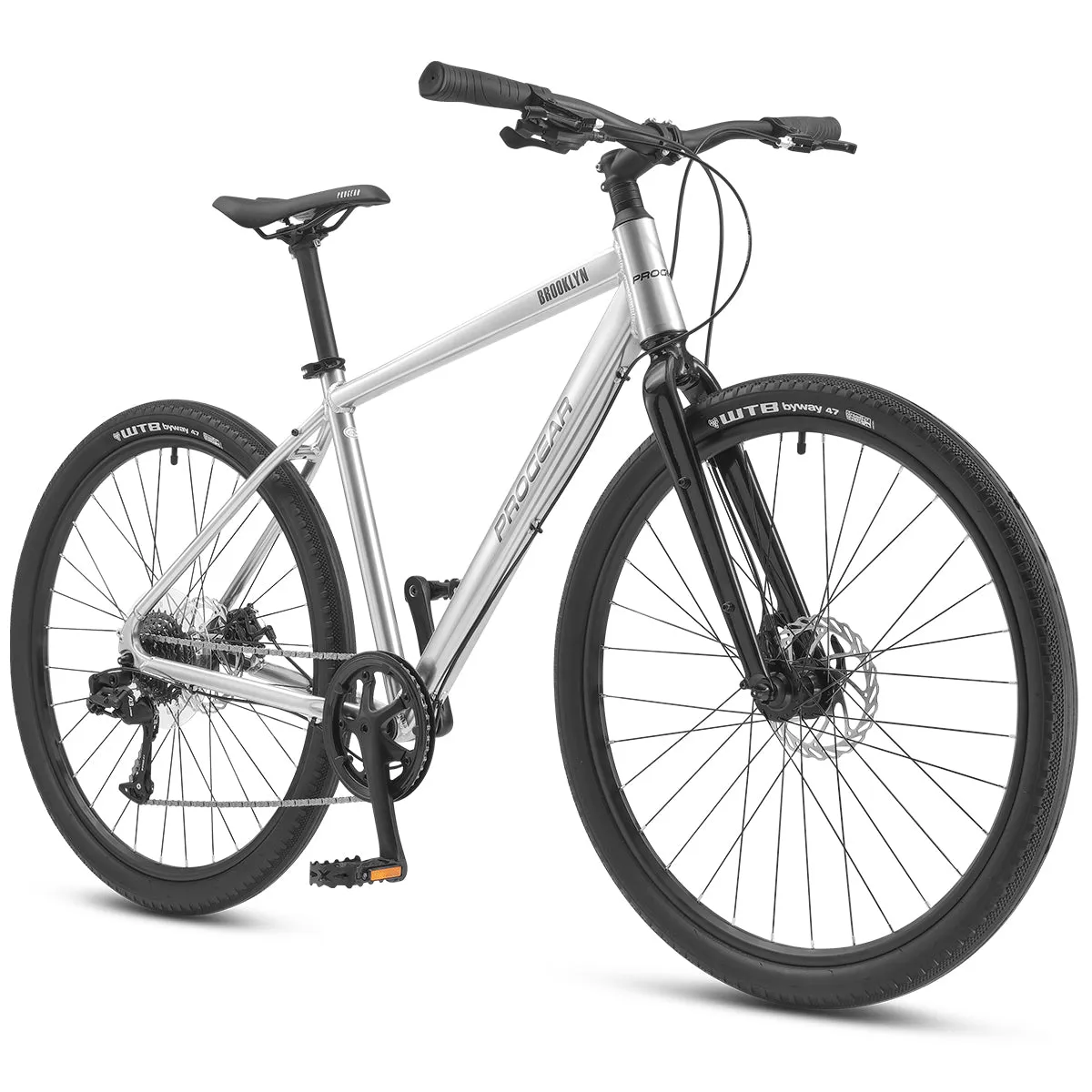

The Blueprints
An awesome package with the following components:
- A. Alloy Frame
- B. Leather Saddle
- C. Quick Release Adjustable Seat-post
- D. 8-Speed Drivetrain
- E. Tektro Mechanical Disc Brakes
- F. WTB Horizon 27.5" Tyres
Where to ride?
Specification
Technical Specifications
| Frame | Alloy 27.5" - 43cm, 47cm, 51cm |
|---|---|
| Fork | Alloy 27.5" |
| Handlebar | W：680mm H：25mm 5° |
| Grips | Rubber 130mm |
| Stem | φ28.6mm E:70mm H:41mm 7° |
| Seatpost | φ27.2×350mm |
| Seat Clamp | φ31.8mm Clamp W/quick relaease W/O LOGO |
| Saddle | Leather Saddle |
| Pedals | 9/16" Plastic |
| Rear Derailleur | RD-V5008-L 8-SPEED 11-34T |
| Shifter Lever | SL-V5008-8W, RIGHT, 8-SPEED RAPIDFIRE |
| Brakes | Mechanical Disc Brake 160mm Rotor |
| Brake Levers | Alloy Black Lever |
| Freewheel | 8-SPEED, 12-14-16-18-21-24-28-32(BR), |
|---|---|

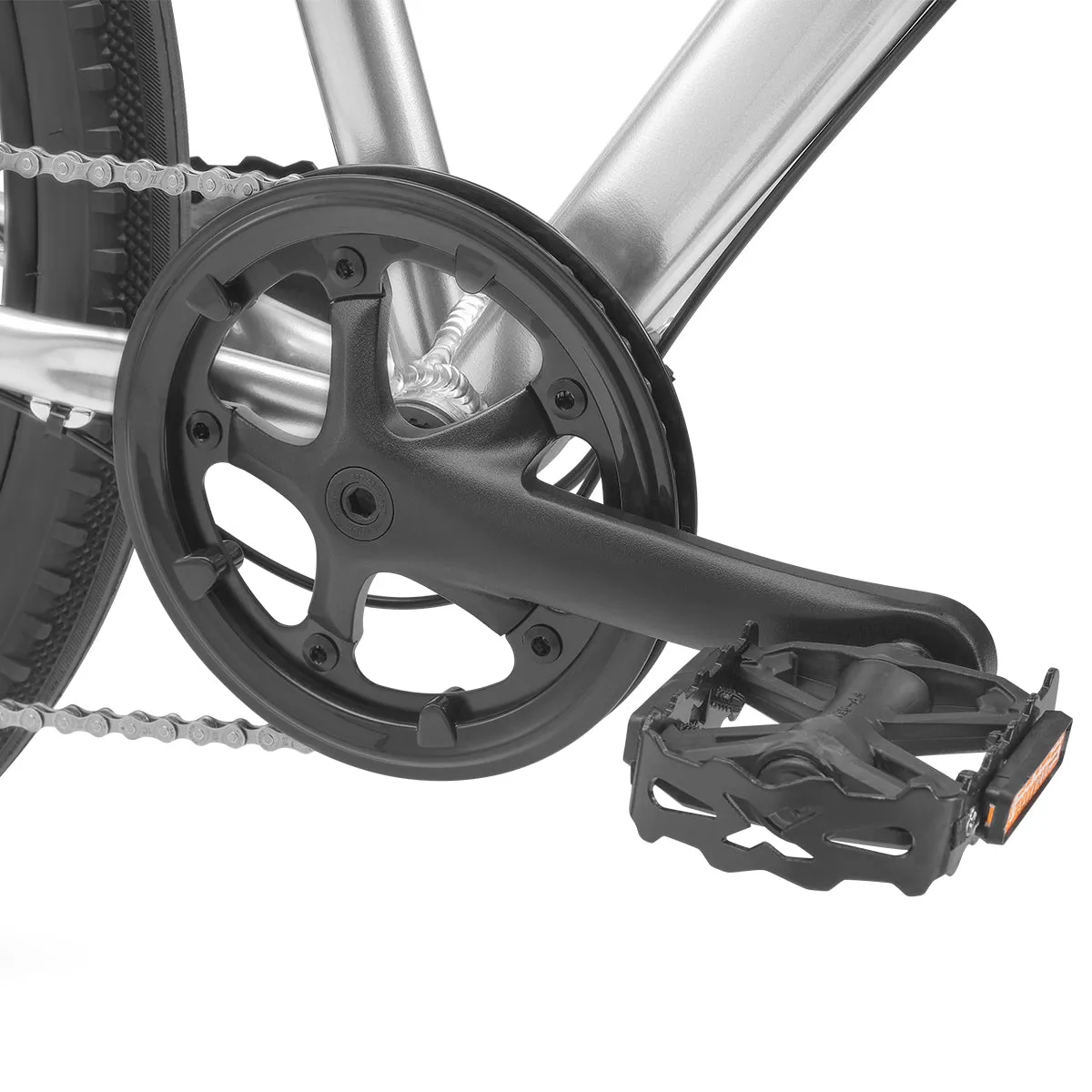

| Chainwheel & Cranks | 3/32″×42T×170mm |
| Chain | 1/2″×3/32″×114L |
| Bottom Bracket | BC1.37″×24T 68mm L:115mm |
| Front Hub | 14G×32H 100×108mm Black Quick Release |
| Rear Hub | 14G×32H 135×145mm Black Quick Release |
| Spokes | 14G Steel |
| Tyre | WTB BYWAY 650B×47C |
| Tube | 27.5"×1.95" A/V |
| Rim | 27.5"×584×19×14G×32H A/V H=18mm |
| Bell | Included |
| Carton | 138×20×71cm |
Box Sizing Guide
| Frame Size Number | 43cm | 47cm | 51cm |
| Wheel Size | 700c | 700c | 700c |
| Suggested Height | 150-160cm | 160-170cm | 170-190cm |
| Minimum Suggested Inseam | 73cm | 77cm | 81cm |
| A - Seat Tube | 38cm | 43cm | 48cm |
| B - Seat Tube Angle | 73deg | 73deg | 73deg |
| C - Head Tube Length | 10cm | 10cm | 10cm |
| D - Effective Top Tube | 57cm | 58cm | 59cm |
| E - Chainstay length | 44cm | 44cm | 44cm |
| F - Wheelbase | 105cm | 106cm | 107cm |
| G - Standover | 71cm | 75cm | 79cm |
