Two quick charge connections USB A and USB C
The right side of the housing comes with two USB connections type USB 3.1 Type A and USB 3.1 Type C, which are compliant with the quick charging standards QC 3.0 and QC 4.0 (QC = quick charge).

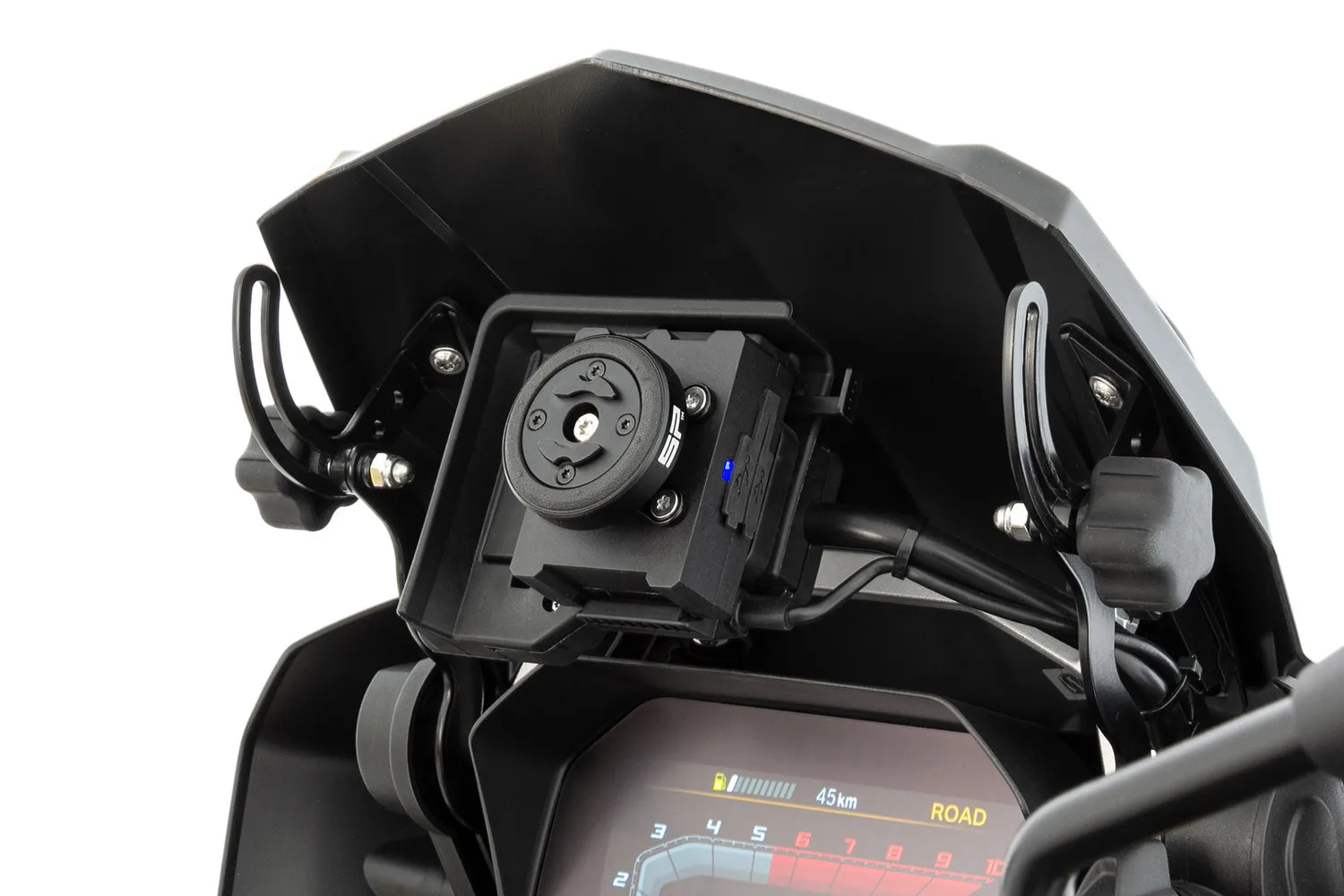

The activity of the charging box is displayed via a blue LED control light which is situated very visibly above the two USB ports.

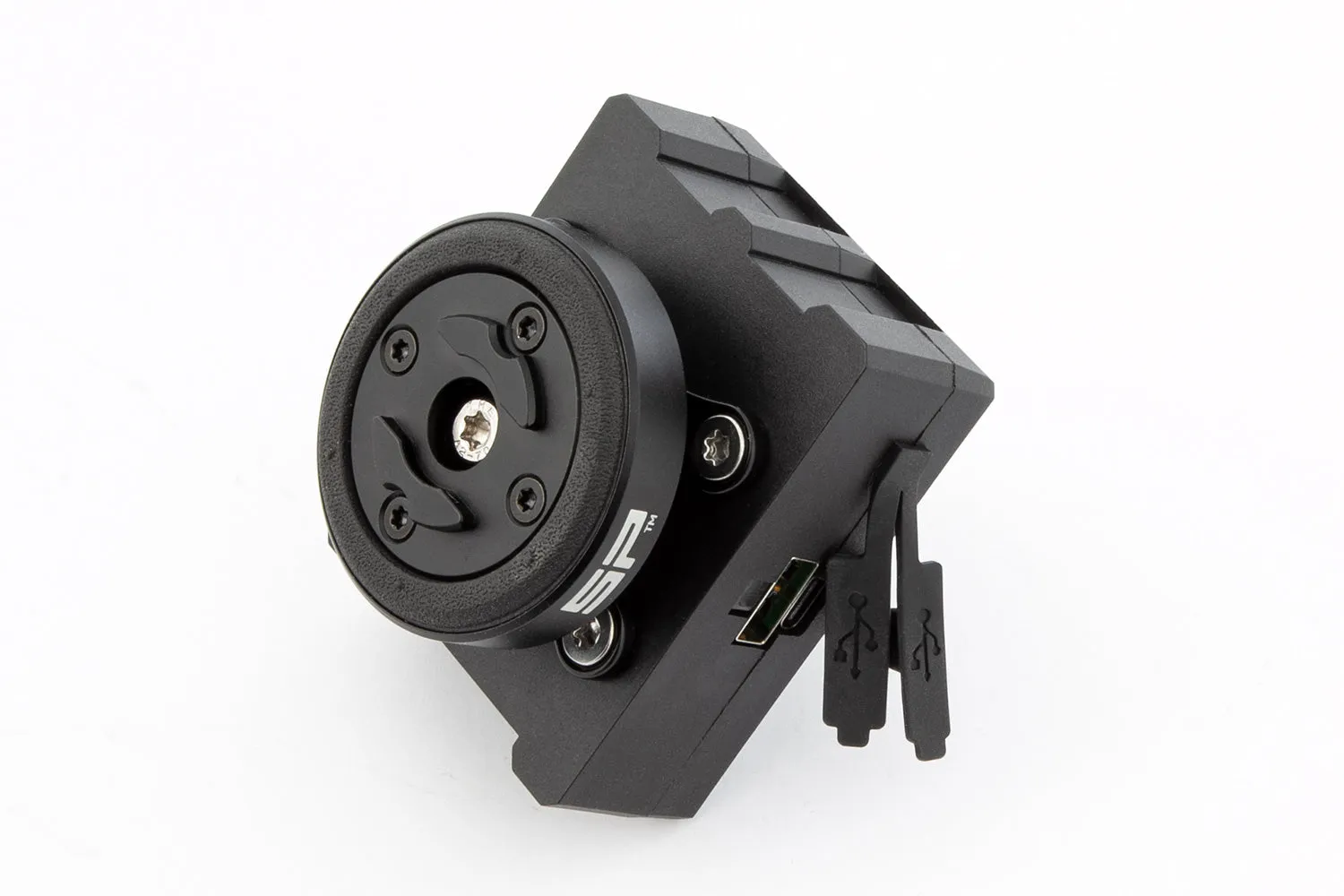

The charging box is designed to be protected against spray. The ports can be covered with moulded elastomer covers when not in use, which seals and thus protects them against spray and dust.

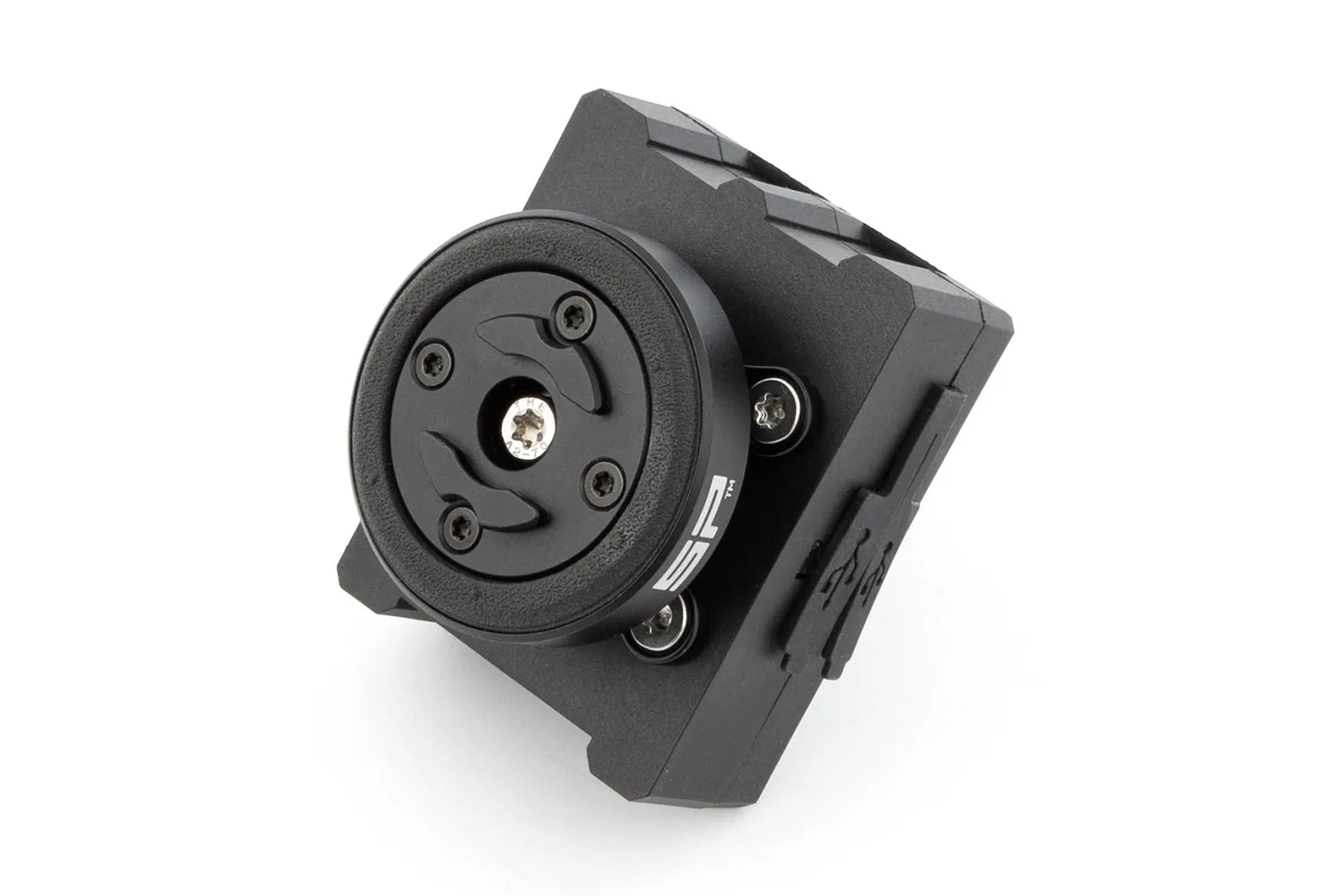

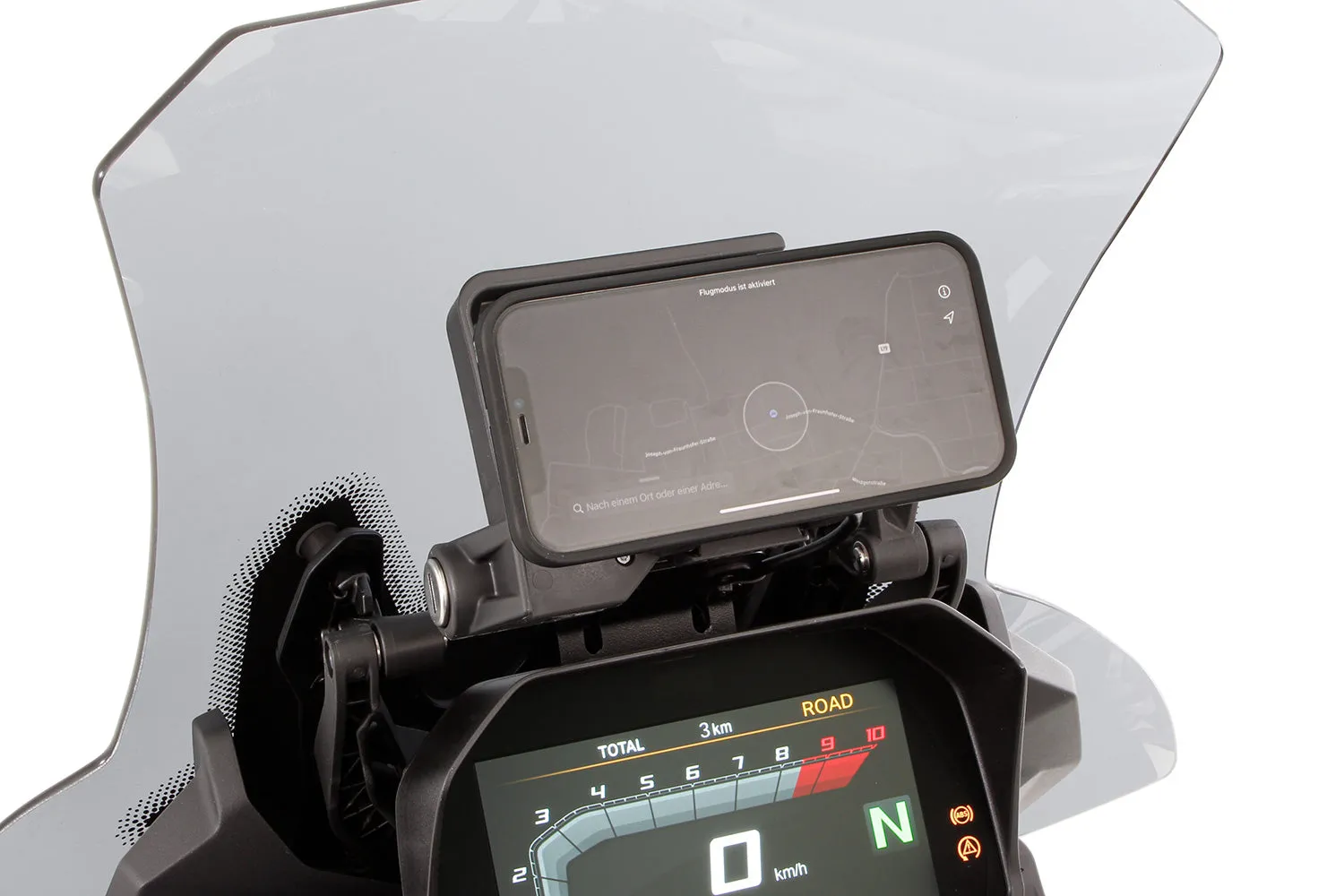

The centrally positioned screw thread accommodates our SP Connect Anti Vibration Module, which forms part of this set. The Anti Vibration Module is the innovative answer to increasingly sensitive new smartphones. These consist of sensitive components that can be affected by continuous vibrations from the engine and suspension. The Anti Vibration Module reduces these vibrations by up to 60% thanks to the effective dampening provided by the specially developed elastomer inlay. When screwed in, the module can be used for accommodating smartphones. The model-specific SP Connect smartphone case that matches your smartphone (45150-xxx) is also required here.

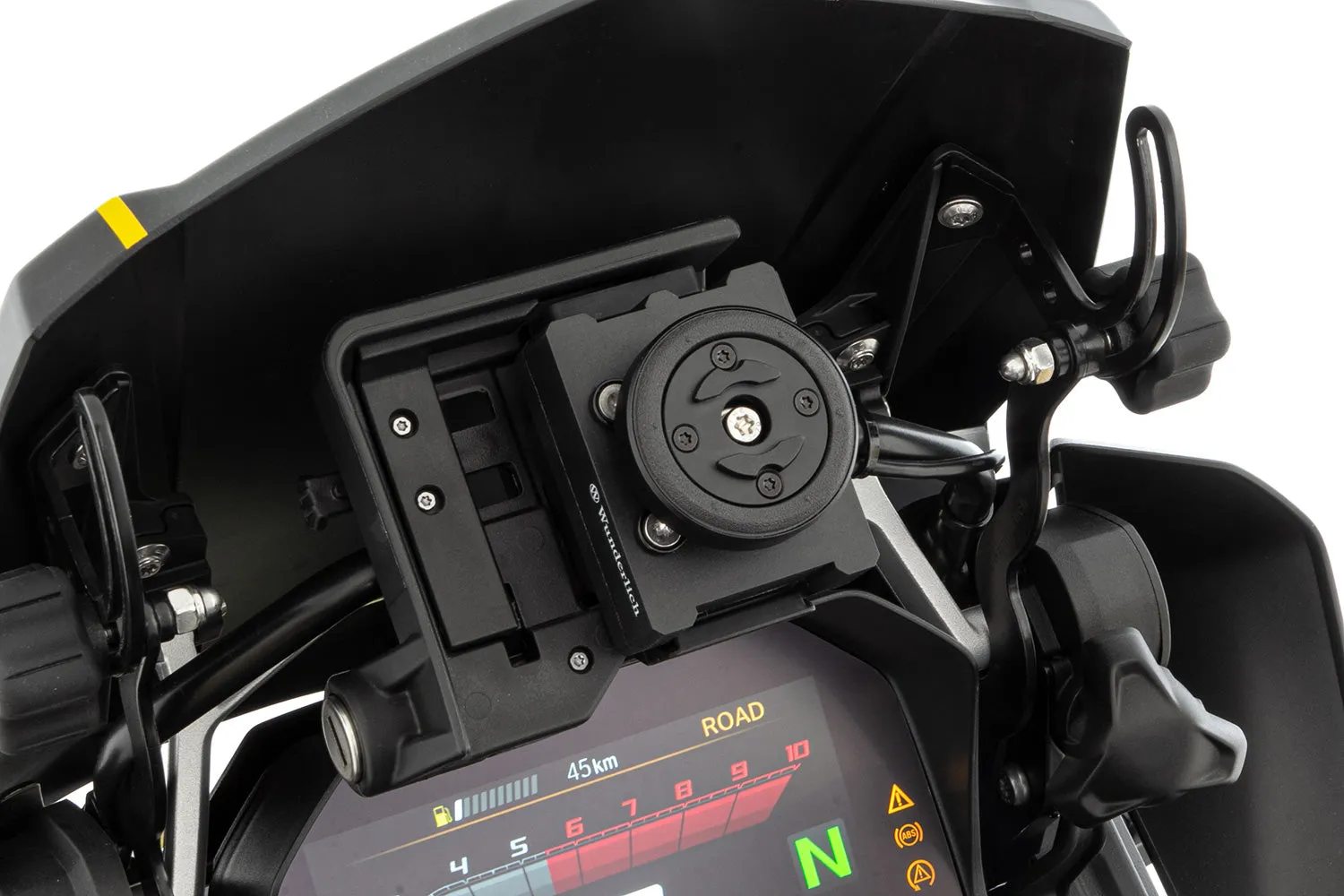

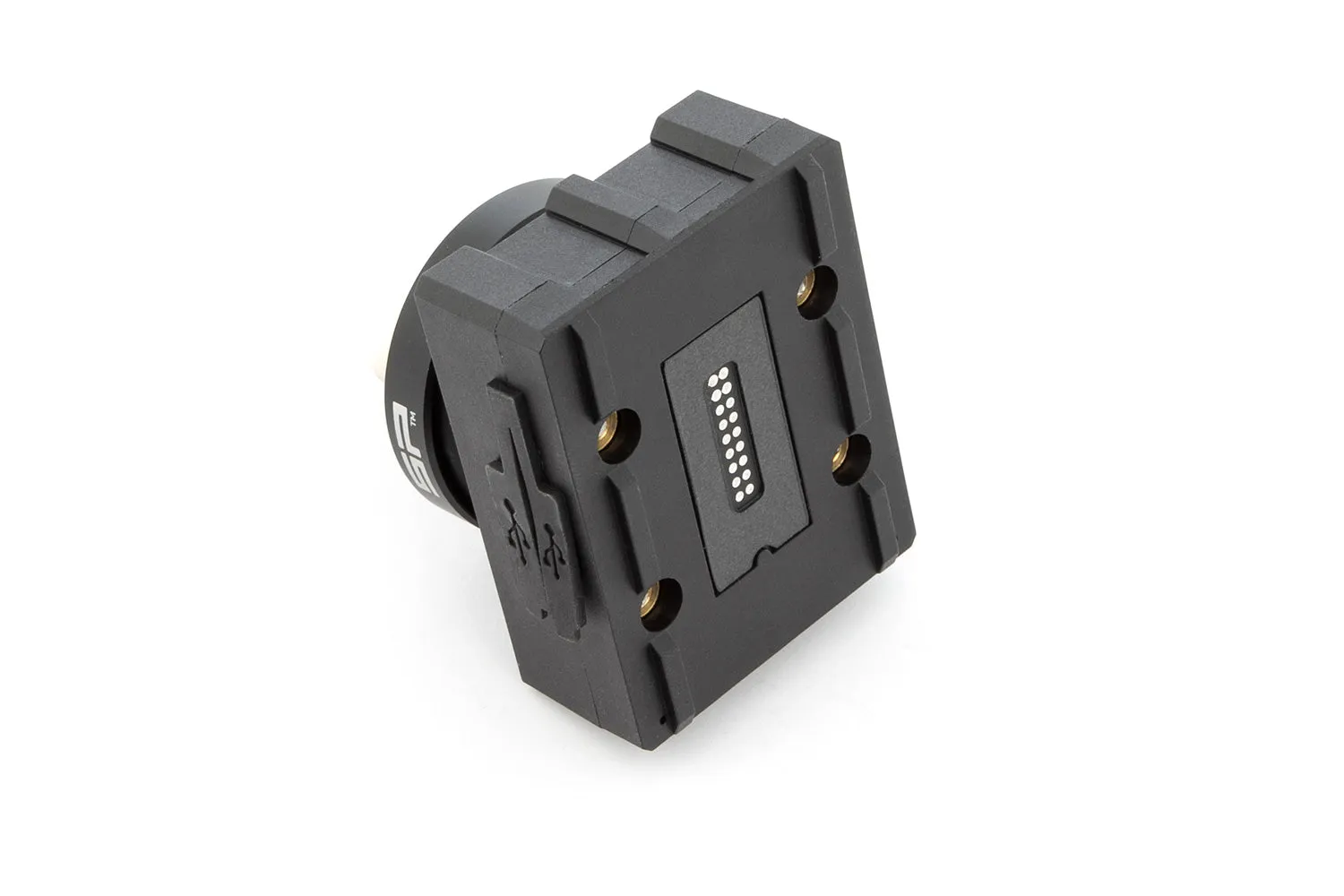

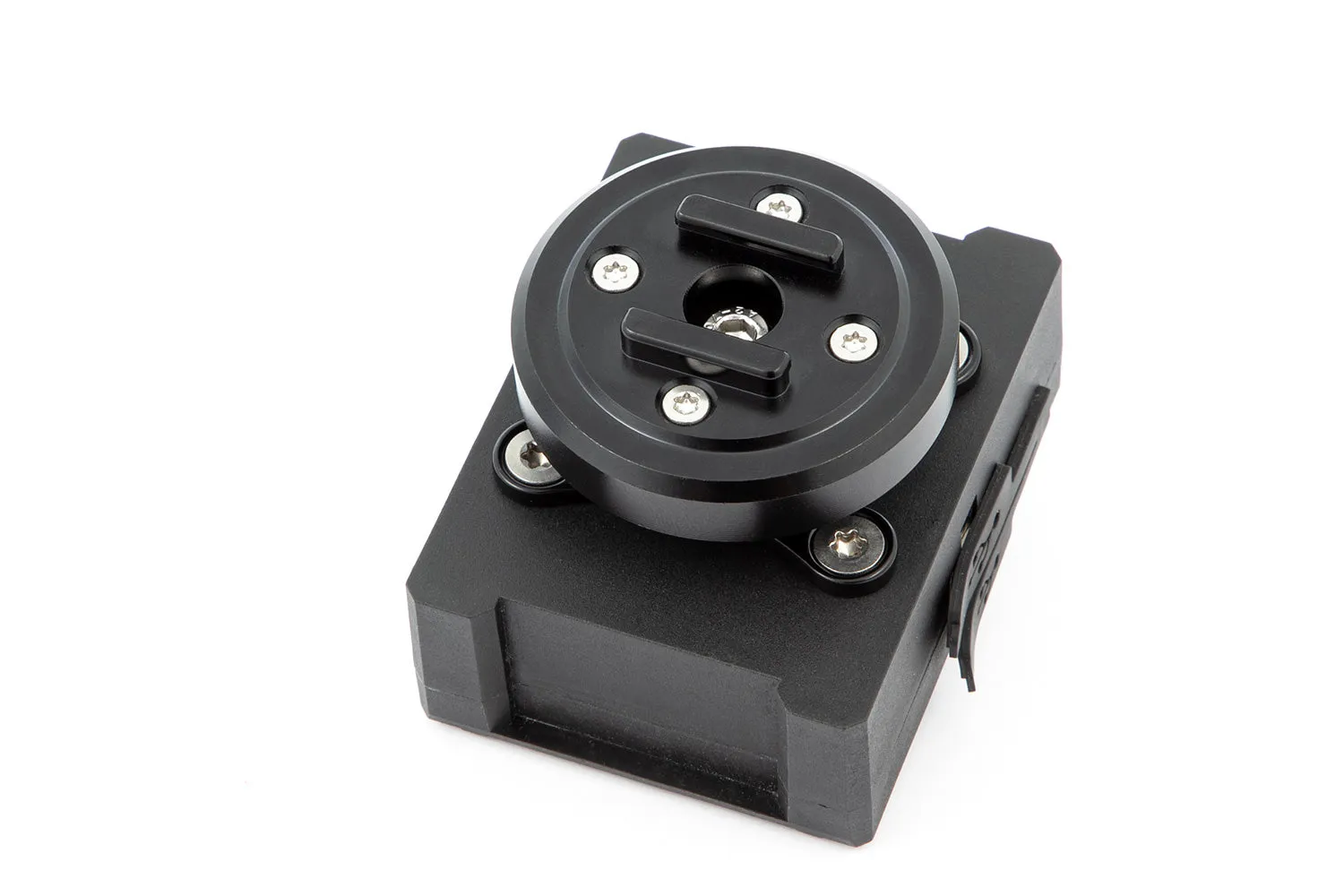

The front of our charging box is also equipped with four screws. These are precisely positioned so that they match the standard-compliant bore profile of a range of attachment systems, such as that of the Garmin Zumo XT navigation device. This also lets you screw the attachment systems onto the charging box in just a few steps securely and with minimal use of space, and connect the devices to the power supply.

Sustainability without compromises – Wunderlich BLAU
In crafting the charging box, we use a hybrid material made of recycled plastics which we then reinforce with 20% glass fibres. The charging box is characterised by its low component weight and the high solidity of the casing. In this way, we help the environment and make no compromises when it comes to component stability.

Facts

Function

• Fits all BMWs with the factory-side BMW navigation preparation (Navigator IV, V, VI)
• Simply slots into the BMW navigation device holder in place of the navigation device, locks in place and closes securely to prevent theft
• Two USB connections type USB 3.1 Type A and USB 3.1 Type C
• Complies with standards QC 3.0 and QC 4.0 for quick charging connections
• Blue LED control lights for function control
• The charging box is designed to be protected against spray - the ports can be covered with moulded elastomer covers when not in use, which seals them against spray and dust
• Various attachment systems or navigation device holders (e.g. Garmin Zumo XT) with standard-compliant bore profiles can be screwed onto the charging box securely and with minimal use of space
• Incl. SP Connect Anti Vibration Module for accommodating the model-specific SP Connect smartphone case (45150-xxx). The smartphone case is not included in the scope of delivery.
• Simple mounting in a few steps

Technical information

• Casing material
  • Recycled, fibre-reinforced hybrid material, light and solid, protected against spray
• Dimensions

  • Width 55 mm
  • Length 72 mm
  • Height 28 mm/51 mm with Anti Vibration Module
• Electr. connections
  • Type USB 3.1 Type A and USB 3.1 Type C in accordance with quick charging standards QC 3.0 and 4.0

Features

• Wunderlich premium product. Small series. Hand crafted.
• Wunderlich design. Integrated and functional.
• Made by Wunderlich
