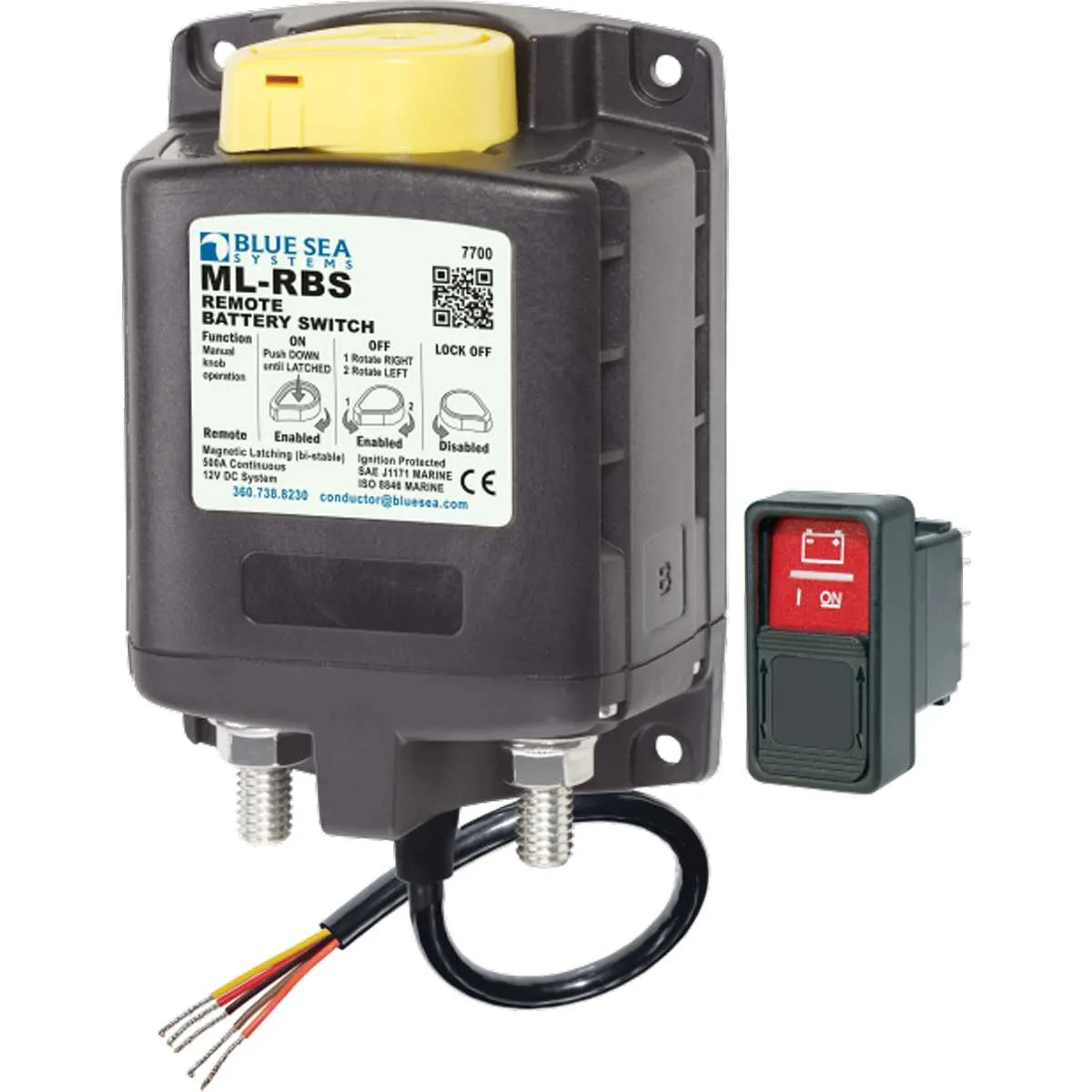

ML-RBS Remote Battery Switch with Manual Control – 12V DC 500A
I have used this switch so I can, from outside my 4x4, disconnect the main battery as I have a persistent drain on my start battery.
Does not include the small remote control switch as in shown in the picture
Key Features:
Purpose: The ML-RBS Remote Battery Switch with Manual Control (12V DC 500A) allows you to disconnect the main battery remotely to prevent battery drain.
Manual Override: Built-in knob for manual control, including a LOCKED OFF capability for easy servicing.
LED Indicator: Allows for remote indication of switch state (optional LED required).
High Conductivity: Features 3/8"-16 tin-plated copper studs for optimal conductivity and corrosion resistance, and 7/8" stud length for multiple cable terminals.
Reliable Switching: Silver alloy contacts for dependable live load switching, with specifications including a continuous rating of 500A, intermittent rating of 700A, and cranking ratings of 2500A (10 sec) and 1100A (1 min).
- Manual Override: Built-in knob for additional safety. Ensures control with or without power and includes LOCKED OFF capability for easy servicing.
- LED Indicator: Allows for remote indication of switch state (Note: requires optional LED).
- Remote Control: Compatible with ML-Series Remote Control Contura Switch PN 2145 (sold separately).
- High Conductivity: Features 3/8"-16 tin-plated copper studs for optimum conductivity and anti-corrosion.
- Multiple Cable Terminals: 7/8" (22 mm) stud length suitable for multiple cable terminals.
- Circuit Identification: Label recesses available.
- Reliable Switching: Silver alloy contacts for dependable live load switching.
| Control Circuit Connection: | Tinned Wire |
| Nominal Voltage: | 12V DC |
| Manual Control: | Yes |
| Coil Function: | Bi-Stable |
| Mounting: | #10 |
| Operating Current: | 0mA |
| Current When Changing State: | <7A (40ms) |
| Terminal Stud Torque: | 140 in-lb (15.82 Nm) |
| Control Circuit Voltage: | 10.1 to 16.5V DC |
| Continuous Rating: | 500A |
| Intermittent Rating: | 700A (5 min) |
| Cranking Rating 10 sec: | 2500A |
| Cranking Rating 1 min: | 1100A |
| Temperature Range: | -10° C to 50° C |
| Cable Size: | 2x (4/0) |
| Live Current Switching: | 300A @ 12V DC |
| Master Control Switch: | No |
| Mechanical Endurance: | 100,000 Cycles |
| Terminal Ring Diameter: | 1.18in (29.97 mm) |
| Terminal Stud Length: | 0.875in (22.23 mm) |
| Terminal Stud Size: | 3/8″ – 16 (M10) |
| Model: | BS-7700B |
Does not include the small remote control switch as in shown in the picture
