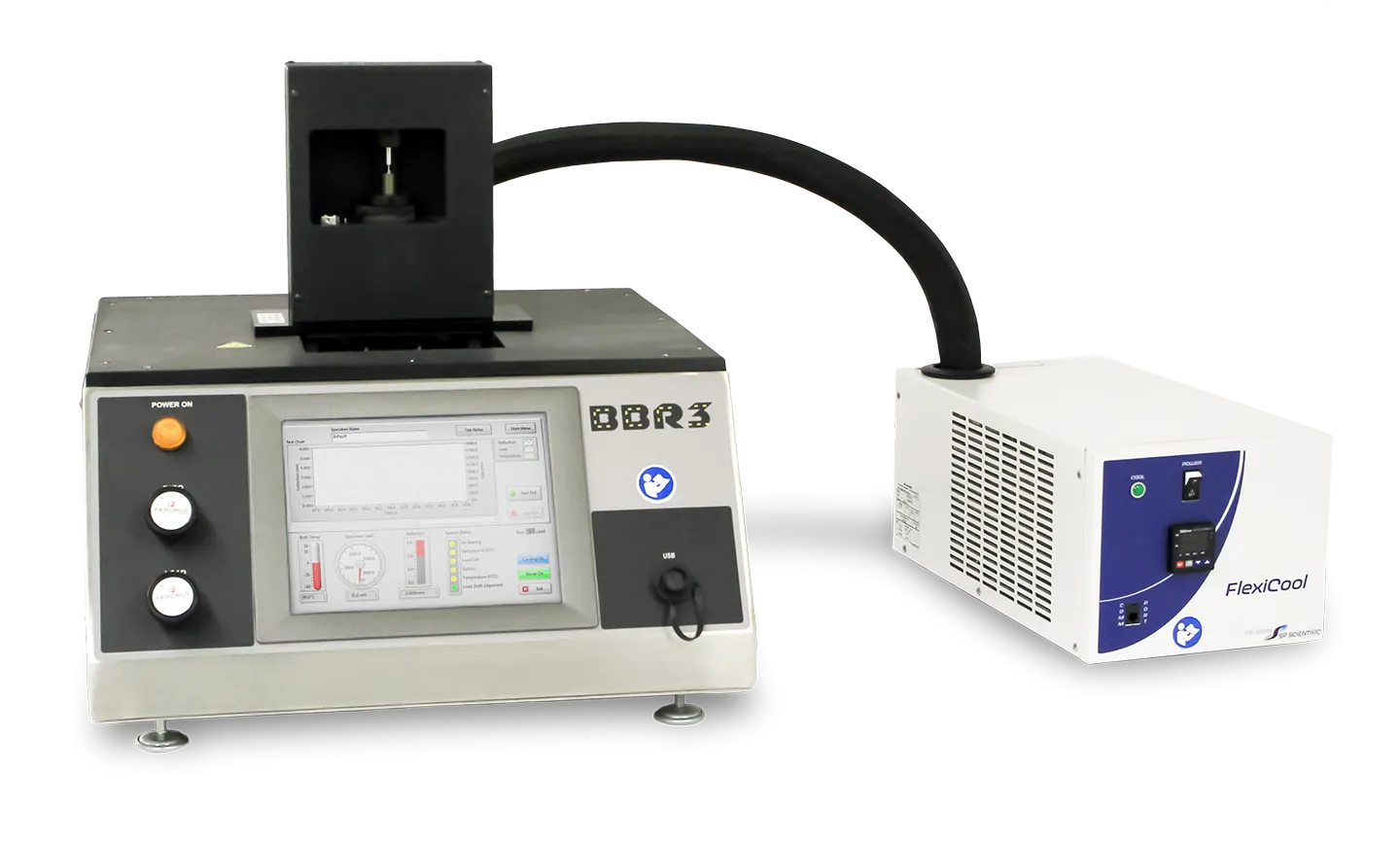

Complies with ASTM D6648, AASHTO T313 & TP87, EN 14771
Features
- Touchscreen controller with easy to use, step-through instructions
- Leveling legs
- Stainless steel, corrosion resistant construction
- 500 gram load cell with mechanical overload protection
- 0.25 in. Linear Variable Displacement Transducer (LVDT)
- NIST traceable platinum RTD
- Temperature Range: -40 - 25 ˚C
- Operating Temperature: Ambient to -40 ˚C
- Mechanical refrigeration system
- Cooling coil located in test bath. No pumping required.
- Programmable Test Parameters, Detailed Test Reporting
- Digital controls
- Out of tolerance indicator lights for: air bearing, LVDT, load cell, RTD, load shaft alignment & system check
- USB port on front and back of unit for upgrades and data downloads, as well as printer connection
- Ethernet capabilities
- Latest BBR software
- VNC Viewer- Remote monitoring capabilities with smart phone or tablet app
Unit Includes
- Calibration Kit
- (1) Step disk & Index, (4) 50 gram weights, (2) 2 gram weights
- Confidence Beam, Non-Compliance Beam
- Wood Storage Case
- Specimen Mold Kit for (5) Molds (also sold separately - See OV-9510)
- Aluminum Casing Bars, Mylar Strips, & Holding Bands
- 127 mm Length, with end piece location marks
- 6.4 mm Thick, 12.7 mm Wide
- Crack Sealant Mold Kit for (6) Molds
- Holding bands
- Aluminum bars, end pieces & plate:
- (12) 165.00 mm x 19.00 mm Side Bar
- (12) 12.70 mm x 19.00 mm Spacer Bar
- (6) 177.00 mm 13.00 mm Bottom Plate
- Stylus & Clip
NOTES
- A source of compressed air with a pressure of at least 60 psi is required for operation
- Non-flammable Ethylene Glycol mixture recommended for cooling bath fluid
Electrical Requirements 115V, 1ph, 50/60 Hz
Dimensions: 24 in. W x 23.5 in. H x 26.5 in. D
Weight: Approximately 148 lbs.
- OV-9400 (115 volt)
- OV-9450 (230 volt)
