Apeks MTX-R Sidemount Regulator Set
The MTX-R sidemount set is a super tough, rugged, high performance, go anywhere sidemount regulator configuration designed to meet the rigours of cold water and extreme sidemount diving. The MTX-R is highly reliable and also very easy to service out in the field which makes it an ideal choice for the expedition and exploration diver.

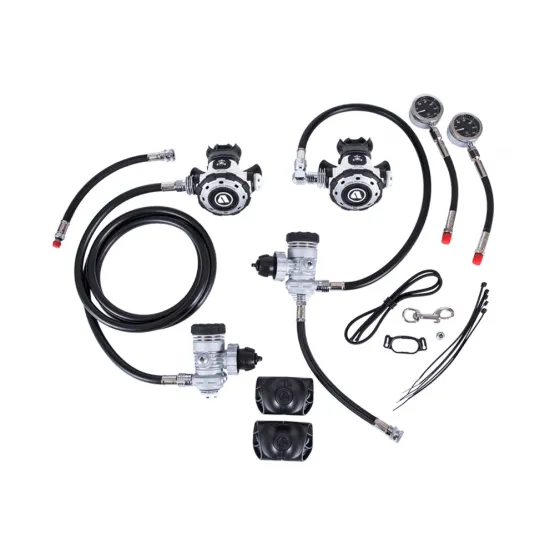

Kit Contents
- 2 ea. DPT DIN 1st stages with 5 port swivel turrets.
- 2 ea. MTX-R second stages.
- 210cm double swivel hose.
- 61cm double swivel hose
- 2 ea. 25cm length MP inflation hoses (one for buoyancy system, one for drysuit)
- 2 ea. TEK pressure gauges with 18cm hoses
- 1 ea. 90° elbow fitting
- 1 ea. bungee necklace
- 1 ea. bungee clip
- 1 ea. stainless steel bolt snap
- 2 sets of short exhaust ports
- Regulator bag
- Setup illustration, CD manual and quick start guide
- NOW INCLUDES THE NEW BUNGEE CONNECTOR SYSTEM
Technical Specifications
| Connections | DIN only |
| Type of first stage | Over-balanced diaphragm design, environmentally sealed |
| Body Type | Forged first stage body with heat exchanging ribs for maximum thermal performance. |
| Number of HP ports | 2 (7/16" UNF) per first stage |
| Number of MP ports | 5 (3/8" UNF) per first stage |
| Environmental Dry Kit | Standard |
| First stage exterior | Satin chrome |
| Orientation | Convertible LH or RH |
| Coldwater Use | Yes |
| Type of second stage | Pneumatically balanced |
| Opening Effort Control Knob | No |
| Integrated Venturi Lever | No |
| Mouthpiece | Comfo-bite™ |
| Exhaust tee | Diver Changeable - comes with 2 sets |
| Heat Exchanger for freezing resistance | Yes |
| Hose type | Rubber breathing hoses and braided flexi inflator hoses |
| Nitrox compatible | Yes to 40% O2 when new, out of the box / Can be O2 cleaned to 100%. |
| Gauge face | Tempered glass |
| Over-pressure relief on gauge back | Yes |
