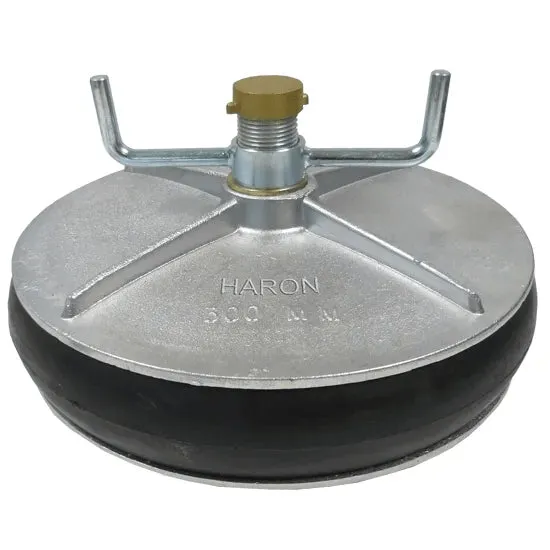

Aluminium Mechanical Test Plug 500 mm

This Aluminium Alloy Drain Test Plug expands to fit a variety of pipe dimensions within its range, offering effective sealing for leak testing, isolation, sealing, stopping, and weld purging. Sizes range from 1.5" to 36" (38 to 900 mm), making it ideal for many applications. The plug is easy to install by inserting it into the pipe or opening, then turning the brass wing nut clockwise. The rubber ring expands to provide a positive seal, and the cap at the end can be unscrewed to relieve back pressure buildup behind the plug.

Key Features:

• Part Number: MPA 500-50
• Start Range: 496 mm
• End Range: 539 mm
• Purge Port: 50 mm
• Max Back Pressure: 34 kPa – 5 psi
• Effective Sealing: Easy to insert and tighten using the wing nut and friction-free washers
• Material: Aluminium alloy with rubber ring for a positive seal

The Aluminium Mechanical Test Plug provides a simple, reliable solution for sealing pipes, pipe joints, and assemblies. It is widely used for testing and sealing water lines, ensuring leak-tightness and dependable performance in various industrial applications.
