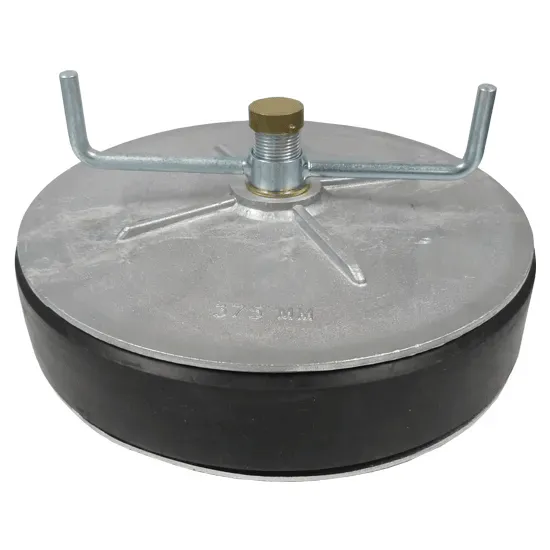

Aluminium Mechanical Test Plug 375 mm

This Aluminium Alloy Drain Test Plug expands to suit a variety of pipe dimensions within its range, offering effective sealing for leak testing, isolation, sealing, stopping, and weld purging. Sizes range from 1.5" to 36" (38 to 900 mm), making it ideal for a wide array of applications. Simply insert the plug into the pipe or opening, tighten the brass wing nut to expand the rubber ring, and create a positive seal. The cap at the end can be unscrewed to relieve back pressure buildup behind the plug.

Key Features:

• Part Number: MPA 375-25
• Start Range: 367 mm
• End Range: 416 mm
• Purge Port: 25 mm
• Max Back Pressure: 34 kPa – 5 psi
• Effective Sealing: Easy to insert and tighten using the wing nut and friction-free washers
• Material: Aluminium alloy with rubber ring for a positive seal

The Aluminium Mechanical Test Plug offers a simple, reliable solution for sealing pipes, pipe joints, and assemblies. It is widely used for testing and sealing water lines, ensuring leak-tightness and dependable performance.
