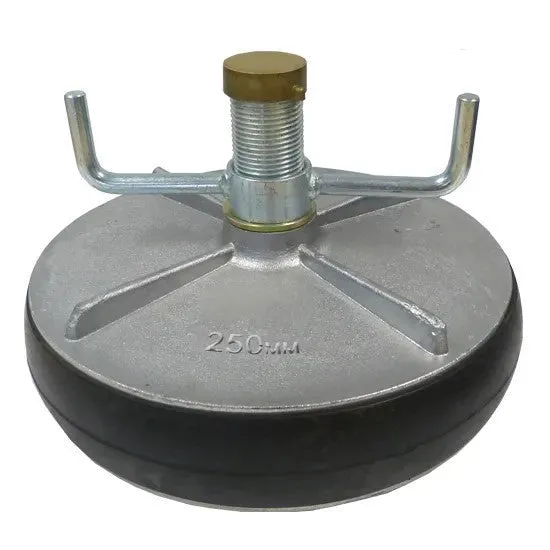

Aluminium Mechanical Test Plug 250 mm

This Aluminium Mechanical Test Plug is designed for effective pipe sealing, leak testing, and weld purging across various industries. The plug expands to suit pipes in the range of 238 mm to 272 mm. It's ideal for applications that require reliable sealing for isolation, stopping, and testing, with a purge port to relieve back pressure. Its simple design allows for easy insertion and tightening using a wing nut and friction-free washers. This plug is perfect for leak testing, isolating systems, and purging pipework.

Key Features:

• Part Number: MPA 250-25
• Start Range: 238 mm
• End Range: 272 mm
• Purge Port: 25 mm
• Max Back Pressure: 48 kPa – 7 psi
• Material: Durable aluminium alloy with rubber ring for secure sealing

This Aluminium Test Plug provides a reliable solution for sealing pipes, ensuring leak-tightness, and supporting industrial purging operations. Its design allows for easy adjustment and high efficiency in sealing and isolating pipes, making it a versatile tool for a wide range of applications.
