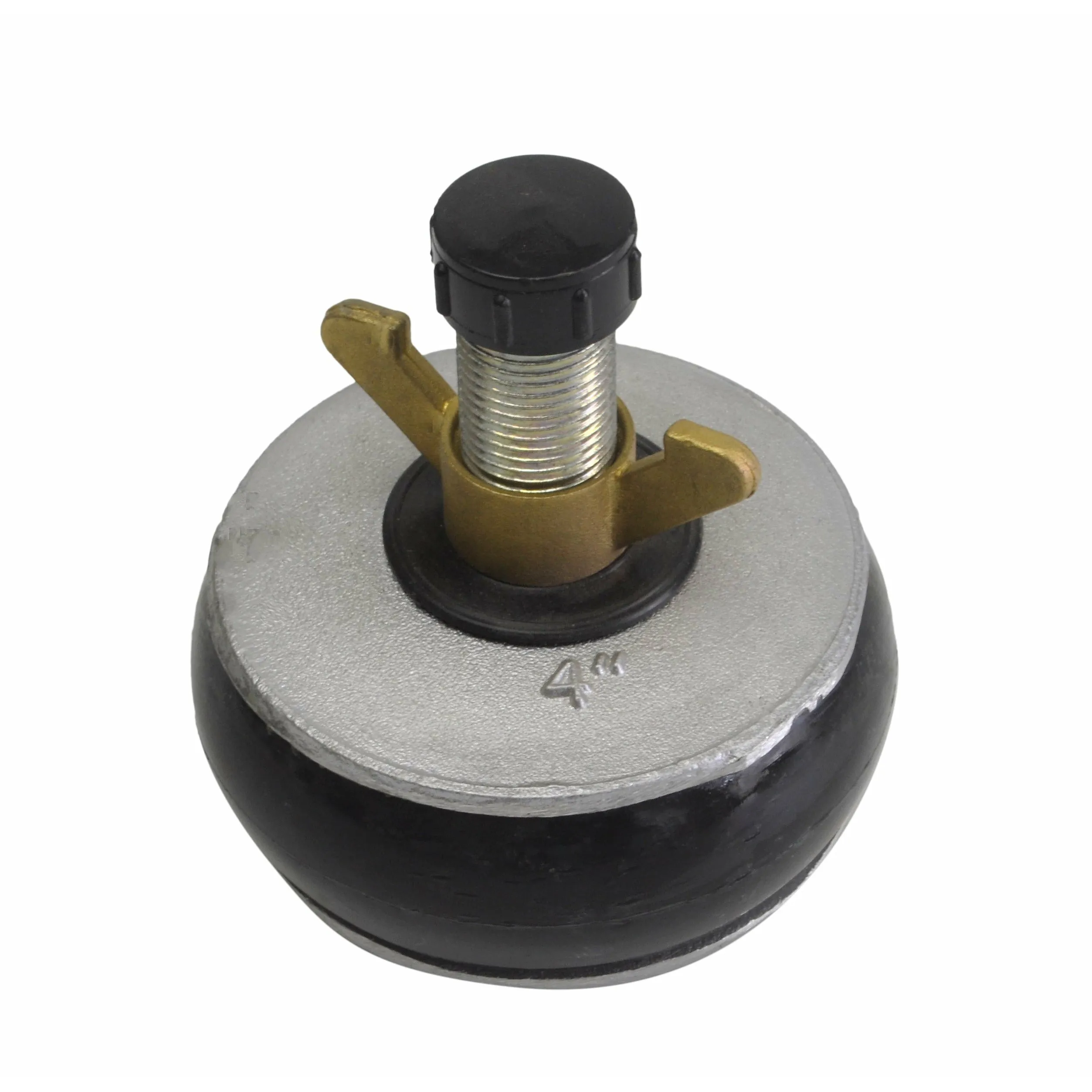

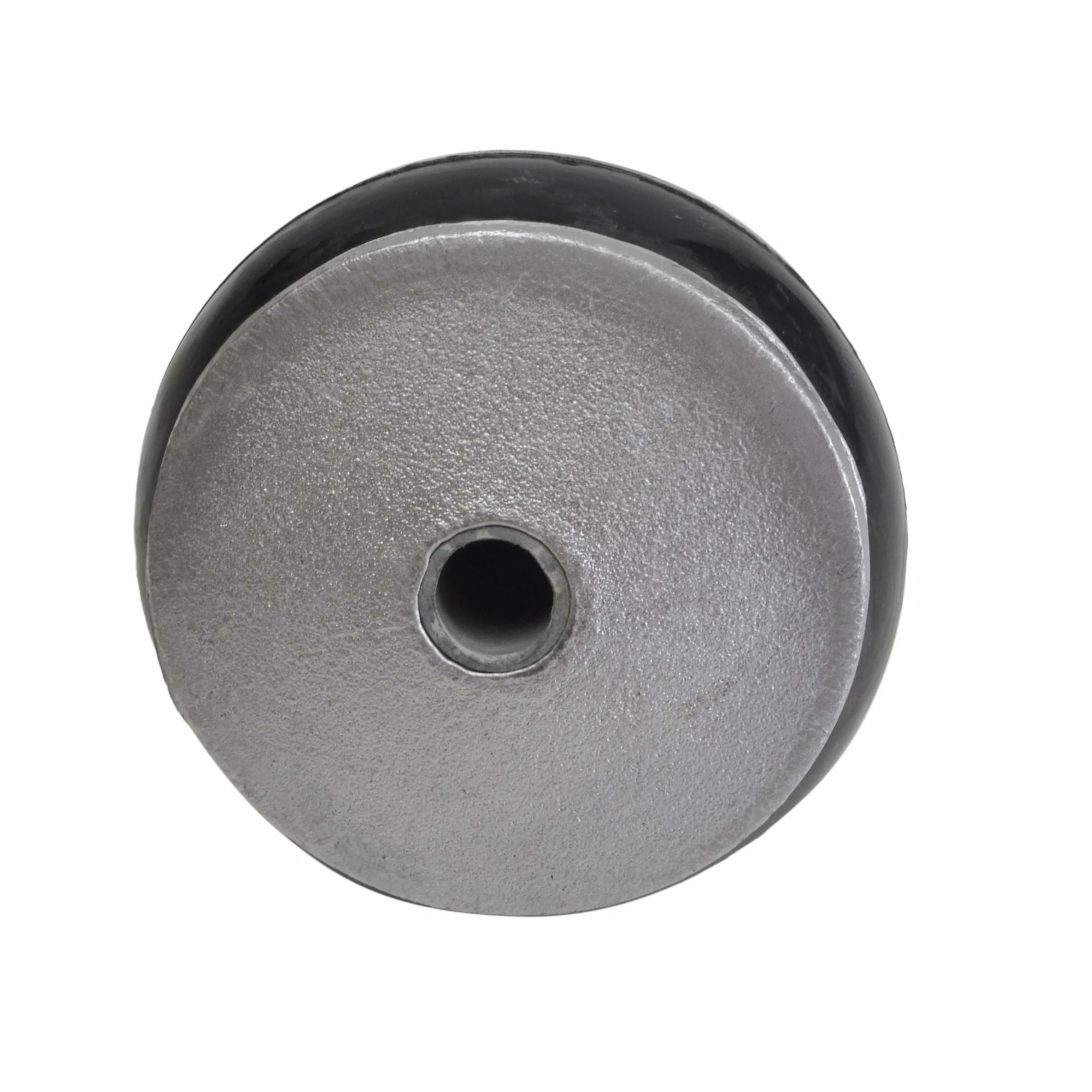

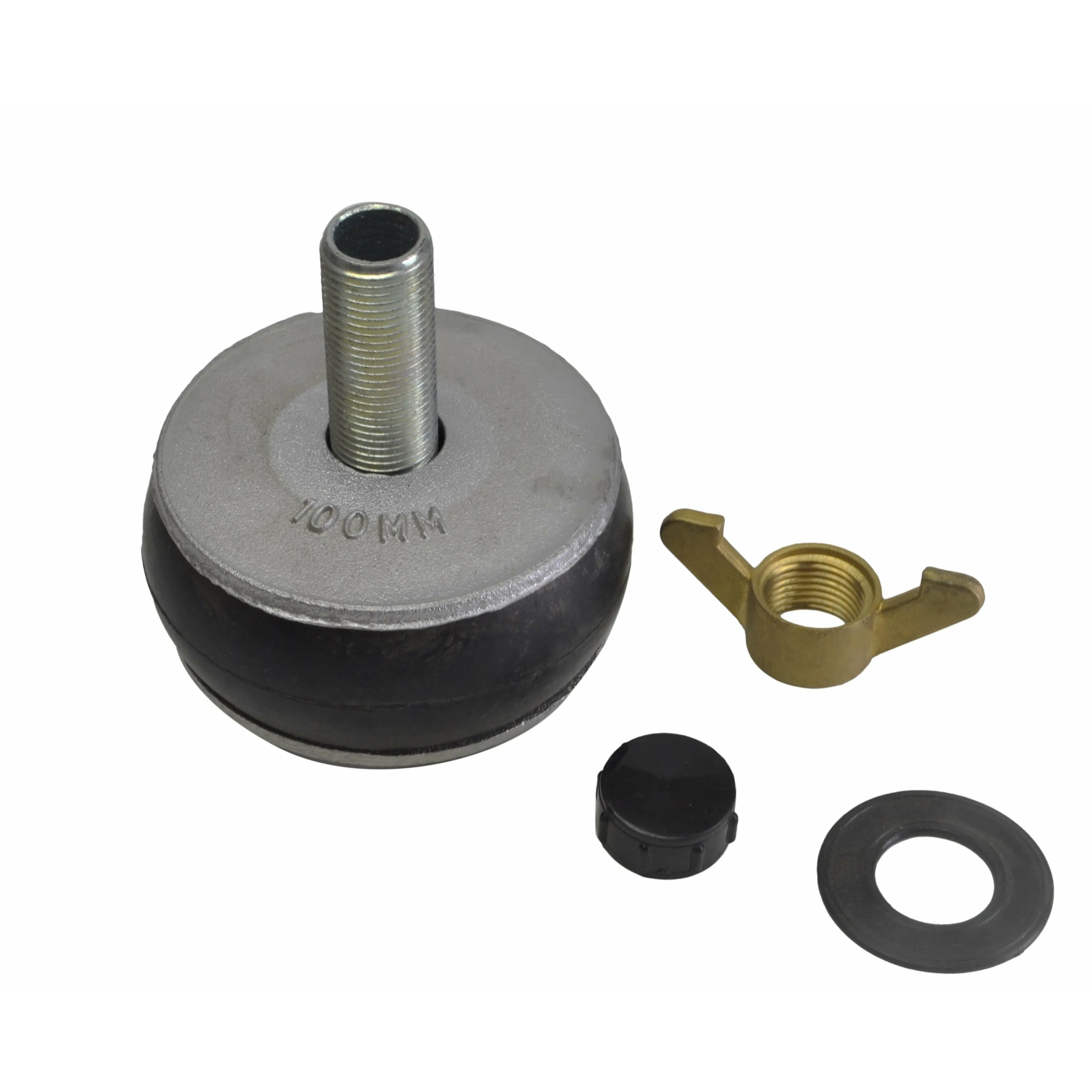

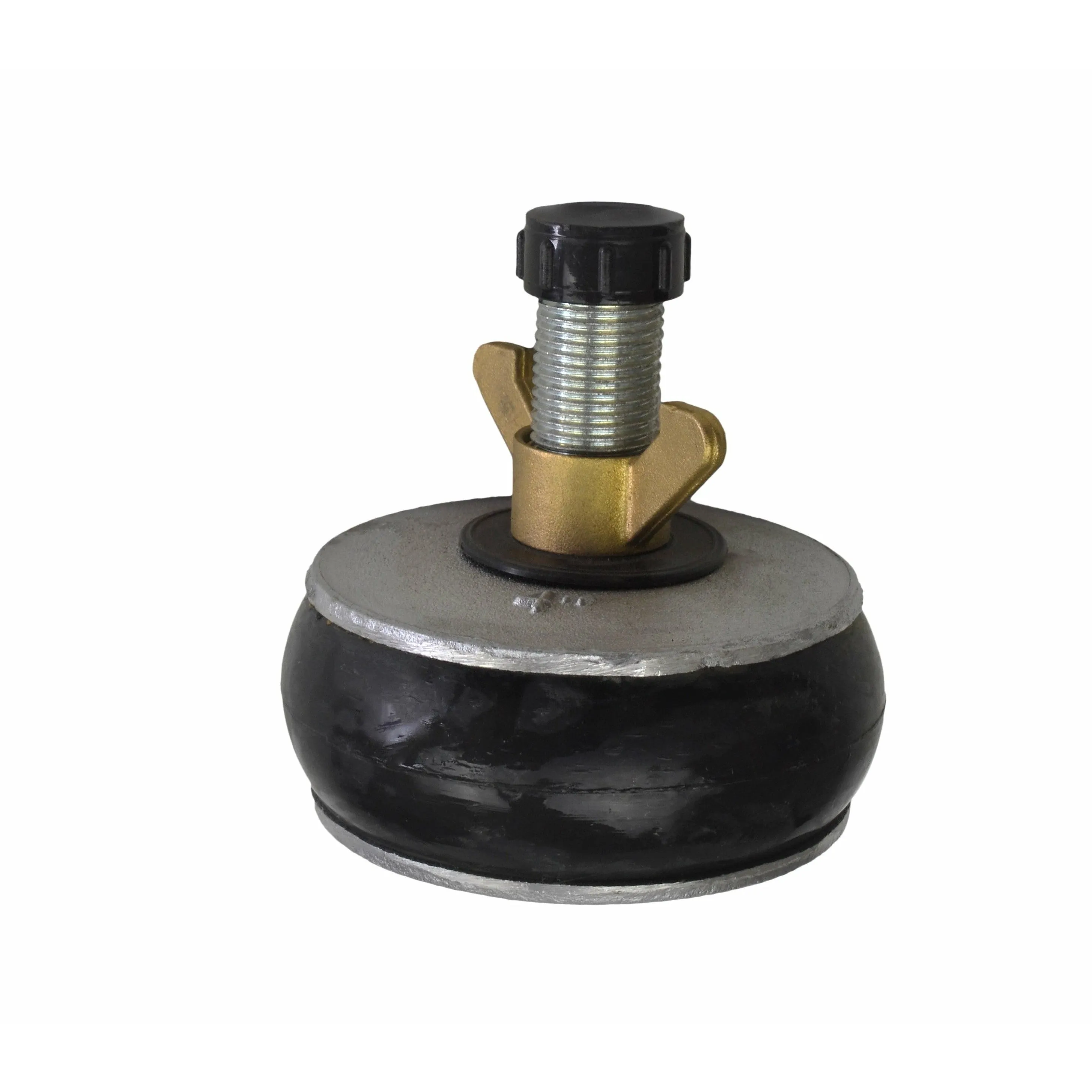

Aluminium Mechanical Test Plug 100 mm

This Aluminium Alloy Drain Test Plug expands to fit a variety of pipe dimensions within its range, offering effective sealing for leak testing, isolation, sealing, stopping, and weld purging. Sizes range from 1.5" to 36" (38 to 900 mm), making it ideal for a variety of applications. Simply insert the plug into the pipe and tighten the brass wing nut to expand the rubber ring and create a positive seal. The cap at the end can be unscrewed to relieve back pressure buildup behind the plug.

Key Features:

• Part Number: MPA 100-13
• Start Range: 94 mm
• End Range: 113 mm
• Purge Port: 13 mm
• Max Back Pressure: 69 kPa – 10 psi
• Effective Sealing: Easy to insert and tighten using the wing nut and friction-free washers
• Material: Aluminium alloy with rubber ring for a positive seal

The Aluminium Mechanical Test Plug provides a simple and reliable solution for sealing pipes, pipe joints, and assemblies. It is widely used in industrial applications to ensure leak-tightness and dependable performance.
