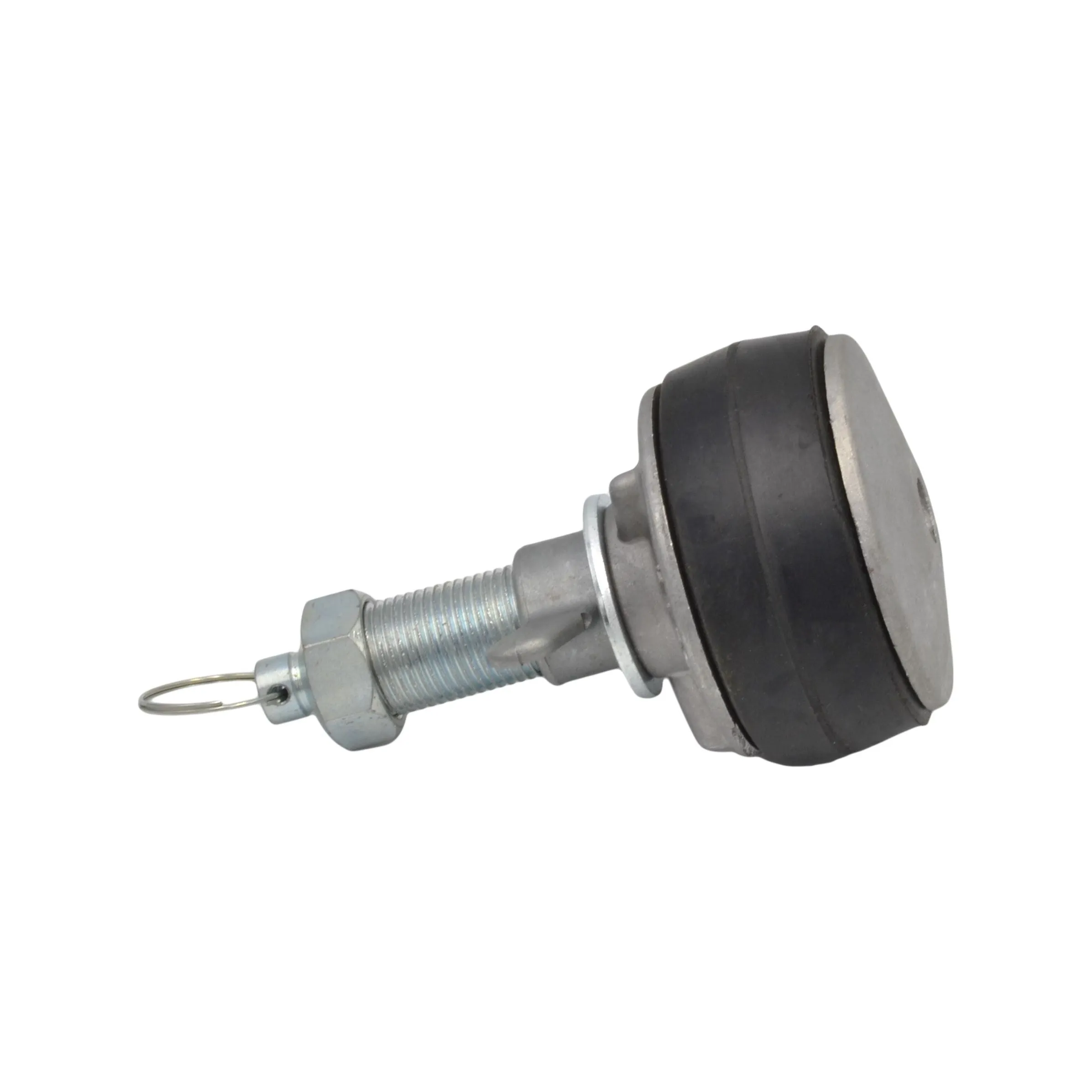

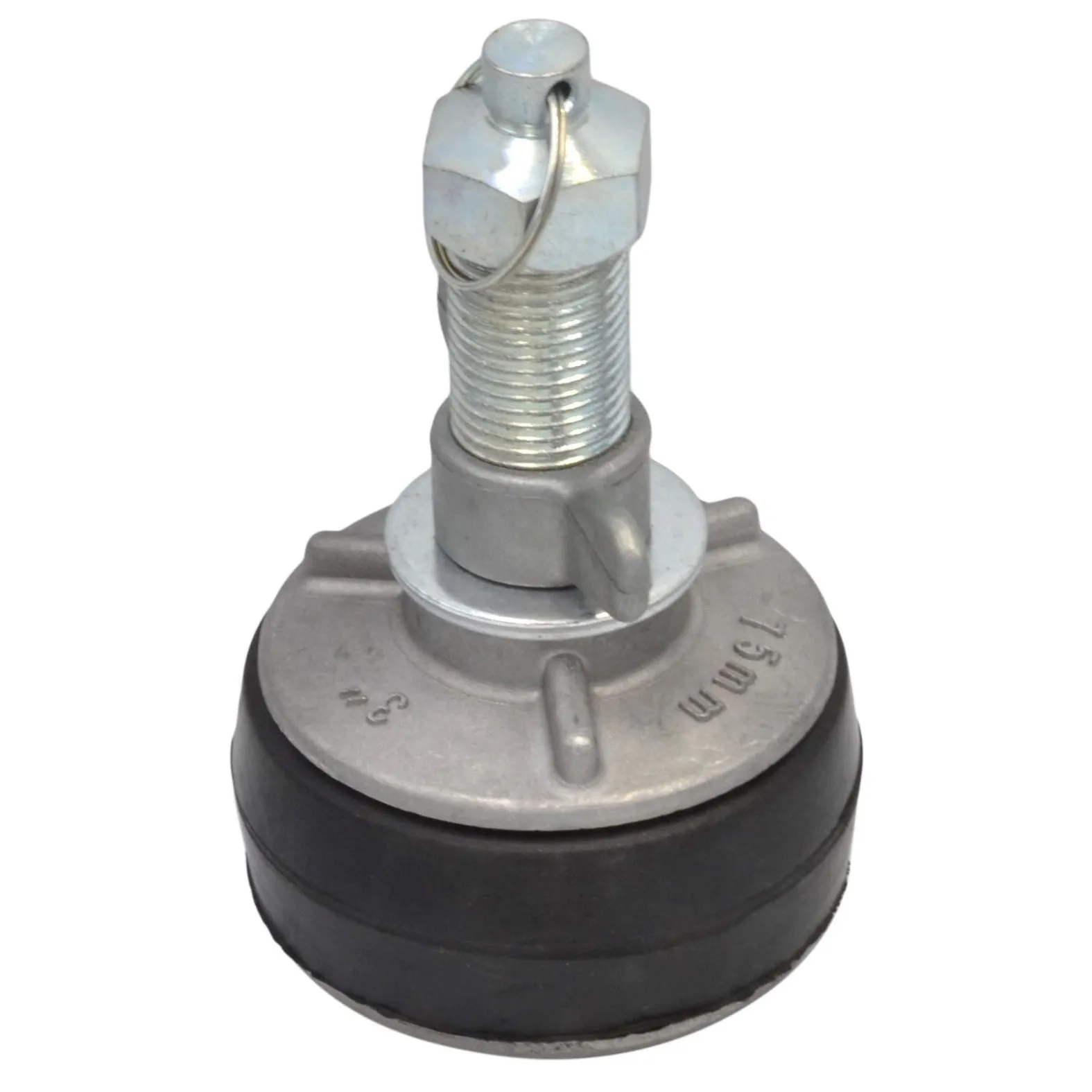

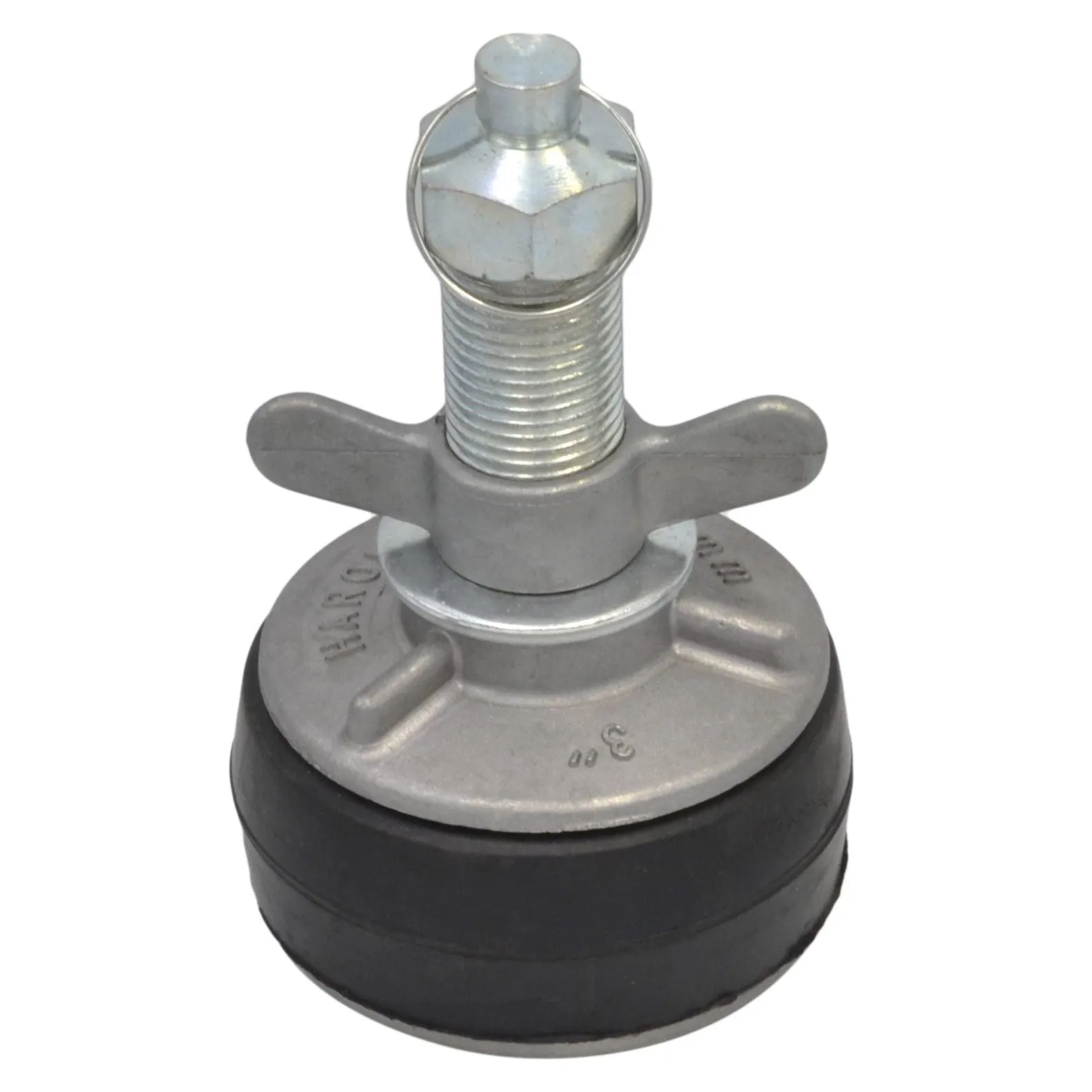

Aluminium Mechanical Test Plug

This Aluminium Alloy Drain Test Plug is designed to fit a range of pipe sizes, providing reliable sealing for leak testing, isolation, sealing, stopping, and weld purging. The plug expands to suit pipe dimensions from 1.5" to 36" (38 to 900 mm). Simple installation involves inserting the plug and turning the brass wing nut, causing the rubber ring to expand for a secure seal. The cap at the end can be unscrewed to relieve back pressure buildup behind the plug.

Key Features:

• Part Number: 203 MPA 75-13
• Start Range: 70 mm
• End Range: 89 mm
• Purge Port: 13 mm
• Max Back Pressure: 138 kPa – 20 psi
• Effective Sealing: Easy to insert and tighten using the wing nut and friction-free washers
• Material: Aluminium alloy with rubber ring for a positive seal

The Aluminium Mechanical Test Plug is an effective, reliable solution for sealing pipes and pipework, ensuring leak-tightness and dependable performance for industrial applications.
