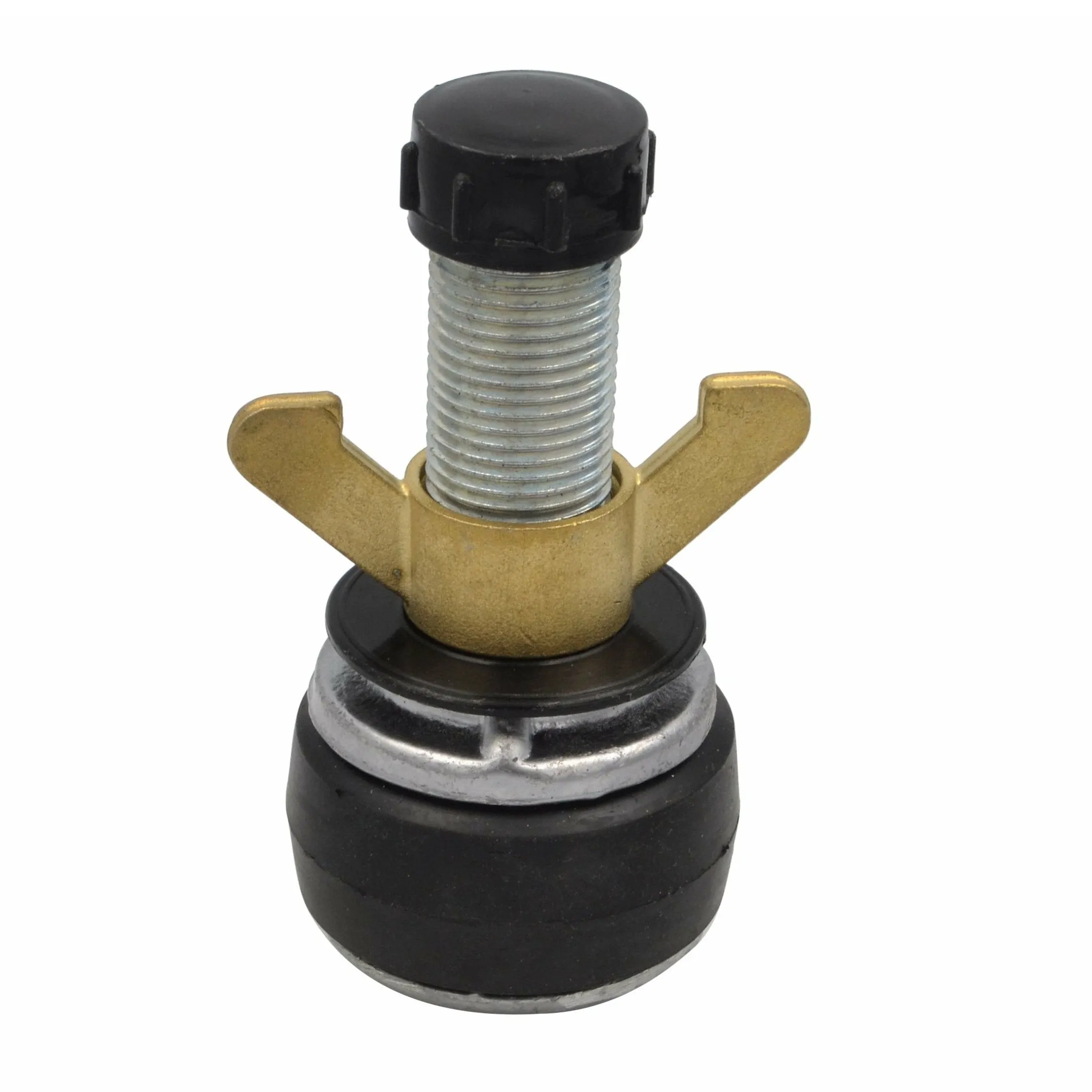

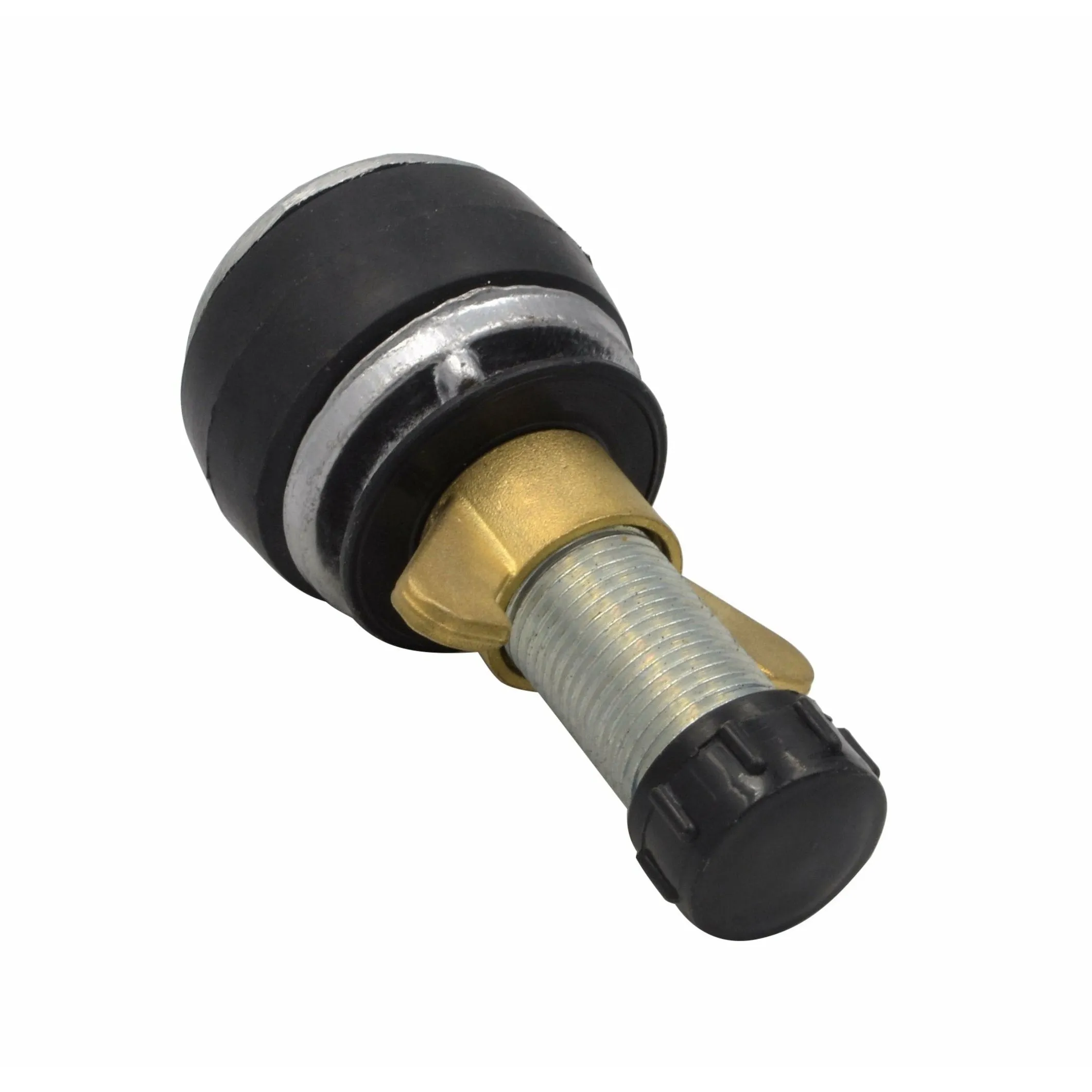

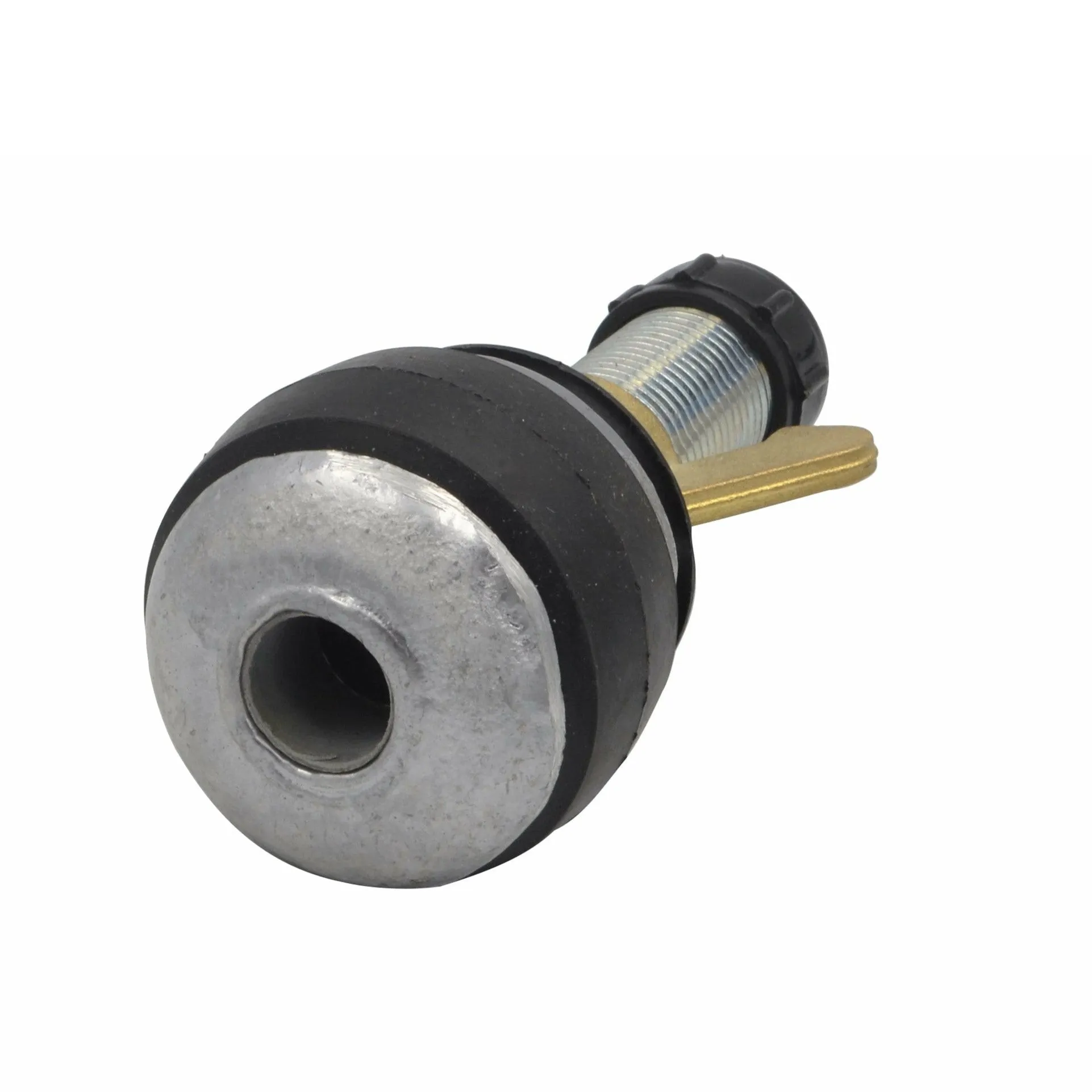

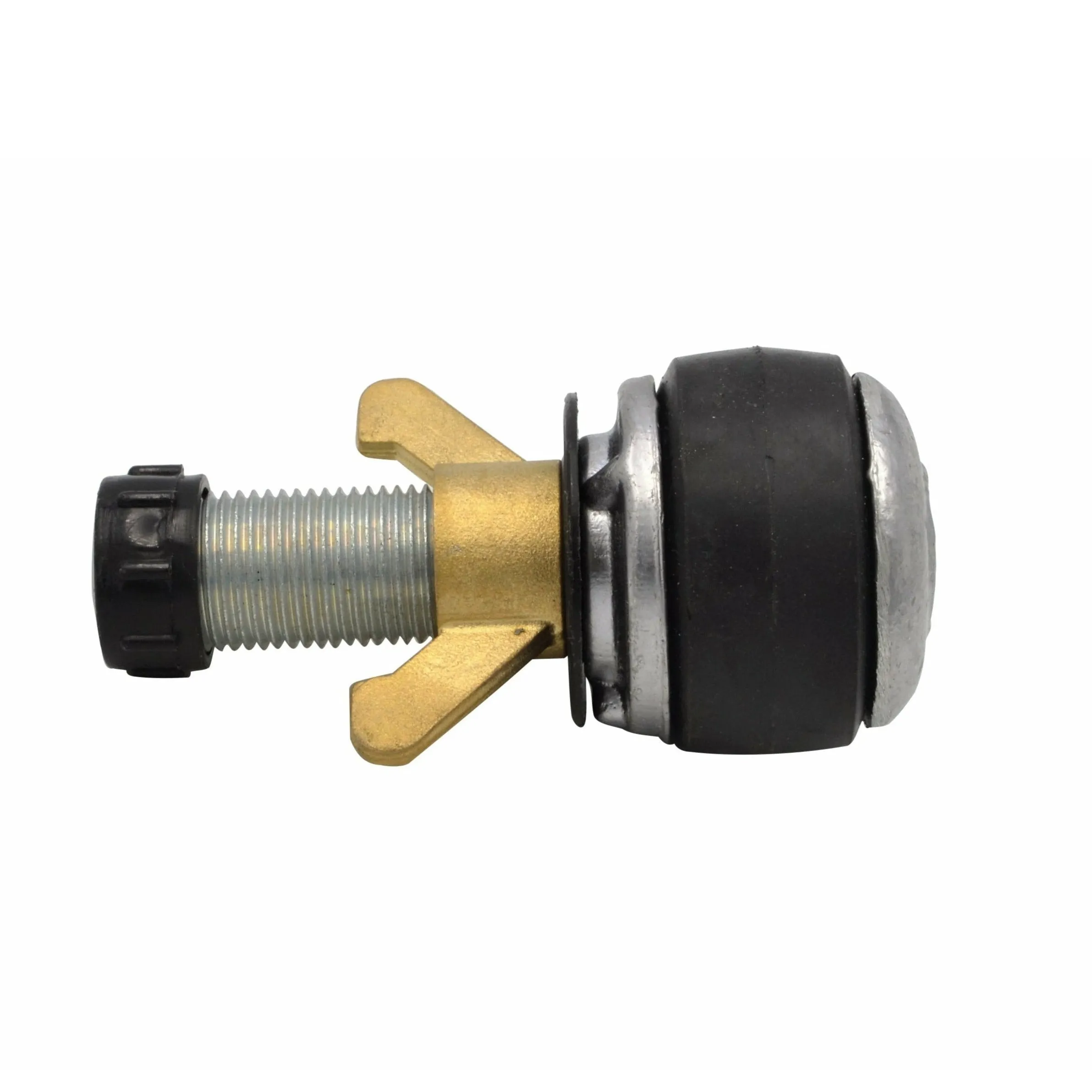

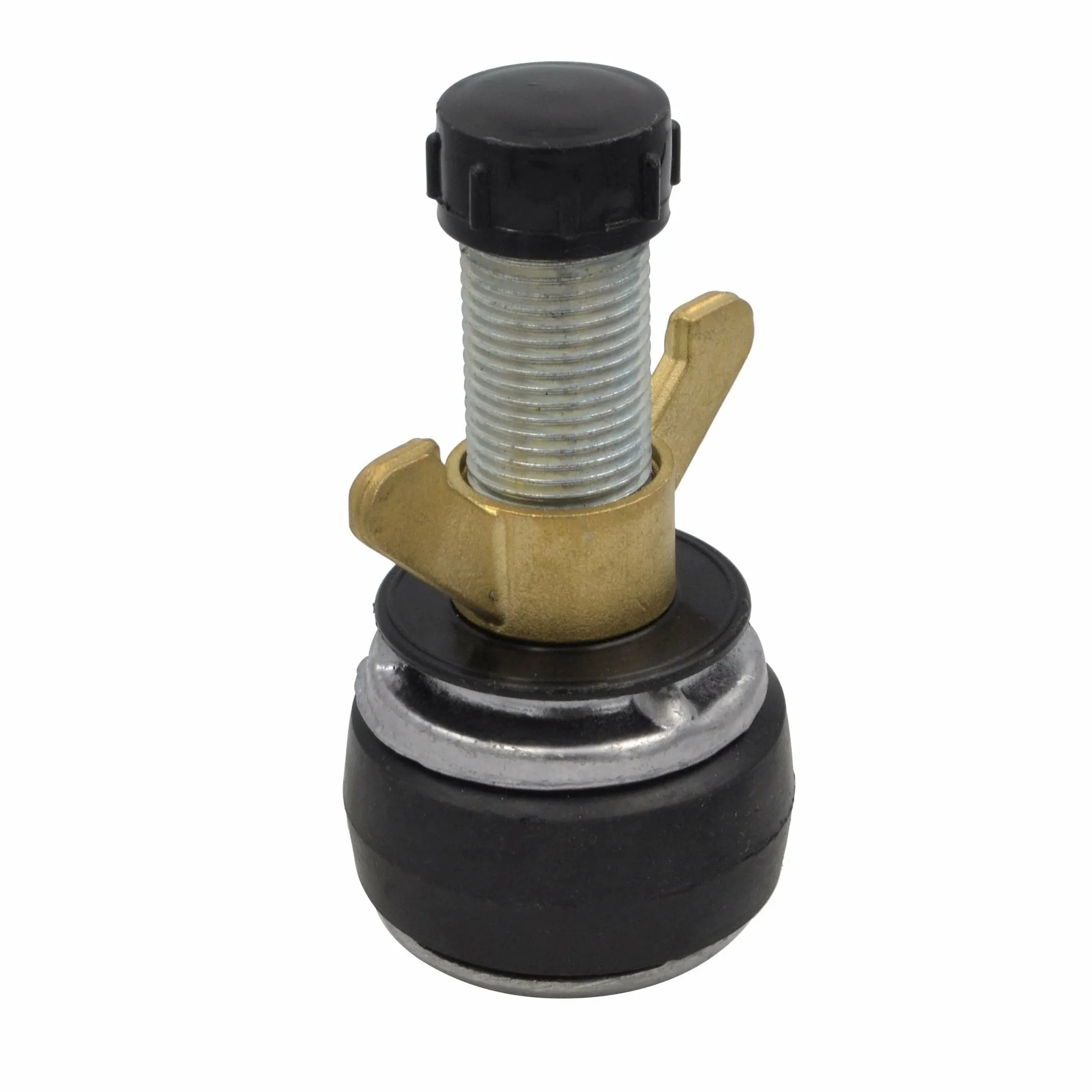

Aluminium Mechanical Test Plug 50 mm

This Aluminium Alloy Drain Test Plug expands to fit a variety of pipe dimensions within its range, offering effective sealing for leak testing, isolation, sealing, stopping, and weld purging. Sizes range from 1.5" to 36" (38 to 900 mm), making it ideal for a variety of applications. The plug is easy to install by inserting it into the pipe and turning the brass wing nut clockwise. The rubber ring expands to create a positive seal, and the cap at the end can be unscrewed to relieve back pressure buildup behind the plug.

Key Features:

• Part Number: MPA 050-13
• Start Range: 48 mm
• End Range: 62 mm
• Purge Port: 13 mm
• Max Back Pressure: 207 kPa – 30 psi
• Effective Sealing: Easy to insert and tighten using the wing nut and friction-free washers
• Material: Aluminium alloy with rubber ring for a positive seal

The Aluminium Mechanical Test Plug offers a simple and reliable solution for sealing pipes, pipe joints, and assemblies. It is ideal for leak testing and ensuring water lines are sealed securely for dependable performance.
