Aluminium Mechanical Test Plug 115 mm

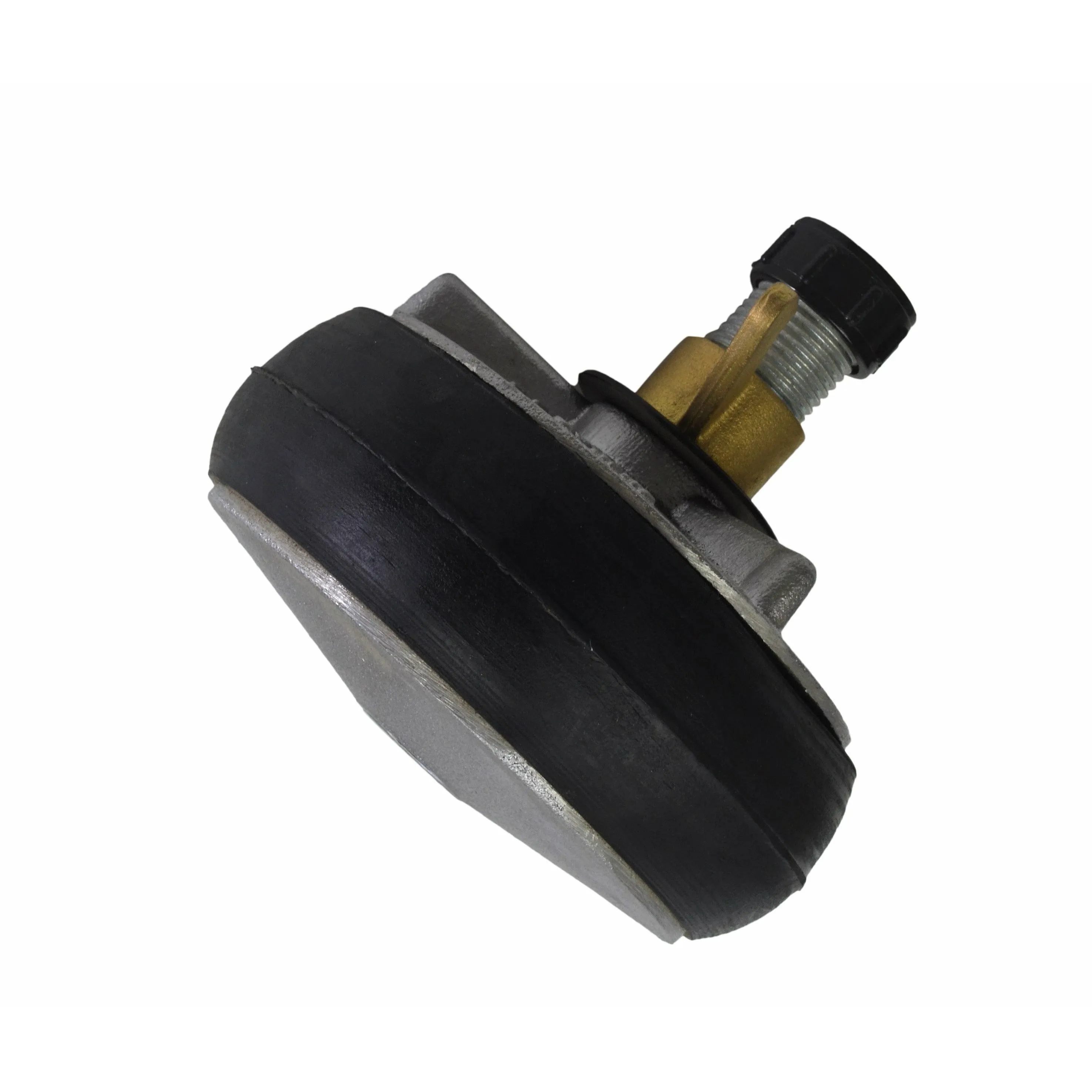

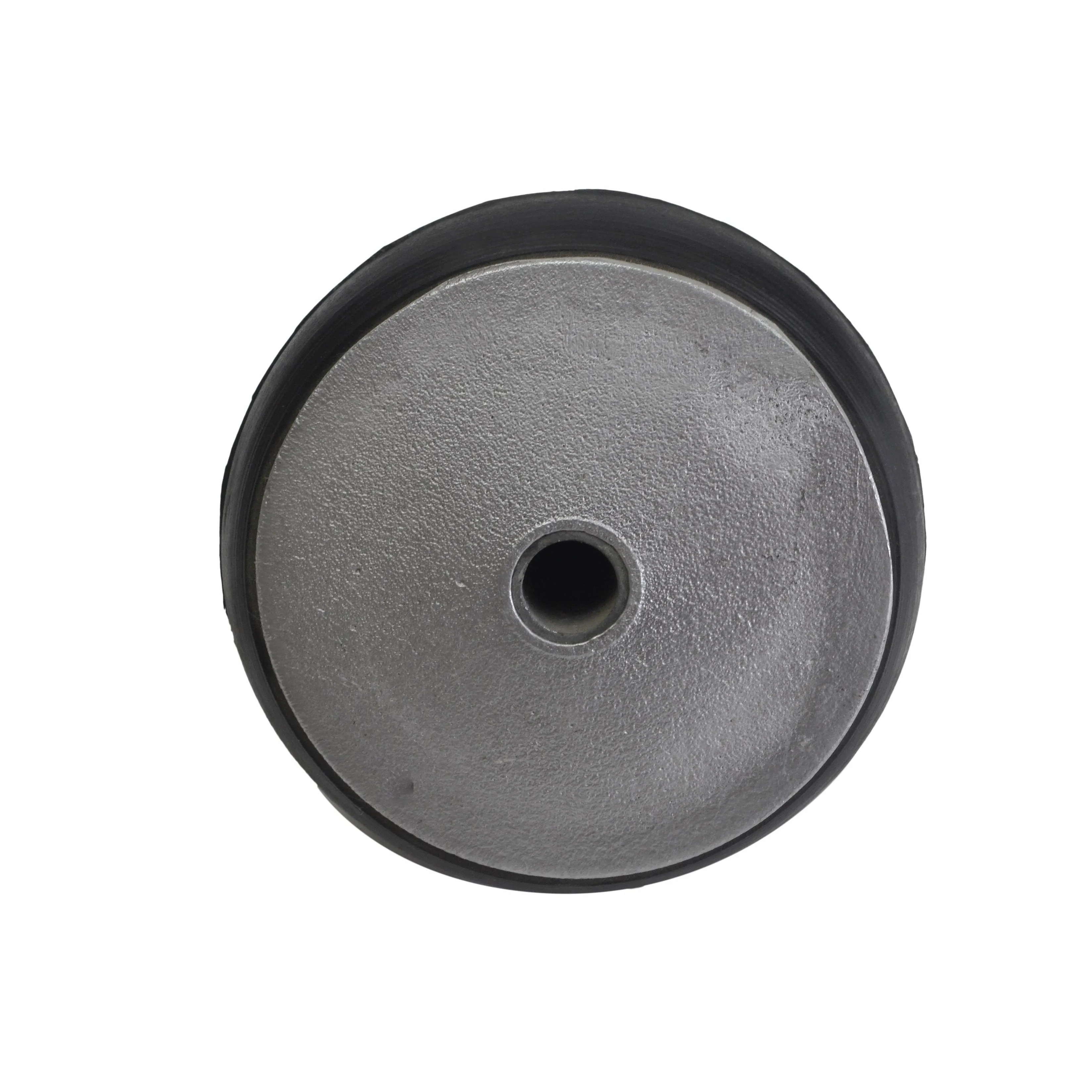

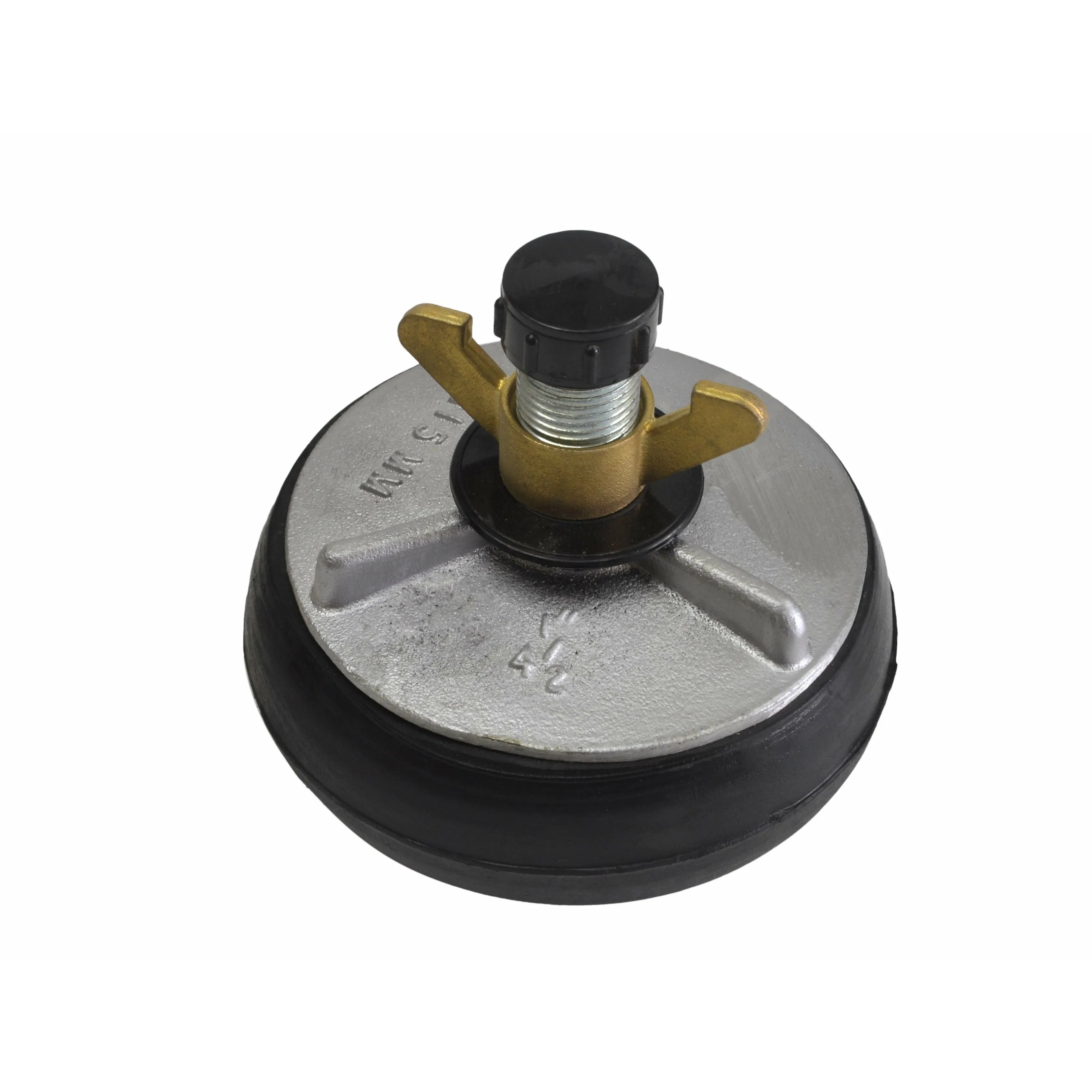

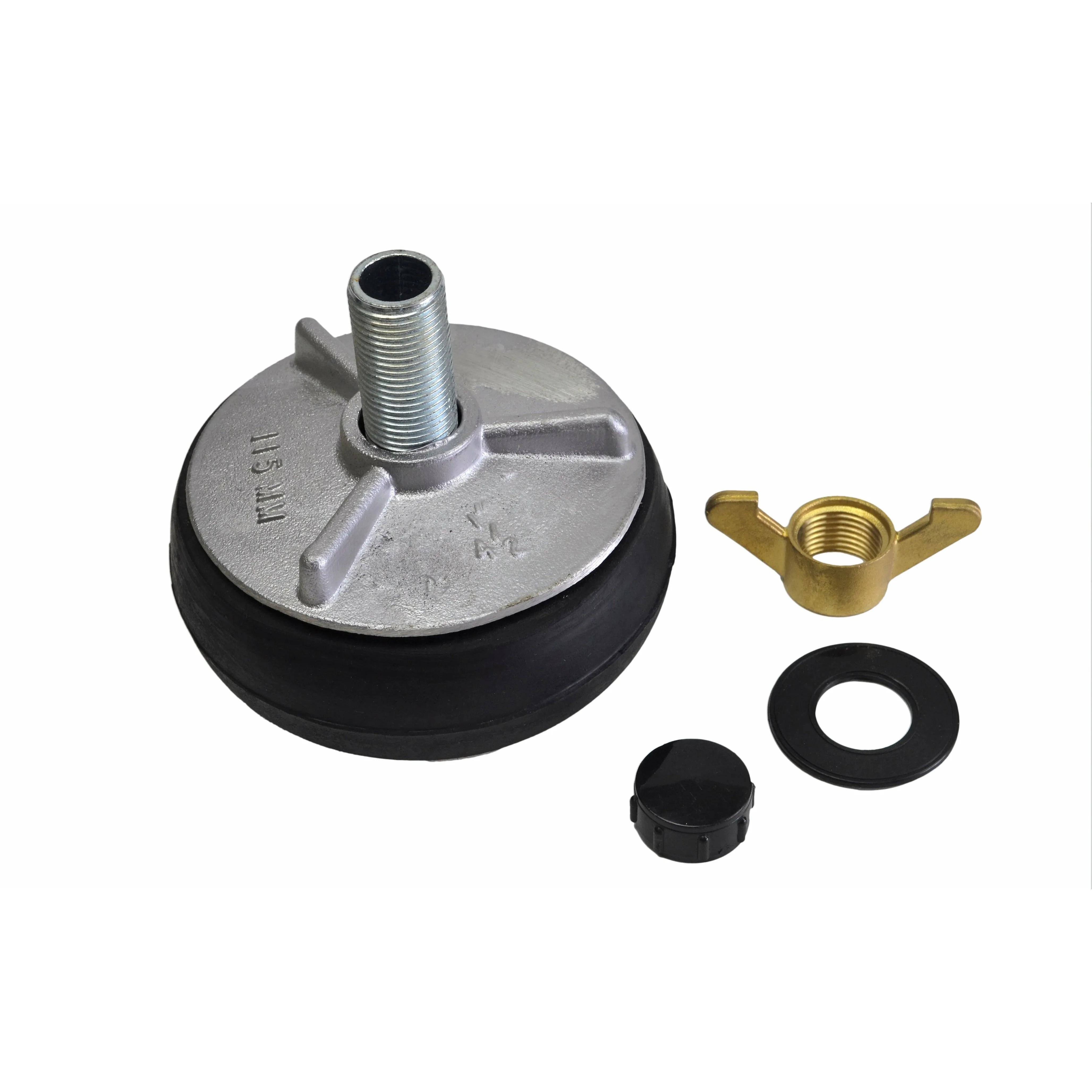

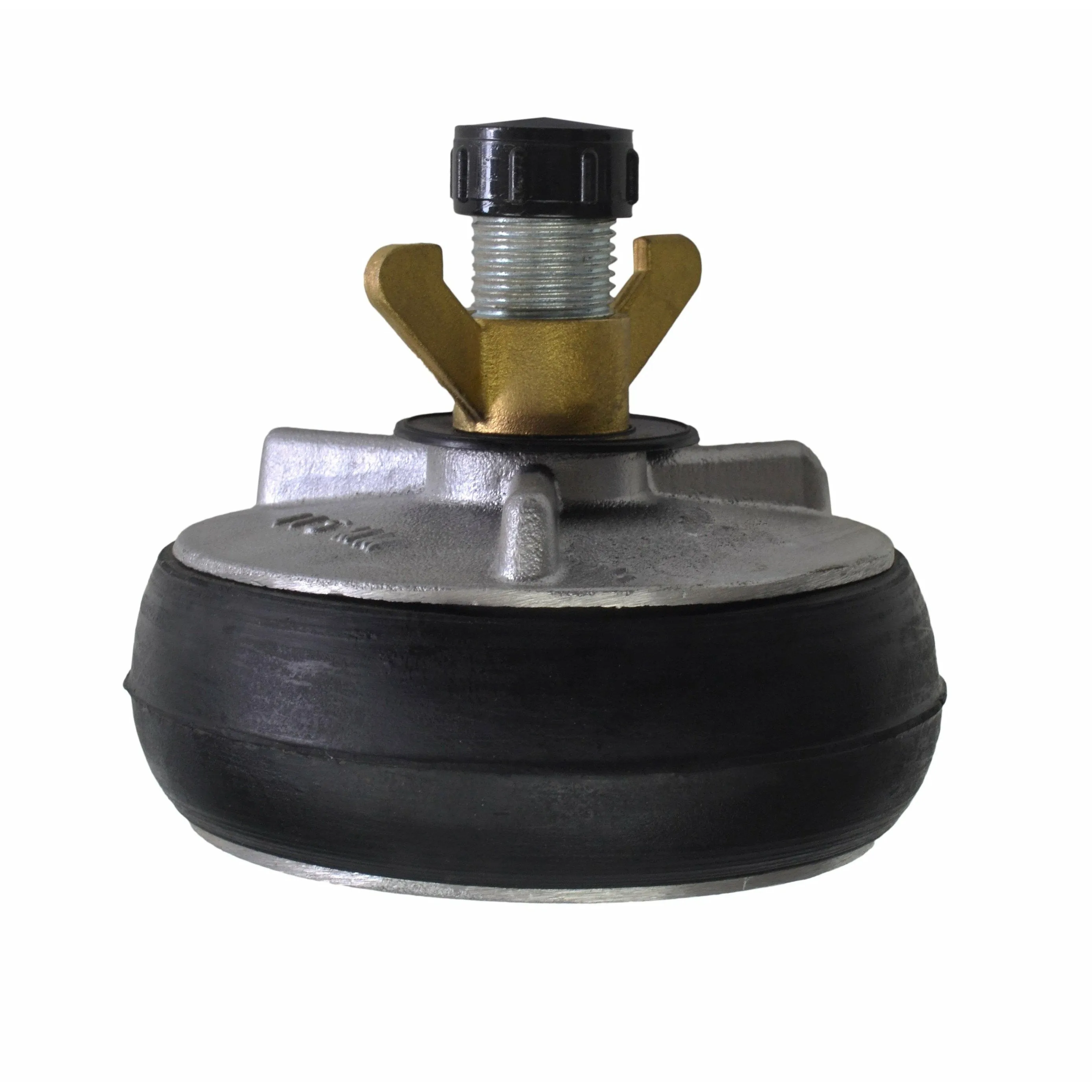

This Aluminium Alloy Drain Test Plug expands to fit a variety of pipe dimensions within its range, offering effective sealing for leak testing, isolation, sealing, stopping, and weld purging. Sizes range from 1.5" to 36" (38 to 900 mm), making it ideal for many industrial applications. Simply insert the plug into the pipe or opening and tighten the brass wing nut to expand the rubber ring, creating a secure seal. The cap at the end can be unscrewed to relieve back pressure buildup behind the plug.

Key Features:

• Part Number: MPA 115-13
• Start Range: 112 mm
• End Range: 130 mm
• Purge Port: 13 mm
• Max Back Pressure: 69 kPa – 10 psi
• Effective Sealing: Easy to insert and tighten using the wing nut and friction-free washers
• Material: Aluminium alloy with rubber ring for a positive seal

The Aluminium Mechanical Test Plug provides a reliable, simple solution for sealing pipes, pipe joints, and assemblies. It is ideal for testing and sealing water lines, ensuring leak-tightness and dependable performance in various industrial applications.
