Name: Aims Power 80 AMP MPPT Solar Charge Controller
SKU: 150241

Introducing the AIMS Power 80 AMP MPPT Solar Charge Controller! Are you tired of subpar solar charge controllers that just can't keep up with your energy needs? Look no further! Our smart tracking algorithm using MPPT technology guarantees a 97.5-99% efficiency rate, maximizing your energy harvest. And don't worry about Mother Nature throwing a curveball, our automatic tracking algorithm adjusts to changing weather conditions.

But we didn't stop there. Our charge controller also includes temperature compensation protection with the included battery temperature sensor. And with the ability to charge 12, 24, 36 and 48 volt solar systems, it's the perfect fit for any system design.

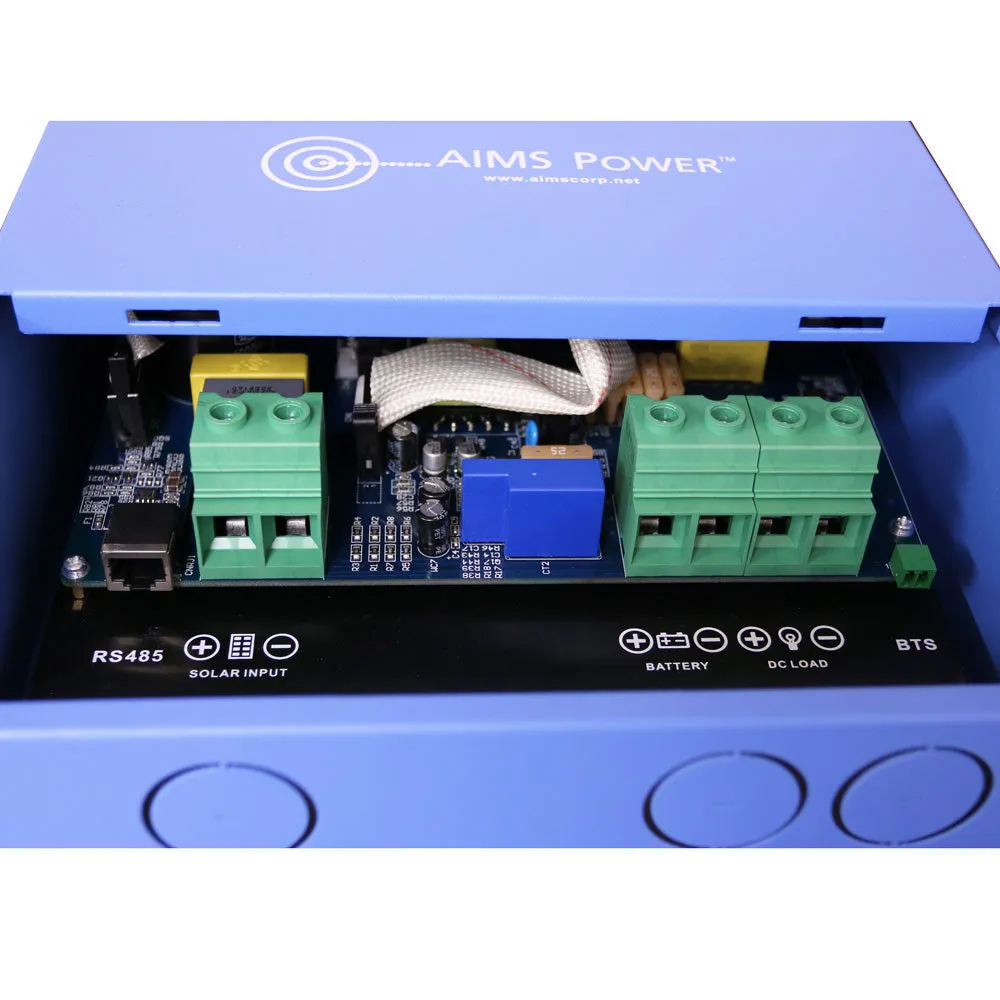

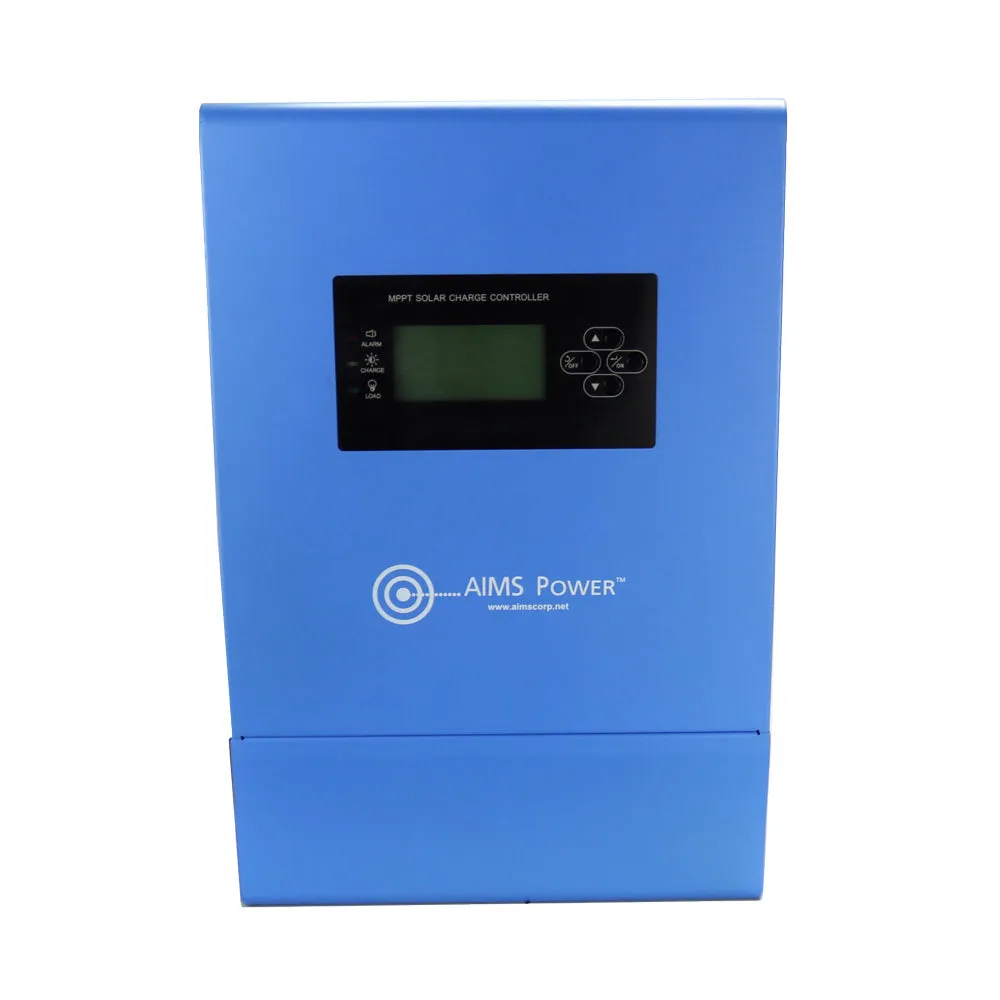

Our easy-to-read LCD display shows all the important information such as battery voltage and capacity, solar panel voltage and wattage, solar panel charging current, KWH produced, battery charge mode and DC load. And for those who like to tinker and make their own adjustments, the AIMS charge controller allows users to revise and set default parameters. Plus, with the added convenience of the RS485 connection block for computer monitoring of all charge controller functions, you'll always be in the know.

But don't just take our word for it. Here are some of the standout features of our AIMS Power 80 AMP MPPT Solar Charge Controller:

MPPT technology for maximum power point tracking and maximum available power from PV array to battery bank
Quality heatsink cooling - no fans needed and no thermal derating
Battery type selector and user defined charging voltage
4 stage charging with PV input, battery output and load control ports
Stackable and reliable electronics with over-engineered components generating less heat
Very efficient up to 99%
Low self consumption and thermal design rugged case
Over temp protection, overload, short circuit, high and low voltage protection
RS485 port for computer monitoring
CE, ETL to UL1741 and RoHS compliant and marine coated

And with a 2 year warranty and certifications from ETL to UL1741, CE, RoHS and CETL, you can trust the quality and durability of our AIMS Power 80 AMP MPPT Solar Charge Controller. So why wait? Upgrade your solar system today!

ELECTRICAL
PV Operating Voltage:

15-150Vdc@12V
34-150Vdc@24V
50-150Vdc@36V
60-150Vdc@48V

Rated PV input:

12V – 1200 Watts
24V – 2400 watts
36V – 3600 watts
48V – 4800 watts

Maximum charging current: 80 amps
Maximum DC load current: 60 amps
Max PV open circuit voltage: 150Vdc
Self power consumption: <4 watts
Efficiency: 98.5%
Protections: overload, short circuit, high voltage, high temperature, low voltage and auto correct
Monitoring: RS485 port for computer monitoring
Optimal cooling case design – built for extreme conditions

CHARGING

Battery types: gel, sealed, AGM, flooded, lithium, user defined (adjustable voltage)
4 Stage charging: bulk, absorption, float and equalize
Bulk charge voltage: sealed 14.4V, AGM/gel 14.2V, flooded 14.6V, user defined 10-15V
Float charge voltage: sealed/AGM/gel 13.7V, flooded 13.6V, user defined 10-15V
Equalize charge voltage: sealed 14.6V, AGM/gel 14.8V, flooded 14.8V, user defined 10-15V
Low voltage reconnection: 12.5V
Low voltage disconnect voltage: 10.5V (10.5-12.5V adjustable)
