Lightweight 6061
Alloy Frame
Shimano 8-Speed
Drivetrain
Tektro Hydraulic
Disc Brakes
SR Suntour
NVX Fork

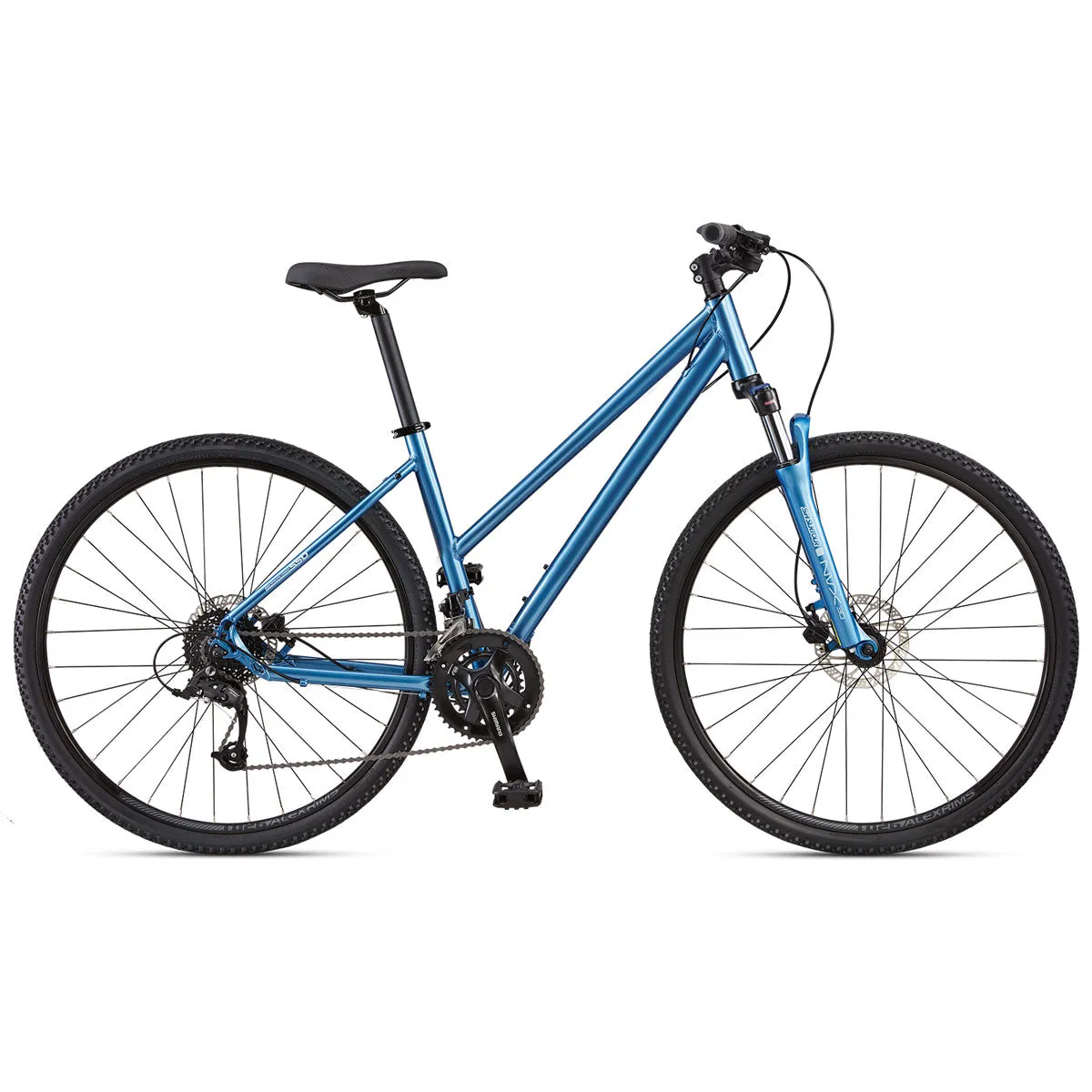

Lightweight 6061 Alloy Frame
Go faster for less effort with a stiff, lightweight alloy frame. The step over design allows for quick and simple mounting and dismounting.
Smooth Suspension
Experience a smoother ride no matter the terrain with the SR Suntour NVX HLO fork. This suspension fork will help absorb bumps and keep you in control.
Shimano 8-Speed Drivetrain
The 8-Speed Shimano drivetrain provides smooth and reliable gear shifting that will allow you to adapt to any incline.
Strong Stopping Power
Experience smooth and consistent braking with the Tektro hydraulic brakes. These high-performance brakes are reliable and built to last.
The Blueprints
An awesome package with the following components:
- A. Lightweight 6061 Alloy Frame
- B. Shimano FD-TY710-2 Front
- C. Tektro Hydraulic Disc Brakes
- D. Shimano 8-Speed Drivetrain
- E. Double Wall Alloy Rims
- F. Suntour NVX HLO Suspension Fork
Where to ride?
Specification
Technical Specifications
| Frame | Size Specific Design 6061 alloy with fast back rear triangle, 1 1/8” head tube, internal cable routing, chain stays disc brake mounts, 34.9mm seat tube, kickstand mount, replaceable derailleur hanger, fender/rack eyelets and ring lock mount eyelets. |
|---|---|
| Fork | SR/Suntour NVX HLO, alloy lowers, coil spring, 28mm stanchions, 1-1/8” steerer, alloy crown, hydraulic lock out, 75mm travel |
| Headset | Internal Cup, threadless, 1 1/8” |
| Wheels | Alex TD26 disc specific double wall alloy rims, 36H, alloy disc hubs with QR and 14g black electroplated spokes |
| Tires | CST Dual Sport Tire, 700 x 42c |
| Derailleurs | Shimano Acera RD-M360 rear and Shimano FD-TY710-2 front |
| Shift levers | Shimano Altus Rapid Fire SL-M315, 16-speed |
| Chain | KMC Z7 |
| Cassette | Shimano HG31, 8-speed, 11-34T |
| Crankset | Shimano FC-TY501-2, 46/30, 170mm |
| BB Set | VP sealed cartridge, 68 x 122.5mm |
| Pedals | Platform style |
|---|---|
| Brakeset | Tektro HD-276 hydraulic disc brakes with 83mm reach, 160mm rotors and Tektro brake levers. |
| Handlebar | Riser bar, double-butted alloy, 25.4 x 10 ? sweep x 20mm rise x 640mm (14-18”), 660mm (20”) |
| Stem | Trekking, 3D forged alloy, 15 ? rise, Length-60mm |
| Grips | ERGO Type Grip |
| Seat Post | Alloy micro-adjust, 31.6 x 350mm alloy clamp with QR seatpin |
| Saddle | Touring Women’s with SL cover |
| Sizes | LST 14”, 18” |
| Color | Blue |
| Weight | Approx. 14kg |
Bike Size Guide
| Frame Size Number | 14" | 18" |
| A - Seat Tube | 35.56cm | 45.72cm |
| B - Seat Tube Angle | 70° | 70.5° |
| C - Head Tube Length | 12.5cm | 13.1cm |
| D - Effective Top Tube | 55.7cm | 55.7cm |
| E - Chainstay Length | 44cm | 44cm |
| F - Wheelbase | 105.7cm | 105.7cm |
